Extension Lead 3 Pin 20 Amp Round Pin Straight Plug 2 metre Standard Duty 2.5mm cable 240V

Description

Single phase 20 Amp power, built for the job site.

A 3 pin round 20 Amp extension lead carries 240V single phase power through an active, a neutral and an earth. Choose Standard or Heavy Duty cable from 2m to 60m, GEN3 or Clipsal fittings and a straight or angled plug; every lead is tested and tagged.

High quality extension lead:

• Extension Lead 3 Pin Round 20 Amp 240V
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.

Choose your configuration:

• Available in lengths (m): 2, 3, 5, 10, 15, 20, 25, 30, 40, 50, 60 (Note: configurations may not offer all length options due to component availability or electrical characteristics)
• Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20°C (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
  • Standard: CSA 2.5mm2, NST 1.8mm, MaxR 8.21, NOD 12mm, Amps 27 (lengths 2m to 40m)
  • Heavy Duty: CSA 4mm2, NST 1.9mm, MaxR 5.09, NOD 13.4mm, Amps 36 (lengths 2m to 60m)
  • Extra Heavy Duty: Not available (due to plug / socket neck size limitation)
• Cable used to assemble some leads may occasionally vary based on availability at time of ordering. Electrical properties will be equal or better, with some physical attributes differing slightly (eg nominal diameter being larger by 10-15%).
• Typically used at events & temporary cabling, fairgrounds, sporting venues, for generators / motors / compressors / construction applications including portable equipment such as concrete cutting.

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets i.e. 3 Pin Round 20A, 3 Pin Flat 20A, 3 Pin Round 32A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

• All Plugs and Sockets are source from high quality reputable Australian brands, are IP66 rated and are compatible with all leading Australian switch gear.
• Choose from our regular high quality GEN3 plugs and sockets, or upgrade to industry leading Clipsal gear (available on some product options only)
• Angled plug option available with Clipsal switch gear only; GEN3 leads are fitted with a straight plug.

Cable Properties:

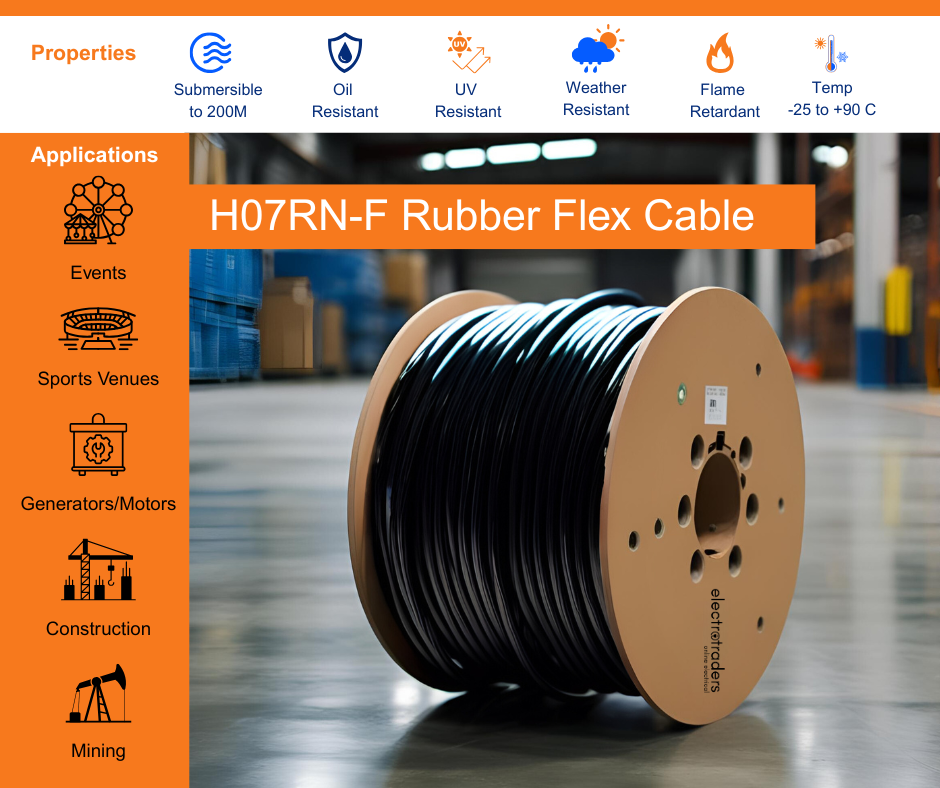

• Leads are assembled using Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV

Buy online now for fast dispatch Australia-wide.

Two switch gear options, both sealed to IP66. Standard leads use GEN3 fittings with virgin-grade PCA18 bodies, 316 stainless steel springs and screws and brass internals of greater than 85% copper. The Clipsal upgrade fits a 56 Series polycarbonate plug and socket rated for -25 to 75°C, in a straight or angled plug. Between them runs H07 rubber flex that resists UV, oil and weather and is submersible to 200m.

Standard or Heavy Duty? Standard 2.5mm² cable is rated at 27 Amps under AS/NZS 3008.1.1.2009 Table 14, above the 20 Amp rating of this lead, and runs up to 40m. Heavy Duty 4mm² cable (36 Amps) cuts maximum DC resistance from 8.21 to 5.09 ohms/KM for less voltage drop, and is the only grade at 50m and 60m.

Built and test tagged in Brisbane. Licensed Australian electricians assemble each lead at our Rochedale QLD warehouse, then test and tag it before it ships, with a 24 month warranty behind every order. We deliver Australia-wide and offer click and collect for local customers. For a custom length or a bulk order quote, call 1300 017 197.

Q: What is a 3 pin round 20 amp extension lead used for?
A: It runs 240V single phase power to equipment fitted with a 3 pin round 20A plug, such as motors, compressors and portable construction gear including concrete cutters, and provides temporary cabling from generators at events, fairgrounds and sporting venues.

Q: Should I choose Standard or Heavy Duty cable?
A: Standard 2.5mm² cable is rated to 27 Amps and is available up to 40m. Heavy Duty 4mm² cable is rated to 36 Amps, has lower resistance (5.09 vs 8.21 ohms/KM) and is used for 50m and 60m leads.

Q: Can I get this extension lead with Clipsal plugs and sockets?
A: Yes. Select Clipsal under Switch Gear to get Clipsal 56 Series fittings with a straight or angled plug, in every length and cable grade. Standard GEN3 leads come with a straight plug.
