Extension Lead Braided 3 Pin 10 Amp Flat Pin Straight Plug 5 metre Standard Duty 1.5mm Clear cable 240V
SKU: ext3p10afs01.5bc05m
Product Image Gallery
Product Pricing
$103.64 (ex-GST)
$114.00 (inc-GST)
$114.00
$103.64
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ 39 In Stock
High quality braided extension lead assembled, tested and tagged by our licensed electricians in Australia.
Electrotraders USPs
Can't find what you need? Bulk Order Quotes? Call 1300 017 197 or contact us below.
Description
High quality braided extension lead:

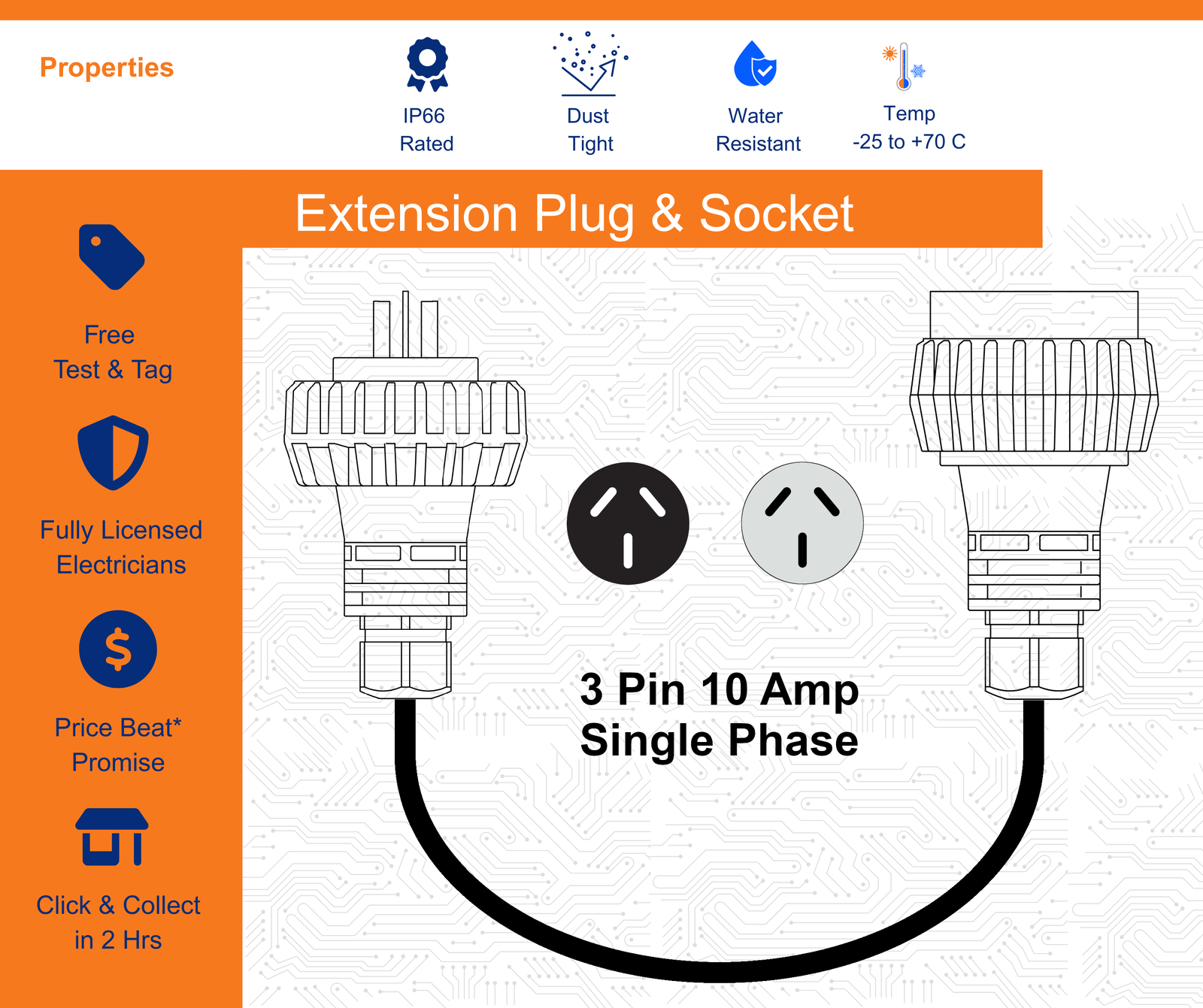

- Extension Lead Braided 3 Pin Flat 10 Amp 240V Clear
- 24 month warranty on all products. Warranty does not extend to misuse.
- Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
- All Electrotraders Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.
Choose your configuration:
- Available in various lengths (Note: configurations may not offer all length options due to component availability or electrical characteristics)
- Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20°C (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
- Standard: CSA 1.5mm2, NST 1.8mm, MaxR 19.5, NOD 11.3mm, Amps 19, Weight 200 Kg/Km
- Heavy Duty: CSA 2.5mm2, NST 1.8mm, MaxR 13.3, NOD 12.5mm, Amps 25, Weight 245 Kg/Km
- Extra Heavy Duty: Not Available
- Typically used for Variable Speed Drives, Control systems and EMI-sensitive devices where Electromagnetic Interference is an issue
IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.
Switch Gear:

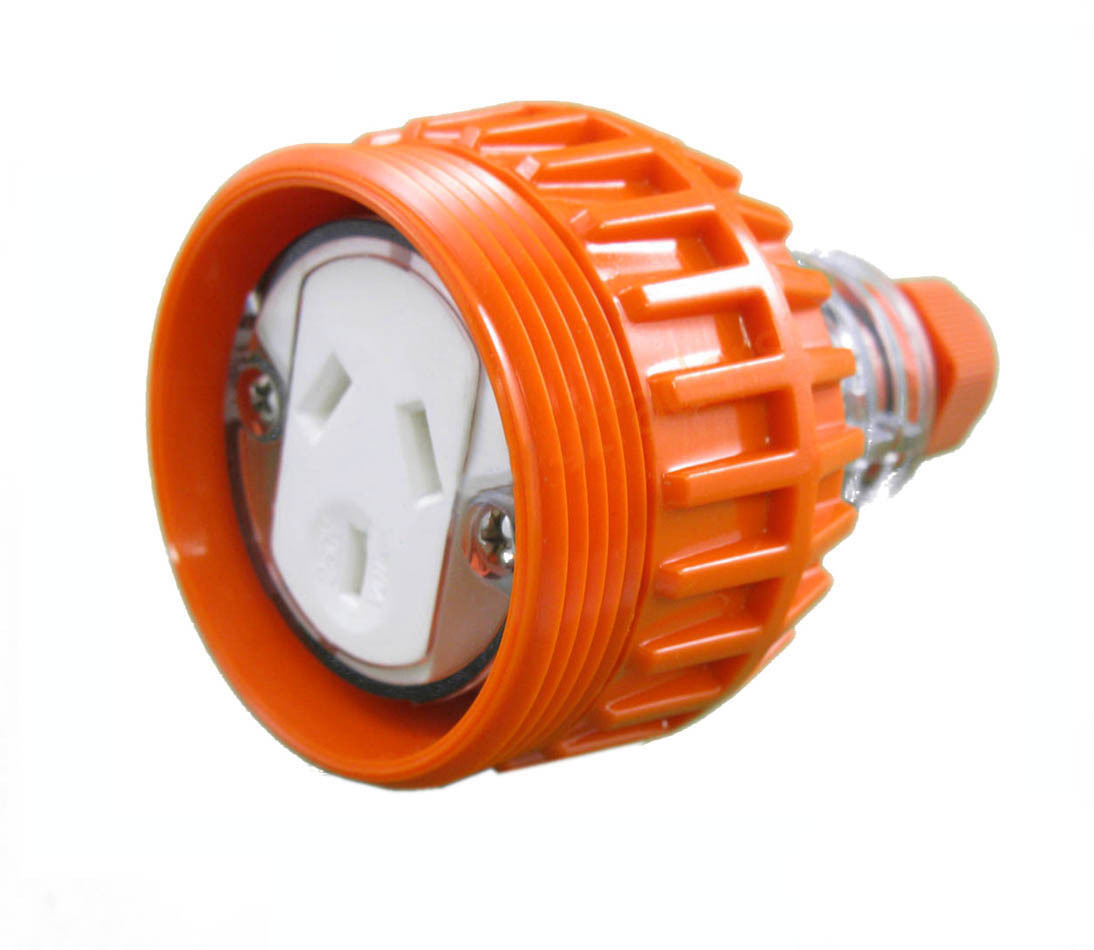

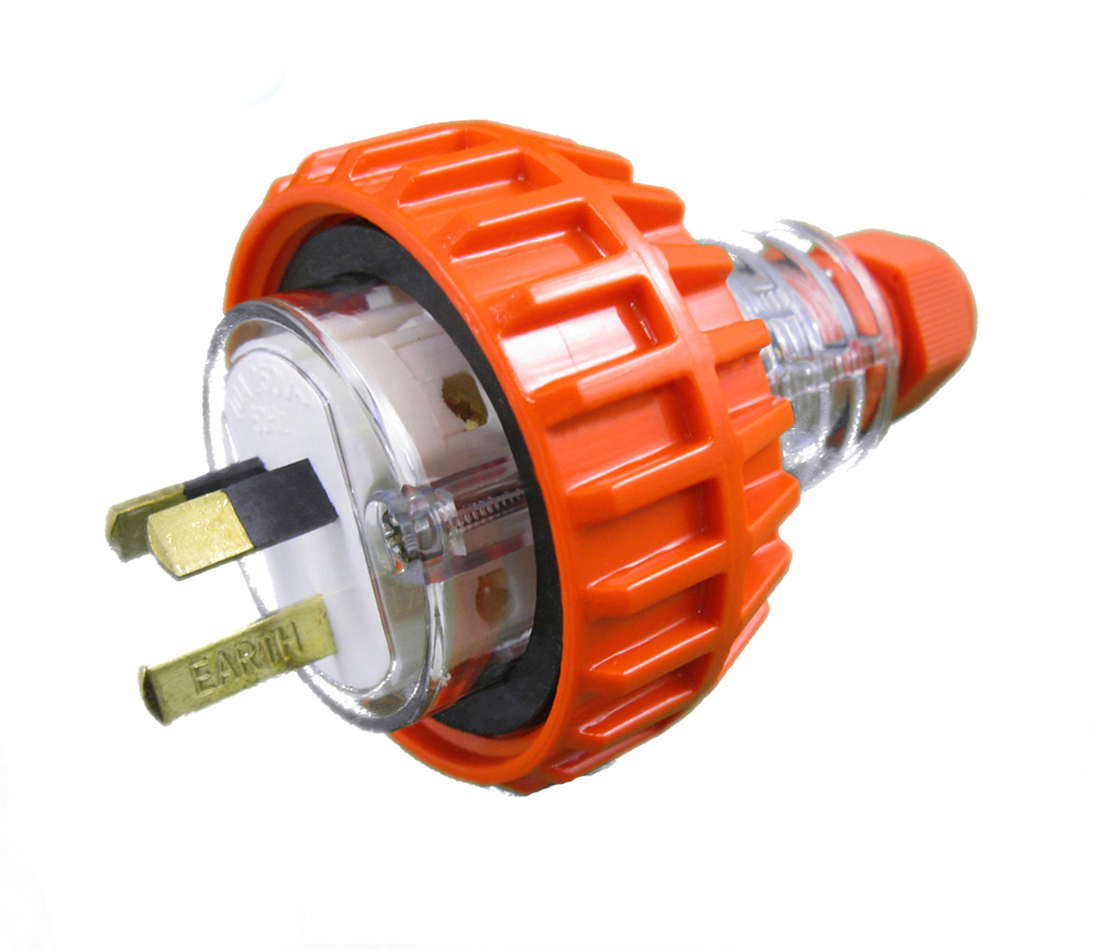

- All Plugs and Sockets are source from high quality reputable Australian brands, are IP66 rated and are compatible with all leading Australian switch gear.

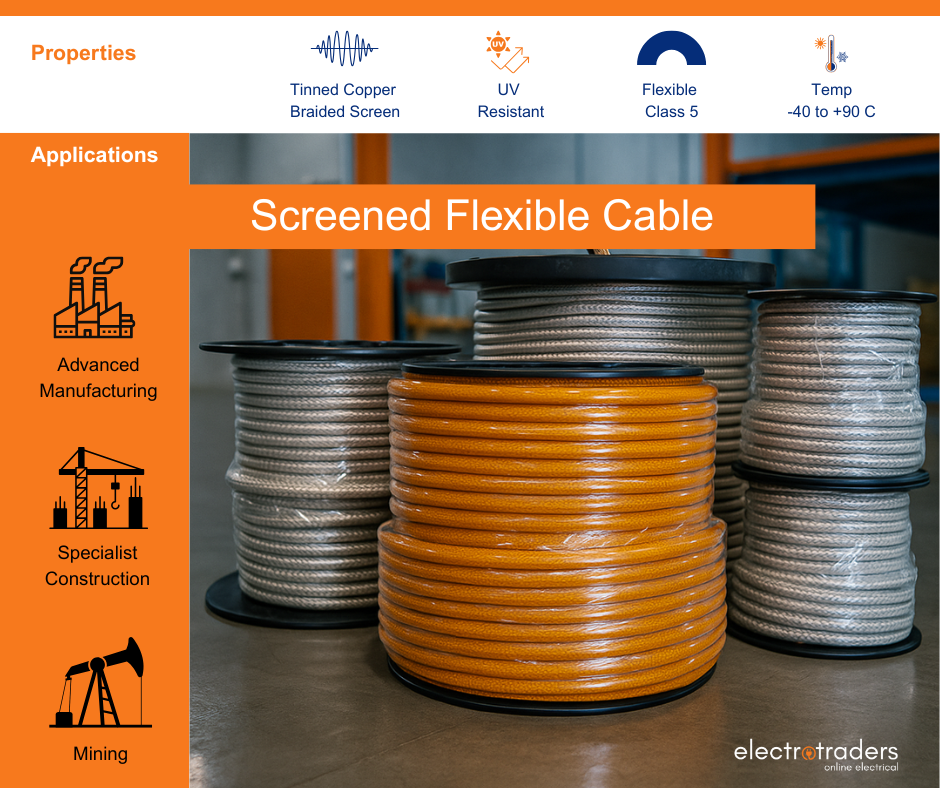

Cable Properties:
- Built for EMI-Safe Performance
- Clear PVC Outer Sheath (V-75 rated)
- Robust EMI shielding and excellent flexibility
- Built with Class 5 plain annealed copper cores
- High-performance V-75 PVC insulation and sheath
- An 80% tinned copper braid screen offers
- Voltage Rating: 0.6 / 1kV
- Short Circuit Temp: Up to 160°C
- Meets Australian standards AS3808
- RoHS Compliant
(ext3p10af.bc)
Specifications
| Extension Lead Specifications: ext3p10af.bc | |
| Product Description | Extension Lead Braided 3 Pin Flat 10 Amp 240V Clear |
| Colour | Clear |
| Rated Current | 10 Amp |
| Rated Voltage | 240V |
| Pin Configuration | 3 Pin Flat |
| Warranty | 24 Months |
| Cable Type | Standard |
| CSA | 1.5 mm² |
| Nominal Sheath Thickness (NST) | 1.8 mm |
| Max DC Resistance @ 20°C (MaxR) | 19.5 ohms/KM |
| Nominal Outer Diameter (NOD) | 11.3 mm |
| Amperage Rating (AS/NZS 3008.1.1.2009 Table 14) | 19 A |
| Weight | 200 Kg/Km |
| Typical Use | Variable Speed Drives, Control Systems, EMI-sensitive devices |
| Plug & Socket Rating | Confirm compatibility (5 Pin 10A, 20A, 32A) |
| Switch Gear | IP66 rated, Australian brands, compatible with leading switch gear |
| Construction Features | |
| Cable Design & Materials | |
| EMI Shielding | Built for EMI-Safe Performance |
| Outer Sheath | Clear PVC Outer Sheath (V-75 rated) |
| Flexibility | Robust EMI shielding and excellent flexibility |
| Conductors | Class 5 plain annealed copper cores |
| Insulation & Sheath | High-performance V-75 PVC insulation and sheath |
| Braid Screen | 80% tinned copper braid screen |
| Electrical Ratings & Compliance | |
| Voltage Rating | 0.6 / 1kV |
| Short Circuit Temperature | Up to 160°C |
| Compliance | Complies with AS3808 |
| Environmental Compliance | RoHS Compliant |
| SKU | ext3p10af.bc |
| Manfacturer Part Number | ext3p10af.bc |
| Brand | Electrotraders |
