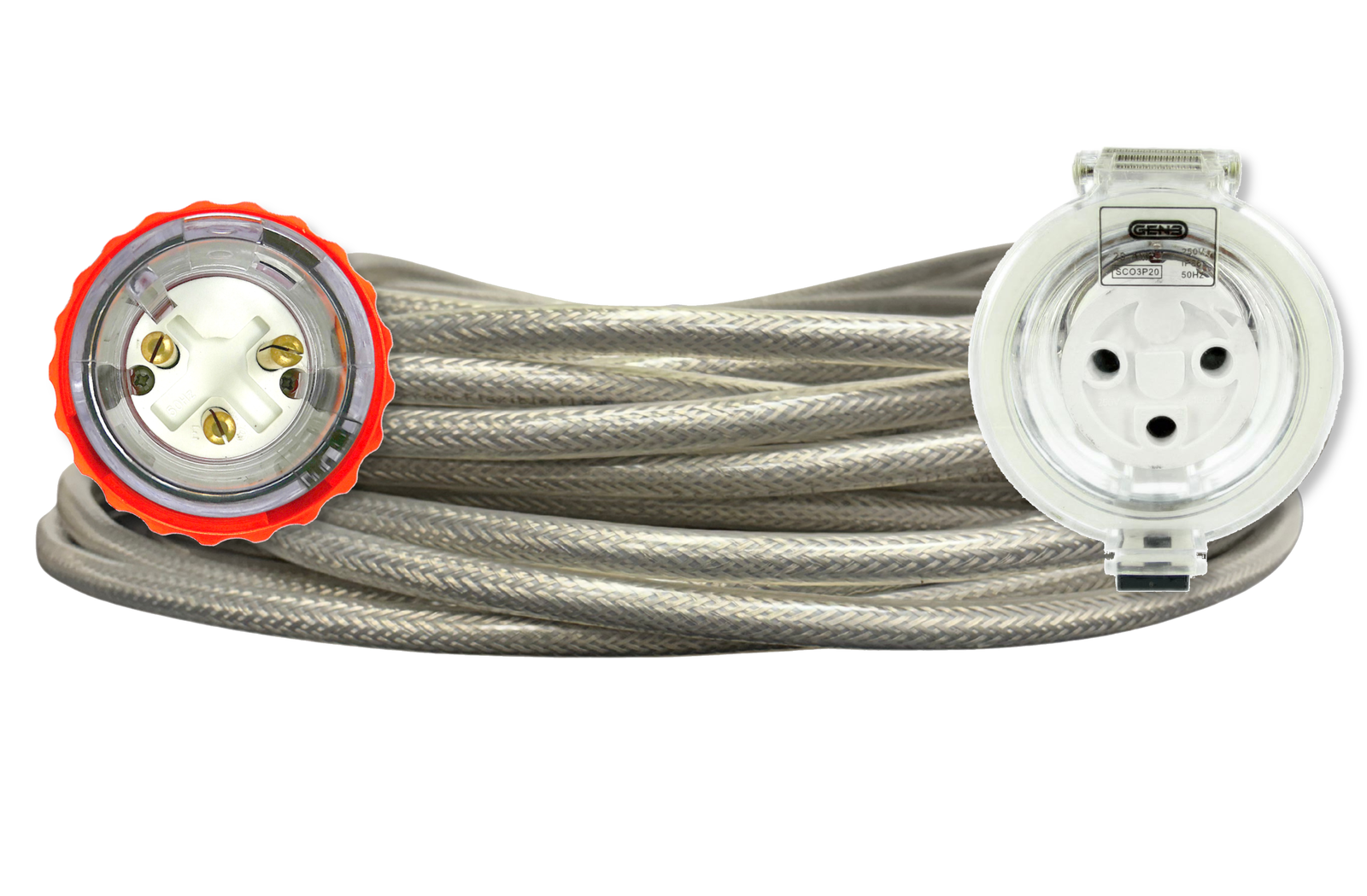

Extension Lead Braided 3 Pin 20 Amp Round Pin Straight Plug 5 metre Standard Duty 2.5mm Clear cable 240V

Description

High quality braided extension lead:

• Extension Lead Braided 3 Pin Round 20 Amp 240V Clear
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.

Choose your configuration:

• Available in various lengths (Note: configurations may not offer all length options due to component availability or electrical characteristics)
• Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20øC (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
  • Standard: CSA 2.5mm2, NST 1.8mm, MaxR 13.3, NOD 12.5mm, Amps 25, Weight 245 Kg/Km
  • Heavy Duty: Not available
  • Extra Heavy Duty: Not Available
• Typically used for Variable Speed Drives, Control systems and EMI-sensitive devices where Electromagnetic Interference is an issue

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

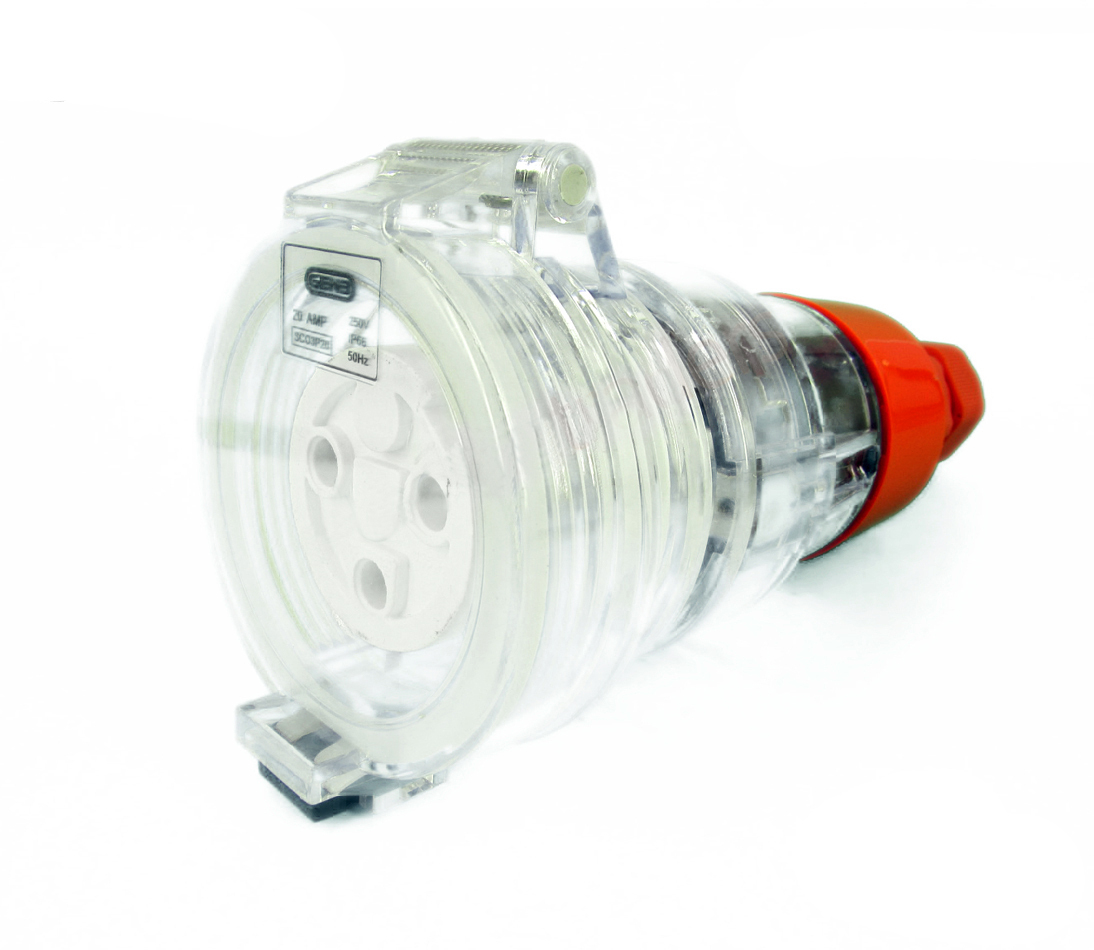

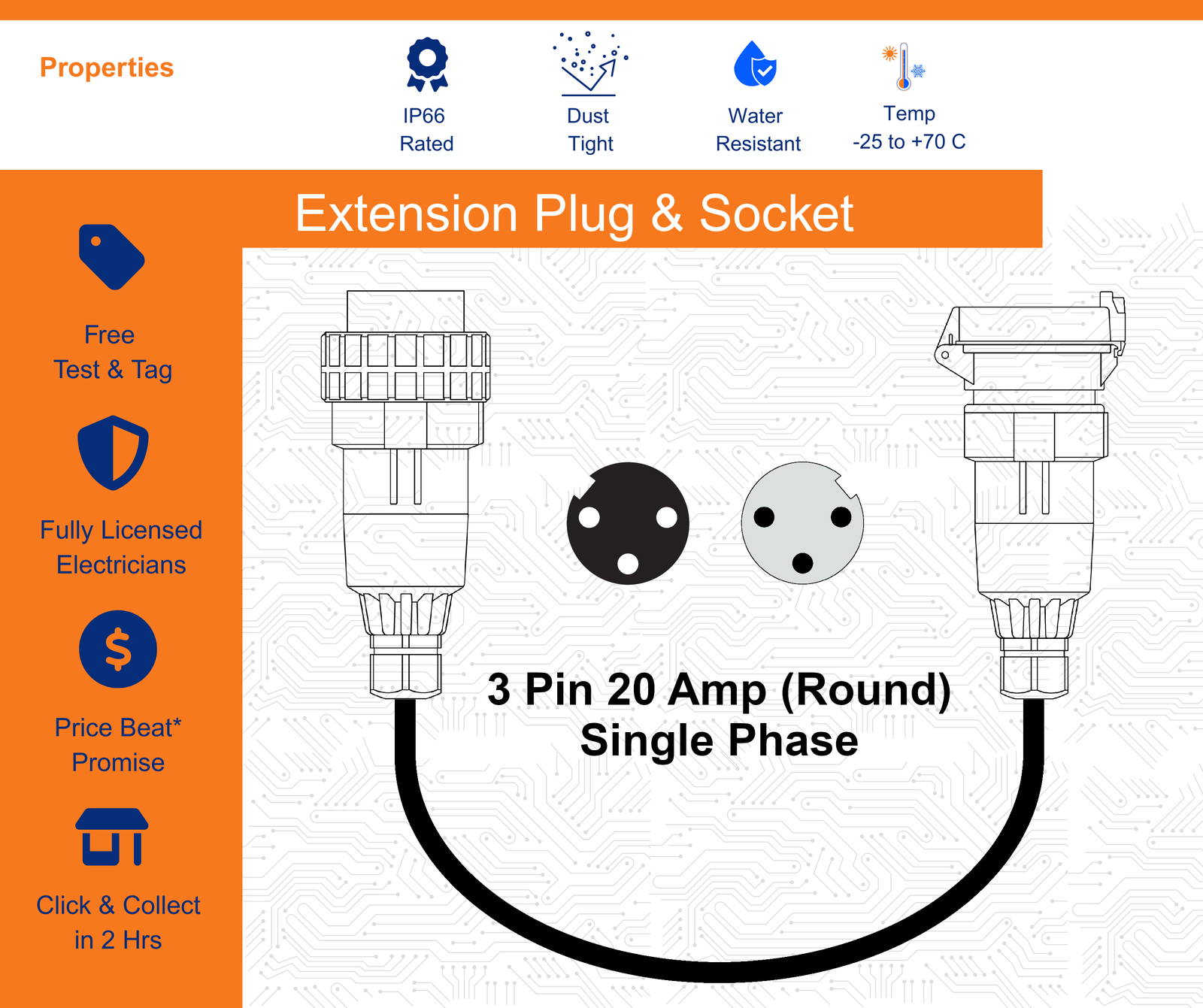

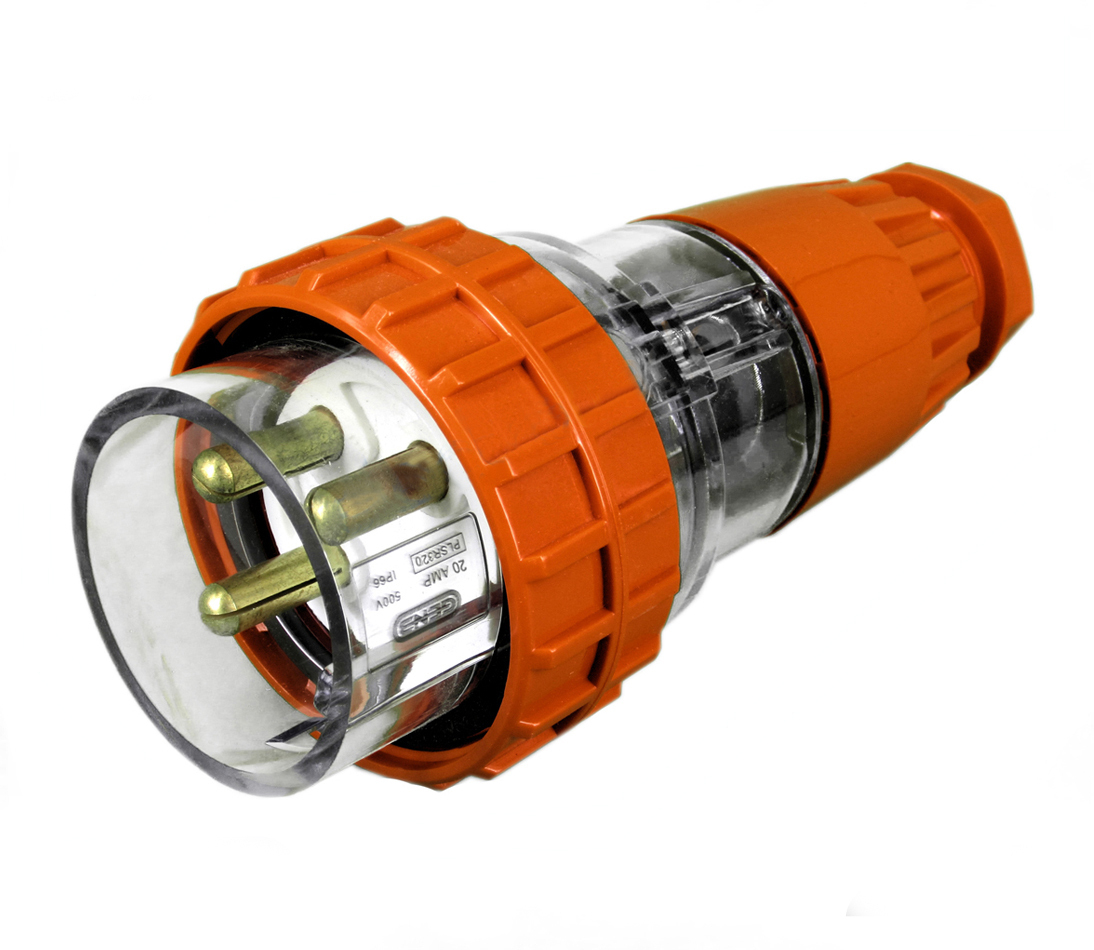

• All Plugs and Sockets are source from high quality reputable Australian brands, are IP66 rated and are compatible with all leading Australian switch gear.

Cable Properties:

• Built for EMI-Safe Performance
• Clear PVC Outer Sheath (V-75 rated)
• Robust EMI shielding and excellent flexibility
• Built with Class 5 plain annealed copper cores
• High-performance V-75 PVC insulation and sheath
• An 80% tinned copper braid screen offers
• Voltage Rating: 0.6 / 1kV
• Short Circuit Temp: Up to 160øC
• Meets Australian standards AS3808
• RoHS Compliant
