Tesla Dolly Switch Mechanism 16A 35mm Mech

Description

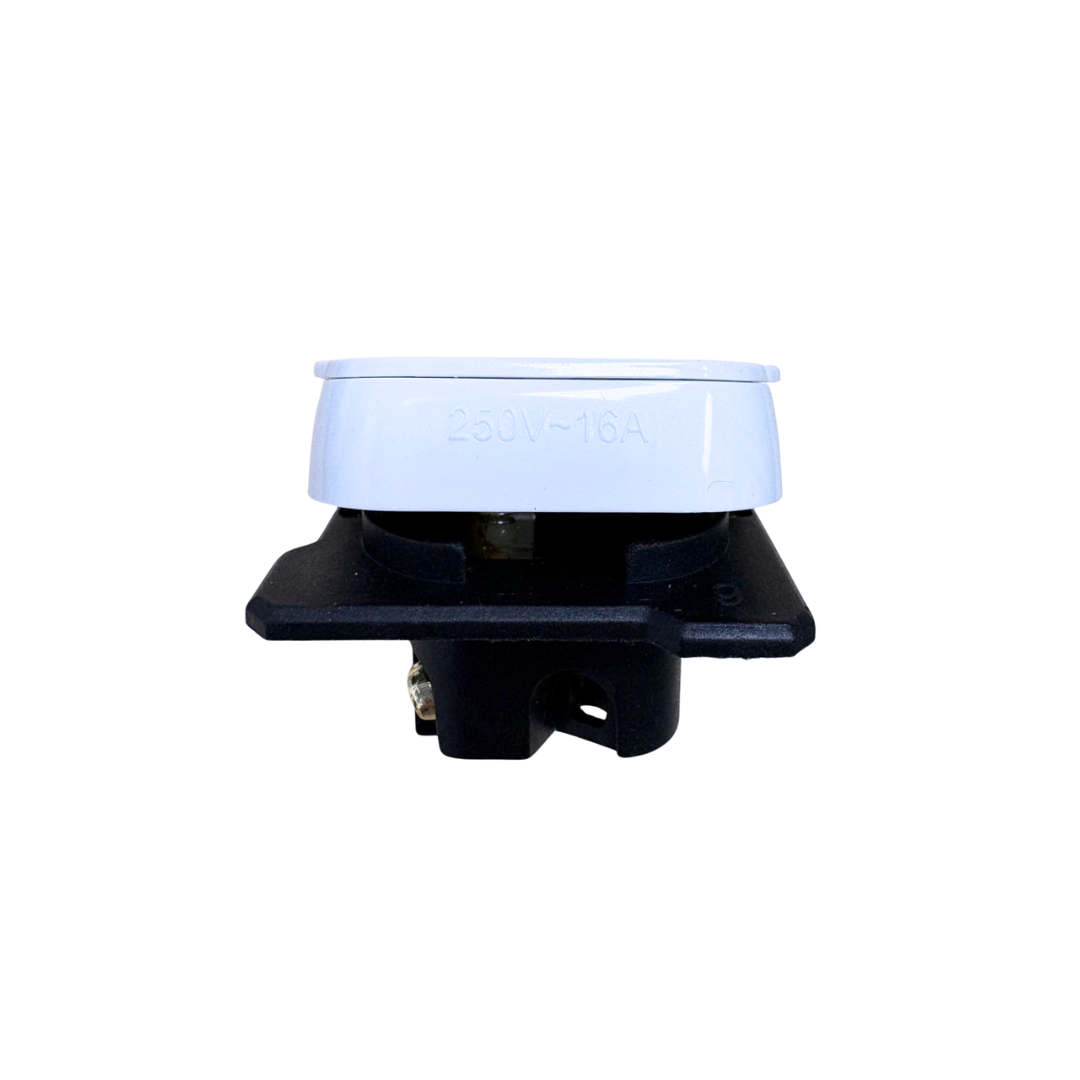

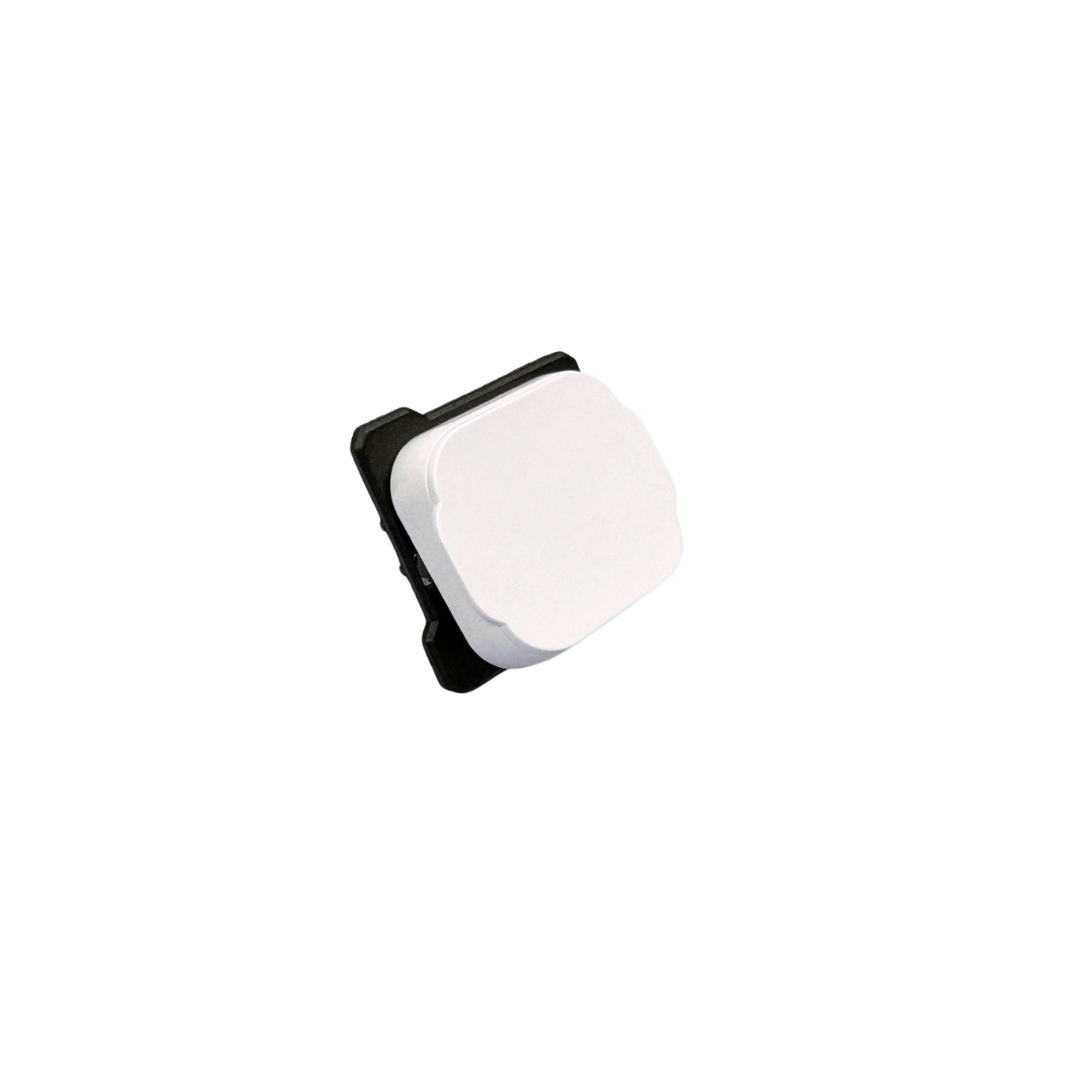

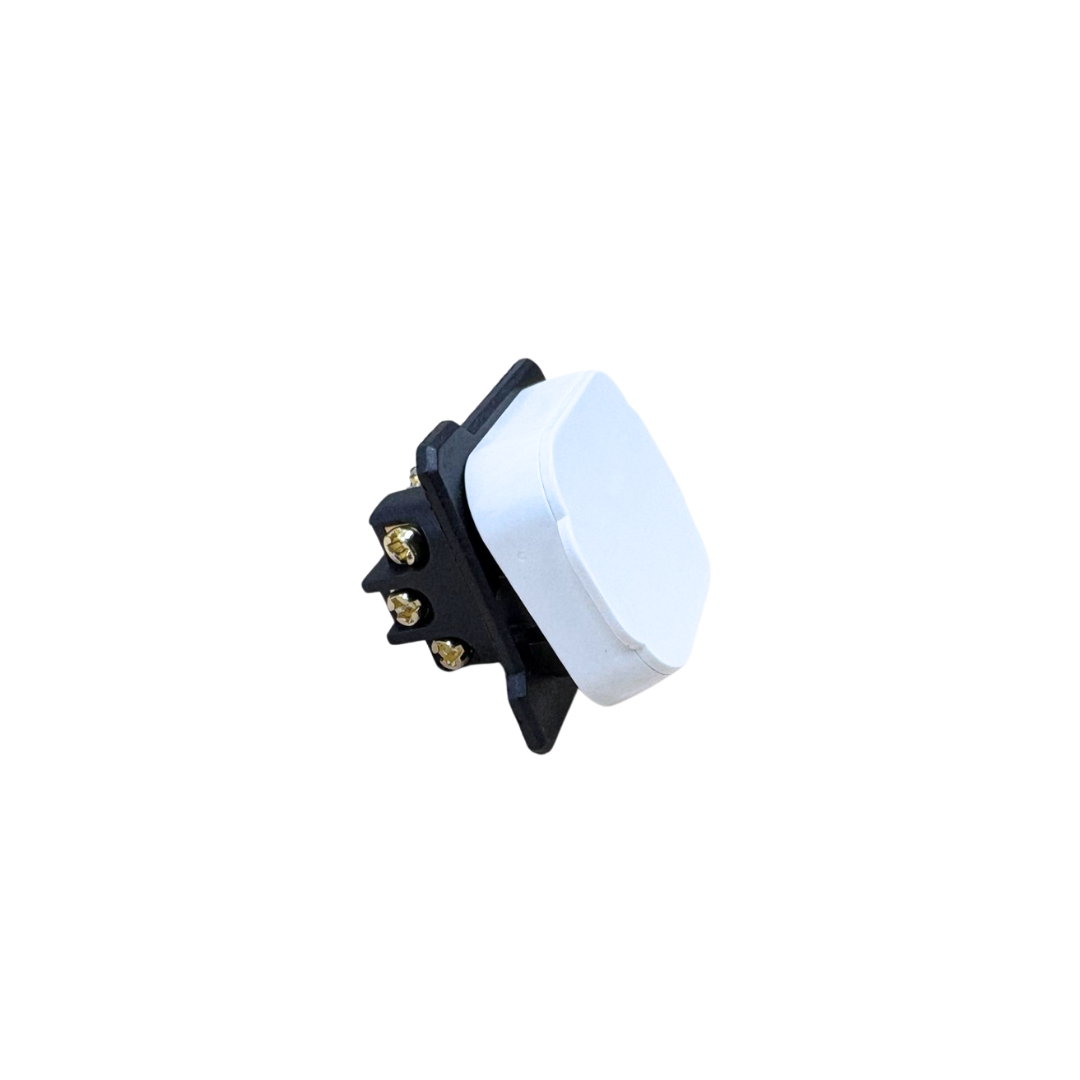

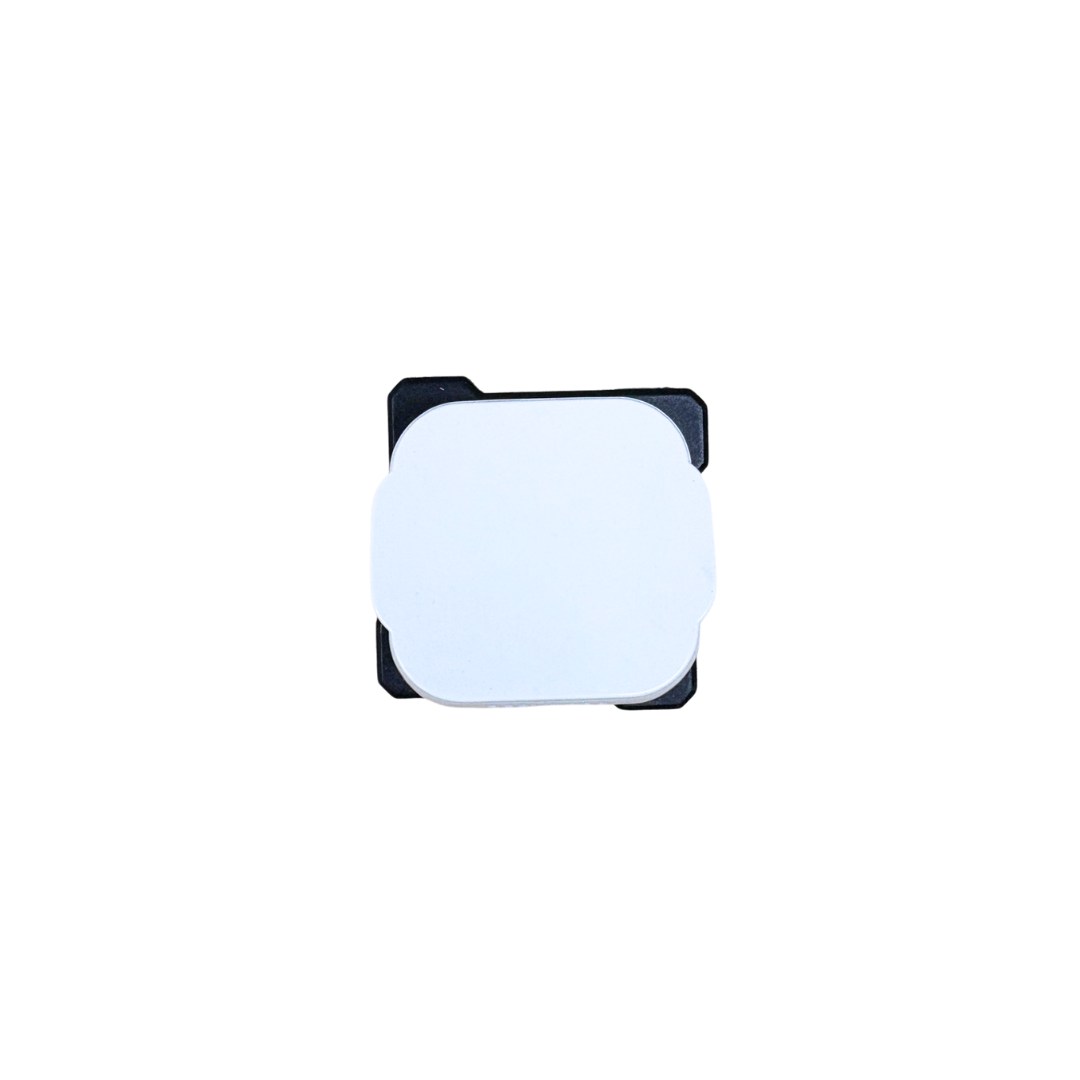

Tesla SMLDN. Large Dolly 35mm Standard Switch Mechanism with Loop. 16A. NDIS Compatible.

The Tesla SMLDN is a 16A standard switch mechanism with loop terminal — the 35mm switching component designed to fit the Tesla Large Dolly switch plate range. The standard single-pole switch mechanism provides conventional latching on/off switching for lighting circuits. The loop terminal allows the active conductor to be looped through to the next switch in the circuit. Compliant with AS/NZS 3100 and AS/NZS 3133. NDIS compatible. Sold individually.

• Tesla Large Dolly Range — SMLDN 35mm Standard Switch Mechanism
• 16A rated — standard single-pole switch

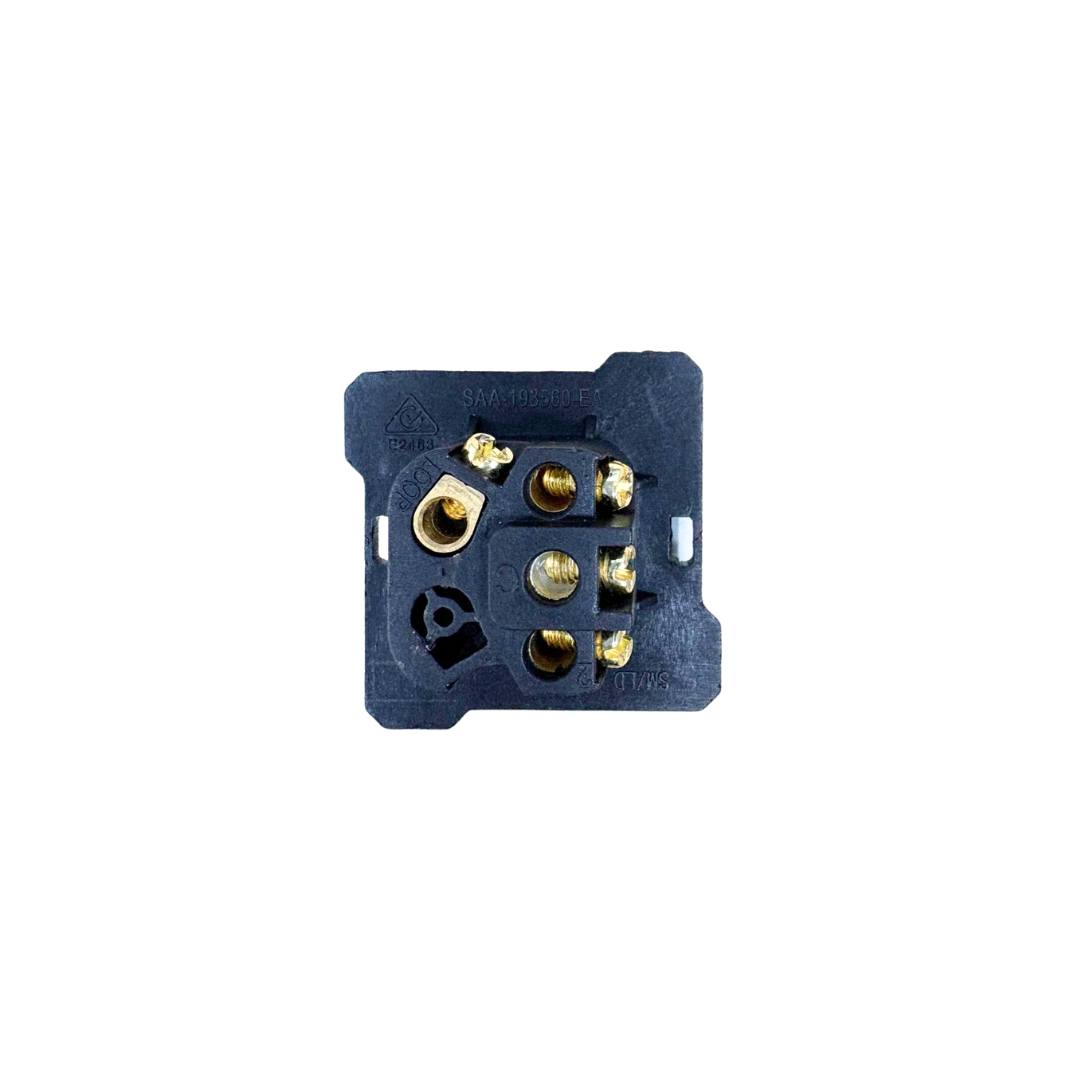

• Loop terminal — active loops through to the next switch
• 35mm mechanism — suits Tesla Large Dolly switch plates
• Soft touch profile — over 4 times the size of a traditional switch mechanism
• Compliant with AS/NZS 3100 and AS/NZS 3133
• NDIS compatible — designed for accessible and assisted living installations
• Suits aged care, senior and assisted living, accessible housing, recreational clubs, and modern homes
• Sold individually

Shop online now — fast dispatch Australia-wide.

About the Tesla Large Dolly SMLDN Mechanism

The Tesla Large Dolly switch system uses 35mm mechanisms — larger than the standard 25mm mechanisms used in conventional switch plates — to drive the oversized XL dolly actuator that characterises the Large Dolly range. The SMLDN is the standard single-pole mechanism: it latches on when pressed and off when pressed again, with a loop terminal that allows the active conductor from the incoming cable to be looped through to supply the next switch in the circuit. This is the correct mechanism for standard one-location lighting circuit switching.

The SMLDN 16A rating covers the full range of standard lighting and general purpose circuit loads used in residential and commercial electrical installations. Being compliant with both AS/NZS 3100 (general requirements for electrical equipment) and AS/NZS 3133 (approval and test specification for switches for household and similar fixed electrical installations), the SMLDN meets the standards required for Australian electrical installations.

The Tesla Large Dolly mechanism range has two types — the SMLDN (standard single-pole, this product) and the 2XSMLDN (intermediate/two-way, for controlling a light from two separate switch locations). Both are 16A, 35mm, and suit the same Tesla Large Dolly plates. The correct mechanism type depends on the wiring arrangement required for each circuit.

Q: What is the difference between the SMLDN and the 2XSMLDN?
A: The SMLDN is a standard single-pole switch — it controls a circuit from one location only. The 2XSMLDN is an intermediate (two-way) mechanism — used in pairs to control a circuit from two separate switch locations (e.g. a light switchable from both ends of a hallway). Both are 16A and 35mm; the choice depends on the wiring configuration required.

Q: What plates does the SMLDN suit?
A: The SMLDN suits Tesla Large Dolly switch plates — including the complete dolly switch assemblies (TESSW1LDN through TESSW4LDXN) and the plate-only versions (SW1PL/LDXN through SW4PL/LDXN). It requires a 35mm mechanism opening and is not compatible with standard Tesla Classic Series plates.

Q: Is this mechanism NDIS compatible?
A: Yes — the Tesla Large Dolly mechanism and plate system is designed for accessible and assisted living installations and is compatible with NDIS accessible housing modifications. The large dolly actuator profile and soft touch surface make it significantly easier to operate for people with reduced hand strength, dexterity, or visual impairment.
