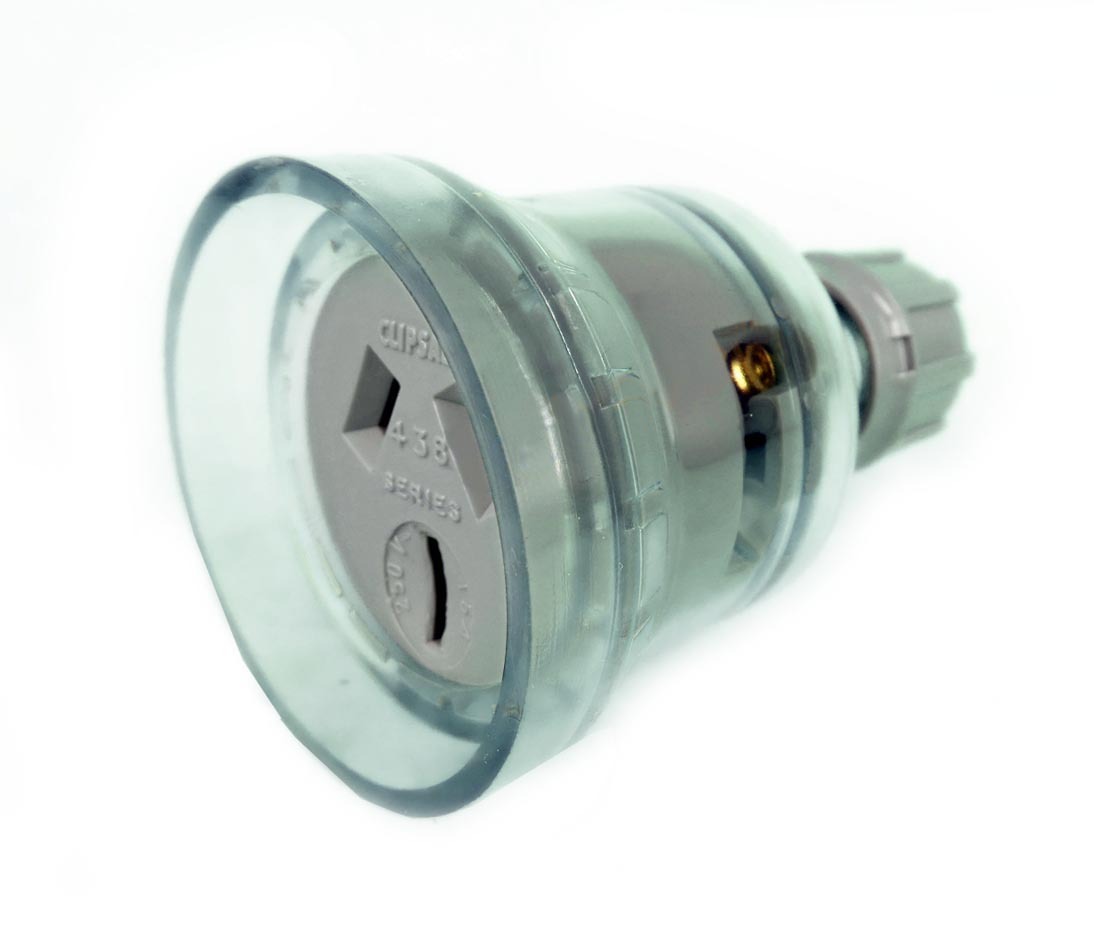

Clipsal 438S15HD-TR Standard Series Heavy Duty Cord Extension Socket 250V 15A 3 Flat Pin Clear

Description

Heavy duty 15A socket for caravan and site leads.

The Clipsal 438S15HD-TR Heavy Duty Flexible Cord Extension Socket is a rewireable 15A, 250V AC socket for terminating 1.5 mm² heavy duty flexible cord into a 3 pin flat outlet with an 8 mm shroud. Screw terminals inside a transparent PVC body, and suitable for use with 435VFS15 caravan inlets.

Key Features

• Rated 15 A at 250 V AC, 50 Hz
• 3 pin flat configuration with 8 mm shroud
• Heavy duty construction
• Rewireable, with screw terminal connections
• Suits 1.5 mm² heavy duty three core flexible cord
• Manufactured to AS/NZS 3112, AS 3100, AS 3109 and AS/NZS 3122
• Approval number S/1
• PVC construction, transparent housing
• 49 mm diameter, 79 mm depth
• Without light indicator
• Mercury free
• Suitable for 435VFS15 caravan inlets

Secure yours online today.

Why it Matters

Built for caravan and RV supply leads

A 15 A lead is the standard supply arrangement for caravans, motorhomes and RVs drawing from a powered site. This socket terminates the van end of that lead and mates with 435VFS15 inlets. Heavy duty construction matters here because a supply lead lives outdoors, gets coiled and uncoiled at every site, and takes more handling than a workshop extension.

Heavy duty is about the cord, not the current

Both the 438S15 and this 438S15HD carry 15 A at 250 V. The difference is what they terminate and how big the body is: the standard version is 43 mm across and 71 mm deep for ordinary duty flex, while the HD steps up to 49 mm and 79 mm to close over 1.5 mm² heavy duty three core. Heavy duty flex carries thicker insulation and a larger overall diameter, so it needs the bigger housing.

Rewireable means you build the lead you need

A rewireable cord socket lets you terminate your own flexible cord rather than buying a fixed-length lead. Cable is landed on screw terminals inside the housing and the socket closes over it, so you can make up a supply lead to whatever length the site needs, and re-terminate later if the cord is damaged.

What is the Clipsal 438S15HD-TR rated for?
The 438S15HD-TR is rated 15 amps at 250 volts AC, 50 Hz, with a 3 pin flat outlet.

What cord does the Clipsal 438S15HD-TR take?
It is designed for 1.5 mm² heavy duty three core flexible cord, landed on screw terminals.

Will the Clipsal 438S15HD-TR suit a caravan inlet?
Yes. It is suitable for use with 435VFS15 caravan inlets, making it the socket end of a 15 A caravan or RV supply lead.
