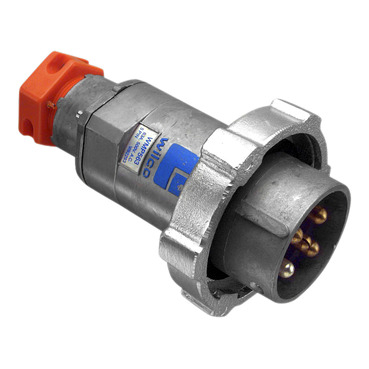

Wilco Metal Clad - Plug - Aluminium Multi Phase 500V 63A 4 Round Pin - WMP463

Description

Heavy-duty 63A three-phase plug in a tough aluminium body

The Clipsal Wilco WMP463 is a straight metal clad plug for 63A, 500V multi-phase connections using the Wilco 4 round pin configuration. Its aluminium housing, screw terminals and cable gland entry give you a solid, serviceable termination on high-current flexible cords.

• Clipsal Wilco metal clad range, model WMP463
• Rated current: 63A
• Rated operational voltage: 500V AC, 50/60Hz
• Three-phase (multi-phase), 4 round pins
• Straight plug body
• Aluminium housing
• Screw terminal connections
• Cable gland cable entry
• IP53 degree of protection
• 18-month manufacturer warranty

Secure yours today with fast dispatch Australia-wide.

Built for High-Current Three-Phase Work

Metal clad where it counts
At 63A and 500V, the plug is often the most handled and most knocked part of a lead. The WMP463 uses an aluminium body rather than a plastic one, giving a rigid housing around the terminations on heavy flexible cords.

Secure, serviceable terminations
Conductors are fixed with screw terminals, and the cable enters through a cable gland that grips the sheath. That means the plug can be fitted to a cord on site, inspected and re-terminated during maintenance rather than replaced along with the whole lead.

Know your protection rating
Clipsal rates the WMP463 at IP53. In practice that is dust protected and guarded against spraying water up to 60 degrees from vertical. It is not rated for jets of water or immersion, so plan the installation location and connection points with that in mind.

Matching your existing system
Wilco 4 round pin connectors are a distinct pin configuration. Before ordering, confirm the outlet or connector you are mating with is a 63A, 4 round pin Wilco device so pins, rating and phase arrangement line up. Termination must be completed by a licensed electrician in line with AS/NZS 3000.

Q: Is the Clipsal Wilco WMP463 a three-phase plug?
A: Yes. It is a multi-phase plug rated at 63A and 500V AC, 50/60Hz, with 4 round pins.

Q: What IP rating does the WMP463 have?
A: Clipsal specifies IP53, meaning it is dust protected and resists spraying water. It is not rated for water jets or submersion.

Q: How is cable connected to the WMP463?
A: Conductors terminate on screw terminals and the flexible cord enters through a cable gland, so the plug can be wired and serviced by a licensed electrician.
