Tesla TWIS1P35L / TWIS1P32 1 Pole Weatherproof Isolator Switch 32A 250V M180 Surface Mount

Description

Single-pole 32A weatherproof isolation with a 45A motor rating.

The Tesla TWIS1P35L is a single pole weatherproof isolator switch rated 32A at 250V, carrying an M180 motor rating that lets it switch loads up to 45A. Built for surface mounting in any external application, it offers a padlockable OFF position and an impact-resistant enclosure.

Key Features

• Tesla TWIS1P35L - Single Pole Weatherproof Isolator Switch
  • Also known as TWIS1P32
• Rated: 32A, 250V
• M180 motor rating — suitable for motor loads up to 45A
• Utilisation category: AC22A, AC23A
• IP66 weather protected — suitable for any external application
• Fixed earth and neutral connector bars with dual clamping screws per tunnel
• Padlockable in the OFF position (6mm) for safe isolation and lockout
• Impact-resistant base and cover

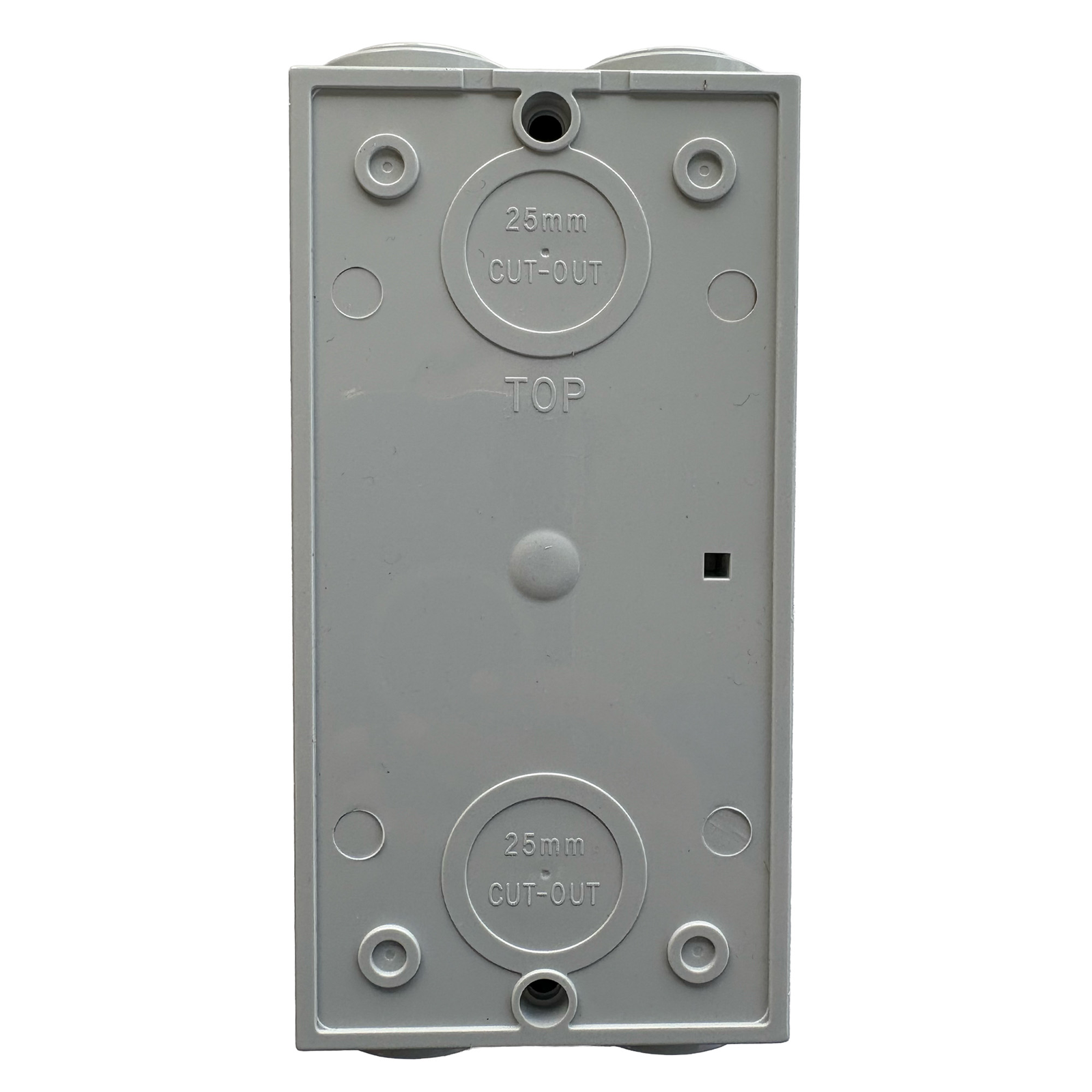

• Dual 25mm screwed conduit entries top and bottom — four ways to surface wire
• Supplied with screwed conduit plugs and reducers for 20mm or 25mm conduit, plus screw caps
• Mounting template provided
• 10 Year Warranty

Order today for fast dispatch Australia-wide.

Why the Tesla TWIS1P35L Isolator Earns Its Place

Single-pole isolation with real motor capacity
A single pole isolator breaks the active conductor to give a local isolation point for fixed equipment. The TWIS1P35L is rated 32A nominally, and its M180 motor rating adds another dimension: the M rating divided by four gives the motor current it can handle — 180 ÷ 4 = 45A. That means it comfortably switches motor loads such as air conditioner condensers, pumps, and compressors, backed by AC22A and AC23A utilisation categories for switching mixed resistive and motor loads. The 32A nominal rating suits heavier single-pole circuits than the 20A version.

Made for fast, tidy termination

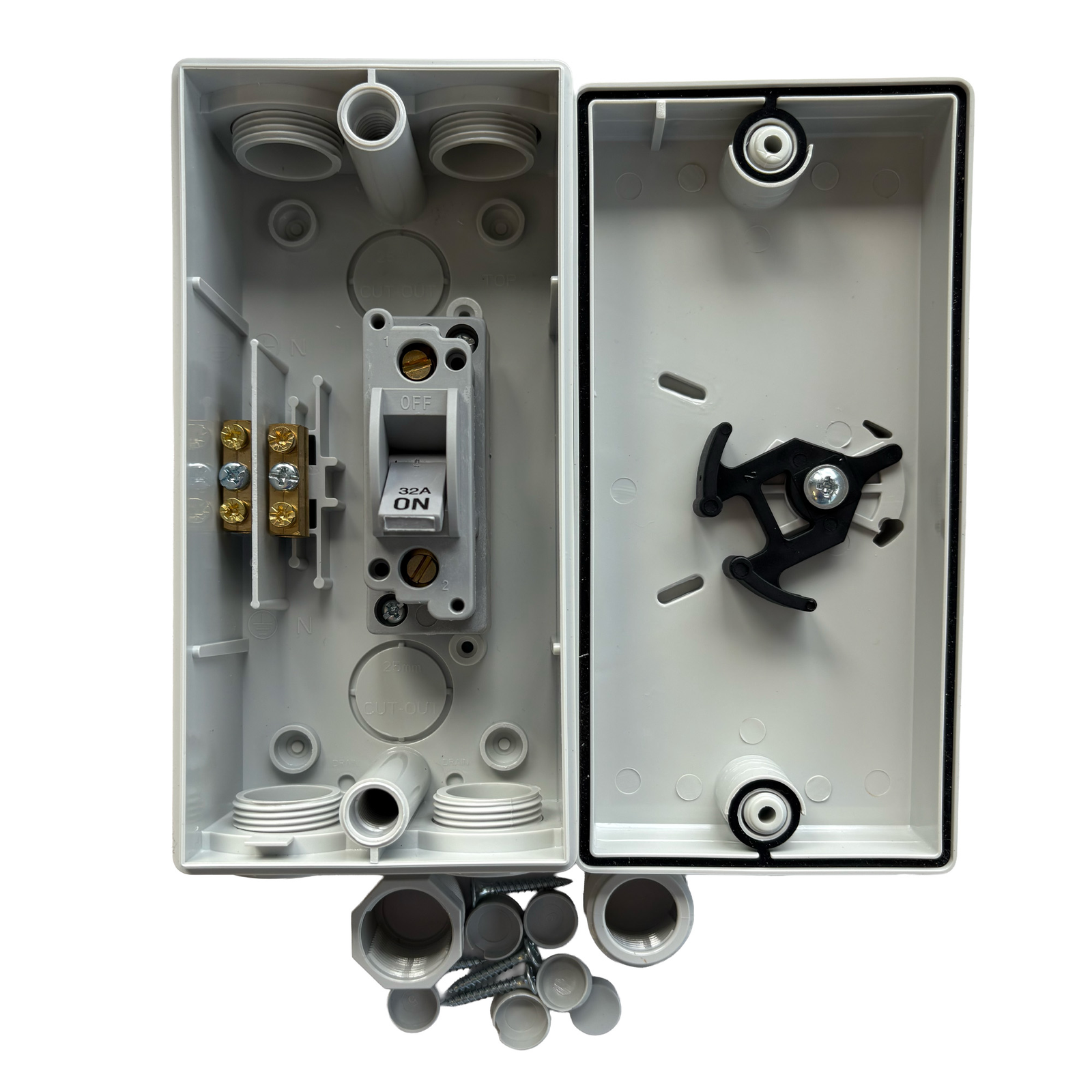

The base mount mechanism gives generous wiring room and easy termination, with fixed earth and neutral connector bars using dual clamping screws per tunnel for secure connections. Dual 25mm screwed conduit entries top and bottom allow four ways to surface wire the switch, and each unit ships with screwed plugs and reducers for 20mm or 25mm conduit plus the screw caps that must be installed to maintain the IP rating. A mounting template is included to speed up installation.

Weatherproof and built to last
Rated IP66, the TWIS1P35L stands up to dust and powerful water jets in fully exposed positions. The impact-resistant base and cover survive the hardest knocks in almost any installation, and a hole is provided to padlock the lever in the OFF position for safe lockout during servicing. It is backed by a 10 year warranty. Installation and connection must be carried out by a licensed electrician in accordance with Australian requirements. Tesla Electrical Components is an Australian-based brand headquartered in Wetherill Park, NSW, and this isolator is sold individually and shipped Australia-wide.

Q: What motor load can the Tesla TWIS1P35L handle?
Although nominally rated 32A, its M180 motor rating gives a motor current capacity of 45A (180 divided by 4), suiting motor loads such as air conditioners, pumps, and compressors.

Q: Is the Tesla TWIS1P35L suitable for outdoor use?
Yes. It is rated IP66 and weather protected for any external application. The supplied screw caps must be installed to maintain the IP rating.

Q: Can the Tesla TWIS1P35L be locked off?
Yes. A 6mm hole is provided so the lever can be padlocked in the OFF position for lockout during servicing.
