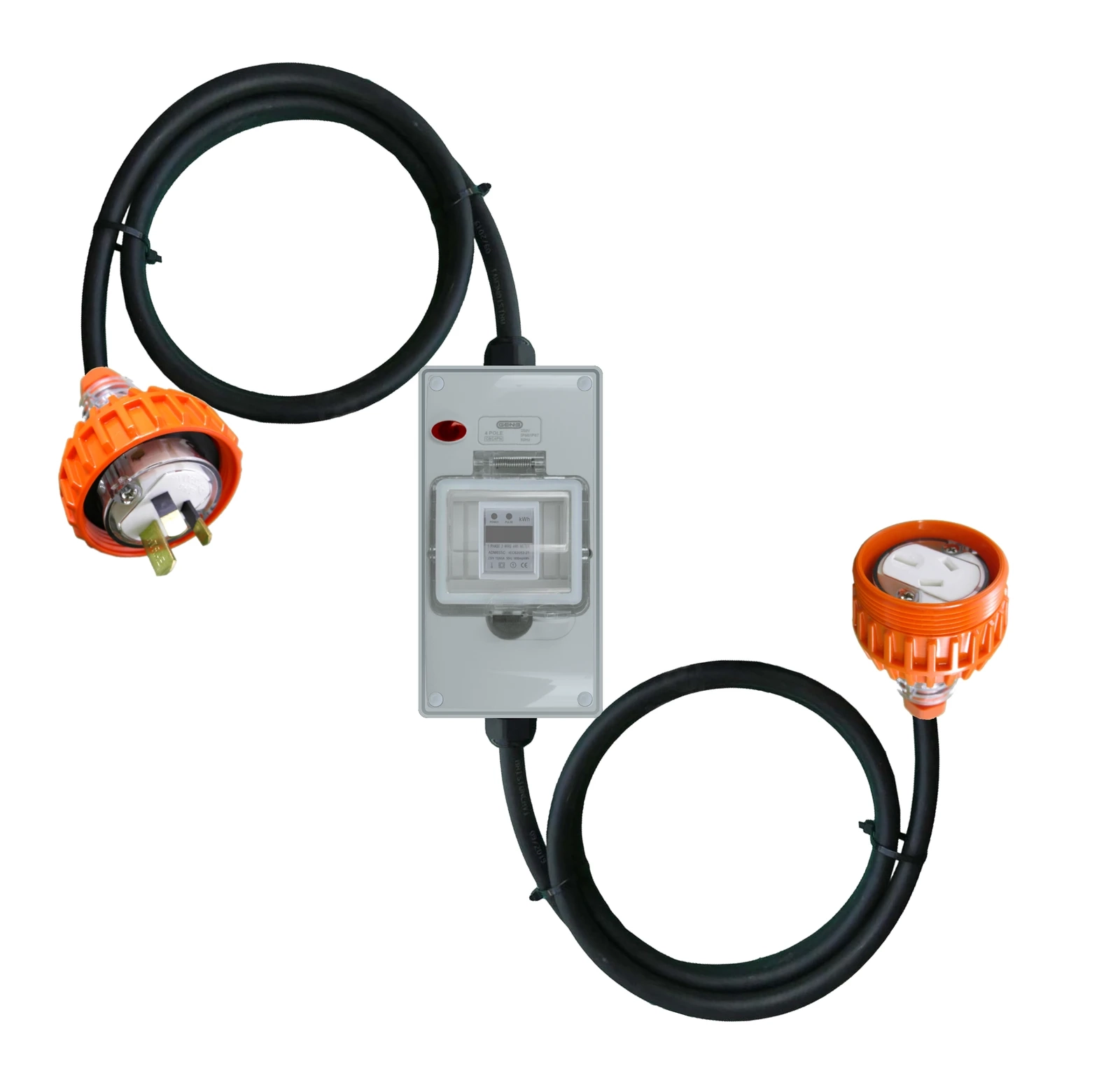

Power Meter Lead 3 Pin Flat 15 Amp Straight Plug Standard Meter on 2m lead

Description

Industrial Grade Power Meter Lead 3 Pin Flat 15 Amp 240V

Built to Last. The Electrotraders Power Meter Lead is a professional-grade, high-quality solution specifically designed for you to safely and accurately measure power use in demanding commercial, industrial, and domestic environments.

Engineered and assembled in-house by our Licenced Electricians in Australia, this lead provides a robust, pass-through connection that delivers power exactly where you need it while offering the peace of mind that comes with professional testing and tagging.

• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Power Adapters are assembled, tested and tagged in-house by our Licenced Electricians.

Lead Time:

• Standard: 1-4 days dispatch from order. We will advise if outside of this range.
• Expedited: prioritised for assembly and dispatched within 24 hours. If you need this service, select "expedited shipping" at the checkout.

Choose your configuration:

• Power Meter - DIN rail mount in an IP66 rated enclosure mounted in a 2 module base, dimensions approx (mm) 200w x 200h x 100d
  • Standard: Andeli or Tesla ADM65SC kWh meter (there is no 'reset' function on this meter)
  • Premium: Eastron SDM230 kWh meter (resettable) - An additional 1-2 days lead time may be required for this configuration
• Lead Length:
  • 2 meters: a 1 metre rubber lead on the plug side and a 1 metre rubber lead on the socket side
  • All others: a 3 metre rubber lead on the plug side and the remaining length of rubber lead on the socket side
  • Eg: 10 metre option results in 3 metres on plug side and 7 metres on socket side
• Plug: Straight or Angled (where available) Extension Plug (note there is no angled plug available in this configuration)
• Actual product layout may differ from the displayed image, depending on your chosen options. Be assured that components and specifications will match the description here.

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets. i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

kWh Power Meter:

• Standard:
  • Andeli or Tesla ADM65SC
  • Single Phase Electronic Digital Energy Meter
  • Class 1 Accuracy
  • Note: this meter cannot be reset to zero
• Premium:
  • Eastron SDM230
  • Single Phase Electronic Digital Energy Meter
  • LCD with backlit
  • Class 1 Accuracy
  • MID approved
  • Simple menu navigation
  • Four kWh measurement modes for PV and battery storage
  • Resettable kWh and Resettable kVArh
  • 15 measured parameters and 4 different kWh measurement modes
  • Display Cycle: Total active energy kWh > Import active energy kWh > Export active energy kWh > Resettable total energy kWh > Total reactive energy kVArh > Import reactive energy kVArh > Export reactive energy kVArh > Resettable total energy kVArh > Max. Power Demand > Voltage > Current > Active Power W > Reactive Power Var > Apparent power VA > Power Factor > Frequency > Pulse Constant > Mbus Primary Address > Mbus Secondary Address > Baud Rate > Continuous Running Time
  • Communication port (RS485 Modbus) is available, special order instructions are required for us to make this accessible
• Contact us if you have a need for any additional capability such as WiFi enabled or access to the Modbus data port

Switch Gear:

• All Industrial Switch Gear and power board module bases are Series 56 style IP66 Rated and are compatible with all leading Australian switch gear.
• Plastics are PCA18 virgin grade (No regrind)
• Products use 316 Stainless Steel Springs and Mounting Screws.
• Brass internal components are greater than 85% copper.
• Products are interchangeable with other major brands.

Cable:

• Leads use Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• Cable Specifications:
  • Three Core: Cross-Sectional Area (CSA) = 4mm2, Nominal Sheath Thickness (NST) = 1.9mm, Max DC Resistance @20degC = 5.09 ohms/KM, Nominal Diameter (NOD) = 13.4mm, Amperage rating = 36 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 299 Kg/Km
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV
