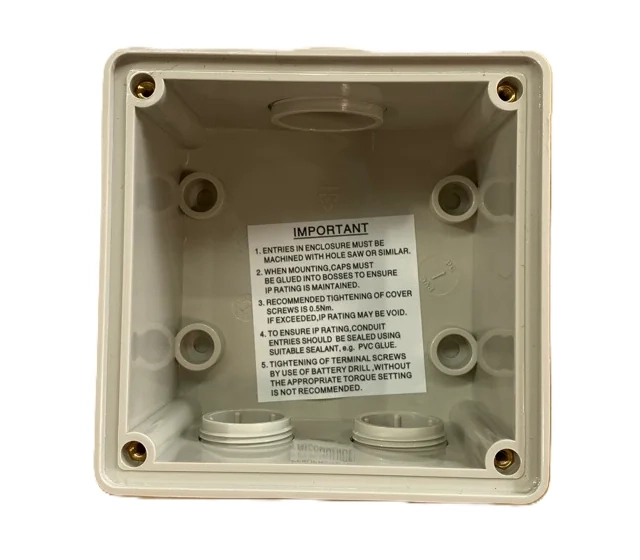

PEG10105 IP66 Adaptable Enclosure 100×100×50mm Metal Screws

Description

PEG10105. 100×100×50mm. IP66 Adaptable Enclosure. ABS/PC. 304 Stainless Steel Screws. RoHS, CE.

The PEG10105 is a 100×100×50mm IP66 rated adaptable enclosure — used as a weatherproof junction box, project box, or electrical enclosure for outdoor and industrial applications. ABS body with PC cover. 304 stainless steel screws. IP66 rated — protected against powerful water jets. Operating temperature -40°C to +120°C. Compliant with RoHS and CE. Sold individually.

• PEG10105 — 100×100×50mm IP66 Adaptable Enclosure
• External dimensions: 100mm (W) × 100mm (H) × 50mm (D)
• Body depth (D1): 40mm
• Cover depth (D2): 14mm
• Installation width (W3): 68mm
• Installation height (H3): 108mm
• Material: ABS body, PC cover
• Screws: 304 stainless steel — corrosion resistant
• IP rating: IP66 — protected against powerful water jets
• Operating temperature: -40°C to +120°C
• Compliance: RoHS, CE
• Suits outdoor, industrial, marine, and weatherproof electrical installations
• Sold individually

Order online now — fast dispatch Australia-wide.

About IP66 Adaptable Enclosures

An adaptable enclosure (also called a project box, junction box, or adaptable box) provides a weatherproof housing for electrical connections, components, PCBs, and wiring terminations. The IP66 rating confirms protection against dust ingress and powerful water jets from any direction — making it suitable for outdoor installations, industrial environments, and wet area applications where the enclosure may be exposed to rain, hose-down, or wash-down conditions.

The PEG10105 features an ABS body with polycarbonate (PC) cover — a combination that provides excellent impact resistance, UV stability, and chemical resistance. 304 stainless steel screws provide corrosion resistance for long-term outdoor and marine use. The enclosure is supplied without knockouts or cable entries — conduit entries and cable glands can be added as required by the installer.

The PEG10105 is supplied by Pacific Components and complies with RoHS and CE. It is part of a range of PE series enclosures with metal screws, available in multiple sizes from 50×65×55mm to 140×190×70mm.

Q: What is the IP rating of the PEG10105?
A: The PEG10105 is rated IP66 — protected against dust ingress and powerful water jets from any direction.

Q: What are the external dimensions of the PEG10105?
A: The PEG10105 measures 100mm (W) × 100mm (H) × 50mm (D) externally.

Q: What material is the PEG10105 made from?
A: The body is ABS and the cover is polycarbonate (PC). Screws are 304 stainless steel.

Q: Is the PEG10105 suitable for outdoor use?
A: Yes — IP66 rating, stainless steel screws, and UV-resistant materials make the PEG10105 suited to outdoor, industrial, and marine installations. Operating temperature range is -40°C to +120°C.

Q: Is the PEG10105 sold individually or in a pack?
A: The PEG10105 is sold individually.
