Main Switch 4 Pole 63 Amp Red/Yellow SFD11-63A4P

SKU: sinswi463

Product Image Gallery

Product image thumbnail for SKU sinswi463
Product image thumbnail for SKU sinswi463
Product image thumbnail for SKU sinswi463
Product image thumbnail for SKU sinswi463
Product image thumbnail for SKU sinswi463
Product image thumbnail for SKU sinswi463

Product Pricing

$65.91 (ex-GST)

$72.50 (inc-GST)

$72.50

$65.91

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ 70 In Stock

Switch SFD11-63A4P

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

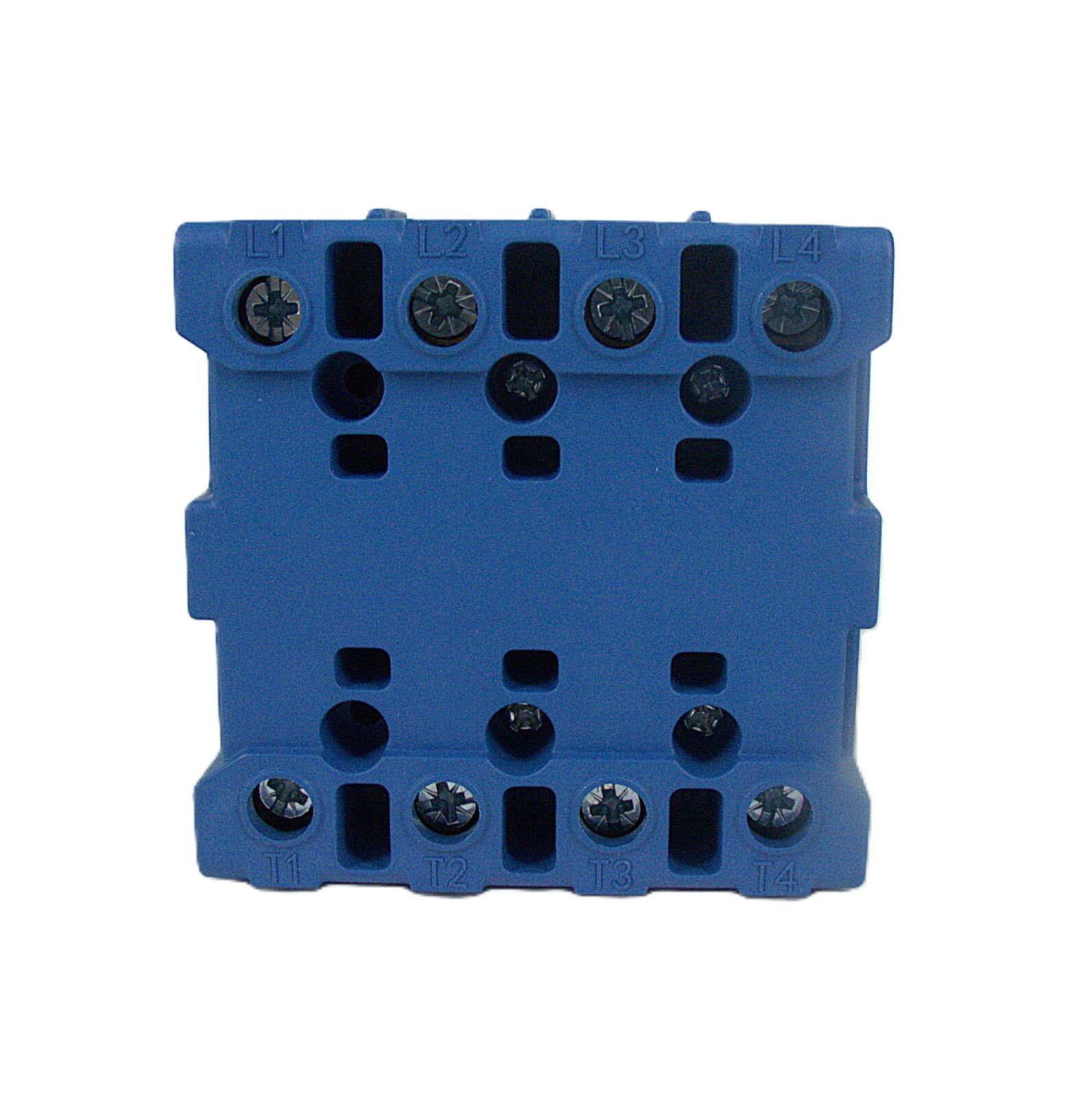

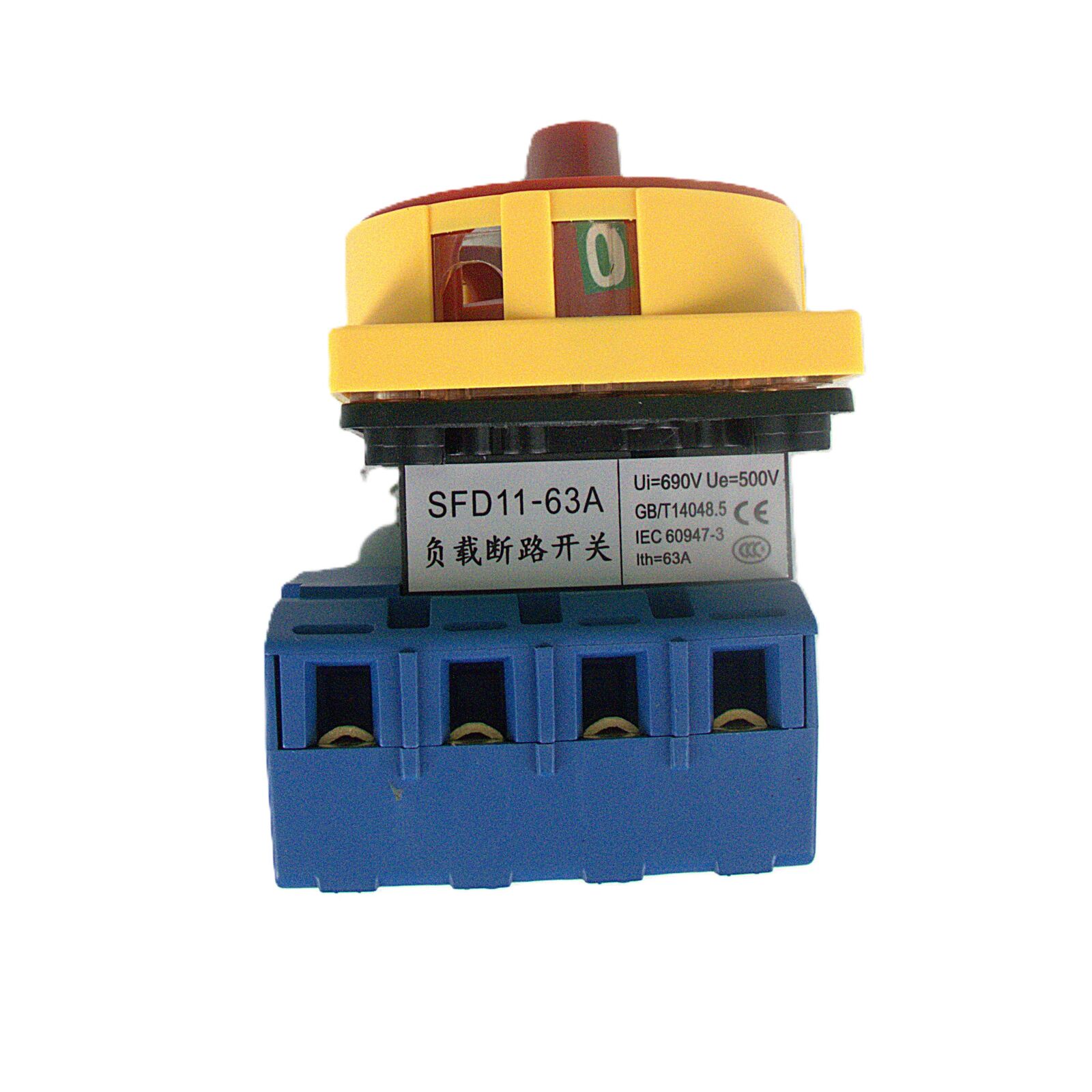

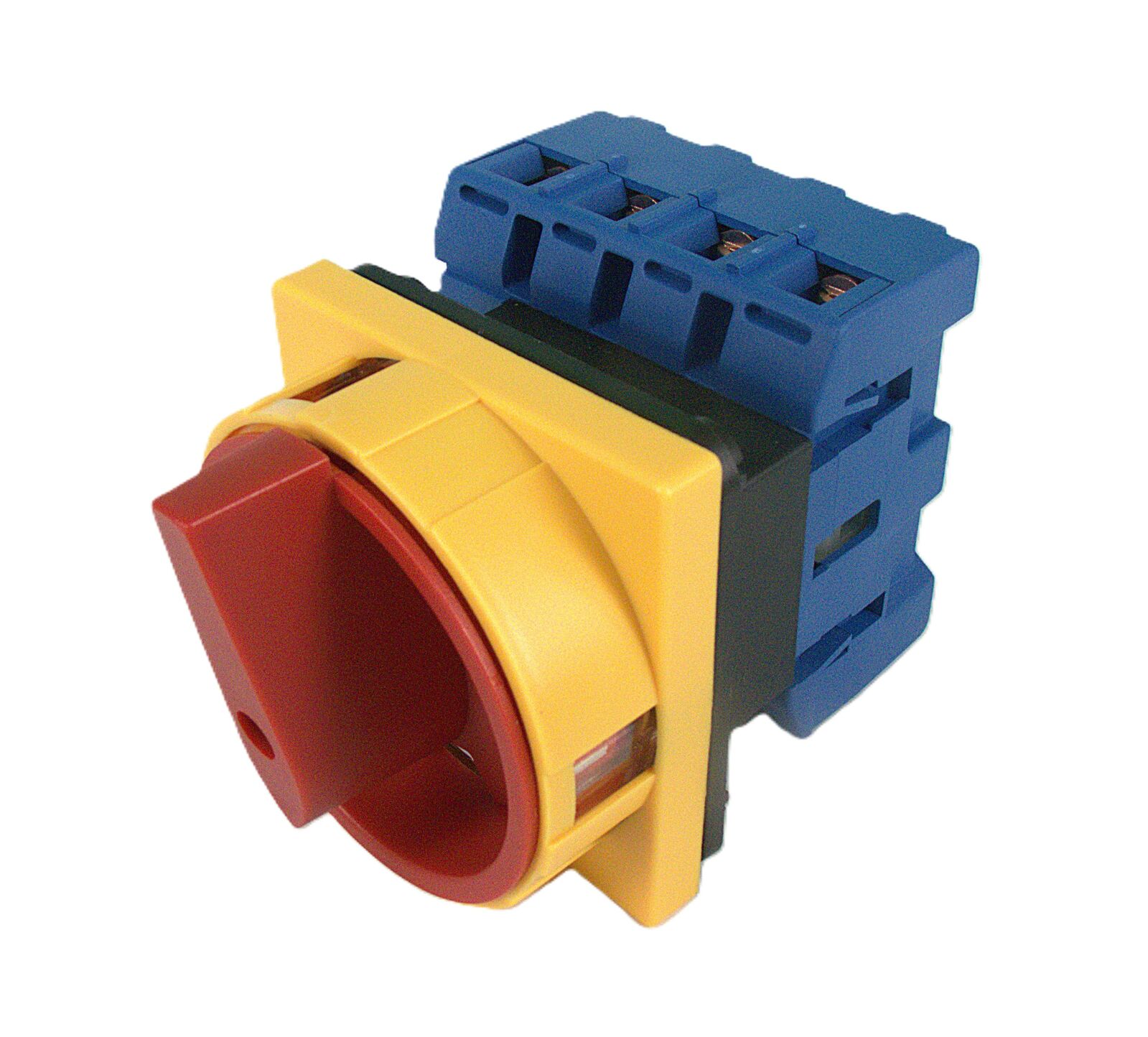

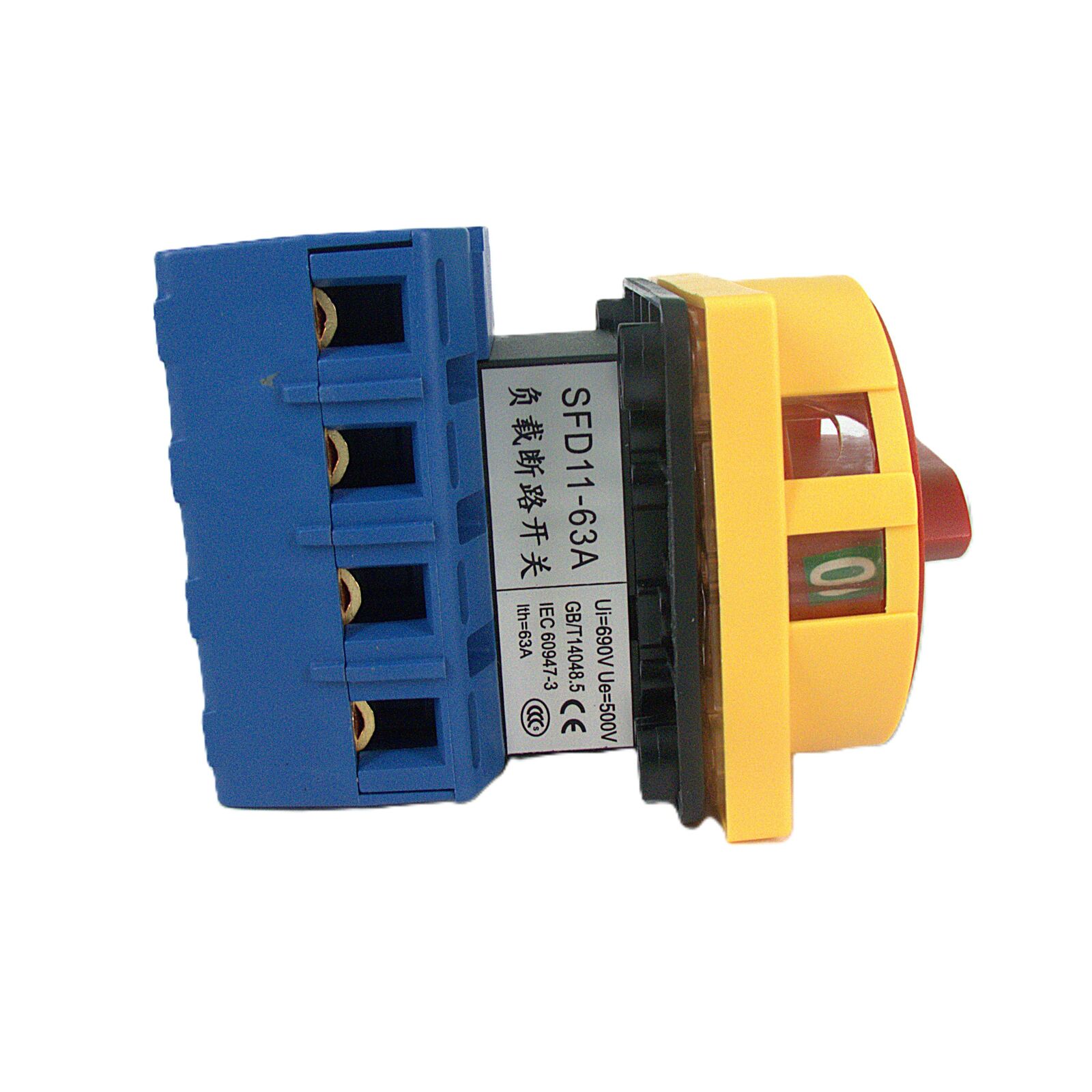

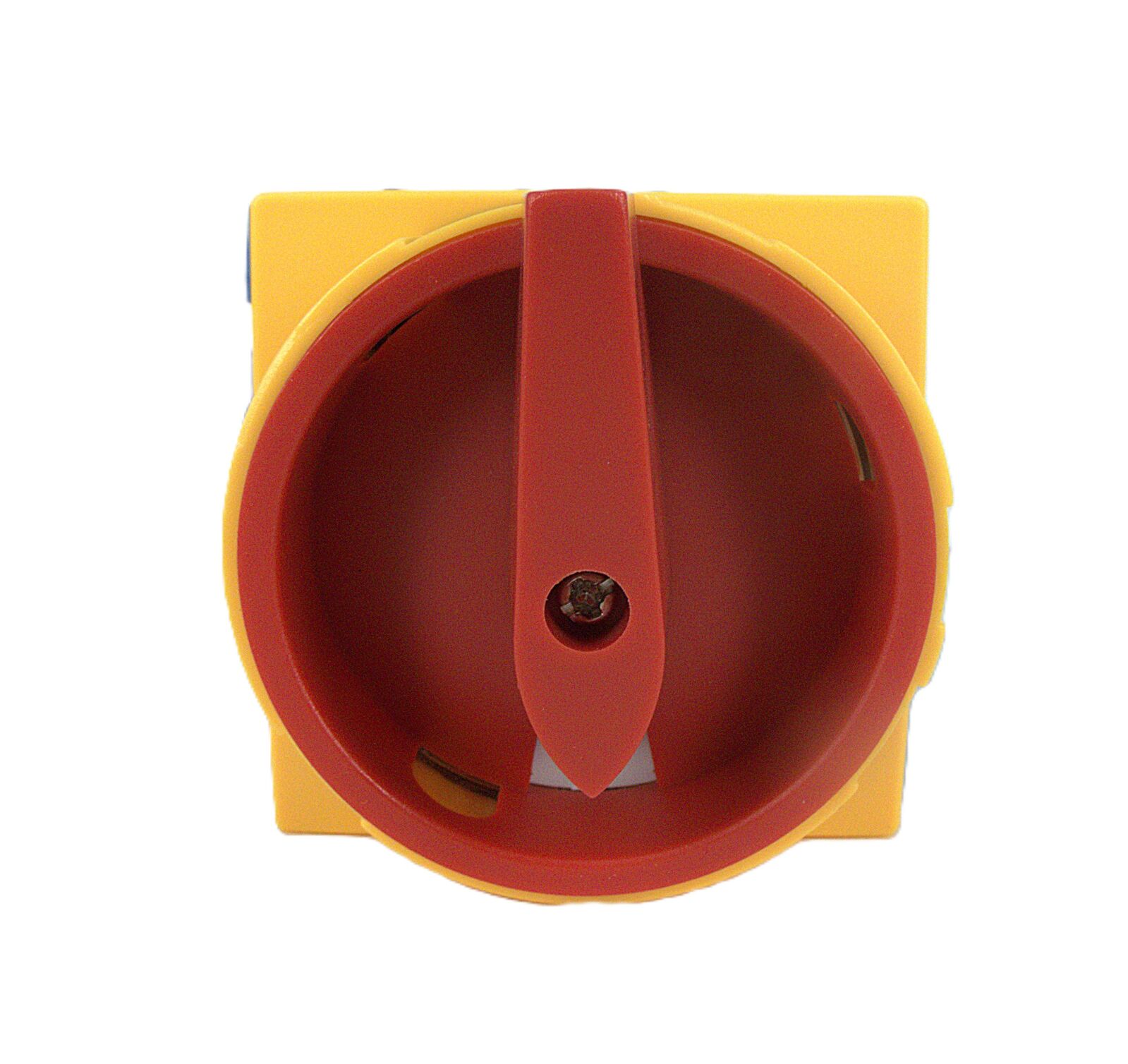

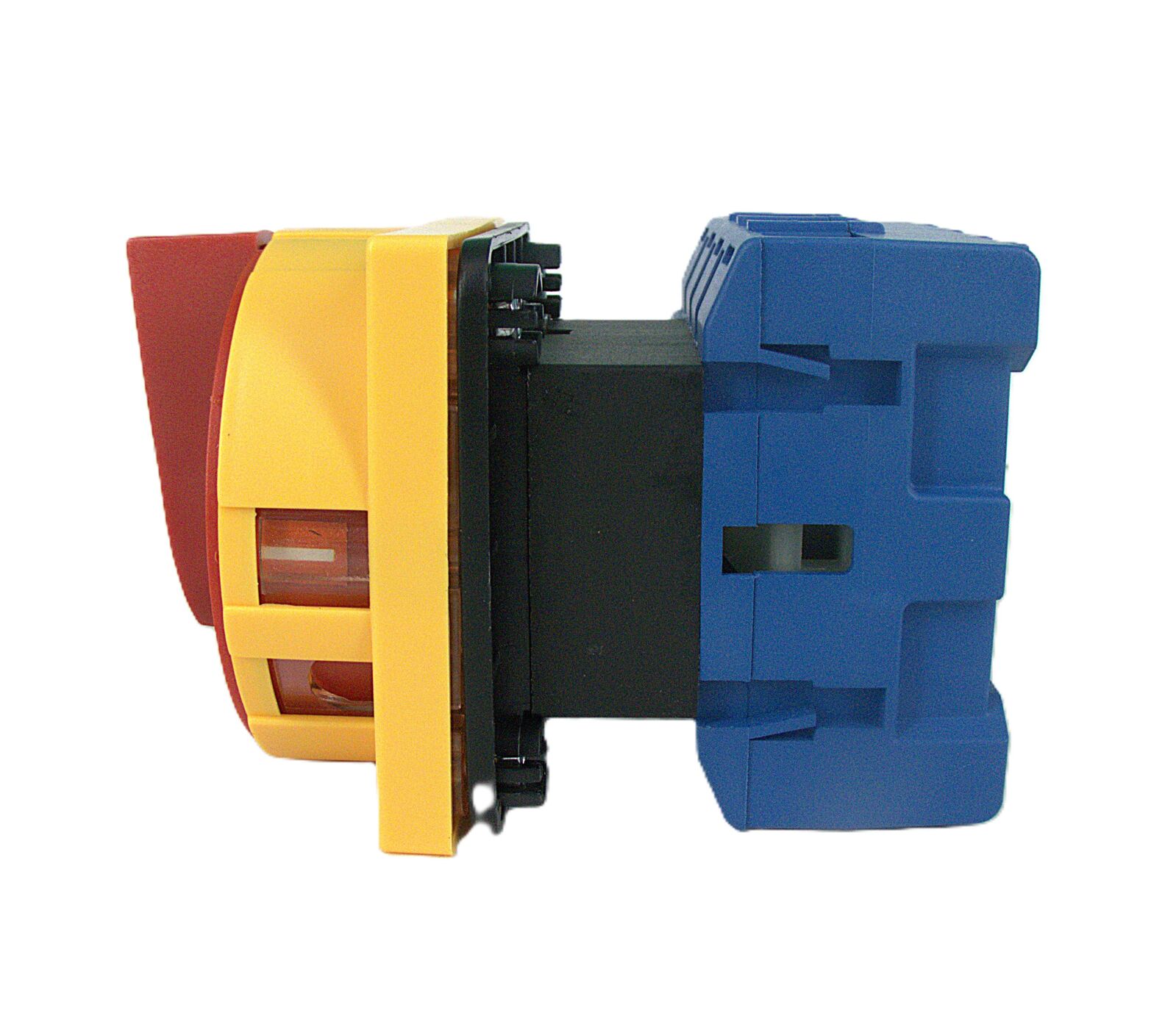

Main Switch SFD11-63A4P – 4 Pole, 63 Amp, Red/Yellow

Looking for a reliable and compact main switch for industrial and commercial use? The SFD11-63A4P is a 63A, 4 Pole, Red/Yellow main switch designed for dependable performance across ventilation, air conditioning, and water pump systems. It can also directly control small-capacity AC motors, making it a versatile choice.

Key Features:

  • ON/OFF main contact positions for safe isolation

  • Rated for AC 50Hz with 240–440V operating range

  • 63A, 4 Pole design for robust circuit control

  • IP20 without switch box / IP66 with switch box for superior protection

  • High-duty rating – 8-hour intermittent cycle, up to 30 operations per hour

  • Compact, durable build with finger protection for added safety

  • Fast disconnect speed and greater insulation distance than similar switches

This main switch is engineered for reliable operation in demanding environments, ensuring safety, performance, and long-lasting durability.

 - Ideal for HVAC, pumping systems, and motor control
 -  Compact size for easy installation
 -  Designed for both industrial and commercial applications

(sinswi463)

Specifications

Product Specification – SFD11-63A4P
Product Code SFD11-63A4P
Poles 4 Pole
Rated Current 63A
Color Red/Yellow
Voltage Range 240–440V AC
Frequency 50Hz
IP Rating (without switch box) IP20
IP Rating (with switch box) IP66
Duty Rating 8-hour intermittent, up to 30 operations per hour
Operating Temperature Range -35°C to +55°C (avg. max 35°C over 24 hrs)
Altitude Rating Up to 2000m
Humidity Tolerance 50% at 40°C; up to 90% at 20°C (with condensation safeguards)
Dimensions 64mm x 64mm
Standards Compliance GB14048.5 / GB14048.3
Certifications IEC 60947-3
SKU sinswi463
Brand Generic
