Main Switch 4 Pole 32 Amp Red/Yellow SFD11-32A4P

SKU: sinswi432

Product Image Gallery

Product image thumbnail for SKU sinswi432
Product image thumbnail for SKU sinswi432
Product image thumbnail for SKU sinswi432
Product image thumbnail for SKU sinswi432
Product image thumbnail for SKU sinswi432
Product image thumbnail for SKU sinswi432

Product Pricing

$47.73 (ex-GST)

$52.50 (inc-GST)

$52.50

$47.73

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ 248 In Stock

Switch SFD11-32A4P

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

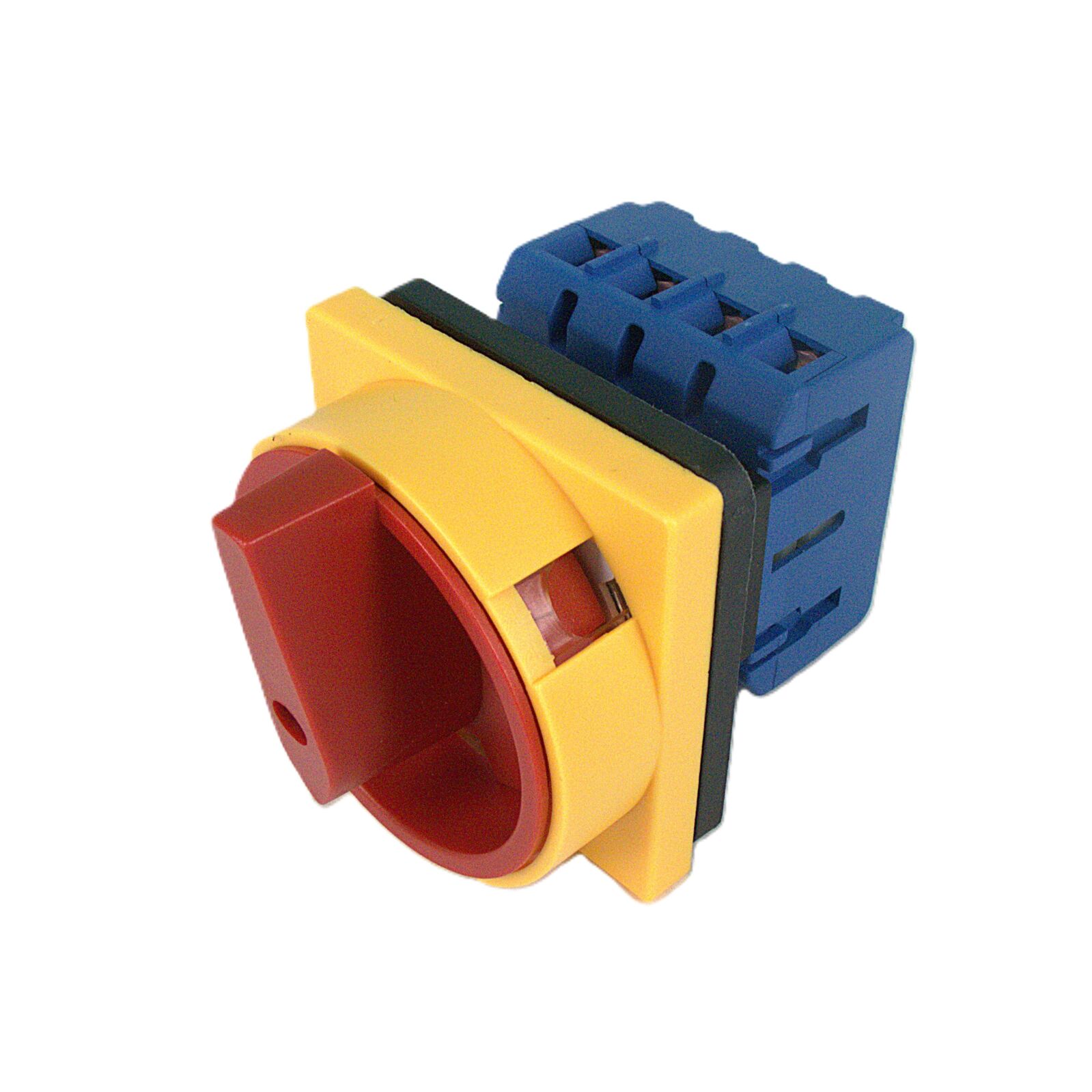

Main Switch SFD11-32A4P – 4 Pole, 32 Amp, Red/Yellow

The SFD11-32A4P is a 32A, 4 Pole, Red/Yellow main switch built for safe and reliable circuit isolation. Perfect for ventilation, air conditioning, and water pump systems, it’s also capable of directly controlling small-capacity AC motors. With a compact design and robust protection, it’s a smart choice for both industrial and commercial applications.

Key Features:

  • ON/OFF main contact positions for clear and safe isolation

  • Rated for AC 50Hz, operating voltage 240–440V

  • 32A, 4 Pole configuration for reliable switching

  • IP20 without switch box / IP66 with switch box – dust & water protection

  • Duty cycle: 8-hour intermittent, up to 30 operations per hour

  • Compact and durable design with finger protection for safety

  • Fast disconnect speed and superior insulation distance

Engineered for reliable switching and long service life, the SFD11-32A4P provides a dependable solution for demanding electrical environments.



(sinswi432)

Specifications

Product Specification – SFD11-32A4P
Product Code SFD11-32A4P
Poles 4 Pole
Rated Current 32A
Color Red/Yellow
Voltage Range 240–440V AC
Frequency 50Hz
IP Rating (without switch box) IP20
IP Rating (with switch box) IP66
Duty Rating 8-hour intermittent, up to 30 operations per hour
Operating Temperature Range -35°C to +55°C (avg. max 35°C over 24 hrs)
Altitude Rating Up to 2000m
Humidity Tolerance 50% at 40°C; up to 90% at 20°C (with condensation safeguards)
Dimensions 64mm x 64mm
Standards Compliance GB14048.5 / GB14048.3
Certifications IEC 60947-3
SKU sinswi432
Brand Generic
