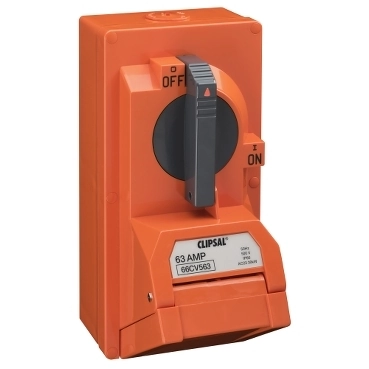

Clipsal 66CV563-RO 66 Series Switched Socket 500V 63A 5 Round Pin IP66 Chemical Resistant Orange

Description

Sixty-three amps in a sealed IP66 housing.

The Clipsal 66CV563-RO is a 66 Series switched socket outlet rated 63A at 500V AC 50Hz, built around five round pins behind a single protective cover. The IP66 plastic housing comes finished in Chemical Resistant Orange.

Key Features

• 63A rated current at 500V AC 50Hz
• Five round pins, one socket position
• Single protective cover over the socket face
• IP66 rated plastic housing
• Four modules wide
• Industrial connector electrical connection
• Part of the Clipsal 66 Series combination range
• 320 x 160 x 215 mm (H x W x D)
• Chemical Resistant Orange (RO) finish
• Also available in Chemical Resistant Grey (RG)
• Mercury free and PVC free
• Green Premium listed, ENVPEP2511024EN
• 18-month manufacturer warranty

Secure yours today and we will get it moving Australia-wide.

63A at the Top of the 66CV Range

Clipsal lists this catalogue number under Series 66CV and classifies it as a socket-outlet with the device application given as power supply. The rated current is 63A and the rated operational voltage is 500V AC at 50Hz. Five poles are published for the unit, feeding one socket position that sits behind a single protective cover. Electrical connection is described as an industrial connector, and the assembly spans four modules of switchboard or panel width, which is what gives the 66CV its larger footprint compared with lighter-duty industrial socket ranges. Clipsal positions the 66 Series as combination switched socket outlets and plugs built for heavy-duty appliances, and names welders, pumps and mobile conveyors as examples. The range spans 50 and 63 amp ratings across four, five and seven pin configurations, so matching plugs and internal socket housings sit alongside this catalogue number in the same family.

Chemical Resistant Orange, IP66 Rated

The housing is moulded plastic and carries an IP66 rating. Under the IP code that first digit of 6 means the enclosure is dust-tight, and the second digit of 6 means it is protected against powerful water jets from any direction. Clipsal offers the 66CV563 in two finishes, and this catalogue number is the Chemical Resistant Orange (RO) version; the same socket is also listed in Chemical Resistant Grey as 66CV563-RG. On the environmental side the unit is mercury free and PVC free, holds Green Premium status with Schneider Electric, and its environmental profile is published under disclosure reference ENVPEP2511024EN. Packaging is made with recycled cardboard.

Size, Weight and What Arrives

This is a substantial piece of gear. It measures 320 mm tall by 160 mm across by 215 mm out from the wall, so allow real estate on the mounting surface and check clearances before ordering. Each unit is supplied as a single PCE, packed in a carton measuring 33.6 x 21.8 x 16.4 cm with a packed weight of 4.032 kg. That weight is worth noting when planning freight, or when carrying gear out to a remote position on site. The bare product quantity in that pack is one, and Clipsal backs the socket with an 18-month manufacturer warranty.

What current and voltage is the Clipsal 66CV563-RO rated for?
Clipsal rates it at 63A, with a rated operational voltage of 500V AC at 50Hz across five poles and five round pins.

What colours does the Clipsal 66CV563-RO come in?
Two finishes are offered. This catalogue number is the orange one; the grey option carries a different code, 66CV563-RG, and is otherwise the same unit.

How large is the Clipsal 66CV563-RO?
It stands 320 mm high, 160 mm wide and 215 mm deep, spans four modules, and arrives packed at 4.032 kg.
