Clipsal 56 Series 56C315-GY Switched Socket Outlet 250V 15A 3 Flat Pin IP66 Grey

Description

Heavy-duty weatherproof power for demanding sites.

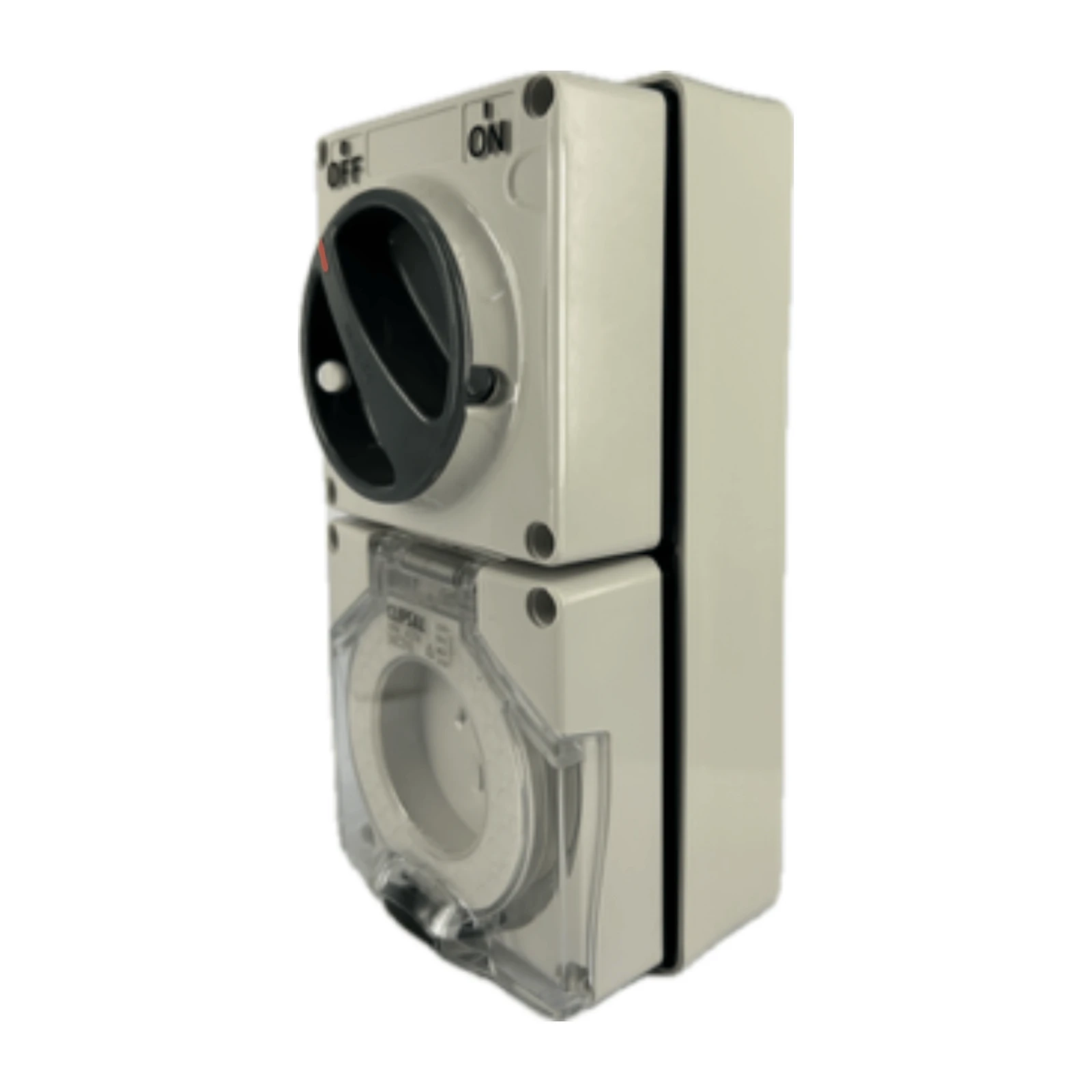

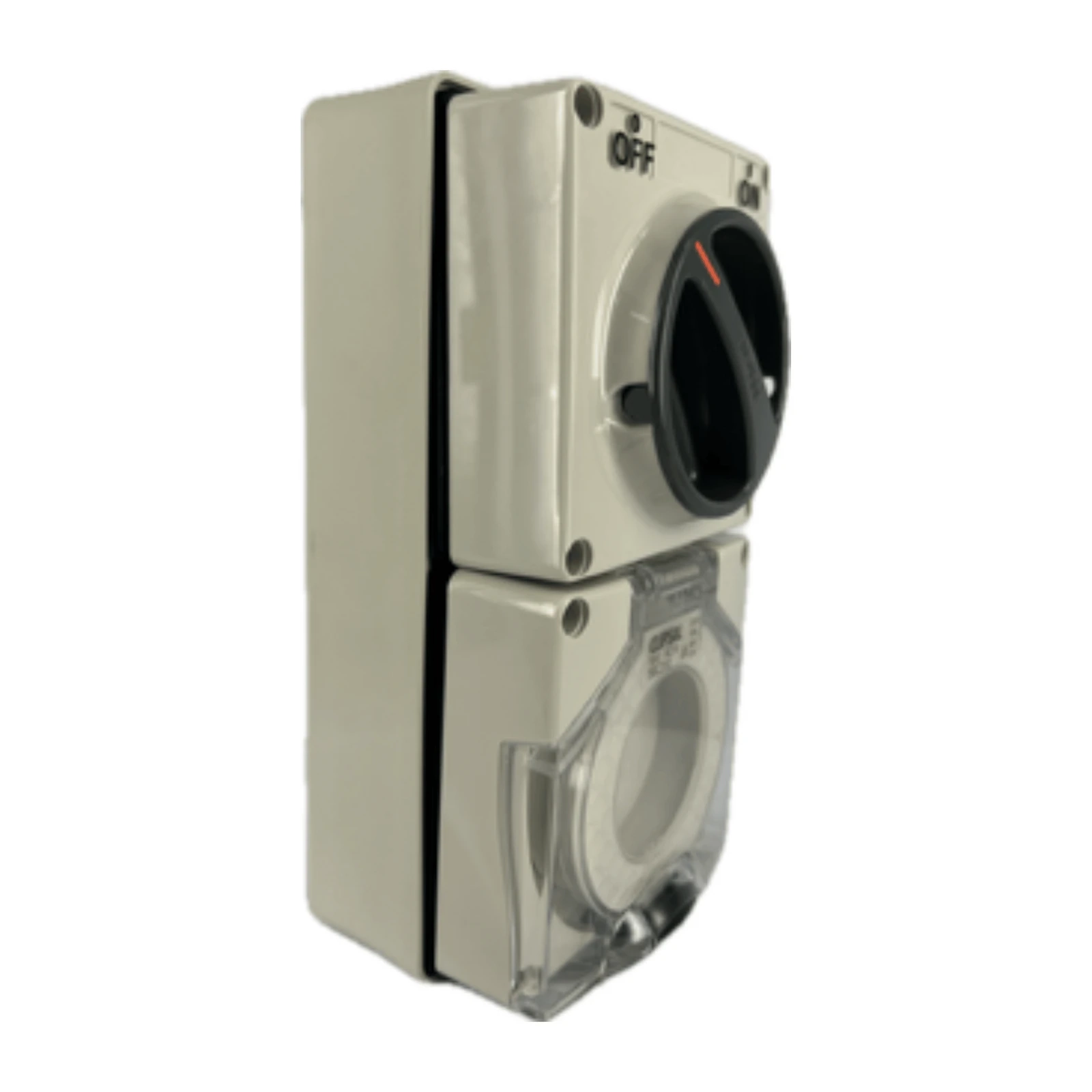

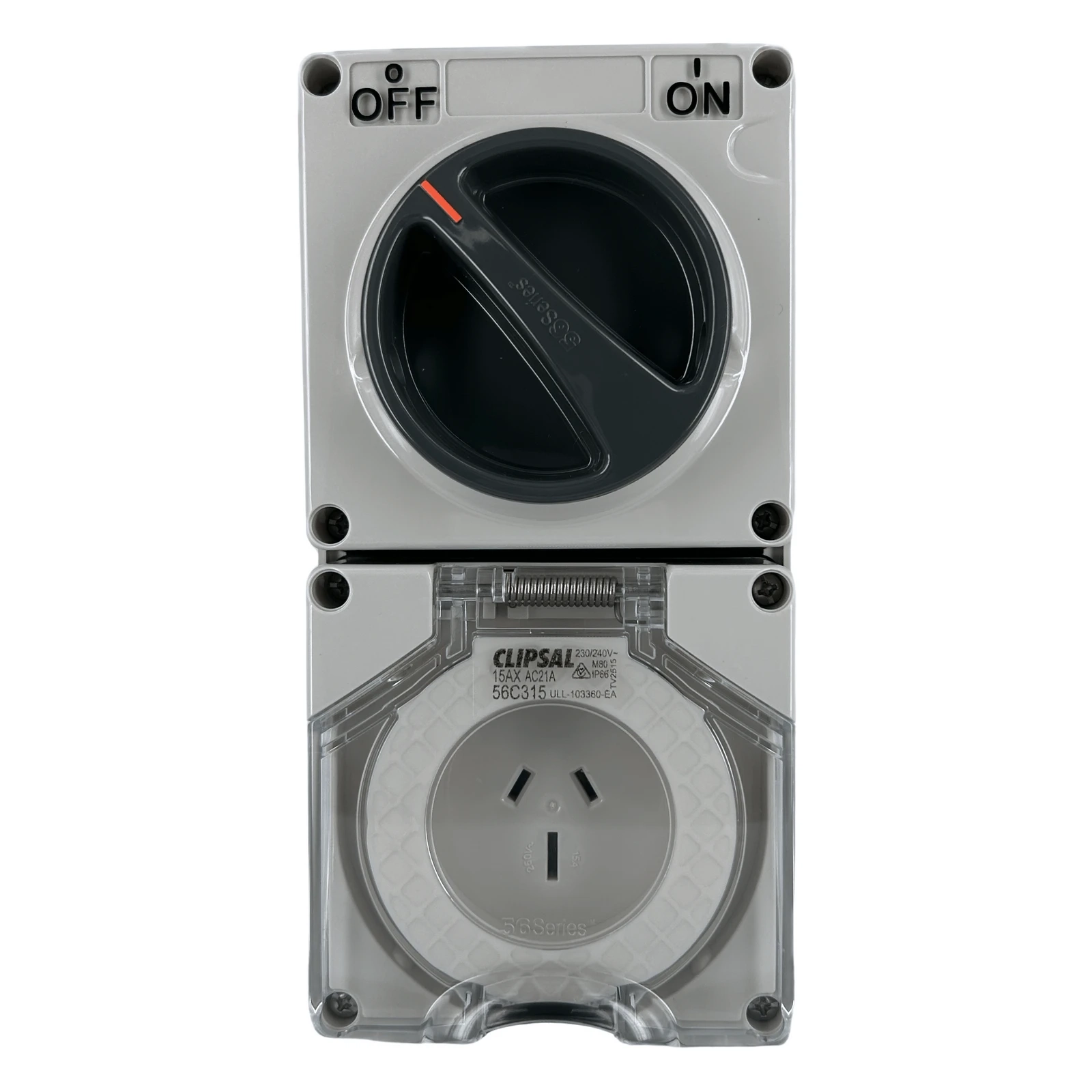

The Clipsal 56C315-GY is an IP66 switched socket outlet rated 250V, 15A with a 3 flat pin configuration. Built for surface mounting in tough outdoor and industrial environments, it delivers reliable switched power at a higher 15A current in a rugged weatherproof housing that stands up to the elements.

Key Features

• Rated 250V, 15A, 50Hz
• 3 flat pin (1 + Neutral + Earth)
• Single phase
• IP66 weatherproof protection

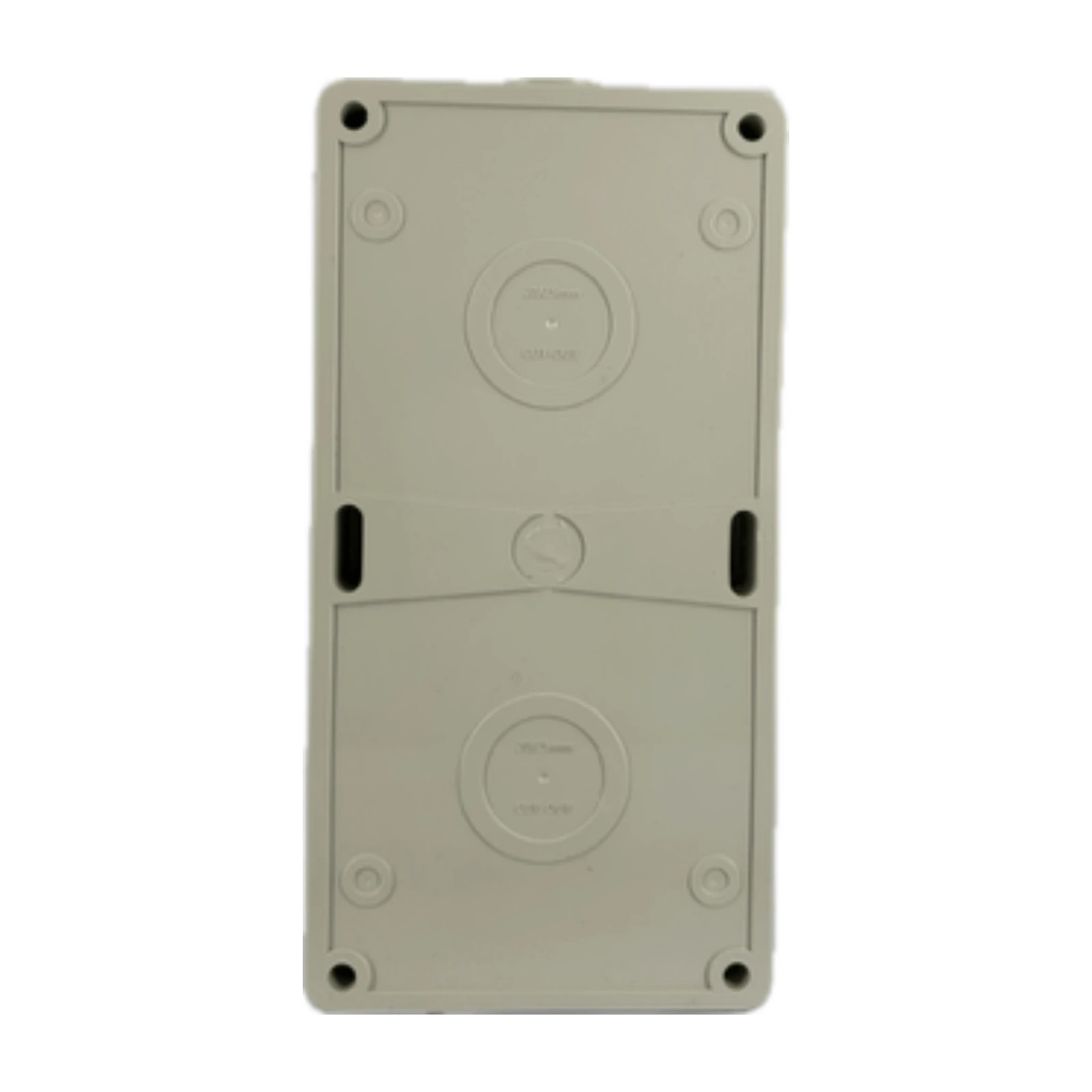

• Surface mounting

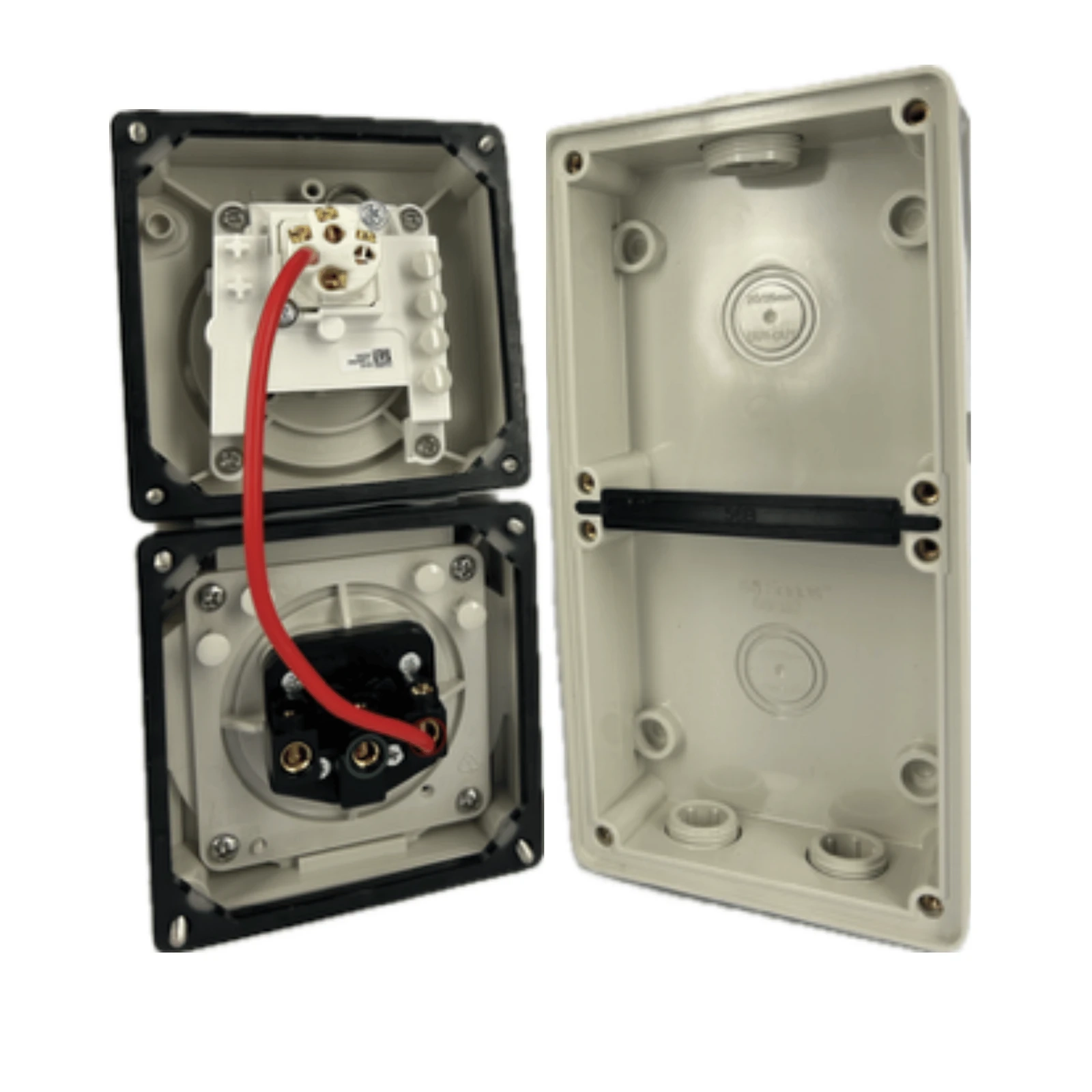

• Screw terminals, 1.5-6mm² capacity
• Conduit entry 2 x M20 / 1 x M25
• ABS housing, phosphor bronze pins
• Dimensions 204 x 101 x 83mm
• Grey finish
• PVC-free
• Built to AS/NZS 3133 and AS/NZS 3123

Shop now for fast dispatch Australia-wide.

Why it Matters

Built for harsh conditions
The IP66 rating means the enclosure is fully protected against dust and powerful water jets, so this socket holds up in exposed outdoor locations, washdown areas and dusty industrial sites. The ABS housing operates reliably across an ambient range of -25 to 75°C, making it a dependable choice where standard power points would not survive. Phosphor bronze pins provide durable, low-resistance contact for a long service life, and the integrated switch means each outlet can be isolated locally.

Higher 15A capacity
Rated at 15A, this outlet suits heavier loads than a standard 10A point, making it well matched to larger portable equipment and appliances that draw more current. Surface mounting with screw terminals rated for 1.5-6mm² conductors keeps wiring secure under vibration, and the 2 x M20 / 1 x M25 conduit entries give flexible cable routing for a range of installations. At 204mm high by 101mm wide and 83mm deep, it mounts neatly onto walls, posts and plant without crowding the surrounding space.

Australian-standard power
Manufactured to AS/NZS 3133 and AS/NZS 3123, this 56 Series outlet meets Australian requirements for weatherproof socket outlets. The 3 flat pin format accepts standard Australian 15A plugs, and the grey housing is a familiar sight across industrial, utility and commercial installations. As a mains-connected device, it should be installed by a licensed electrician to meet the wiring rules.

What current is the Clipsal 56C315-GY rated for?
It is rated 15A at 250V, suiting heavier loads than a standard 10A socket outlet.

Is it suitable for outdoor use?
Yes. It carries an IP66 rating, protecting it against dust and high-pressure water jets for exposed outdoor and washdown areas.

What plugs does it accept?
It has a 3 flat pin configuration (active, neutral and earth) that accepts standard Australian 15A plugs.
