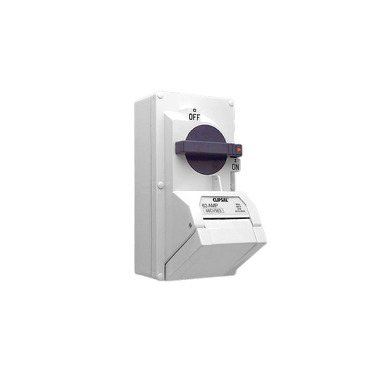

Clipsal 66CV563-RG 66 Series Switched Socket 63A 500V AC 5 Round Pin IP66 Chemical Resistant Grey

Description

Sixty-three amps, sealed and switched.

Big loads need a connector rated to match them. The Clipsal 66CV563-RG is a 63 A switched socket outlet rated at 500 V AC 50 Hz, housed in an IP66 chemical resistant grey enclosure with a protective cover over its single outlet.

Key Features

• 63 A rated current [In]
• 500 V AC 50 Hz rated operational voltage [Ue]
• 5 poles, 5 round pin configuration
• One socket outlet with protective cover
• IP66 degree of protection
• 4 module enclosure, 320 mm x 160 mm x 215 mm
• Plastic housing in Chemical Resistant Grey
• Clipsal Series 66CV range
• Classified by Clipsal as an industrial connector for power supply
• Mercury free and PVC free
• Supplied one piece per pack, 4.032 kg packed
• Shipping carton of two, 33.6 cm x 21.8 cm x 16.4 cm
• Clipsal item number 66CV563-RG

Buy online now for fast dispatch across Australia.

Sizing Up the 66CV563-RG

This is a substantial piece of gear rather than a wall plate. The enclosure measures 320 mm high, 160 mm wide and 215 mm deep and occupies four modules, and the packed unit weighs 4.032 kg. Measure the available run of wall or frame before committing to a position, and account for the 215 mm depth as well as the face dimensions, because the body projects a long way further than a typical wiring accessory.

Clipsal supplies the item singly, one piece per pack, with a shipping carton of two measuring 33.6 cm by 21.8 cm by 16.4 cm.

What the IP66 Rating Covers

IP66 is a two-part code and both halves matter on an industrial socket. The first digit, 6, is the highest dust rating there is: no ingress of dust at all. The second digit, also 6, covers protection against powerful water jets directed at the enclosure from any angle. Between them the two figures describe a housing built to stay sealed out in the open, not one that merely tolerates a light shower.

Chemical Resistant Grey

Chemical Resistant Grey, coded RG, is Clipsal's own colour designation for this item rather than a generic grey. The RG suffix on the item number is what identifies the finish, so quote the code in full when ordering or specifying.

Switched, with a Covered Face

Clipsal lists this item as a switched socket outlet with one outlet and a protective cover. The switch allows the circuit to be broken before a plug is inserted or withdrawn, so the connection is not made or parted while carrying load. The cover shields the socket face whenever nothing is plugged in, which is what keeps the sealing rating meaningful in practice rather than only on the specification sheet.

Clipsal records the housing as plastic, and lists the item as both mercury free and PVC free. The environmental disclosure reference published against this item number is ENVPEP2511024EN.

What is the current rating of the Clipsal 66CV563-RG?
It is rated at 63 A with a rated operational voltage of 500 V AC at 50 Hz, across five poles in a five round pin configuration.

How large is the 66CV563-RG enclosure?
The body measures 320 mm high, 160 mm wide and 215 mm deep, occupies four modules, and weighs 4.032 kg as packed by Clipsal.

What does the IP66 rating on the 66CV563-RG mean?
IP66 means the enclosure is completely dust tight and is protected against powerful water jets from any direction, which is the sealing level specified for equipment left out in the open.
