Clipsal 66CV750-RG 66 Series Switched Socket Outlet 50A 500V AC 7 Round Pin Chemical Resistant Grey

Description

Seven pins, fifty amps, one switched outlet.

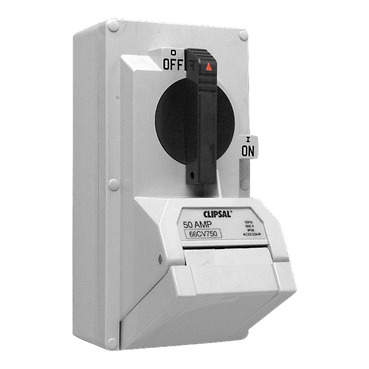

Pin count is the first thing to get right on an industrial socket, and it is the easiest thing to get wrong. The Clipsal 66CV750-RG is a 50 A switched socket outlet with a seven pole, seven round pin face, supplied in Clipsal's Chemical Resistant Grey finish.

Key Features

• 50 A rated current [In]
• 500 V AC rated operational voltage [Ue]
• 7 poles in a 7 round pin arrangement
• One socket outlet with protective cover
• Switched socket outlet
• 4 module enclosure, 320 mm x 160 mm x 215 mm
• Plastic housing in Chemical Resistant Grey
• Clipsal Series 66CV range
• Mercury free and PVC free
• Supplied one piece per pack, 4.26 kg packed
• Single-piece pack 32.0 cm long x 21.5 cm high x 16.0 cm wide
• Barcoded for individual sale or a carton of two
• Environmental disclosure ENVPEP2511024EN
• Clipsal item number 66CV750-RG

Secure yours now with fast shipping across Australia.

Seven Poles at 50 Amps

The pin count is what sets this item apart from the rest of the range. Clipsal specifies seven poles in a seven round pin pattern, rated at 50 A and 500 V AC. Pin count and pin pattern both have to agree between plug and socket, so confirm the connector on the equipment before ordering rather than matching on current rating alone. A 50 A rating on its own is shared with other sockets and is not enough to confirm a match.

Only one outlet is fitted, and Clipsal lists it with a protective cover. The switch lets the circuit be broken before a plug goes in or comes out, so the connection is not made or parted under load, and the cover shields the socket face whenever nothing is plugged in.

Enclosure Size and Weight

This is a large-format housing rather than a wall accessory. The body measures 320 mm high, 160 mm wide and 215 mm deep and takes up four modules, and the packed unit weighs 4.26 kg. Plan the fixings and the available wall or frame run around those figures, and allow for the 215 mm depth clearing whatever sits in front of it.

Clipsal supplies the item singly. The one-piece pack measures 32.0 cm long, 21.5 cm high and 16.0 cm wide, and carries a weight of 4.26 kg. A separate barcode exists for a carton of two, though Clipsal does not publish dimensions against it, so plan freight on the single-piece figures unless your supplier confirms otherwise.

Chemical Resistant Grey

Chemical Resistant Grey is Clipsal's own designation for this finish, carried on the item number as the RG suffix. It is the only finish Clipsal shows against this item number, so quote the code in full when ordering or specifying, and the RG is worth carrying through onto the purchase order as well. The housing itself is plastic, and Clipsal lists the item as both mercury free and PVC free, with the environmental disclosure reference published as ENVPEP2511024EN.

What is the pin configuration of the Clipsal 66CV750-RG?
It has seven poles arranged in a seven round pin pattern, rated at 50 A and 500 V AC. The mating plug has to share both the pin count and the pin pattern.

How large is the 66CV750-RG enclosure?
The body measures 320 mm high, 160 mm wide and 215 mm deep, occupies four modules, and weighs 4.26 kg as packed by Clipsal.

What colour options does the 66CV750-RG come in?
Clipsal shows a single finish against this item number, Chemical Resistant Grey, identified by the RG suffix.
