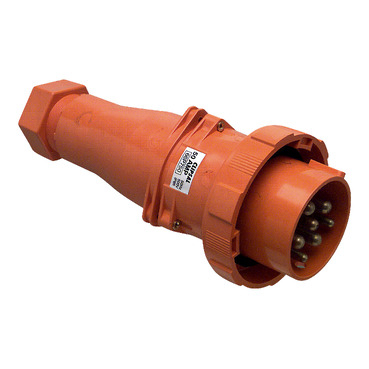

Clipsal 66P750-RO 66 Series Heavy Duty Straight Plug IP66 500V 50A 7 Pin Chemical Resistant Orange

Description

Seven-pin heavy duty power in a chemical resistant body.

The Clipsal 66 Series 66P750-RO Heavy Duty Straight Plug carries 50 amps at 500 volts through a 7 round pin configuration, rated IP66. Cable terminates at screw terminals and enters through a cable gland, in a Chemical Resistant Orange body.

Key Features

• Rated 50 A at 500 V 50/60 Hz conforming to EN 60309-2
• 7 round pins
• 3 phase
• IP66 degree of protection
• Screw terminal connections
• Cable gland entry
• Straight plug body
• Chemical Resistant Orange housing
• Plastic construction
• Mercury free
• Halogen free product
• 18 month manufacturer warranty

Secure yours online today.

Why it Matters

A 7 round pin configuration

The 66P750-RO is rated 50 A at 500 V, 50/60 Hz, conforming to EN 60309-2. Seven round pins is the largest configuration in the 66P range, above the 4-pin and 5-pin models. The EN 60309-2 pin standard is keyed, so a 7-pin plug will not mate with a 4-pin or 5-pin outlet — the connection is either correct or it does not go together.

IP66 sealing keeps a heavy duty connection reliable

An IP66 degree of protection means the plug is dust-tight and protected against powerful water jets. On sites where the connection sits outdoors, in a washdown zone, or in a dusty yard, that seal is what stops moisture and grit reaching the contacts. Cable gland entry maintains the seal at the point where cable enters the body, not just around the housing.

The RO variant of the 66P750

This is the Chemical Resistant Orange version of the 66P750, sitting alongside the Electric Orange model as a colour variant within the same electrical specification. Screw terminal connections mean terminations can be made and re-made with hand tools on site, without specialised crimping equipment. The 66P750 is covered by an 18 month manufacturer warranty and is a halogen free product.

What is the Clipsal 66P750-RO rated for?
It is rated 50 amps at 500 volts, 50/60 Hz, conforming to EN 60309-2. It uses a 7 round pin, 3 phase configuration.

Is the Clipsal 66P750-RO weatherproof?
Yes. The 66P750-RO carries an IP66 degree of protection, meaning it is dust-tight and protected against powerful water jets from any direction.

What is the difference between the 66P750-RO and the 66P750-EO?
Both share the same electrical rating of 50 A at 500 V with 7 round pins. The RO is supplied in Chemical Resistant Orange and the EO in Electric Orange.
