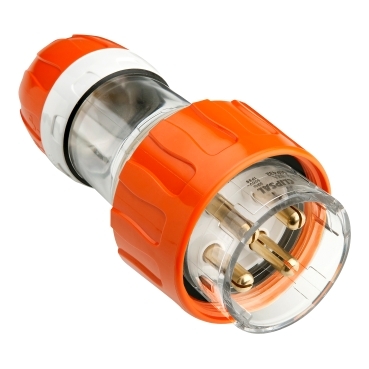

Clipsal 56 Series 56P432-EO Straight Plug 4 Round Pin 32A 500V IP66 Electric Orange

Description

A weatherproof four-pin plug for heavy three-phase connections.

The Clipsal 56P432-EO is a 500V 32A straight plug with 4 round pins in a 3P + E configuration, built in high-visibility Electric Orange. The four-pin layout carries three phases plus earth, and the M40 cable gland entry keeps the connection sealed against the weather.

Key Features

• 500V AC, 32A rated straight plug
• 4 round pins in a 3P + E configuration
• IP66 rated against dust and powerful water jets
• Tough polycarbonate housing in Electric Orange
• Brass contact pins for reliable conductivity
• M40 cable gland entry with screw terminals accepting 2.5–25 mm² conductors
• Dimensions 79mm W x 79mm H x 168mm D
• Straight body with cable gland entry
• Manufactured to AS/NZS 3123

Buy online and have it on its way.

Why it Matters

Built for Australian Conditions
Rated IP66 to AS 60529 and certified to AS/NZS 3123, this plug keeps a three-phase connection working where dust, moisture, and impact are part of the daily grind – a common requirement on industrial sites, outdoor installations, and washdown areas. The high-visibility Electric Orange finish makes the connection easy to spot.

Three Phase Plus Earth at 500V
The 56P432-EO uses four round pins in pin arrangement N, in a 3P + E configuration – three phases and an earth, with no neutral. It is rated 500V at 32A, with screw terminals accepting conductors from 2.5 mm² up to 25 mm² through an M40 cable gland.

What is the Clipsal 56P432-EO used for?
It is a 500V 32A four-round-pin straight plug, rated IP66, for weatherproof three-phase power connections in tougher environments.

What cable size does it accept?
The screw terminals accept conductor sizes from 2.5 mm² to 25 mm², with cable entry through an M40 gland.

What is the pin configuration?
It has 4 round pins in a 3P + E arrangement (three phases plus earth) with pin arrangement N, rated 500V at 32A.
