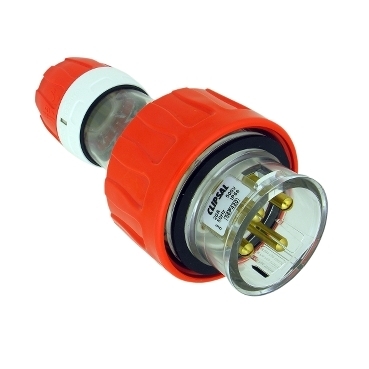

Clipsal 56 Series 56P420-EO Straight Plug 4 Round Pin 20A 500V IP66 Electric Orange

Description

A weatherproof four-pin plug for three-phase connections.

The Clipsal 56P420-EO is a 500V 20A straight plug with 4 round pins in a 3P + E configuration, built in high-visibility Electric Orange. The four-pin layout carries three phases plus earth, and the M25 cable gland entry keeps the connection sealed against the weather.

Key Features

• 500V AC, 20A rated straight plug
• 4 round pins in a 3P + E configuration
• IP66 rated against dust and powerful water jets
• Tough polycarbonate housing in Electric Orange
• Brass contact pins for reliable conductivity
• M25 cable gland entry with screw terminals accepting 1–6 mm² conductors
• Dimensions 78mm W x 78mm H x 167mm D
• Straight body with cable gland entry
• Manufactured to AS/NZS 3123

Grab yours online – quick dispatch.

Why it Matters

Built for Australian Conditions
Rated IP66 to AS 60529 and certified to AS/NZS 3123, this plug keeps a three-phase connection working where dust, moisture, and impact are part of the daily grind – a common requirement on industrial sites, outdoor installations, and washdown areas. The high-visibility Electric Orange finish makes the connection easy to spot.

Three Phase Plus Earth at 500V
The 56P420-EO uses four round pins in pin arrangement L, in a 3P + E configuration – three phases and an earth, with no neutral. It is rated 500V at 20A, with screw terminals accepting conductors from 1 mm² up to 6 mm² through an M25 cable gland.

What is the Clipsal 56P420-EO used for?
It is a 500V 20A four-round-pin straight plug, rated IP66, for weatherproof three-phase power connections in tougher environments.

What cable size does it accept?
The screw terminals accept conductor sizes from 1 mm² to 6 mm², with cable entry through an M25 gland.

What is the pin configuration?
It has 4 round pins in a 3P + E arrangement (three phases plus earth) with pin arrangement L, rated 500V at 20A.
