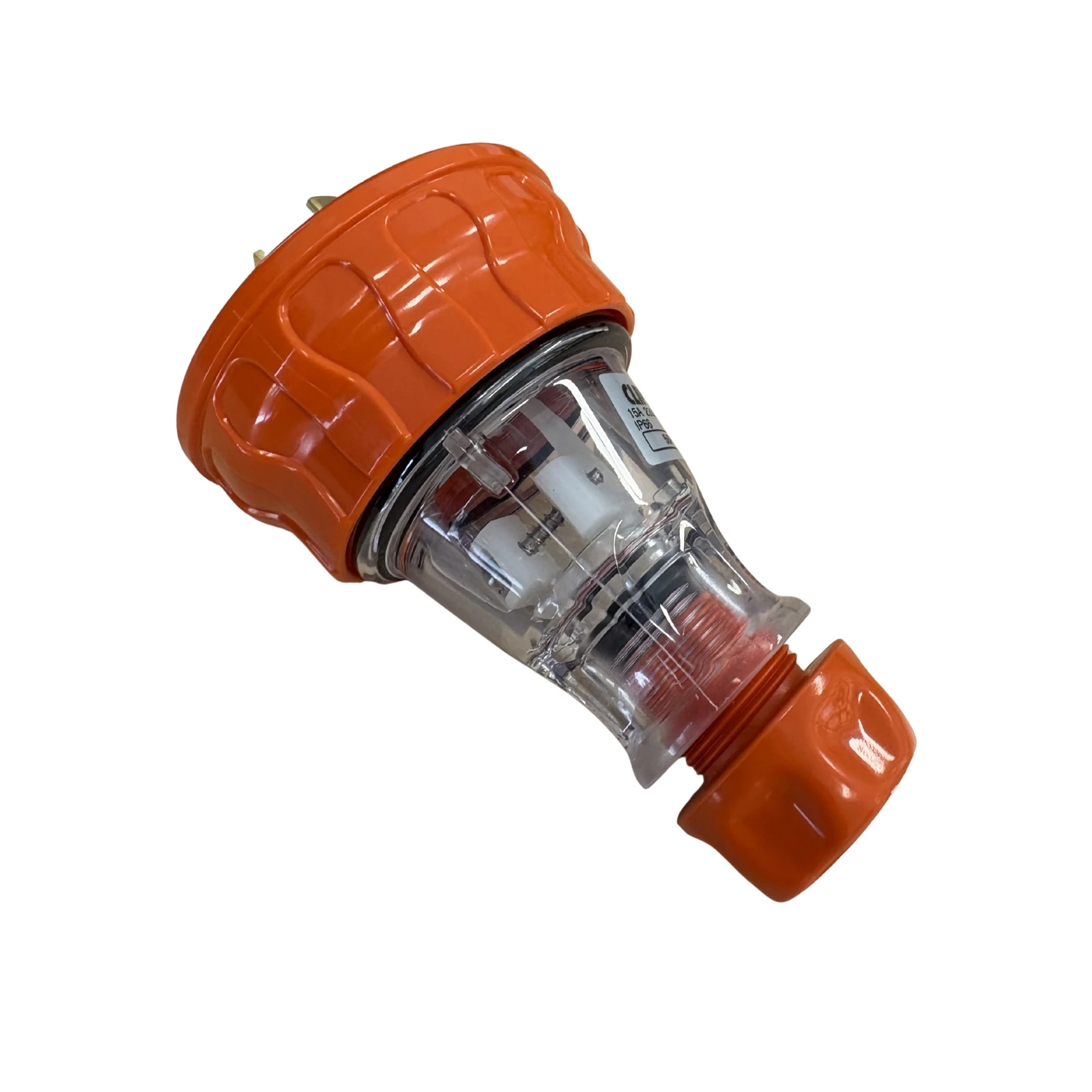

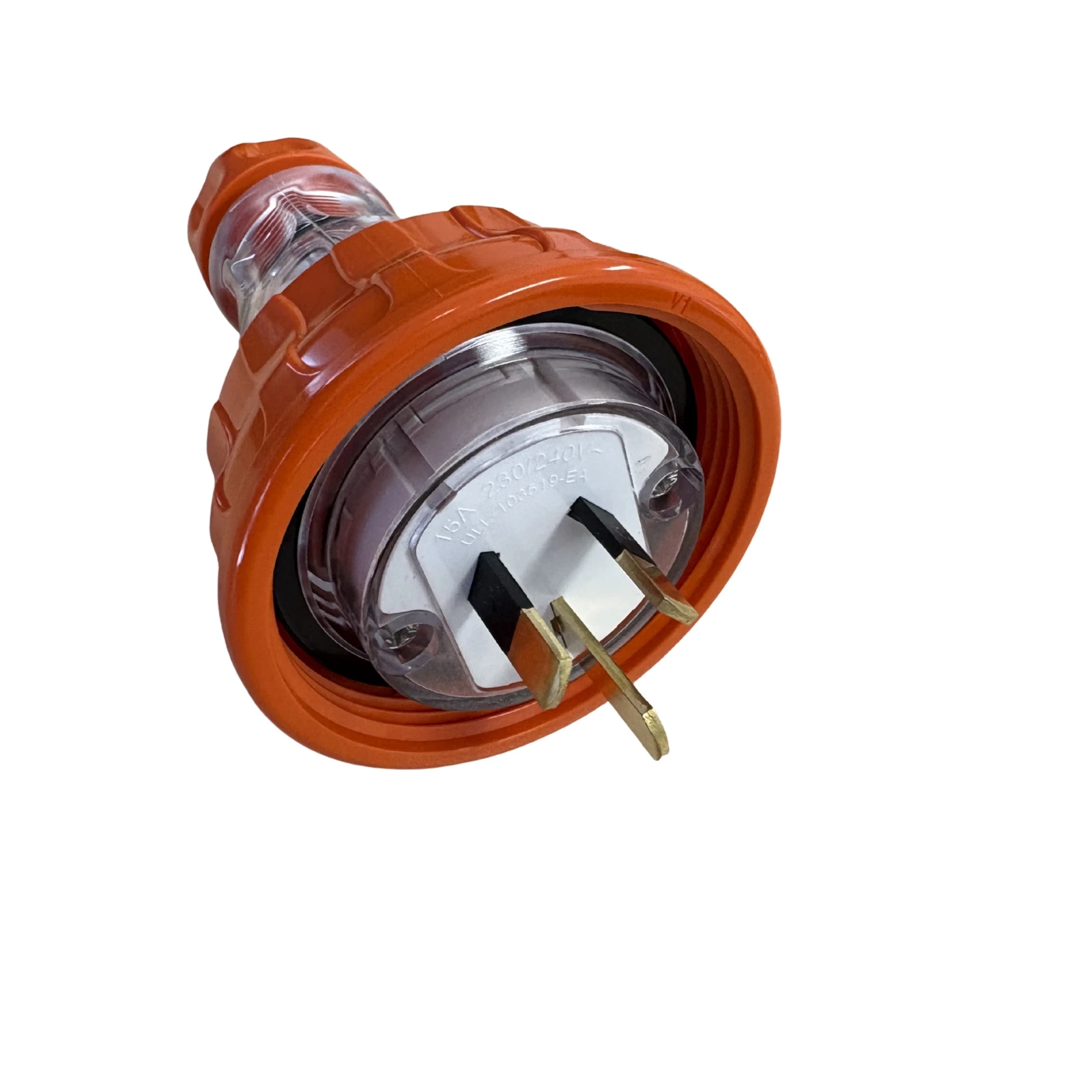

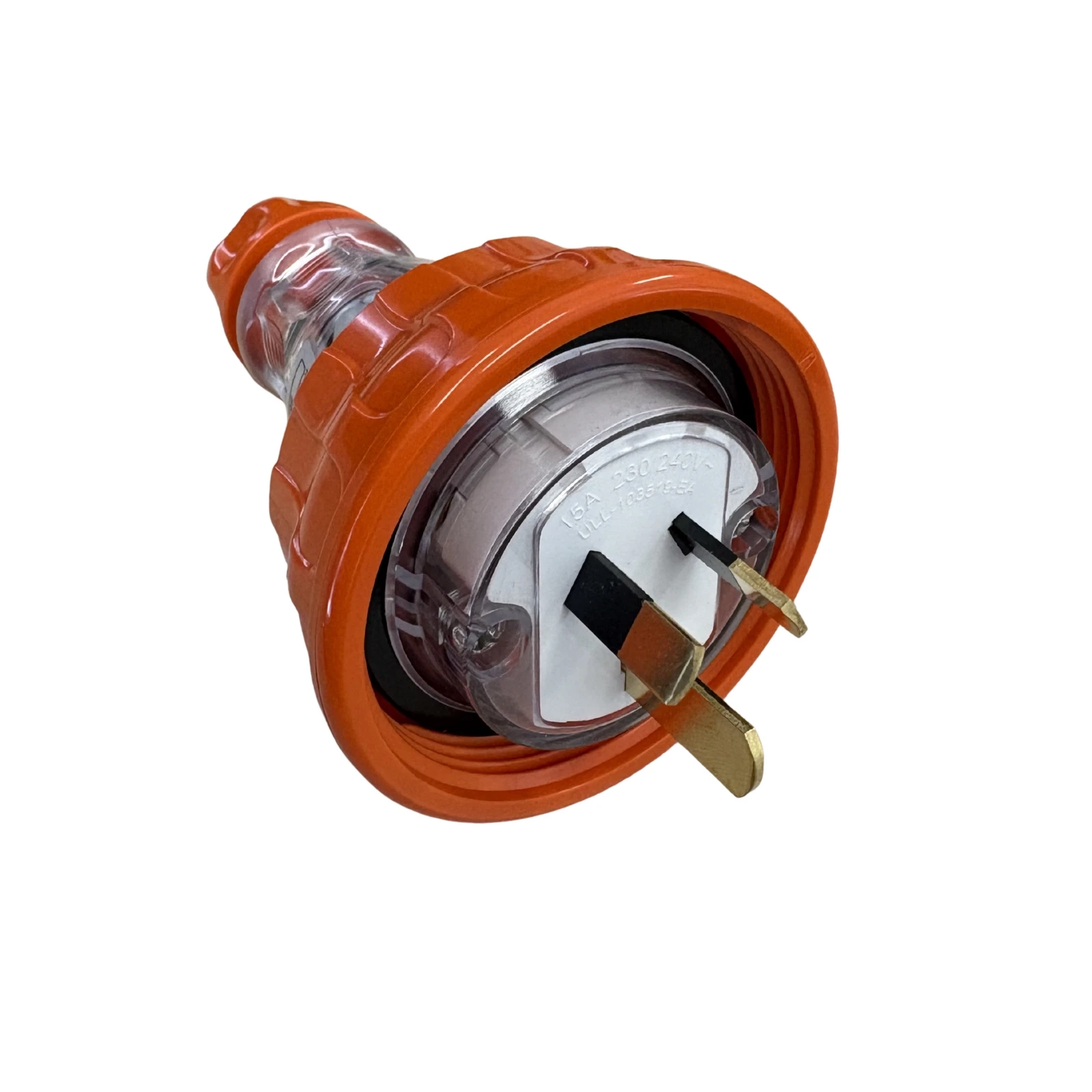

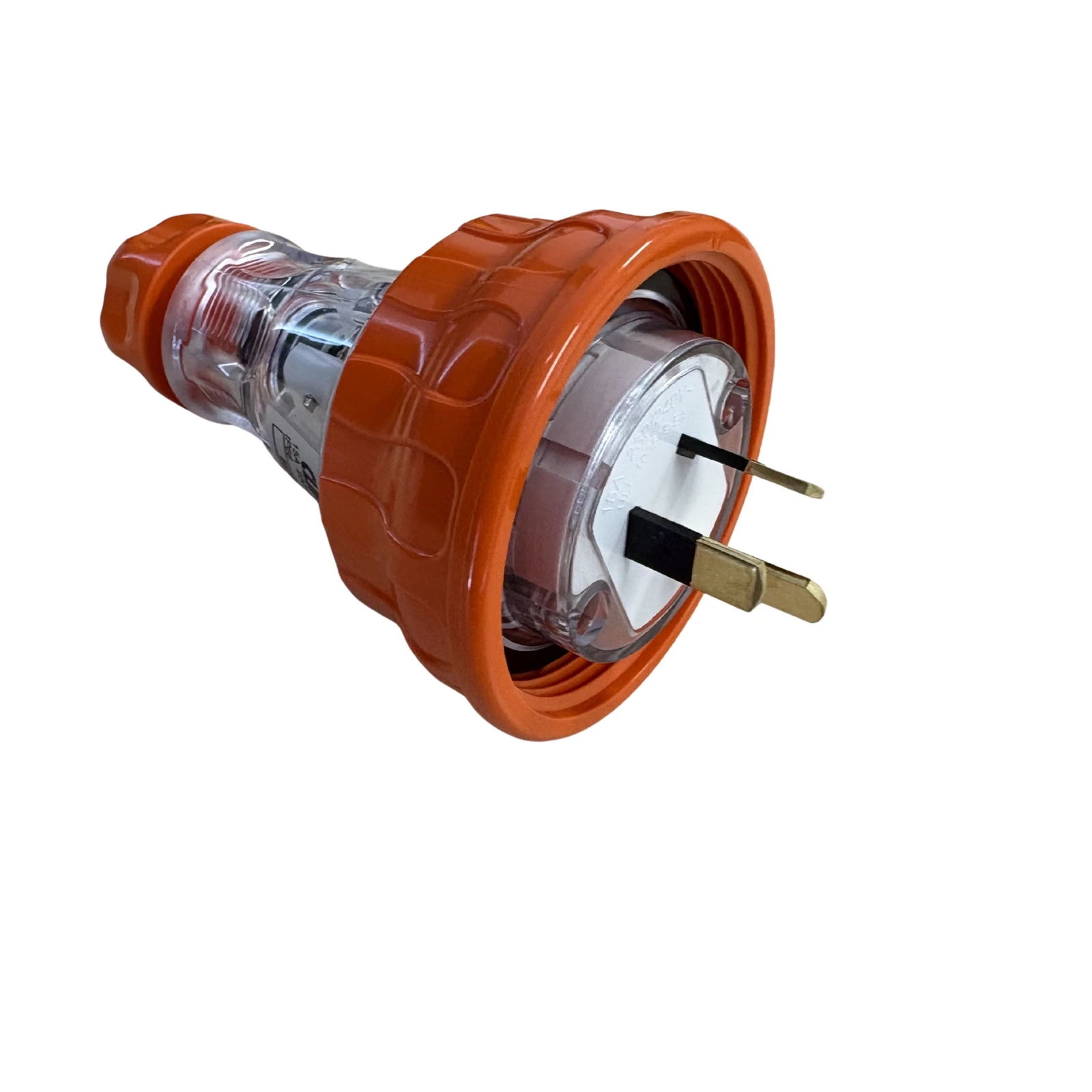

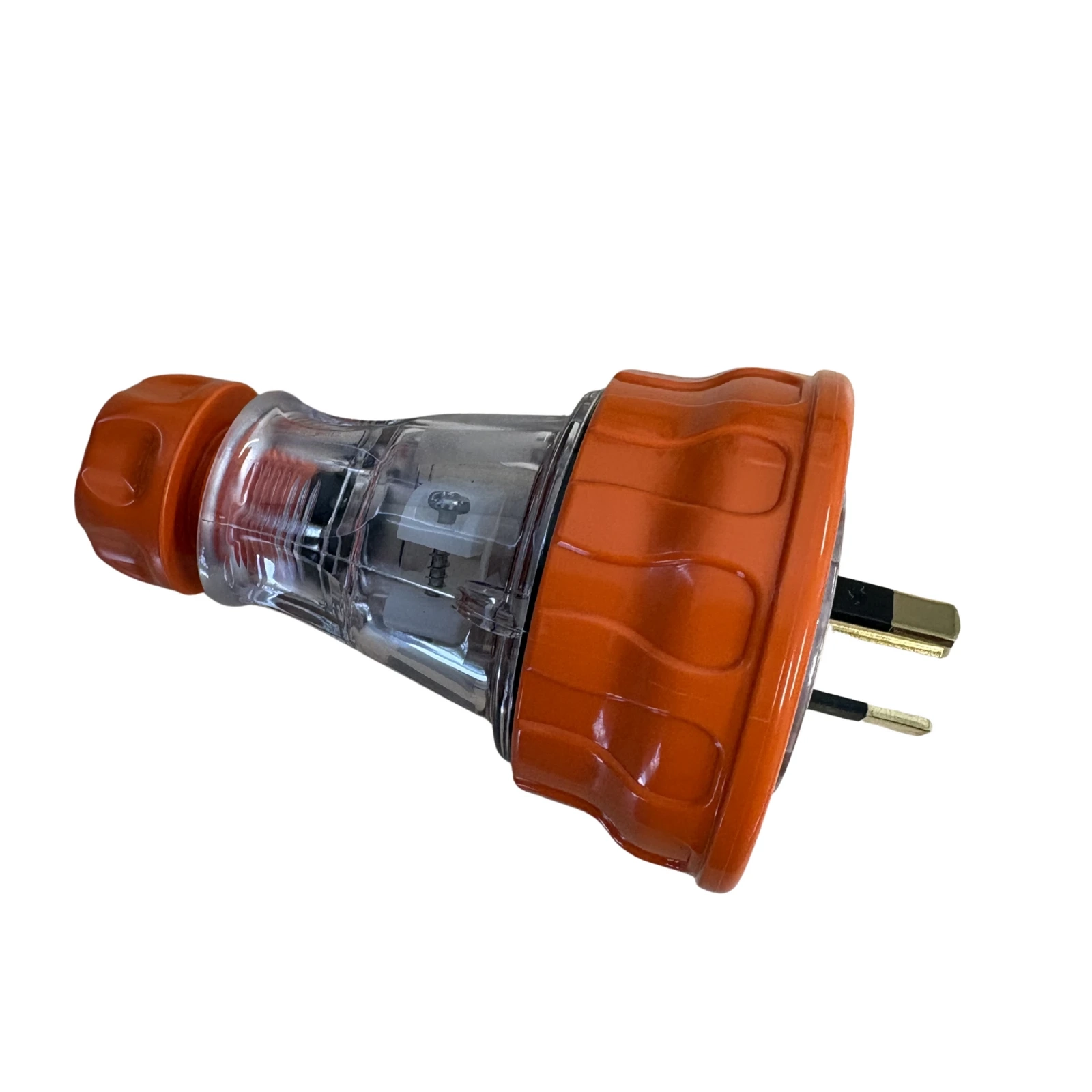

Clipsal 56 Series 56P315-EO Plug Top Straight 3 Flat Pin 15A 250V IP66 Electric Orange

Description

A rugged IP66 plug top rated for 15 amp connections.

The Clipsal 56P315-EO is a 15A 250V three-flat-pin plug top from the 56 Series, built in high-visibility Electric Orange. It pairs the Australian flat-pin layout with the 56 Series weatherproof polycarbonate body, sealing the connection against dust and water through an M20 cable gland.

Key Features

• 15A, 250V rated 3-flat-pin plug top
• 1P + N + E configuration (Active, Neutral, Earth)
• IP66 rated against dust and powerful water jets
• Tough polycarbonate housing in Electric Orange
• Brass contact pins for reliable conductivity
• M20 cable gland entry with screw terminals accepting 1.5 mm² conductors
• Dimensions 67mm W x 67mm H x 112.5mm D
• Straight body with cable gland entry
• Manufactured to AS/NZS 3123, RCM marked

Get yours delivered fast – order today.

Why it Matters

Built for Australian Conditions
Rated IP66 to AS 60529 and certified to AS/NZS 3123, this plug top keeps a 15 amp connection working where dust, moisture, and impact are part of the daily grind – a common requirement on industrial sites, outdoor installations, and washdown areas. The high-visibility Electric Orange finish makes the connection easy to spot.

15 Amp Capacity in a Weatherproof Body
The 56P315-EO carries a 15A rating at 250V in a 1P + N + E configuration – Active, Neutral, and Earth – across three flat pins. Screw terminals accept 1.5 mm² conductors through an M20 cable gland, and the sealed polycarbonate body gives the connection its IP66 rating.

What is the Clipsal 56P315-EO used for?
It is a 15A 250V three-flat-pin plug top, rated IP66, for weatherproof 15 amp power connections in tougher environments.

What cable size does it accept?
The screw terminals accept 1.5 mm² conductors, with cable entry through an M20 gland.

What is the pin configuration?
It has 3 flat pins in a 1P + N + E arrangement (Active, Neutral, Earth), rated 250V at 15A.
