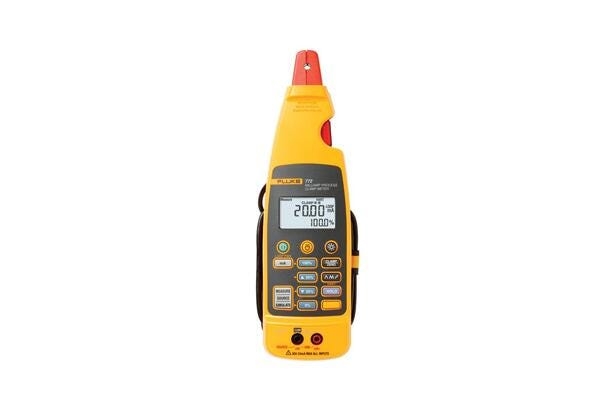

Fluke 772 Milliamp Process Clamp Loop Meter

SKU: flu772

Fluke 772 Milliamp Process Clamp Loop Meter

Loop meter that measures 4 to 20 mA signals without breaking the loop
Features best in class 0.2% accuracy
Delivers 0.01 mA resolution and sensitivity
Measures mA signals for PLC and control system analog I/O

Fluke 772 Milliamp Clamp Loop Meter measures, sources, and simulates 4-20 mA signals for testing control system I/O or IPs

The Fluke 772 loop meter adds to the basic capabilities of the Fluke 771 to save more time and expand its applications. With the 771, you'll also be able to: source and simulate 4-20 mA signals for testing control system I/O; measure 4-20 mA signals with in-circuit measurement; power a transmitter with the 24 V loop power supply; and automatically ramp and step change the 4-20 mA output for remote testing.

You'll be able to test 4–20 mA signals five times faster than with traditional DMMs, and without breaking the loop. That means you can troubleshoot a live device without having to power down, which can save you time, and help you avoid possibly missing something going on in the process.

Other useful features:

Simulates 4-20 mA signals for testing control system I/O
Sources 4 to 20 mA signals for testing control system I/O or I/Ps
Measures 4 to 20 mA signals with in-circuit measurement
Includes simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
Features a detachable clamp with extension cable for measurements in tight locations
Captures and displays changing measurements with Hold function
Offers mA output linear ramp or 25% step output
Extends battery life with auto-off and backlight timeout
Dual backlit display with both mA measurement and percent of 4 to 20 mA span
Measurement Spotlight to illuminate hard to see wires in dark enclosures
Measures 10 to 50 mA signals in older control systems using the 99.9 mA range
Automatically changes the 4 to 20 mA output for remote testing

What's in the box:

Fluke 772 Milliamp Clamp Meter
(1 pair) TL75 test leads
AC72 detachable clip
(1 pair) TL 940 mini hook test leads
(4) AA alkaline batteries (installed)
Soft carrying case
Magnetic Hanging Strap
Quick Reference Guide
3-year warranty

(flu772)

Specifications
Diameter of measurable conductor	0.177” or 4.5 mm max
Operating temperature	-10 to 50ºC
Storage temperature	-25 to 60ºC
Operating humidity	< 90% @ <30ºC, < 75% @ 30 to 55ºC
Operating altitude	0 to 2000 m
IP rating	IP 40
Size	44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight	410 g, (14.4 oz)
Vibration	Random 2 g, 5 to 500 Hz
Shock	1 meter drop test (except the jaw)
EMI/RFI	Meets EN61326-1
For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m.
Temperature coefficient	0.01% ºC (< 18ºC or > 28ºC)
Power, battery life	(4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms
Warranty	Three years for electronics One year for cable and clamp assembly
Functional Specifications
mA measurement (measured by clamp)	Resolution / range	0 to 20.99 mA
Accuracy	0.2% + 5 counts
Resolution / range	21.0mA to 100.0 mA
Accuracy	1% + 5 counts
mA measurement (measured in series with test jacks)	Resolution / range	0 to 24.00 mA
Accuracy	0.2% + 2 counts
mA source (maximum mA drive: 24 mA into 1,000 ohms)	Resolution / range	0 to 24.00 mA
Accuracy	0.2% + 2 counts
mA simulate (maximum voltage 50 V dc)	Resolution / range	0 to 24.00 mA
Accuracy	0.2% + 2 counts
