Fluke 1662 Multifunction Testers

SKU: flu1662

Download Data Sheet

$2,414.32 (ex-GST)

$2,655.75 (inc-GST)

$2,655.75

$2,414.32

(inc-GST)

(ex-GST)

⚫︎ Ships in 66-70 days

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

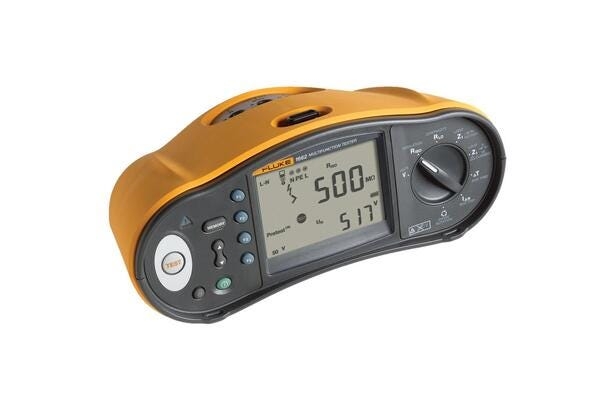

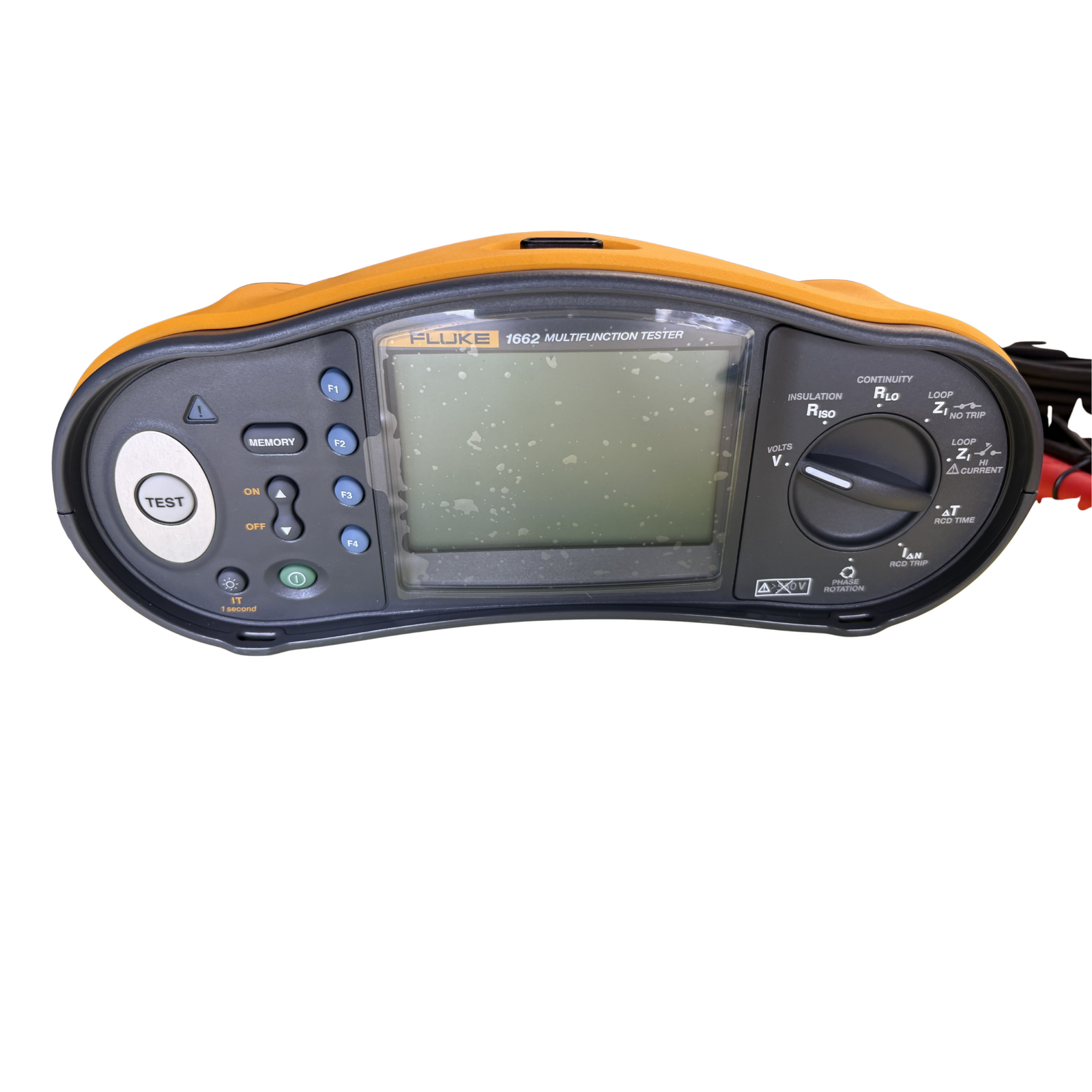

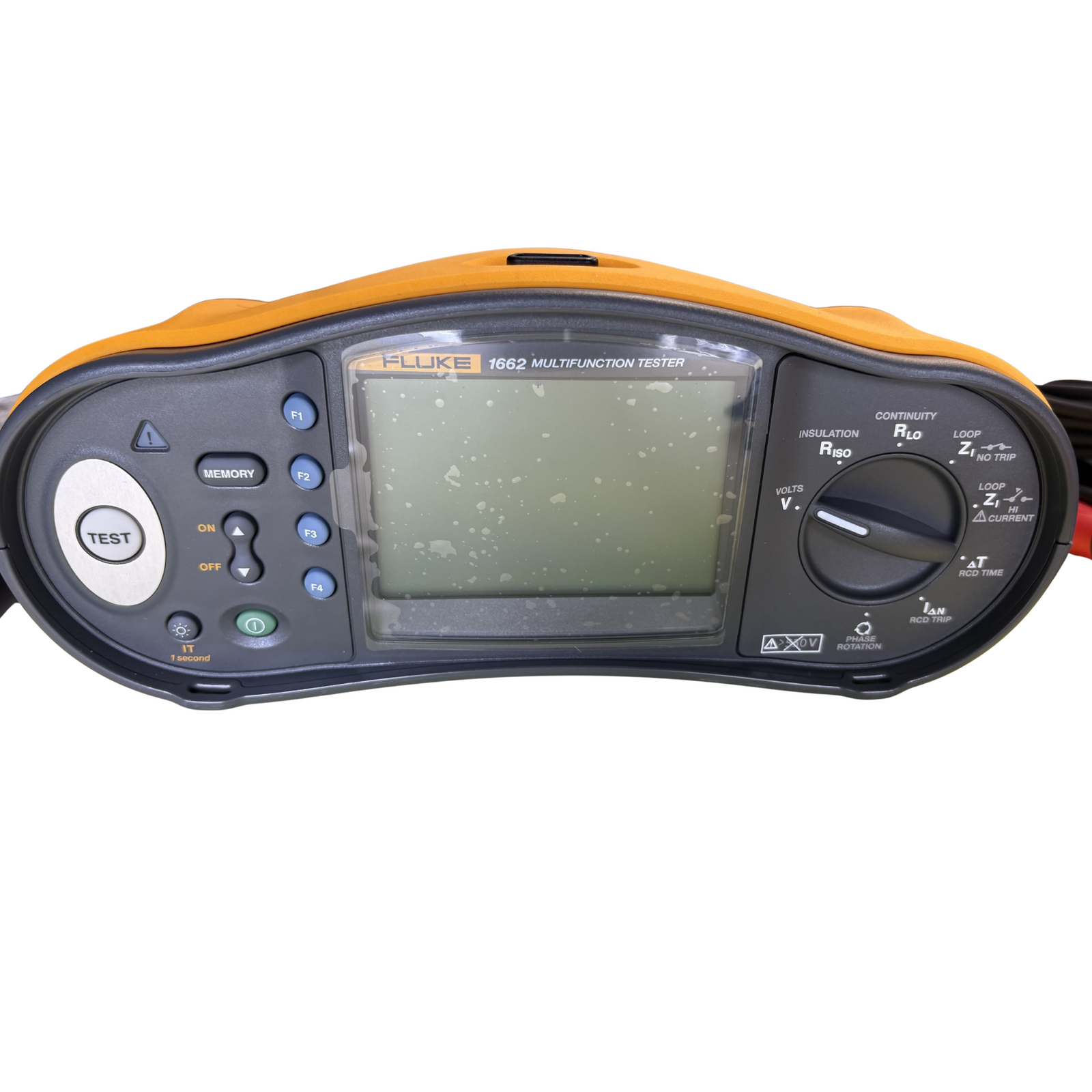

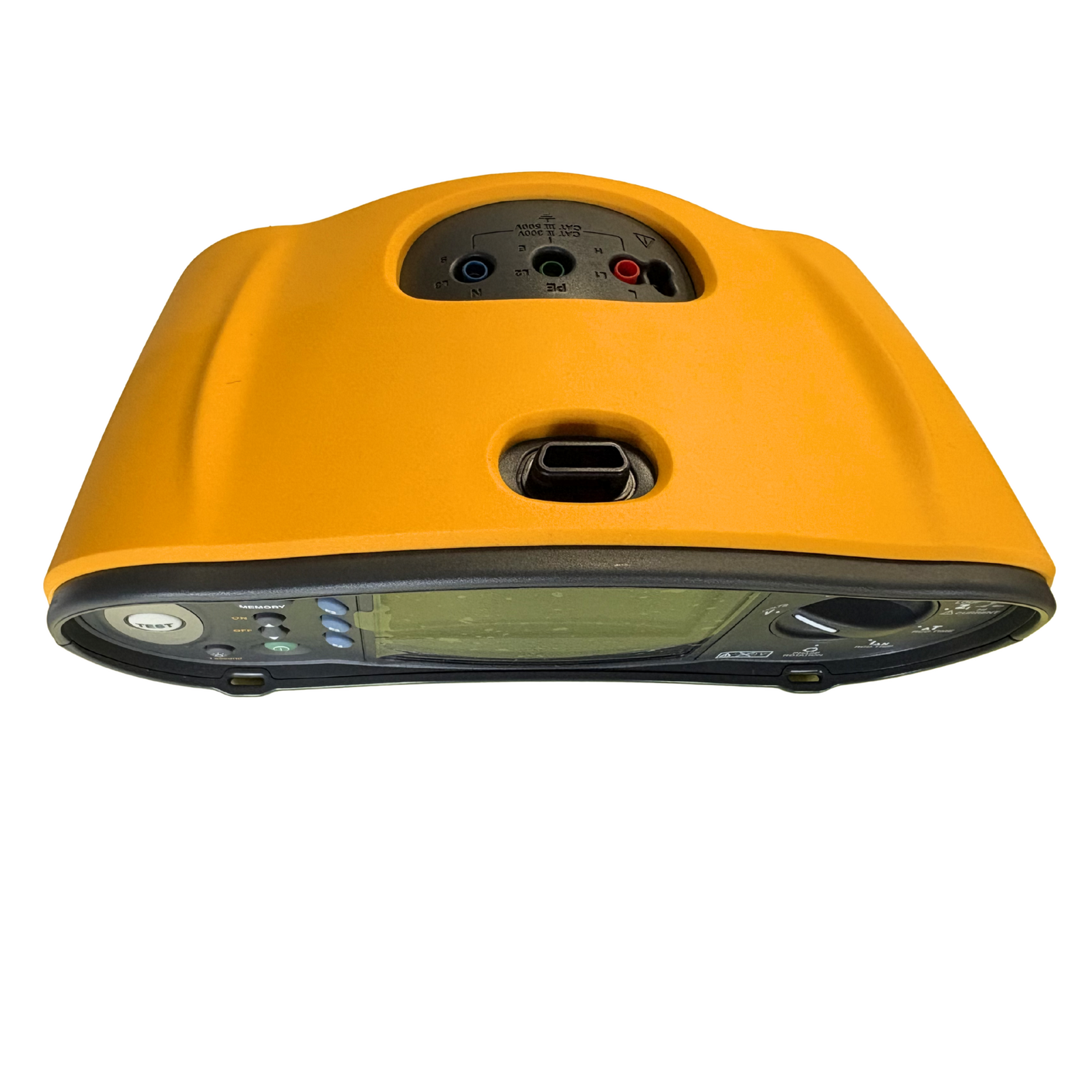

Fluke 1662 Multifunction Testers

Tests voltage and frequency
Checks wiring polarity to detect broken N wires
Measures insulation resistance and loop and line resistance
Measures motor windings with continuity test
Calculates prospective earth fault current (PEFC/IK) and prospective short-circuit current (PSC/IK)

Fluke 1662 Multifunction Installation Tester delivers solid, basic installation testing features

The Fluke 1662 installation tester gives you Fluke reliability and all the basic testing power you need for day-in, day-out installation testing. It tests to all local regulations and is easy and intuitive to use. Additional helpful features like the On/Off switchable auto-start for RCD and loop test, and self-test save time and give you more confidence in your results.

Measures RCD switching time and tripping level (ramp test)
Measures trip time and current for RCD type A & AC in one test
Measures RCD variable current
Provides automatic RCD test sequence
Includes Z-max memory for loop tests to support easy evaluation of the highest loop test value
Provides unique zero adapter for fast, reliable and accurate test lead and mains cord compensation
Includes a phase sequence indicator

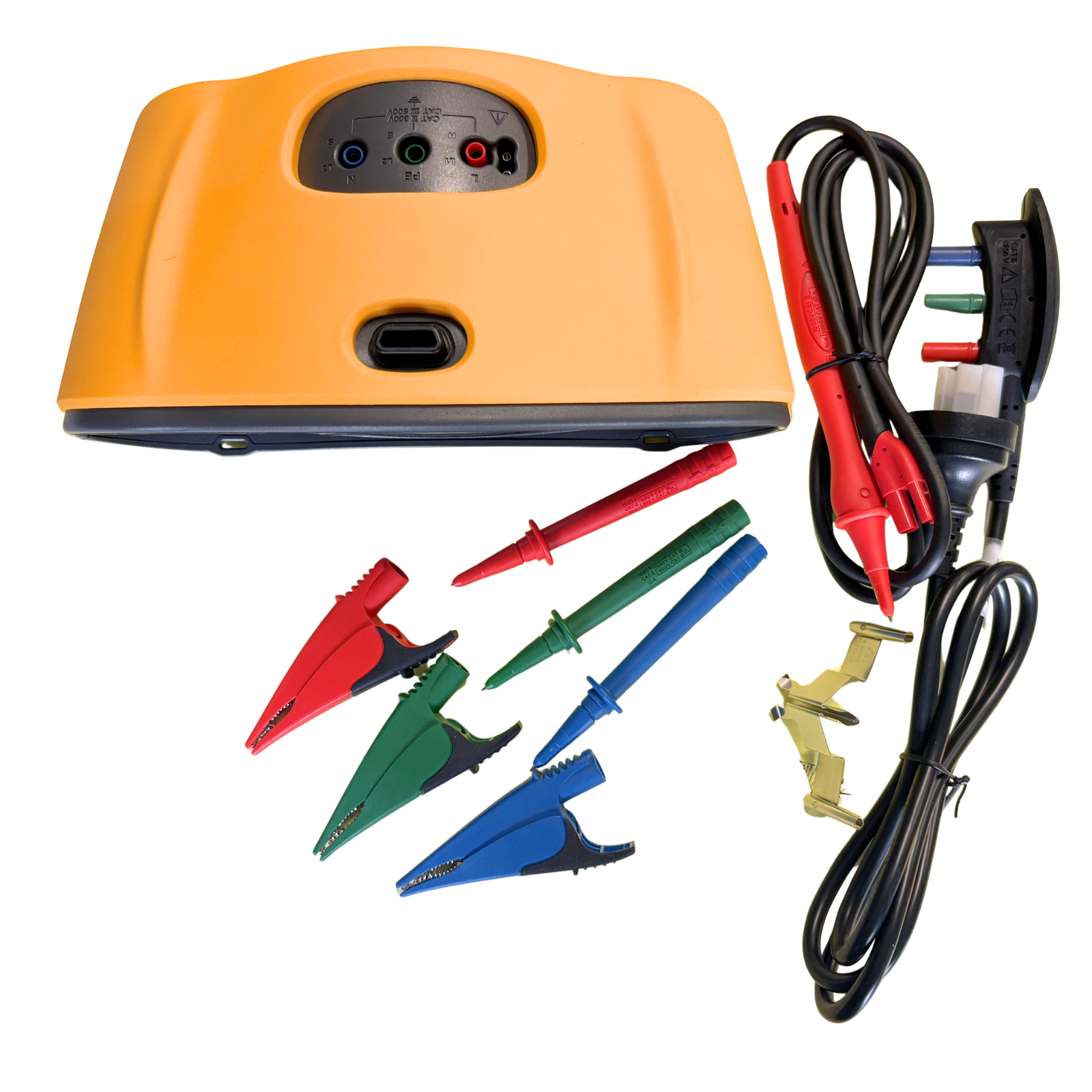

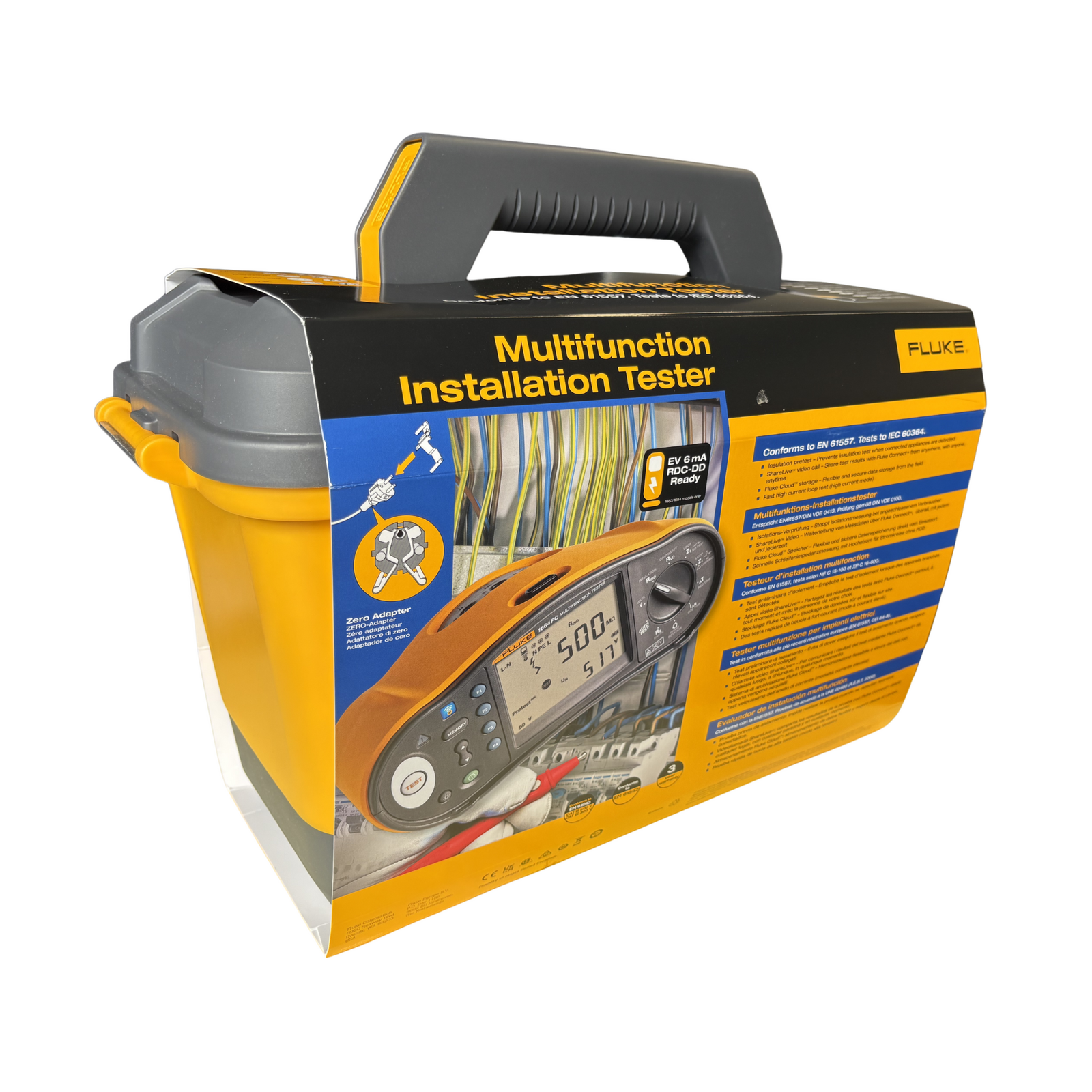

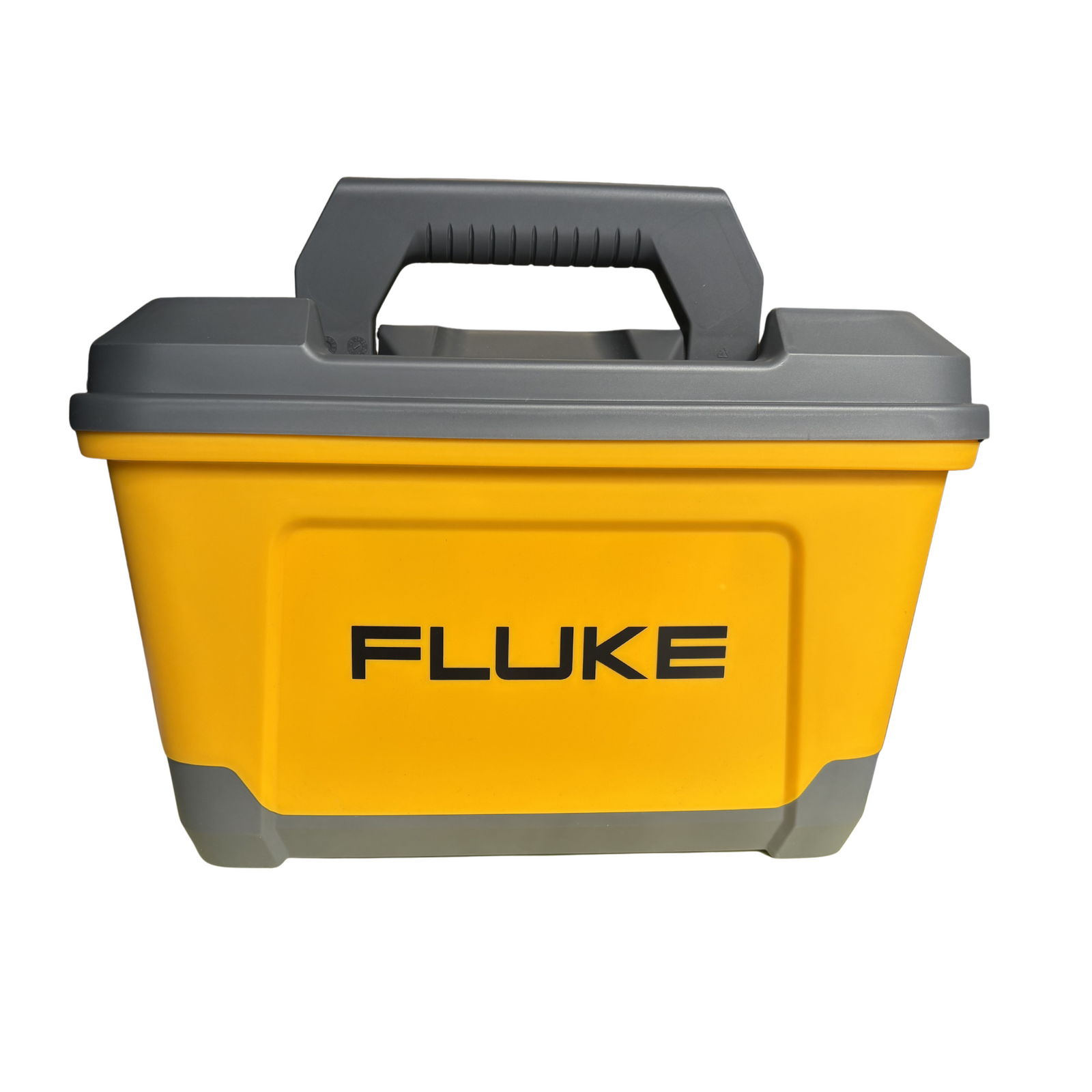

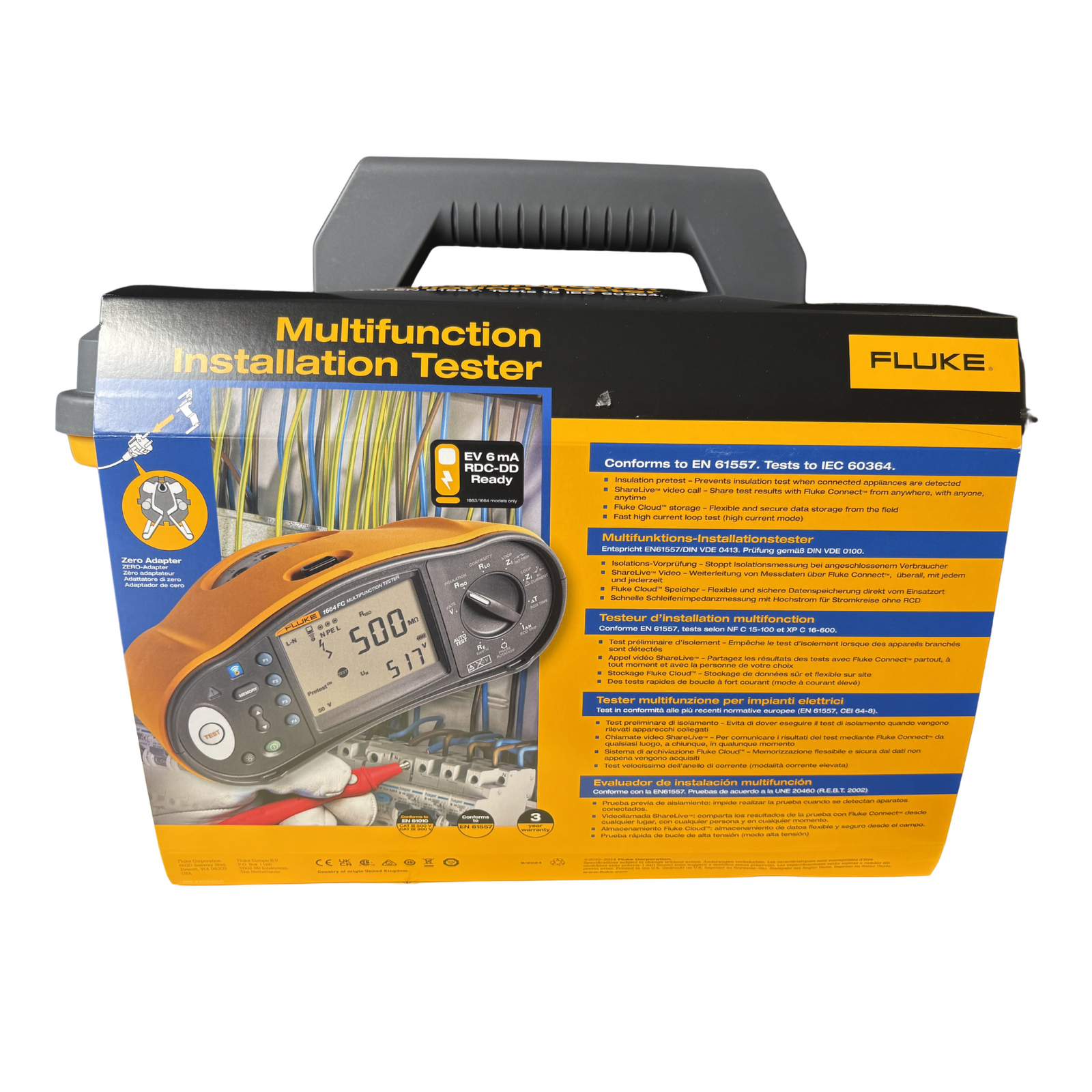

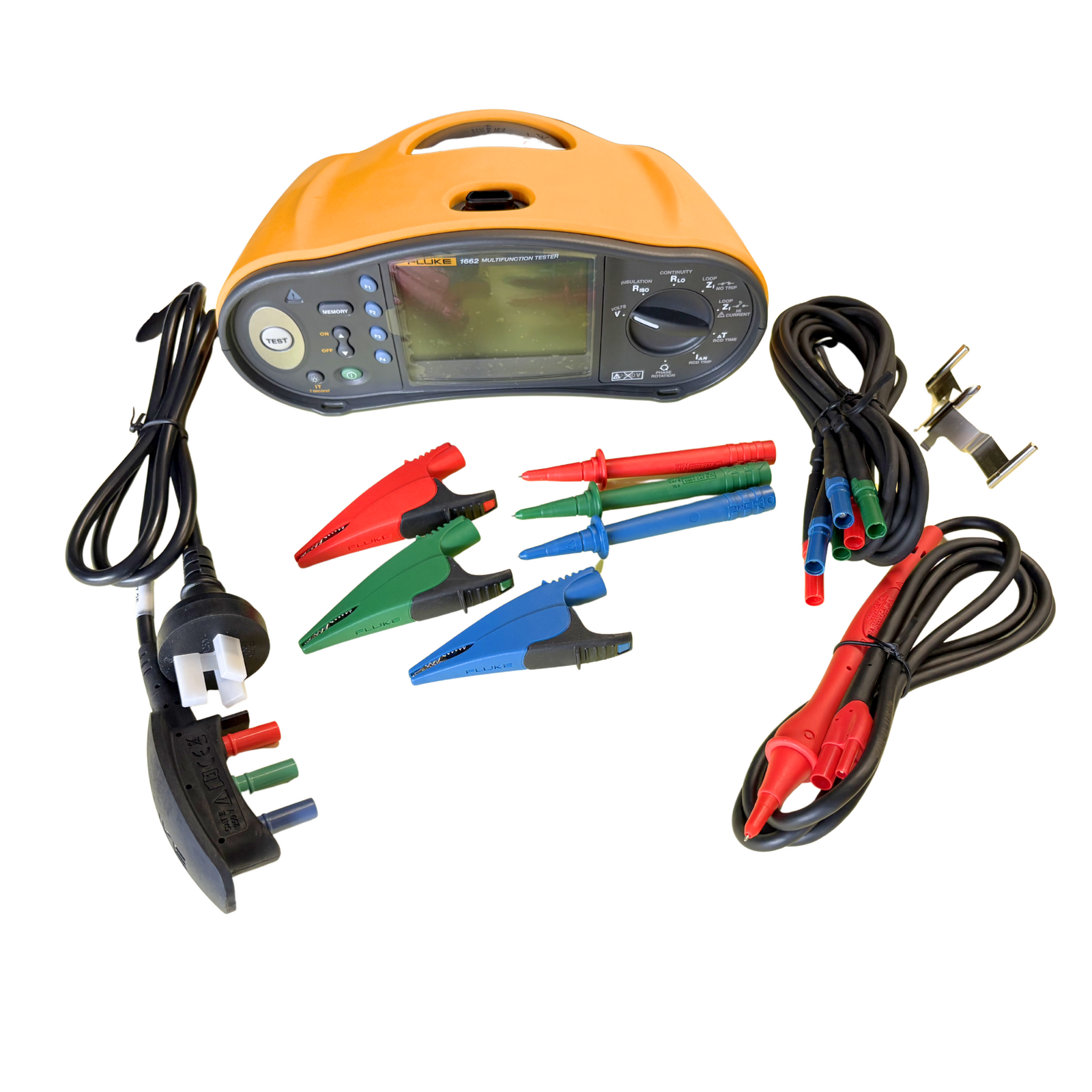

Comes with hard carrying case, padded carrying and waist strap, and remote control probe and lead

(flu1662)

AC voltage measurement
Range	500 V
Resolution	0.1 V
Accuracy 45 Hz – 66 Hz	0.8% + 3
Input impedance	360 kΩ
Overload protection	660 V rms
Continuity testing (RLO)
Range (autoranging)	20 Ω / 200 Ω / 2000 Ω
Resolution	0.01 Ω / 0.1 Ω / 1 Ω
Open Circuit Voltage	>4 V
Insulation resistance measurement (RISO)
Accuracy of test voltage (at rated test current)	+10%, -0%
Test voltage	100 V 250 V 500 V 1000 V
Insulation resistance range	20 MΩ / 50 MΩ 20 MΩ / 100 MΩ 20 MΩ / 200 MΩ 20 MΩ / 200 MΩ / 500 MΩ 20 MΩ / 200 MΩ / 1000 MΩ
Resolution	0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ / 1 MΩ 0.01 MΩ / 0.1 MΩ / 1 MΩ
Test current	1 mA @ 50 kΩ 1 mA @ 100 kΩ 1 mA @ 250 kΩ 1 mA @ 500 kΩ 1 mA @ 1 MΩ
Loop and line impedance (ZI)
Range	10 Ω / 0.001 Ω / High current mΩ mode
Resolution	0.01 Ω / 0.1 Ω / 1 Ω
Prospective earth fault current, PSC test
Range	1000 A / 10 kA (50 kA)
Resolution	1 A / 0.1 kA
Computation	Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively.
RCD testing, RCD types tested
RCD Type	A⁴, AC¹, G², S³
Notes	¹Responds to AC ²General, no delay ³Time delay ⁴Responds to pulsed signal ⁵Responds to smooth DC signal
Tripping speed test (ΔT)
Current settings¹	10-30-100-300-500-1000 mA – VAR 10-30-100 mA
Multiplier	x ½, x 1 x 5
Measurement range	RCD Type G	310 ms 50 ms
RCD Type S	510 ms 160 ms
Notes	¹1000 mA type AC only 700 mA maximum type A in VAR mode VAR mode not available for type B.
RCD/FI-Tripping Current Measurement/Ramp Test (IΔN)
Current range	30% to 110% of RCD rated current¹
Step size	10% of IΔN²
Dwell time	Type G	300 ms/step
Type S	500 ms/step
Measurement accuracy	±5%
Specified trip current ranges (EN 61008-1)	50% to 100% for Type AC 35% to 140% for Type A (>10 mA) 35% to 200% for Type A (≤10 mA) 50% to 200% for Type B ²5% for Type B
Notes	¹30% to 150% for Type A IΔN > 10 mA 30% to 210% for Type A IΔN = 10 mA 20% to 210% for Type B
Phase Sequence Indication
Icon	Phase Sequence indicator is active.
General Specifications
Size (L x W x H)	10 x 25 x 12.5 cm
Weight (incl. batteries)	1.3 (kg)
Battery size, quantity	Type AA, 6 ea.
Sealing	IP-40
Safety	Complies with EN/IEC 61010-1 and EN/IEC 61010-2-034
Overvoltage	CAT III / 500V; CAT IV 300V
Performance	EN61557-1 to EN61557-7 and EN61557-10
