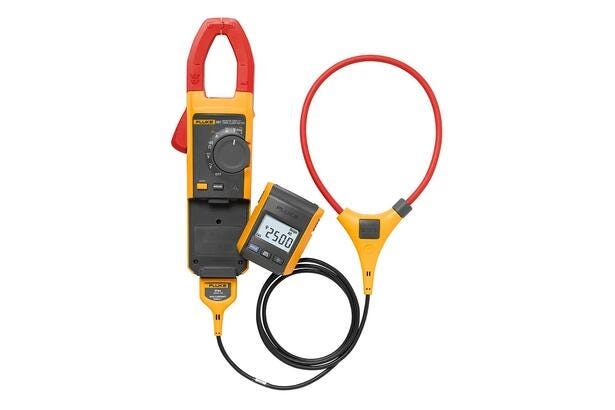

Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex®

SKU: flu381

Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex®

Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement with measurement accuracy
Removable magnetic display can be mounted where it is easily seen
iFlex® Flexible Current Probe expands the measurement range to 2500 A AC
CAT IV 600 V, CAT III 1000 V
Handling Time: 10 days (please consider this lead time when ordering)

What once took two people, now takes one

Now one technician can do jobs that would otherwise require two people. Clamp the Fluke 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real-time readings.

The iFlex® Flexible Current Probe (included) expands the measurement range to 2500 A AC while providing increased display flexibility. With a cord that runs 6 feet, you can finally measure those tight spaces, awkward sized conductors and disorganized wires.

Other key features

Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings
Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
Ergonomic design fits in your hand and can be used while wearing protective equipment
Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
Three-year warranty

Safety Conformance: IEC/EN 61010-1:2001, 1000V CAT III, 600V CAT IV

What's in the box:

381 Remote Display Clamp Meter
(1 pair) TL75 test leads
(1 pair) AC175 alligator clips
18-inch iFlex®flexible current probe
Soft carrying case

(flu381)

Electrical Specifications
AC Current via Jaw
Range	999.9 A
Resolution	0.1 A
Accuracy	2% ± 5 digits (10-100 Hz) 5% ± 5 digits (100-500 Hz)
Crest Factor (50/60 Hz)	3 @ 500 A 2.5 @ 600 A 1.42 @ 1000 A Add 2% for C.F. > 2
AC Current via Flexible Current Probe
Range	999.9 A / 2500 A (45 Hz – 500 Hz)
Resolution	0.1 A / 1 A
Accuracy	3% ± 5 digits
Crest Factor (50/60 Hz)	3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2
Position Sensitivity
	Distance from Optimum
	i2500-10 Flex	i2500-18 Flex	Error
A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	±0.5%
B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	±1.0%
C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	±2.0%
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range	999.9 A
Resolution	0.1 A
Accuracy	2% ± 5 digits
AC Voltage
Range	600 V /1000 V
Resolution	0.1 V / 1 V
Accuracy	1.5% ± 5 digits (20 – 500 Hz)
DC Voltage
Range	600.0 V /1000 V
Resolution	0.1 V / 1 V
Accuracy	1% ± 5 digits
Frequency – Via Jaw
Range	5.0 – 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ± 5 digits
Trigger Level	5 – 10 Hz, ≥ 10 A 10 – 100 Hz, ≥ 5 A 100 – 500 Hz, ≥ 10 A
Frequency via Flexible Current Probe
Range	5.0 to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ± 5 digits
Trigger Level	5 to 20 Hz, ≥ 25 A 20 to 100 Hz, ≥ 20 A 100 to 500 Hz, ≥ 25 A
Resistance
Range	600 Ω/6 kΩ/60 kΩ
Resolution	0.1 Ω/1 Ω/10 Ω
Accuracy	1% ± 5 digits
Mechanical Specifications
Size (L x W x H)	277 x 88 x 43 mm (55 mm for remote unit)
Weight	350 g
Jaw Opening	34 mm
Flexible Current Probe Diameter	7.5 mm
Flexible Current Probe Cable Length (head to electronics connector)	1.8 m
Environmental Specifications
Operating Temperature	-10°C to +50°C
Storage Temperature	-40°C to +60°C
Operating Humidity	Non condensing (< 10°C) ≤ 90% RH (at 10°C to 30°C) ≤ 75% RH (at 30°C to 40°C) ≤ 45% RH (at 40°C to 50°C) (Without Condensation)
Operating Altitude	2,000 meters
Storage Altitude	12,000 meters
EMI, RFI, EMC, RF	EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006 ETSI EN 300 489 V1.8.1:2008 FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID: T68-F381 RSS-210 IC: 6627A-F381
Temperature Coefficients	Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C
Wireless Frequency	2.4 GHz ISM Band 10 meter range
Safety Compliance	ANSI/ISA S82.02.01:2004 CAN/CSA-C22.2 No. 61010-1-04 IEC/EN 61010-1:2001 to 1000V CAT III, 600V CAT IV.
Double Insulation Clearance	Per IEC 61010-2-032
Double Insulation Creepage	Per IEC 61010-1
Agency Approvals
