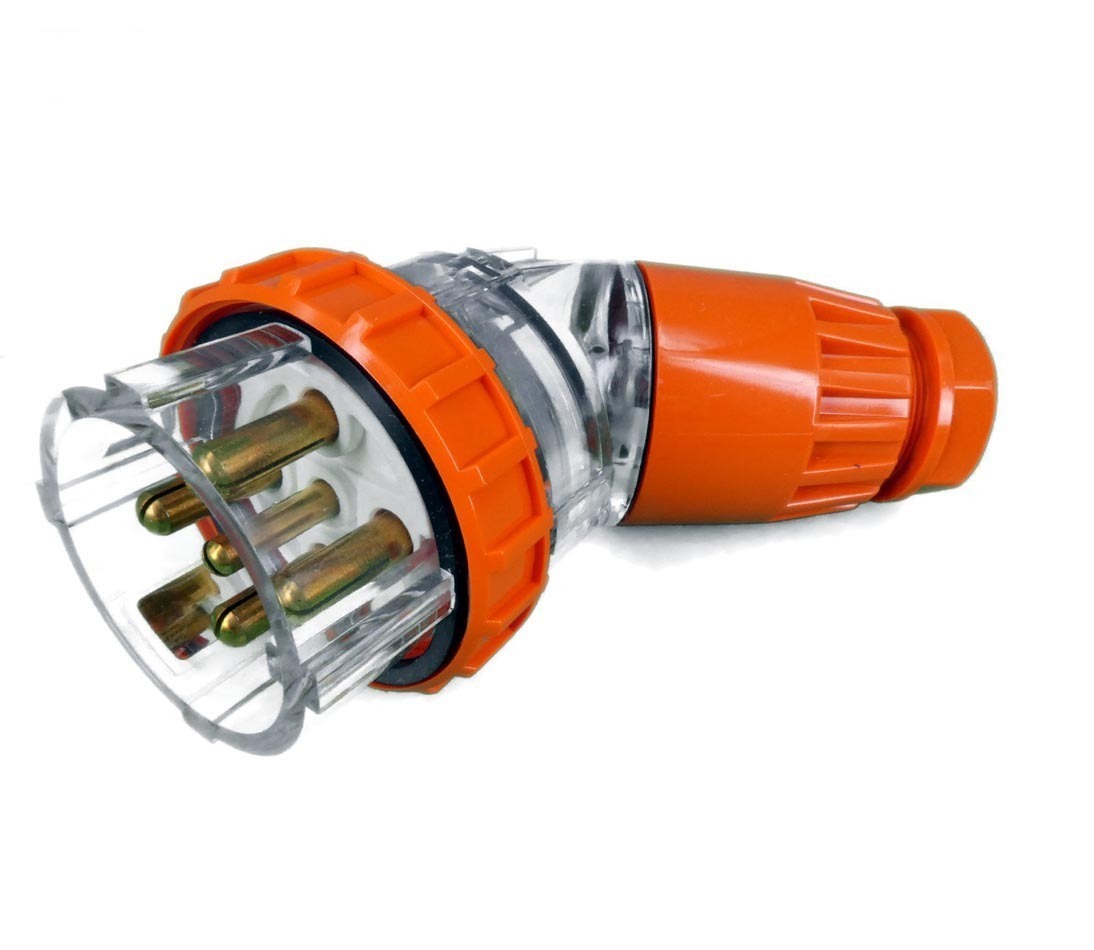

Extension Lead 5 Pin 50 Amp Round Pin Angled Plug 2m Standard Duty 10mm cable 415V

Description

Our highest rated five pin round extension lead.

A 5 pin round 50 Amp extension lead feeds 415V three phase power to heavy machinery over runs of 2m to 60m. Built on 10mm² H07 rubber cable rated to 66 Amps, every lead is made to order, then tested and tagged by our licensed electricians.

High quality extension lead:

• Extension Lead 5 Pin Round 50 Amp 415V
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.

Choose your configuration:

• Available in lengths (m): 2, 3, 5, 10, 15, 20, 25, 30, 40, 50, 60 (Note: configurations may not offer all length options due to component availability or electrical characteristics)
• Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20°C (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
  • Standard: CSA 10mm2, NST 3.6mm, MaxR 1.95, NOD 22.3mm, Amps 66
  • Heavy Duty: Not Available
  • Extra Heavy Duty: Not Available
• Typically used at events & temporary cabling, fairgrounds, sporting venues, for generators / motors / compressors / construction applications including portable equipment such as concrete cutting.

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

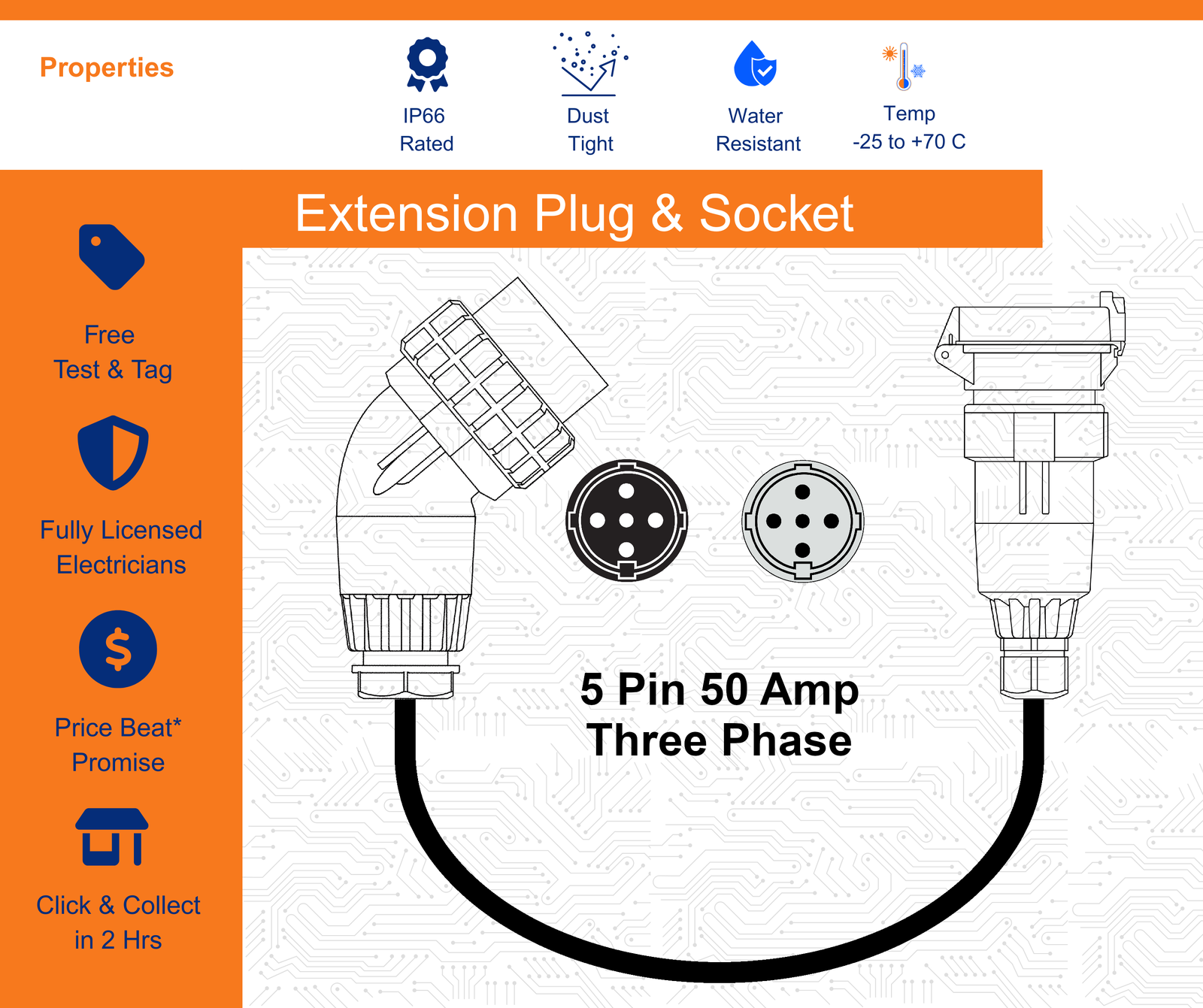

• All Plugs and Sockets are source from high quality reputable Australian brands, are IP66 rated and are compatible with all leading Australian switch gear.
• Choose from our regular high quality GEN3 plugs and sockets, or upgrade to industry leading Clipsal gear (available on some product options only)

Cable Properties:

• Leads are assembled using Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV

Get yours online for fast dispatch Australia-wide.

Ready for tough Australian environments. The 10mm² H07 grade rubber flex shrugs off UV, oil and weather exposure, is flame retardant and rated submersible to 200m. That makes this lead a workhorse for powering generators, motors and compressors, running temporary supply at events, fairgrounds and sporting venues, and feeding construction gear such as concrete cutting equipment, while IP66 rated plugs and sockets seal the connection against dust and water jets.

One cable, correctly sized. The 10mm² conductor carries 66 Amps under AS/NZS 3008.1.1.2009 Table 14, a 16 Amp margin over the 50 Amp rating of this lead, and its low 1.95 ohms/KM maximum DC resistance keeps voltage drop in check at full load even on the longest 60m runs. There is no cable tier to pick here: every 50 Amp lead ships on the same heavy 10mm² flex.

Made and test tagged in Brisbane. Each lead comes out of our Rochedale QLD workshop, built by licensed Australian electricians and individually tested and tagged, with a 24 month warranty behind it. Order online for delivery anywhere in Australia, or pick up with click and collect. Custom lengths and bulk pricing are available on 1300 017 197.

Q: What is a 5 pin 50 amp extension lead used for?
A: It delivers 415V three phase power to heavy equipment fitted with a 5 pin round 50A plug, from generators, motors and compressors through to construction machinery such as concrete cutting equipment, and covers temporary power at events, fairgrounds and sporting venues.

Q: What cable does a 50 amp extension lead use?
A: 10mm² H07 grade rubber flex rated to 66 Amps under AS/NZS 3008.1.1.2009 Table 14, with a maximum DC resistance of 1.95 ohms/KM to limit voltage drop on long runs. It is the only cable size offered on this lead.

Q: Can I get this extension lead with Clipsal plugs and sockets?
A: Yes. Pick Clipsal from the Switch Gear option where available; GEN3 is our standard fitting. Both are IP66 rated and work with leading Australian switch gear.
