Electra SRF3015VHT 1.5mm Non-Migratory Twin & Earth Cable - Purple - 010m Cut

Description

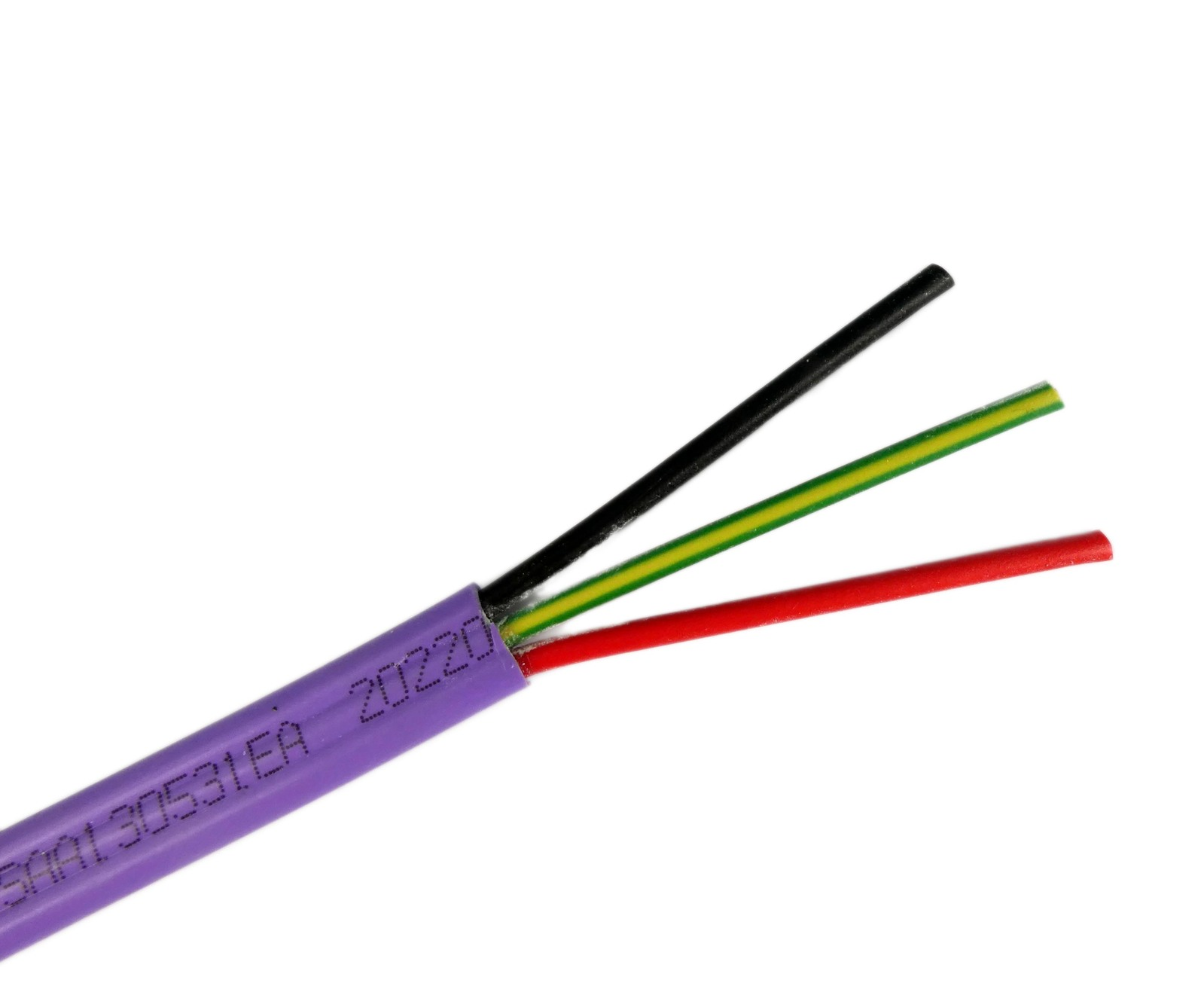

Purple sheath cable that won't attack polystyrene.

Ordinary PVC building cable and expanded polystyrene are a bad mix - plasticiser migrates between the two and can soften the cable sheath. Electra's SRF3015VHT is a 1.5 mm² flat twin and earth with a non-migratory sheath, so it can sit hard against polystyrene, ABS, polycarbonate and acrylic.

Key Features

• Non-migratory 5V-90 PVC sheath, rated by Electra for direct contact with polystyrene, ABS, polycarbonate and acrylic
• Purple sheath, so a non-migratory run is easy to identify on site and at handover
• 1.5 mm² plain annealed copper, 7/0.50 stranding, 2 core and earth
• 450/750 V rated with V-90 PVC core insulation
• Normal operating temperature -20°C to +90°C
• Flat profile 10.0 mm x 4.6 mm, with 0.6 mm insulation and 0.9 mm sheath
• Manufactured to AS/NZS 5000.2 with conductors to AS/NZS 1125
• Cut to order in 10, 20, 25, 30, 40 and 50 metre lengths, or take the full 100 metre roll

Please choose your cable type and length carefully - there are no refunds or exchanges on cut-to-order material.

Select your length above and order now.

Why it Matters

Where non-migratory cable is not optional

Electra lists this cable for installations in wall and roofing insulation material, cold rooms, transportable buildings and caravans. That covers most of the places an Australian sparky meets expanded polystyrene: EPS sandwich panel in cool rooms, insulated roof and wall panel on transportable buildings, and the cavities of a caravan build. AS/NZS 3000 requires cables to suit the conditions of the installation, and that includes the materials they are touching. Where the run contacts polystyrene, standard TPS is the wrong cable.

Not just polystyrene

The same non-migratory compound is rated against ABS, polycarbonate and acrylic. That is useful anywhere cable rests on or passes through moulded plastic - enclosures, fittings and accessories - and it is one less thing to reconsider once the cable is buried behind lining.

Light industrial and festoon work

Electra rates the SRF range for light to medium industrial use and specifically for festoon systems, alongside general internal building wiring. If you are running festoon or temporary lighting where insulated panel is also in play, one cable covers both.

Can I run standard TPS cable in contact with polystyrene insulation?
No. Plasticiser in ordinary PVC cable and expanded polystyrene react with each other, which can degrade the cable sheath and the insulation panel. Use a non-migratory cable such as Electra SRF3015VHT wherever the two will be in contact.

What does non-migratory mean on electrical cable?
It means the plasticiser in the PVC compound is formulated not to migrate out of the sheath into materials it touches. On this cable Electra rates the sheath for direct contact with polystyrene, ABS, polycarbonate and acrylic.

Is this cable suitable for cold rooms and insulated panels?
Yes. Electra lists cold rooms and wall or roofing insulation material as intended applications, along with caravans and transportable buildings. It is a 450/750 V cable rated from -20°C to +90°C.
