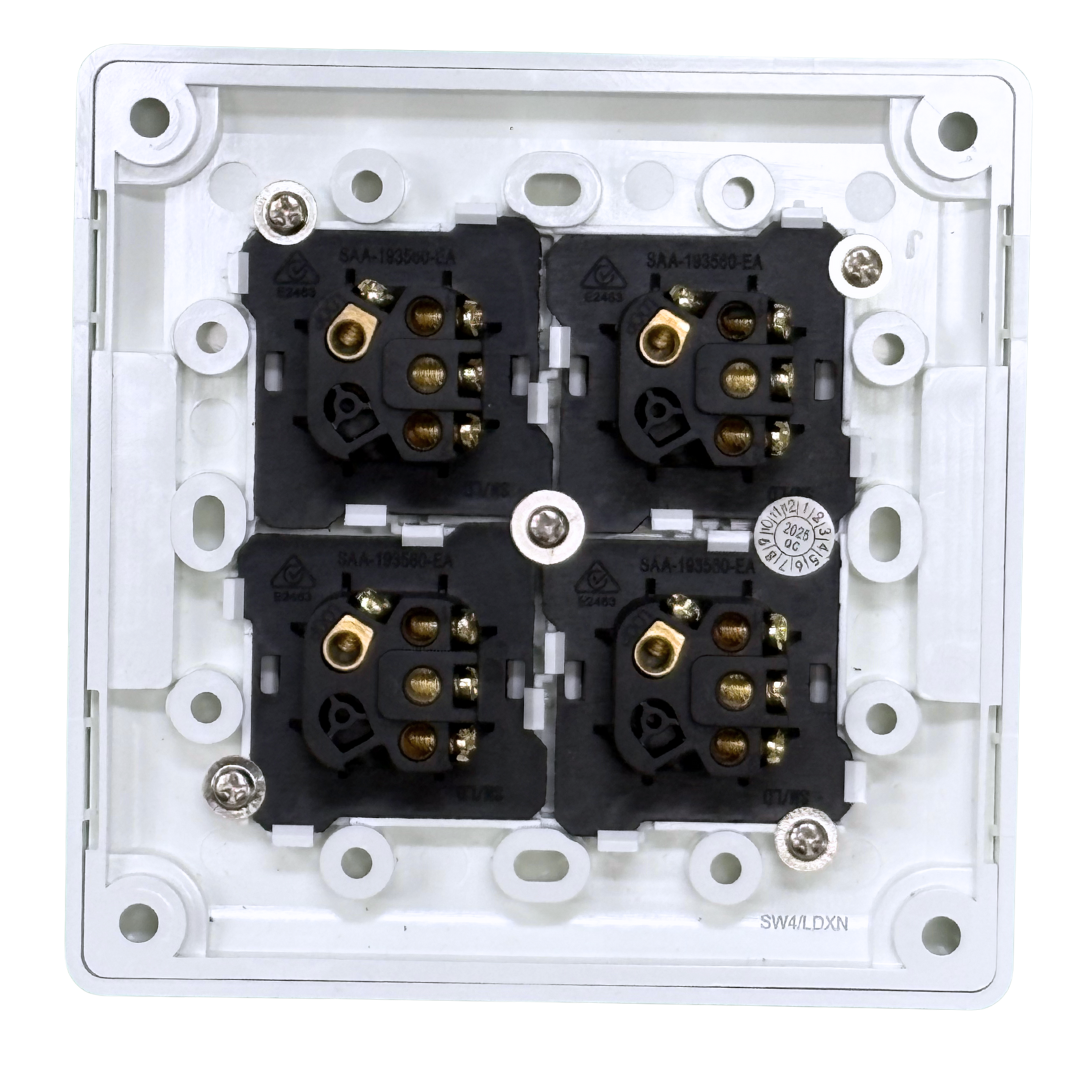

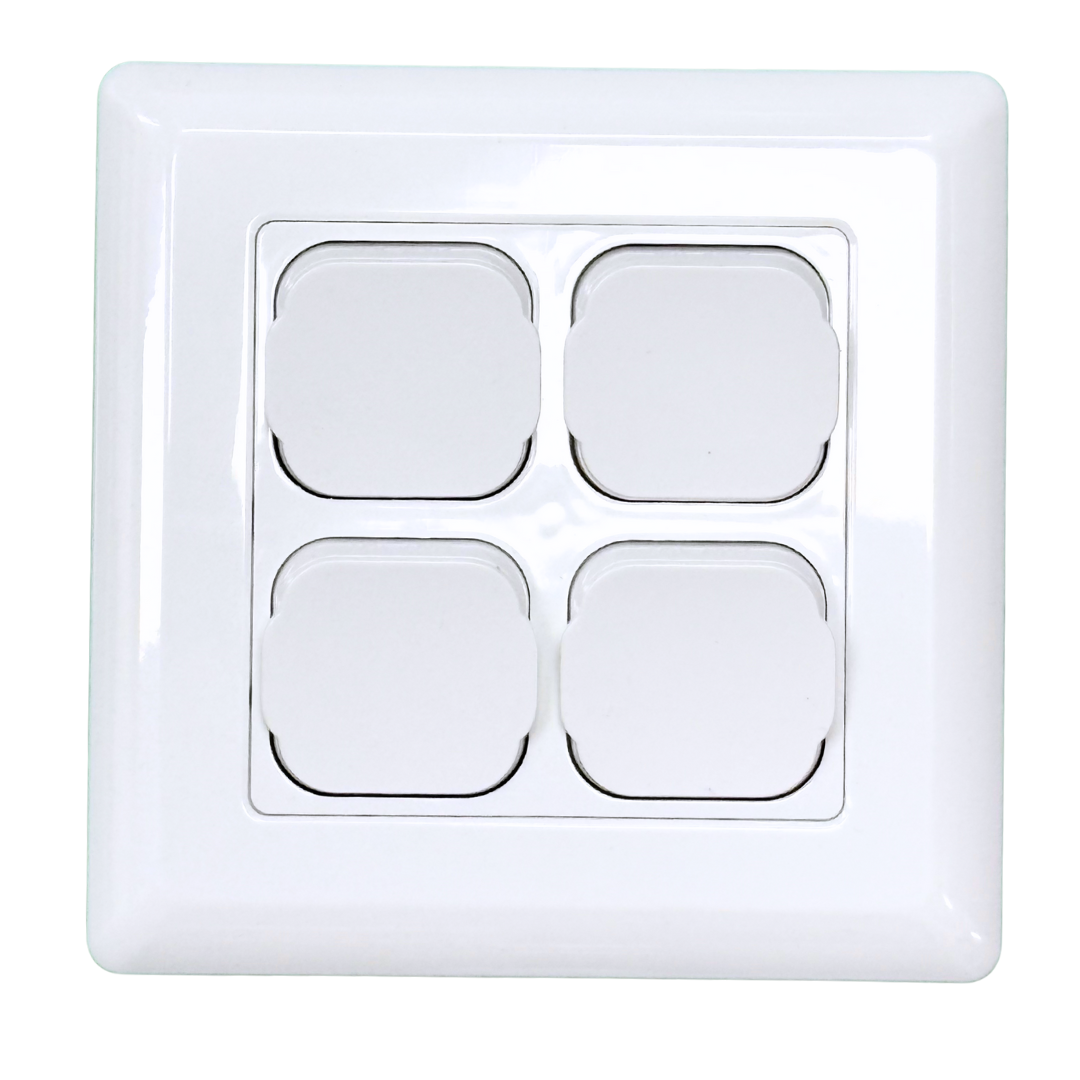

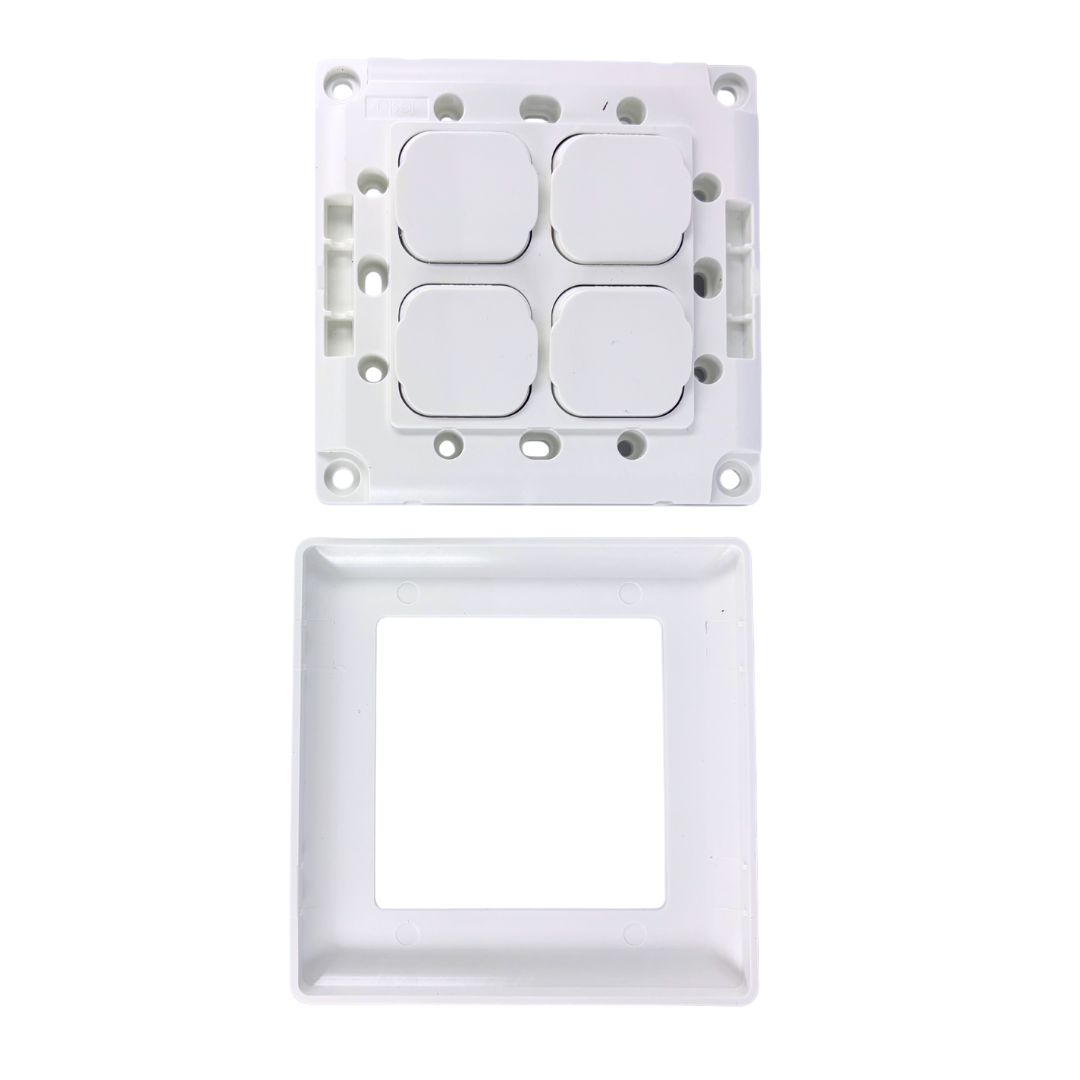

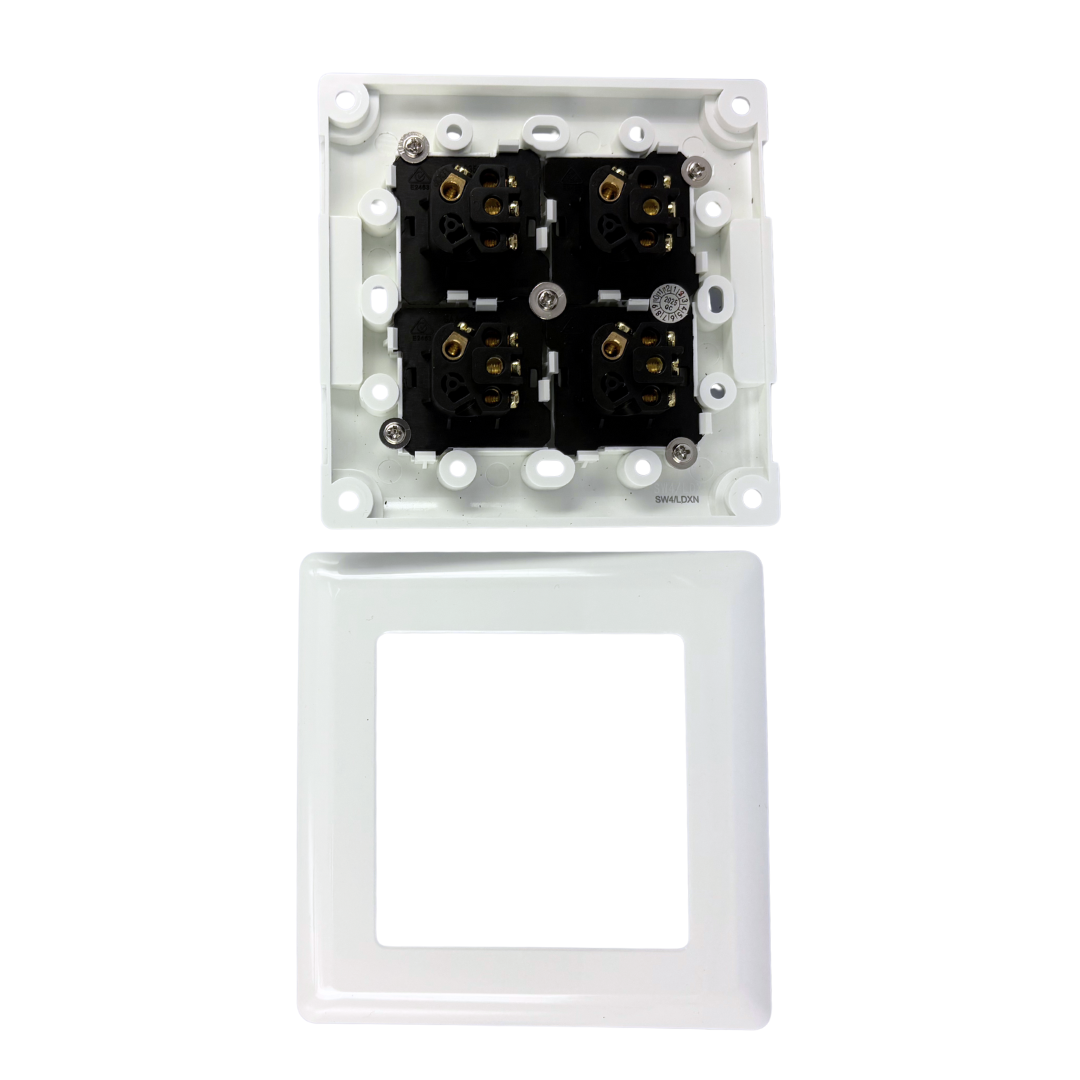

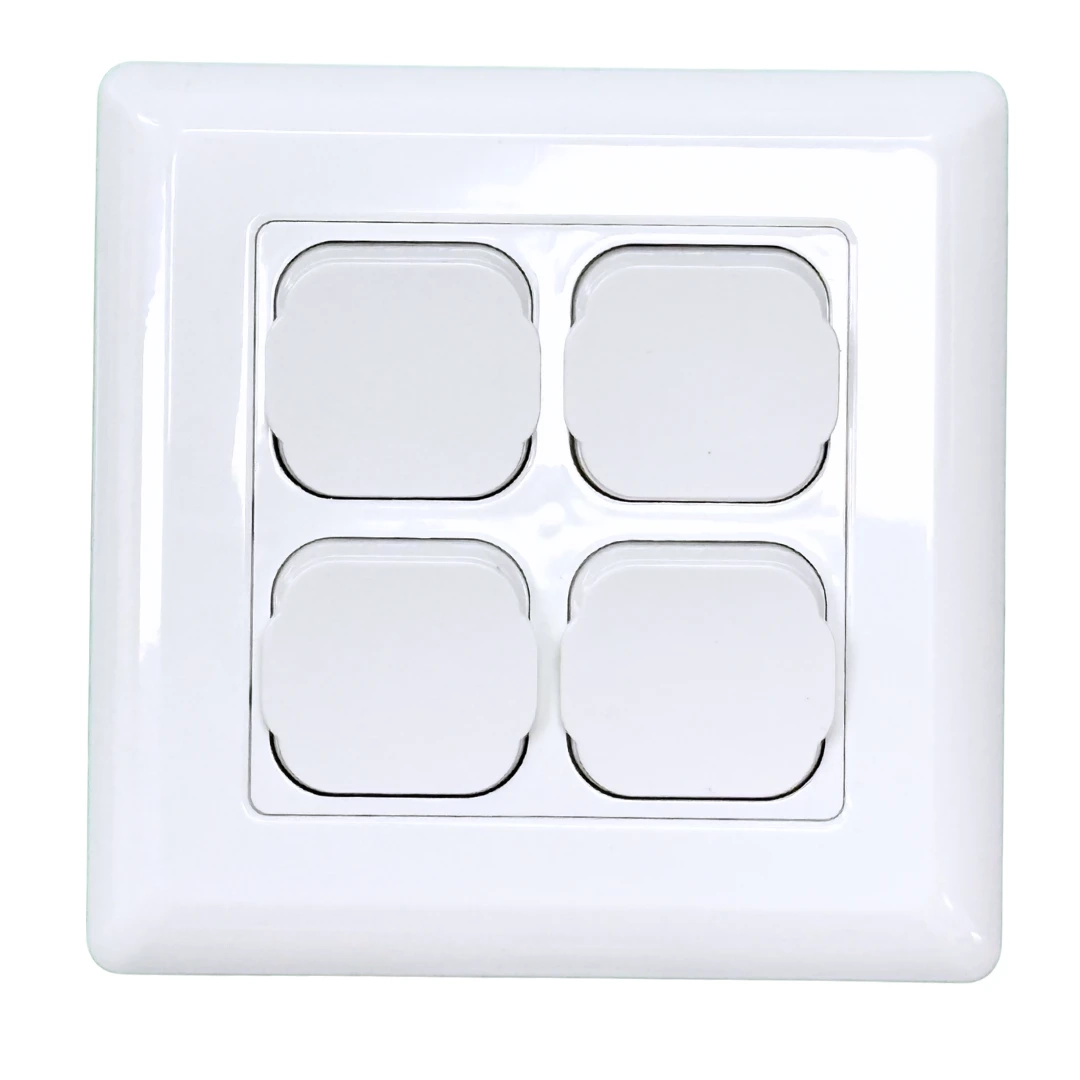

Tesla XL Dolly 4 Gang Light Switch 35mm Mech

Description

Tesla SW4/LDXN. XL Large Dolly 4 Gang Switch. 16A 250V. NDIS Compatible. Complete.

The Tesla SW4/LDXN is a 4 gang XL large dolly switch — a complete, ready-to-install light switch with four XL large dolly soft touch mechanisms, XL dolly actuators, and plate all included. Four independent circuits switched from one XL large dolly format plate — the maximum gang count in the Tesla Large Dolly XL loaded switch range. The XL dolly profile is over four times the size of a traditional switch mechanism, providing the maximum accessible rocker size for ease of operation in aged care, senior and assisted living, and NDIS accessible electrical installations. Rated 16A 250V. Compliant with AS/NZS 3100 and AS/NZS 3133. NDIS compatible. Sold individually.

• Tesla Large Dolly Range — SW4/LDXN 4 Gang XL Dolly Switch
• 4 gang — four independent switches, four circuits
• Complete switch — XL dolly mechanisms, actuators, and plate all included, ready to install
• XL (Extra Large) dolly profile — over 4 times the size of a traditional switch mechanism
• Soft touch surface — designed for ease of use
• 35mm mechanism format
• Rated: 16A, 250V
• Note: switch mechanisms cannot be reconfigured after installation
• Compliant with AS/NZS 3100 and AS/NZS 3133
• NDIS compatible — designed for accessible and assisted living installations
• Also suits recreational clubs and architecturally designed modern homes
• Sold individually

Order online now — fast dispatch Australia-wide.

About the Tesla SW4/LDXN XL Large Dolly 4 Gang Switch

The SW4/LDXN is the highest gang count in the Tesla Large Dolly XL loaded switch range — four XL accessible rockers on a single plate, each controlling an independent circuit with the full XL dolly profile and soft touch surface. Four gang switching in the XL accessible format is the solution for accessible installations where the maximum number of circuits needs to be grouped at a single wall switching position. Common applications include aged care facility room entries where lighting zones, exhaust fans, nurse call systems, and other circuits are all controlled from one accessible point, or NDIS accessible homes where several circuits converge at the primary accessible switching position in a room or hallway.

The SW4/LDXN is the complete loaded version — XL dolly mechanisms, actuators, and plate are all included and assembled, ready to wire and fix to the wall. For installations where the plate is needed without mechanisms, the SW4PL/LDXN plate-only version is the alternative. The 4 gang XL loaded switch completes the Tesla Large Dolly XL range alongside the 1, 2, and 3 gang versions.

An important installation note from the manufacturer: the switch mechanisms in the Tesla Large Dolly range cannot be reconfigured after installation. The correct switch type for each of the four gang positions must be confirmed at the time of ordering and cannot be changed on site.

Q: What is the difference between SW4/LDXN and SW4PL/LDXN?
A: The SW4/LDXN is the complete loaded switch — XL dolly mechanisms, actuators, and plate included, ready to install. The SW4PL/LDXN is the grid plate and cover only — no mechanisms included. Use the SW4/LDXN for a complete new installation; use the SW4PL/LDXN if mechanisms are sourced separately.

Q: Can the switch mechanisms be changed after installation?
A: No — the Tesla Large Dolly switch mechanisms cannot be reconfigured after installation. The correct switch type for each gang position must be selected at the time of ordering.

Q: Is this the largest accessible switch available in the Tesla Large Dolly XL range?
A: Yes — the SW4/LDXN is the maximum gang count in the Tesla Large Dolly XL loaded switch range. For installations requiring more than four circuits at one accessible position, multiple plates or a different switching arrangement would be required.
