Tesla XL Dolly 3 Gang Light Switch 35mm Mech

Description

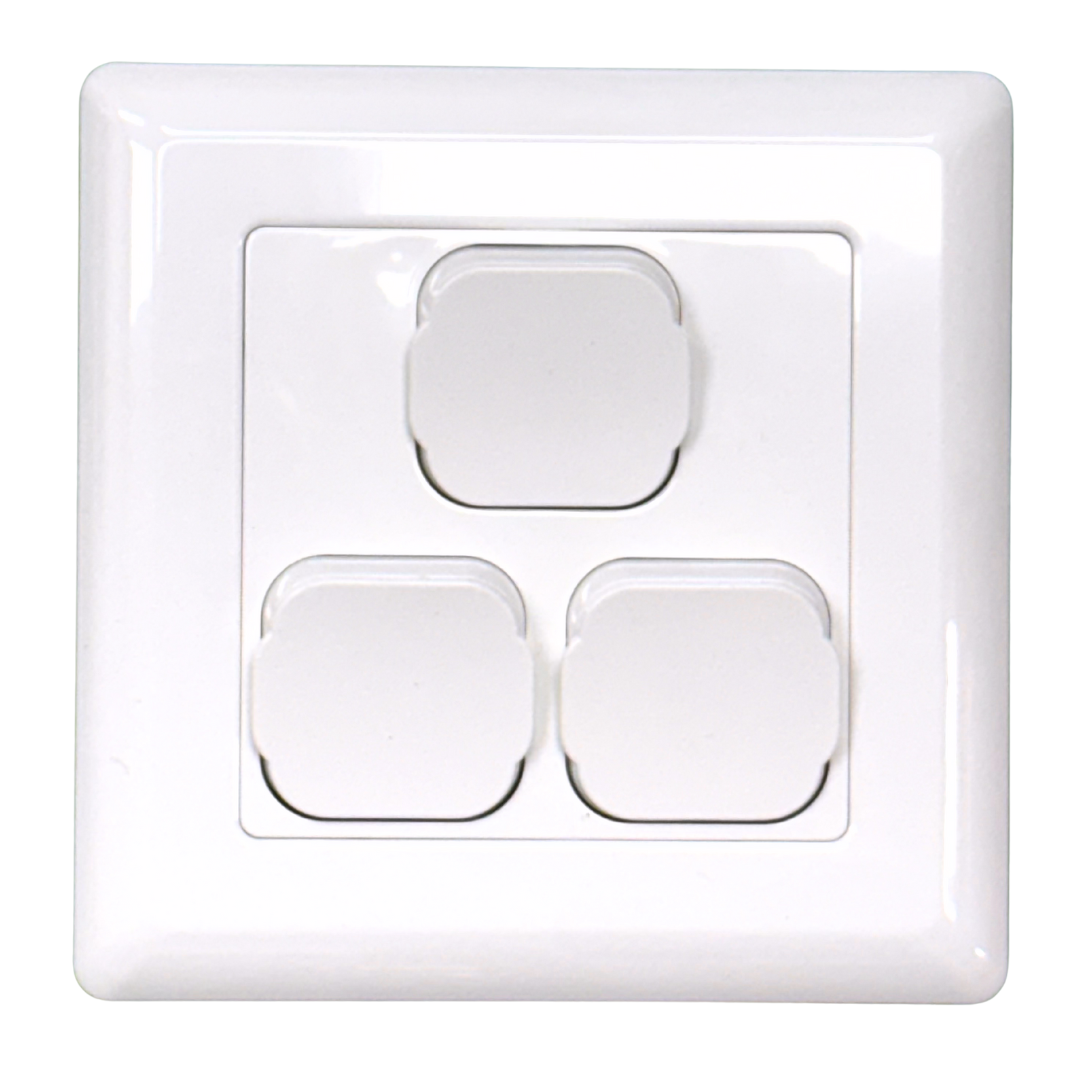

Tesla SW3/LDXN. XL Large Dolly 3 Gang Switch. 16A 250V. NDIS Compatible. Complete.

The Tesla SW3/LDXN is a 3 gang XL large dolly switch — a complete, ready-to-install light switch with three XL large dolly soft touch mechanisms, XL dolly actuators, and plate all included. Three independent circuits switched from one XL large dolly format plate. The XL dolly profile is over four times the size of a traditional switch mechanism, providing the maximum accessible rocker size for ease of operation in aged care, senior and assisted living, and NDIS accessible electrical installations. Rated 16A 250V. Compliant with AS/NZS 3100 and AS/NZS 3133. NDIS compatible. Sold individually.

• Tesla Large Dolly Range — SW3/LDXN 3 Gang XL Dolly Switch
• 3 gang — three independent switches, three circuits
• Complete switch — XL dolly mechanisms, actuators, and plate all included, ready to install
• XL (Extra Large) dolly profile — over 4 times the size of a traditional switch mechanism
• Soft touch surface — designed for ease of use
• 35mm mechanism format
• Rated: 16A, 250V
• Note: switch mechanisms cannot be reconfigured after installation
• Compliant with AS/NZS 3100 and AS/NZS 3133
• NDIS compatible — designed for accessible and assisted living installations
• Also suits recreational clubs and architecturally designed modern homes
• Sold individually

Browse the range online — fast dispatch Australia-wide.

About the Tesla SW3/LDXN XL Large Dolly 3 Gang Switch

The SW3/LDXN puts three XL large dolly accessible rockers on a single plate — three independent circuits at one wall position, each with the full XL dolly profile and soft touch surface. Three gang switching in the XL accessible format is the natural solution for spaces where multiple circuits need to be grouped at one accessible switching location — common in aged care room entries, accessible home hallways, and living areas where lighting zones, exhaust fans, and other circuits are controlled from a single accessible wall position.

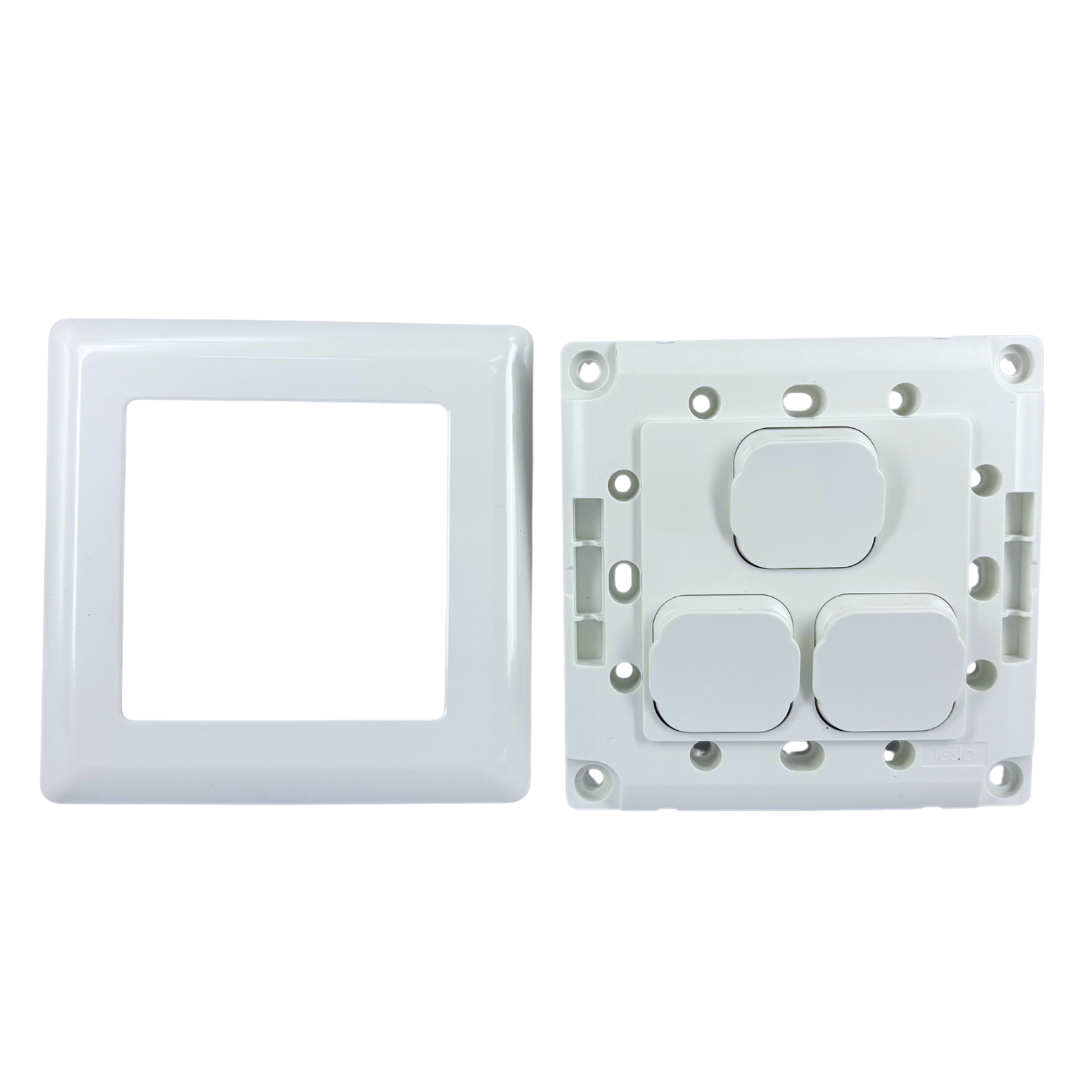

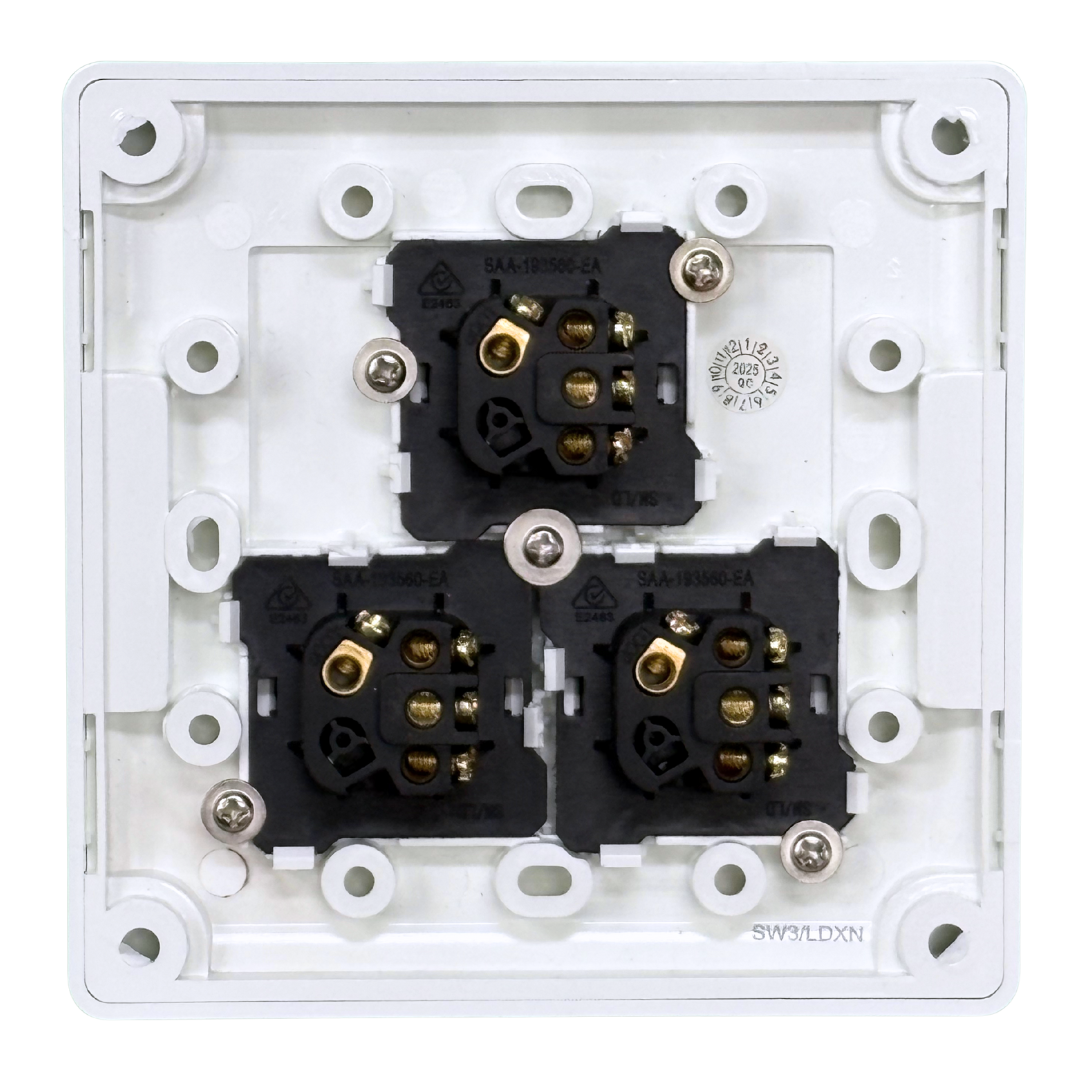

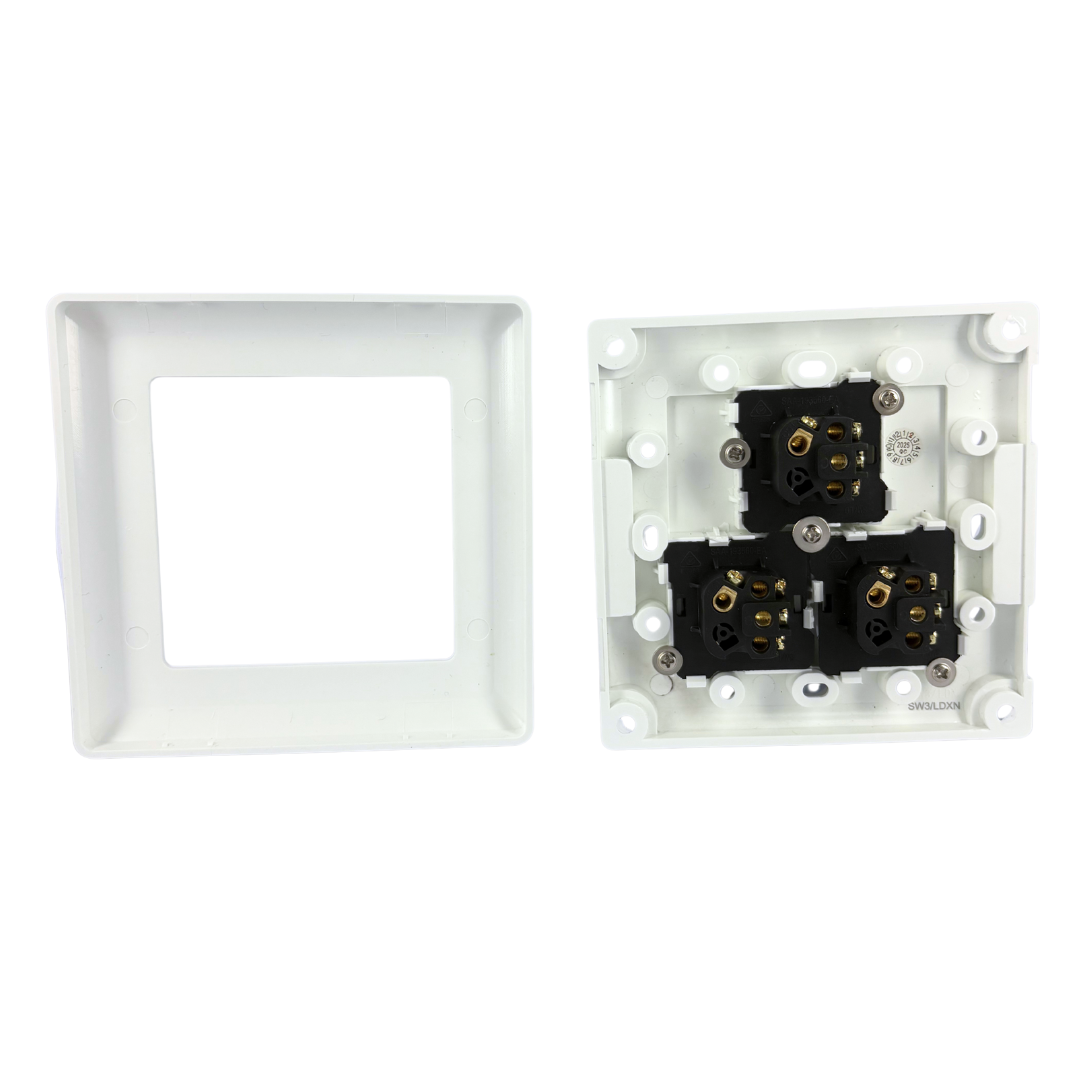

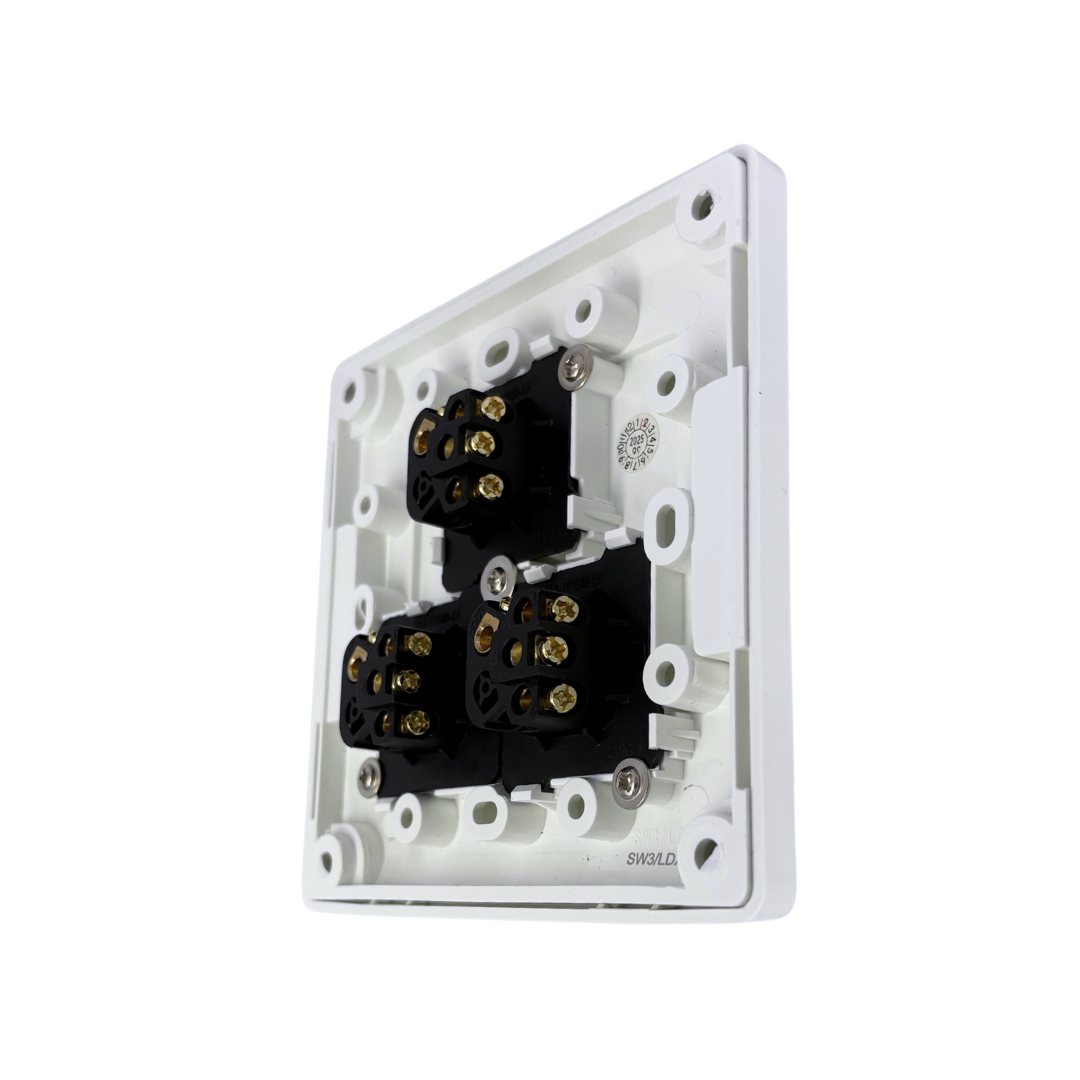

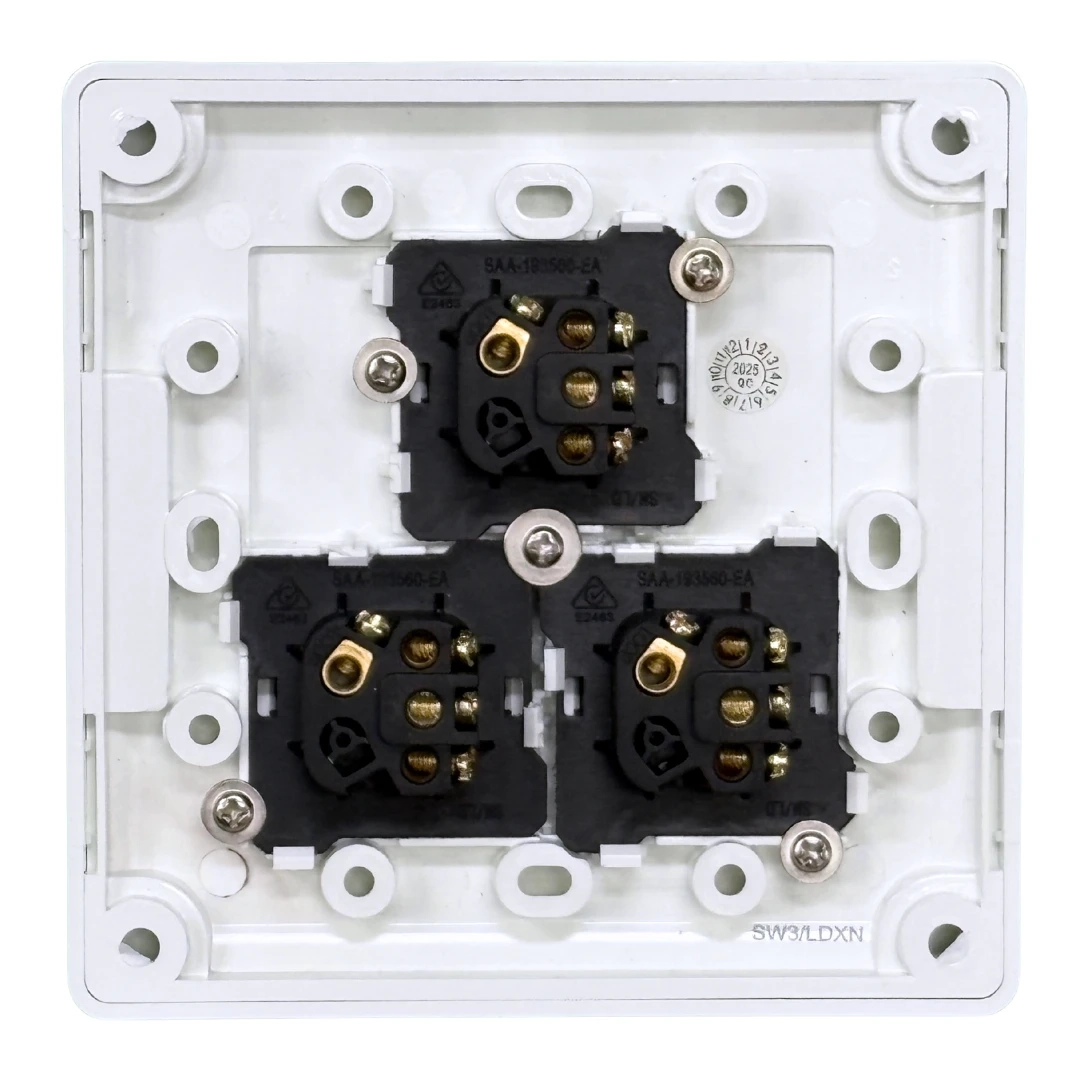

The SW3/LDXN is the complete loaded version — XL dolly mechanisms, actuators, and plate are all included and assembled, ready to wire and fix to the wall. This distinguishes it from the SW3PL/LDXN plate-only version. The XL (LDXN) format extends across 1 through 4 gang configurations — making the Tesla Large Dolly XL range a complete accessible switching solution from single circuits to complex multi-circuit panels.

An important installation note from the manufacturer: the switch mechanisms in the Tesla Large Dolly range cannot be reconfigured after installation. The correct switch type for each of the three gang positions must be confirmed at the time of ordering and cannot be changed on site.

Q: What is the difference between SW3/LDXN and SW3PL/LDXN?
A: The SW3/LDXN is the complete loaded switch — XL dolly mechanisms, actuators, and plate included, ready to install. The SW3PL/LDXN is the grid plate and cover only — no mechanisms included. Use the SW3/LDXN for a complete new installation; use the SW3PL/LDXN if mechanisms are sourced separately.

Q: Can the switch mechanisms be changed after installation?
A: No — the Tesla Large Dolly switch mechanisms cannot be reconfigured after installation. The correct switch type for each gang position must be selected at the time of ordering.

Q: Is this switch NDIS compatible?
A: Yes — the Tesla Large Dolly range is designed for accessible and assisted living electrical installations and is compatible with NDIS accessible housing modifications.
