Tesla XL Dolly 1 Gang Light Switch 35mm Mech

Description

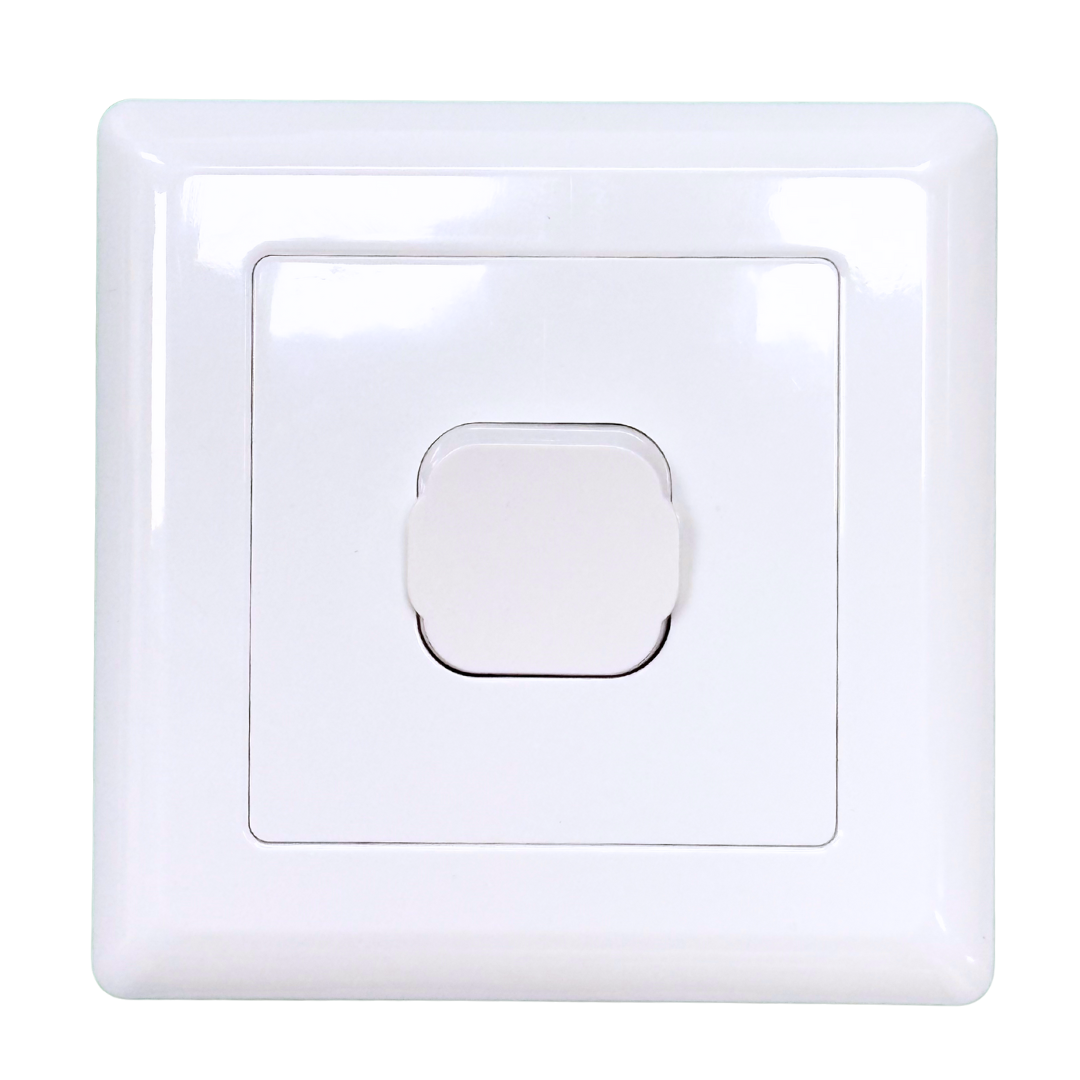

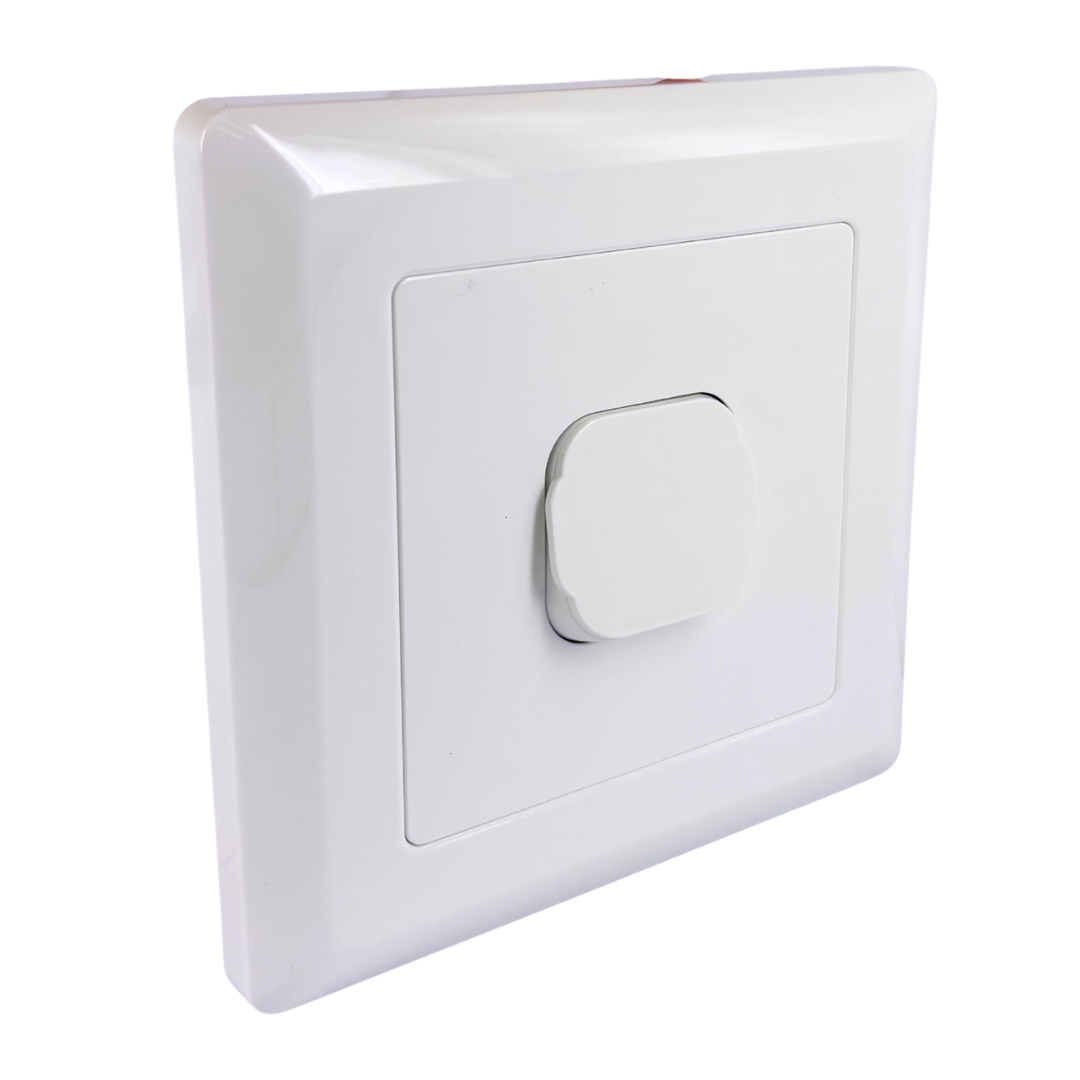

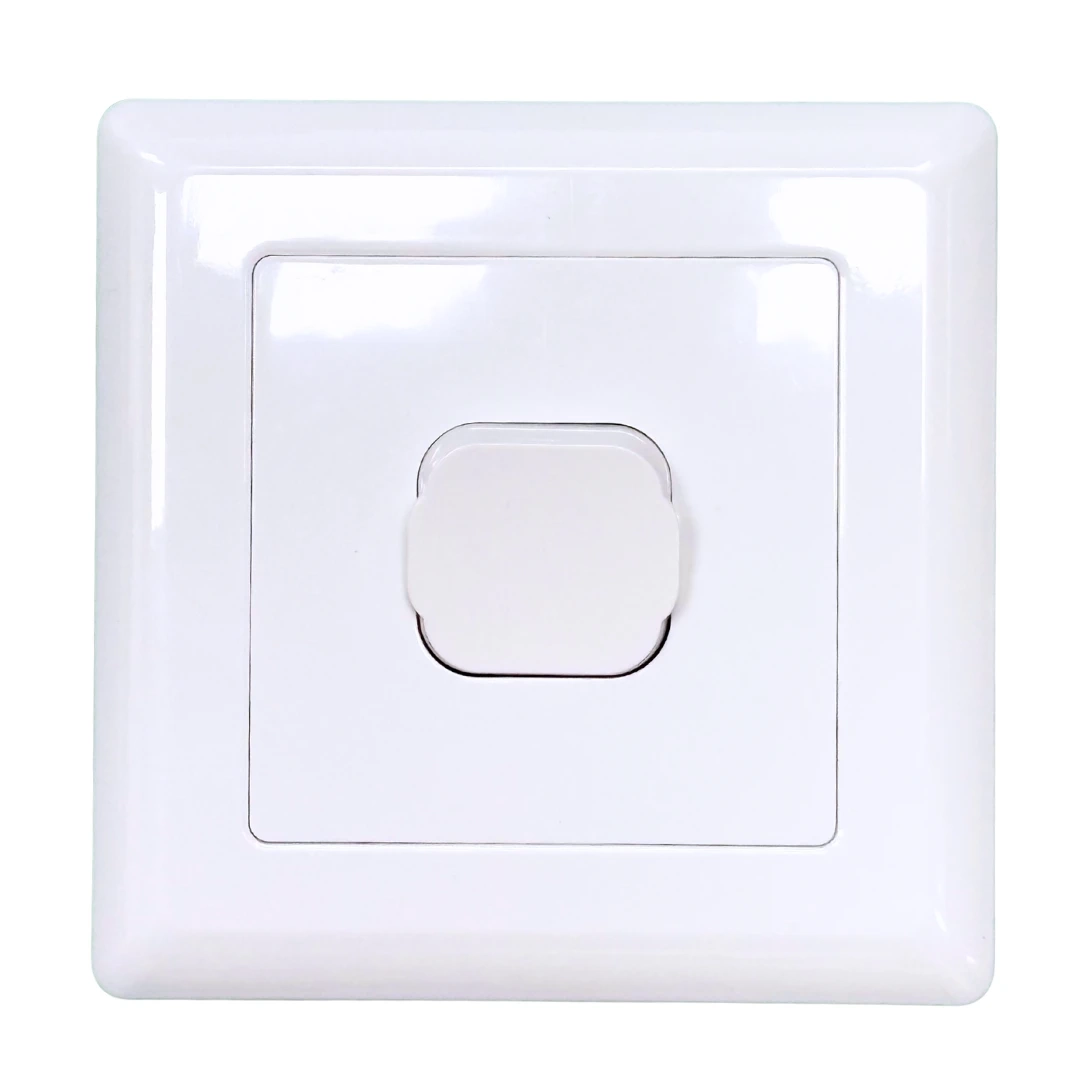

Tesla SW1/LDXN. XL Large Dolly 1 Gang Switch. 16A 250V. NDIS Compatible. Complete.

The Tesla SW1/LDXN is a 1 gang XL large dolly switch — a complete, ready-to-install light switch with the XL large dolly soft touch mechanism, XL dolly actuator, and plate all included. The XL dolly profile is over four times the size of a traditional switch mechanism — even larger than the standard Large Dolly (LD) format — providing the maximum accessible rocker size for ease of operation in aged care, senior and assisted living, and NDIS accessible electrical installations. Rated 16A 250V. Compliant with AS/NZS 3100 and AS/NZS 3133. NDIS compatible. Sold individually.

• Tesla Large Dolly Range — SW1/LDXN 1 Gang XL Dolly Switch
• 1 gang — single switch, one circuit
• Complete switch — XL dolly mechanism, actuator, and plate all included, ready to install
• XL (Extra Large) dolly profile — over 4 times the size of a traditional switch mechanism
• Soft touch surface — designed for ease of use
• 35mm mechanism format
• Rated: 16A, 250V
• Note: switch mechanism cannot be reconfigured after installation
• Compliant with AS/NZS 3100 and AS/NZS 3133
• NDIS compatible — designed for accessible and assisted living installations
• Also suits recreational clubs and architecturally designed modern homes
• Sold individually

Order online now — fast dispatch Australia-wide.

About the Tesla SW1/LDXN XL Large Dolly Switch

The Tesla Large Dolly range is designed for environments where ease of switch operation is a priority — aged care facilities, senior and assisted living homes, NDIS funded accessible housing modifications, and contemporary architecturally designed spaces where a bold, tactile switch format is preferred. The SW1/LDXN is the XL format 1 gang complete switch — the largest single-gang accessible rocker switch in the Tesla range. The XL dolly profile is over four times the area of a standard switch mechanism rocker, with a soft touch surface that responds to lighter pressure, making it the maximum accessibility option for single-gang switching positions.

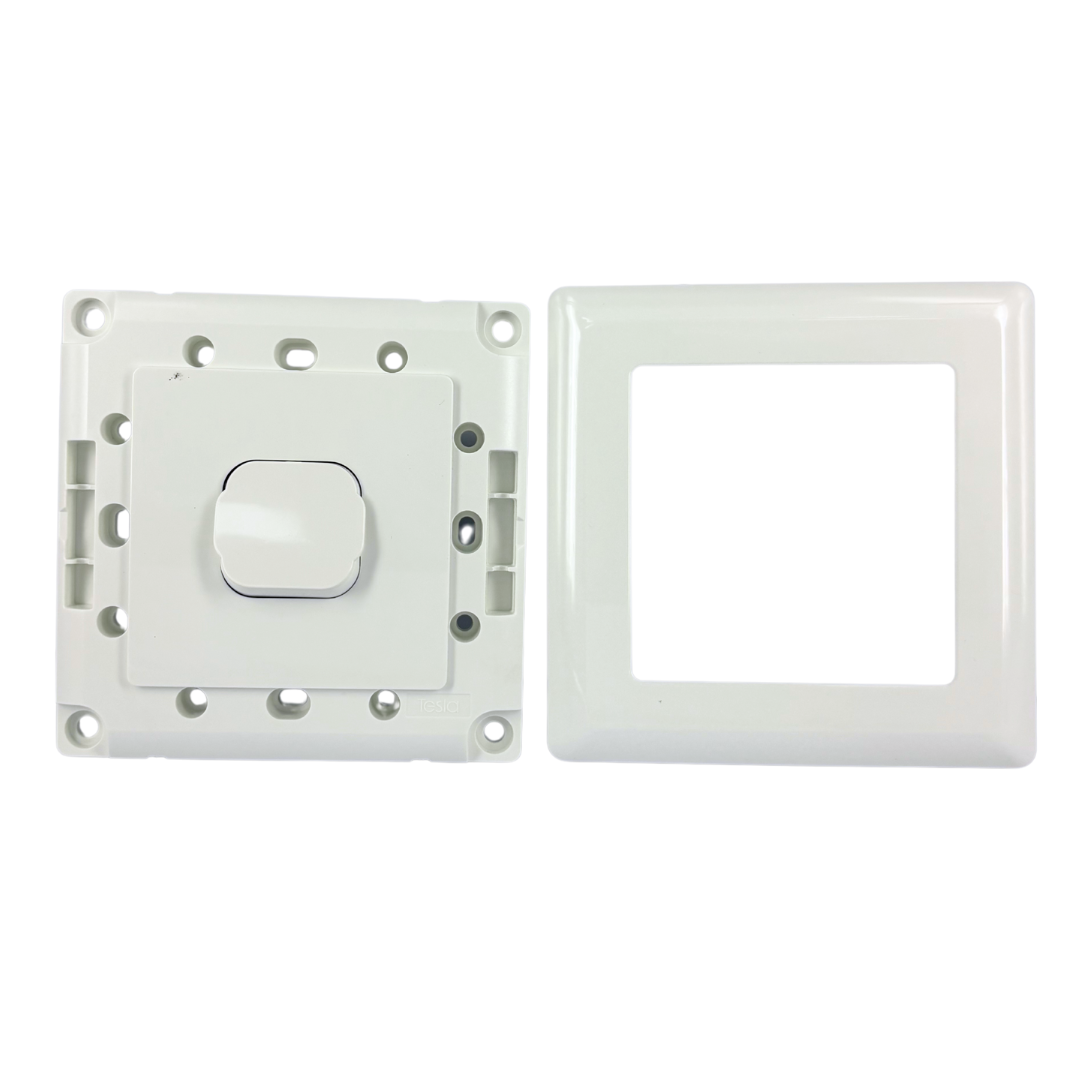

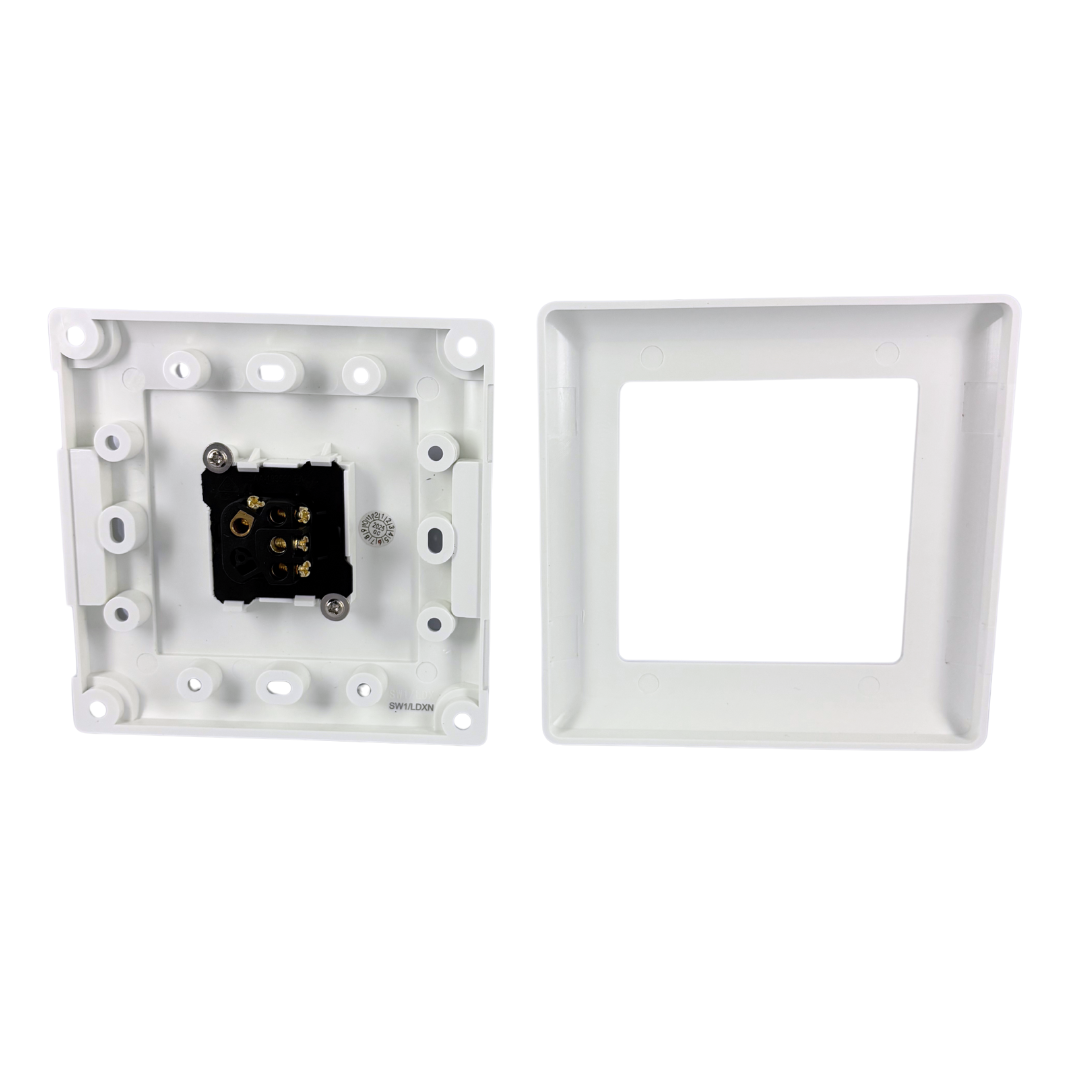

The SW1/LDXN is the complete loaded version — the XL dolly mechanism, actuator, and plate are all included and assembled, ready to wire and fix to the wall. This distinguishes it from the SW1PL/LDXN plate-only version, which is the grid plate and cover only for installations where the mechanism is sourced separately. The XL (LDXN) format has a larger dolly profile than the standard Large Dolly (LD) format — both use 35mm mechanisms and are rated 16A 250V, but the XL provides the bigger rocker surface for installations where the maximum accessible profile is specified.

An important installation note from the manufacturer: the switch mechanism in the Tesla Large Dolly range cannot be reconfigured after installation. The correct switch type — standard single-pole or intermediate/two-way — must be confirmed at the time of ordering and cannot be changed on site.

Q: What is the difference between SW1/LDXN (XL) and SW1/LDN (standard LD)?
A: Both are 1 gang complete large dolly switches rated 16A 250V and NDIS compatible. The SW1/LDXN has the XL (Extra Large) dolly profile — larger than the standard LD. The SW1/LDN has the standard Large Dolly profile. Both use 35mm mechanisms. Choose the SW1/LDXN for the maximum accessible rocker size; choose the SW1/LDN for the standard large dolly format.

Q: What is the difference between SW1/LDXN and SW1PL/LDXN?
A: The SW1/LDXN is the complete loaded switch — XL dolly mechanism, actuator, and plate included, ready to install. The SW1PL/LDXN is the grid plate and cover only — no mechanism included. Use the SW1/LDXN for a complete new installation; use the SW1PL/LDXN if you are sourcing the mechanism separately or need a spare plate.

Q: Can the switch mechanism be changed after installation?
A: No — the Tesla Large Dolly switch mechanism cannot be reconfigured after installation. The correct switch type must be selected before ordering.
