Tesla Large Dolly Vertical 2 Gang Light Switch 35mm Mech

Description

Tesla SW2/VLDN. Large Dolly Vertical 2 Gang Switch. 16A 250V. NDIS Compatible. Complete.

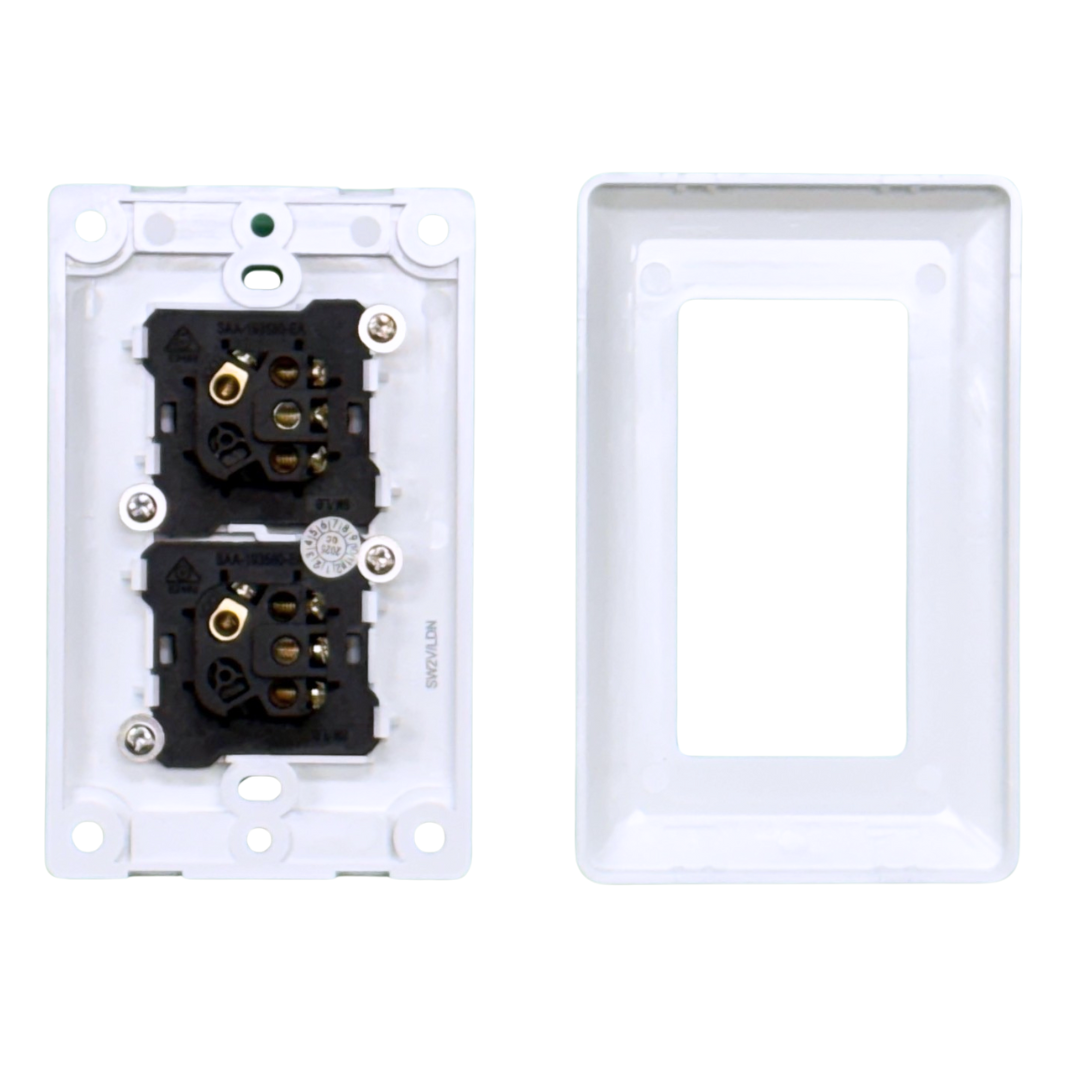

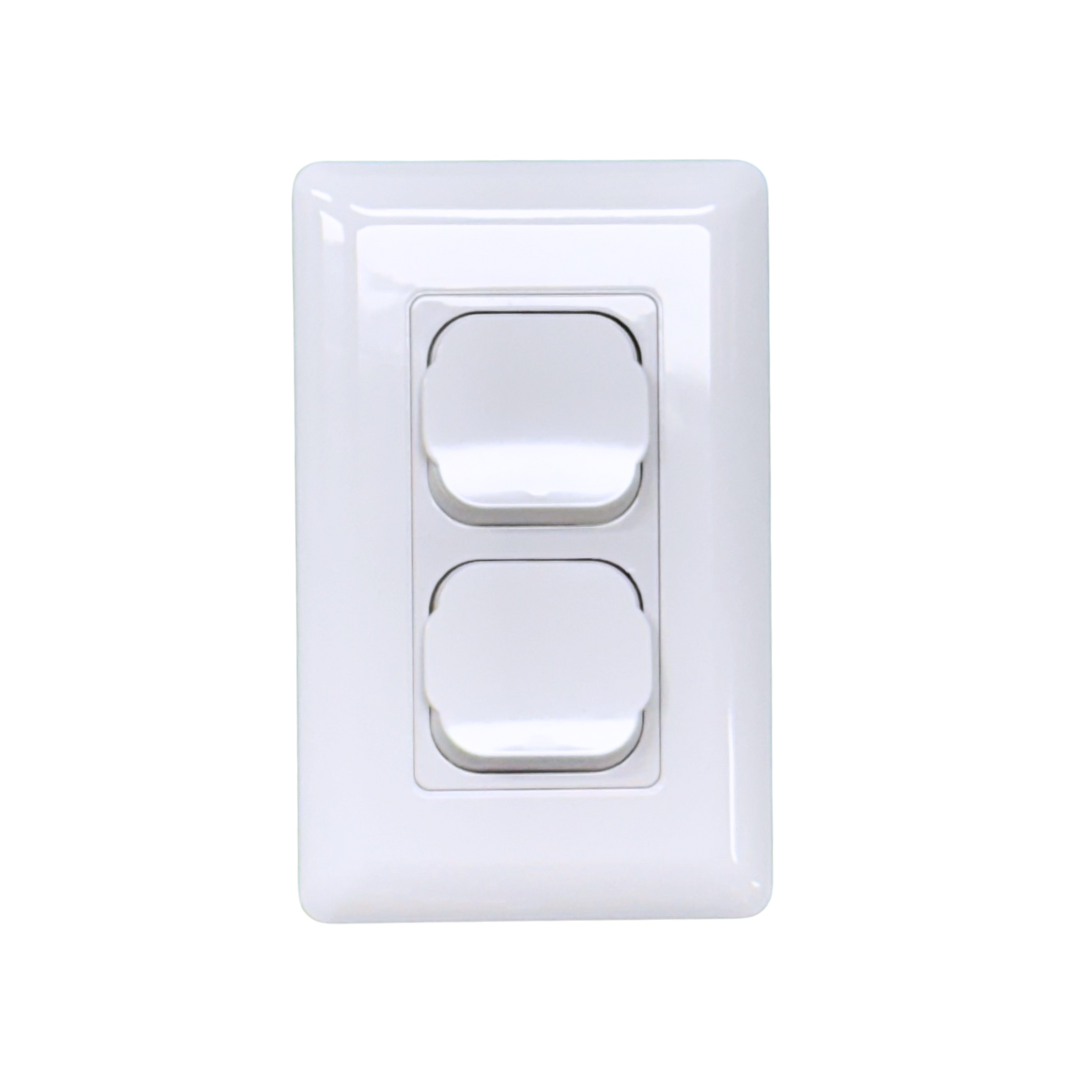

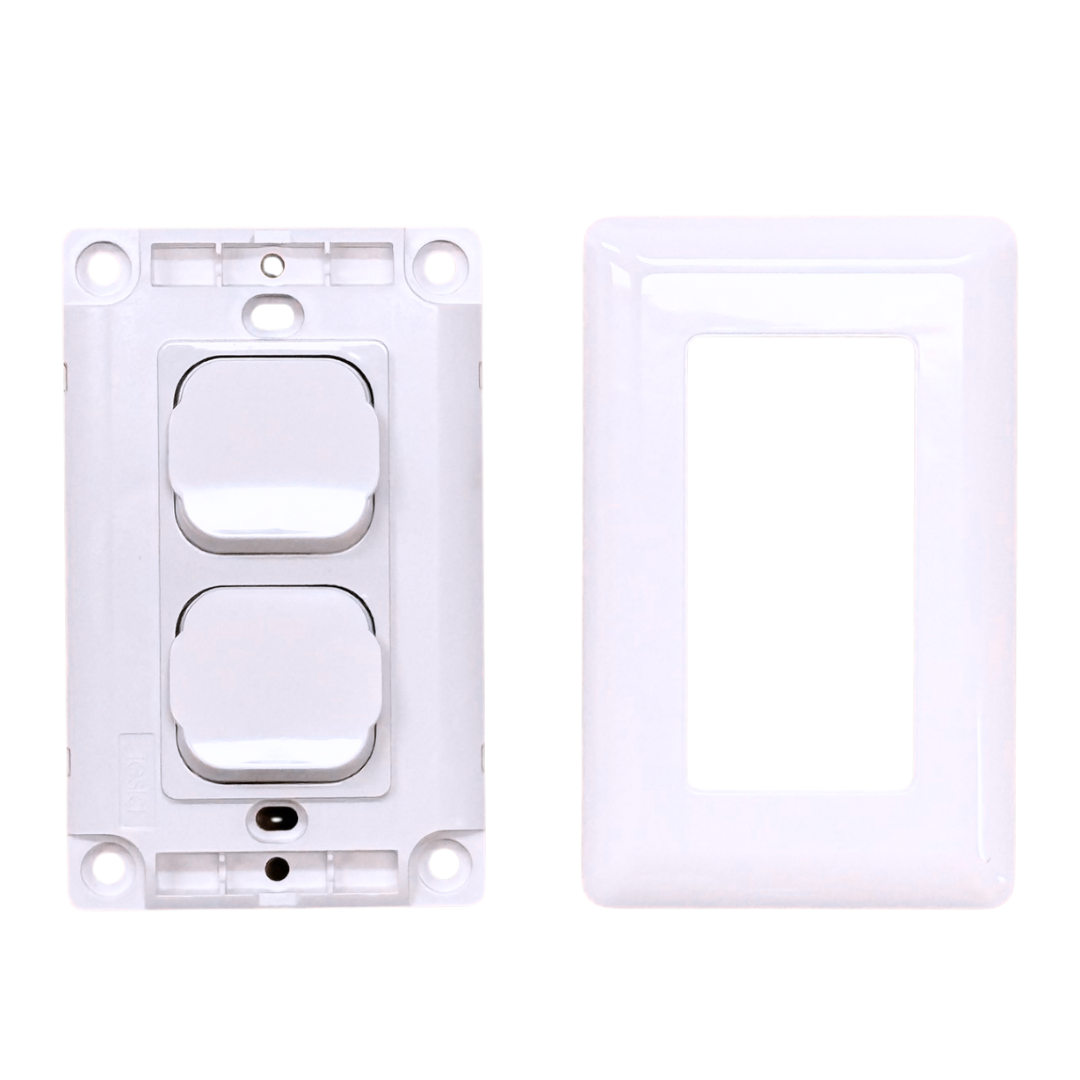

The Tesla SW2/VLDN is a 2 gang large dolly switch in the vertical plate format — a complete, ready-to-install light switch with two large dolly soft touch mechanisms, dolly actuators, and vertical plate all included. Two independent circuits switched from one vertical large dolly format plate. The vertical format presents the large dolly rockers stacked top to bottom in a taller, narrower plate orientation — suited to narrow wall locations where the standard horizontal format does not fit. Rated 16A 250V. Compliant with AS/NZS 3100 and AS/NZS 3133. NDIS compatible. Sold individually.

• Tesla Large Dolly Range — SW2/VLDN 2 Gang Large Dolly Switch, Vertical Format
• 2 gang — two independent switches, two circuits
• Vertical plate format — taller than wide, rockers stacked vertically
• Complete switch — large dolly mechanisms, actuators, and plate all included, ready to install
• Large dolly profile — over 4 times the size of a traditional switch mechanism
• Soft touch surface — designed for ease of use
• 35mm mechanism format
• Rated: 16A, 250V
• Note: switch mechanisms cannot be reconfigured after installation
• Compliant with AS/NZS 3100 and AS/NZS 3133
• NDIS compatible — designed for accessible and assisted living installations
• Also suits recreational clubs and architecturally designed modern homes
• Sold individually

View specs and order online — fast dispatch Australia-wide.

About the Tesla SW2/VLDN Vertical 2 Gang Large Dolly Switch

The SW2/VLDN combines the accessible large dolly format with a vertical plate orientation, giving two switching circuits in a plate that is taller than it is wide. This makes it the right choice for narrow wall sections beside door frames, column faces, pillar positions, and any location where two circuits need to be switched from a vertical profile mounting. The two rockers are stacked one above the other in the vertical plane, each independently controlling its own circuit with the same oversized soft touch large dolly surface used across the rest of the range.

The vertical format of the SW2/VLDN complements the SW1/VLDN (1 gang vertical) for installations where the accessible switching position calls for a vertical plate throughout — maintaining a consistent visual language across all switch positions in the space. All installation and wiring is identical to the horizontal SW2/LDN, with the plate simply oriented vertically rather than horizontally.

An important installation note from the manufacturer: the switch mechanisms in the Tesla Large Dolly range cannot be reconfigured after installation. The correct switch type for each gang position — standard single-pole or intermediate/two-way — must be confirmed at the time of ordering and cannot be changed on site.

Q: What is the difference between SW2/VLDN and SW2/LDN?
A: Both are 2 gang complete large dolly switches rated 16A 250V and NDIS compatible with the same large dolly profile and soft touch surface. The SW2/LDN is the standard horizontal plate format — wider than tall, rockers side by side. The SW2/VLDN is the vertical plate format — taller than wide, rockers stacked top to bottom. Choose based on the plate orientation that suits the wall location.

Q: Can the switch mechanisms be changed after installation?
A: No — the Tesla Large Dolly switch mechanisms cannot be reconfigured after installation. The correct switch type must be selected for each gang position at the time of ordering.

Q: Is this switch NDIS compatible?
A: Yes — the Tesla Large Dolly range is designed for accessible and assisted living electrical installations and is compatible with NDIS accessible housing modifications.
