Clipsal 2034VH-WE Grid Plate & Cover | Series 2000 4 Gang, No Mech

Description

The grid plate and cover – fit the mechanisms the job needs.

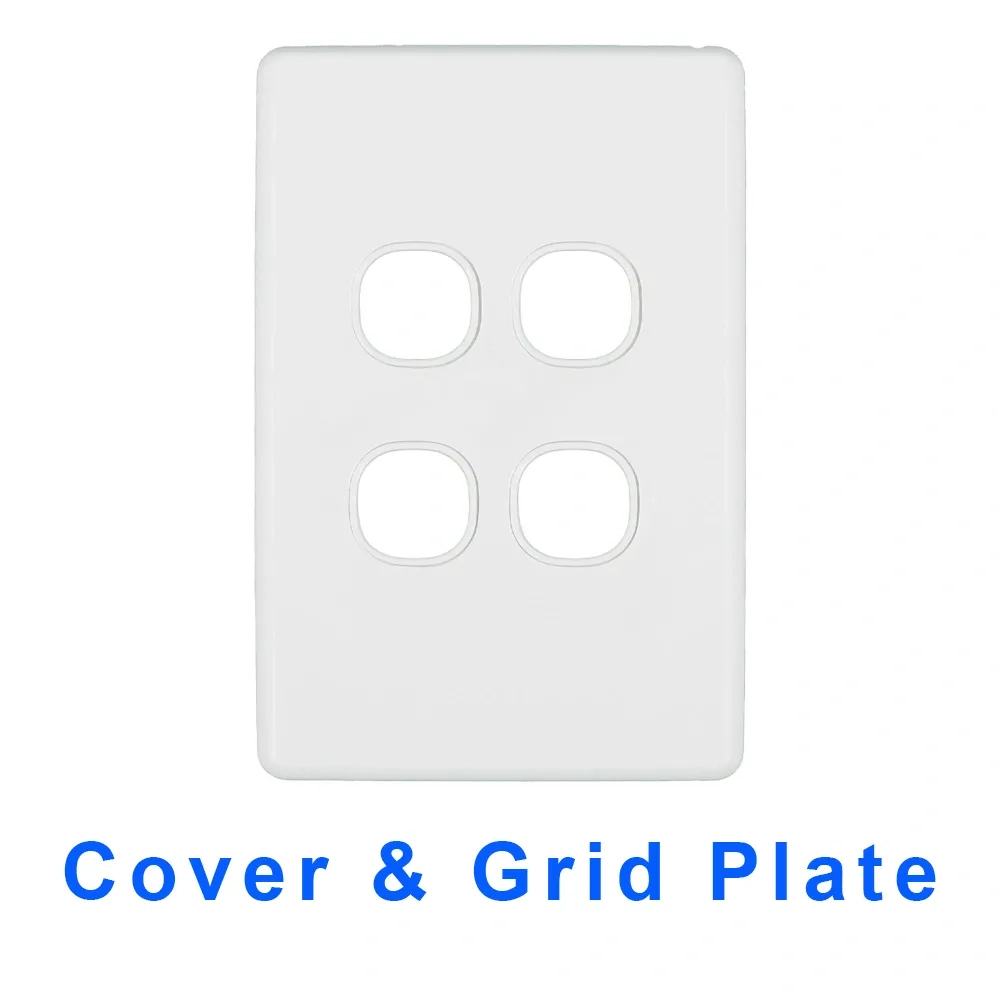

The Clipsal 2034VH-WE is a genuine Series 2000 4 gang grid plate and cover in White Electric. The grid plate and cover are supplied together; the switch mechanisms are chosen separately, so you can build the exact combination of switches, dimmers or data points the position calls for. Compatible Clipsal 30 Series mechanisms are sold separately.

Key Features

• Grid plate and cover included – a complete mounting plate, mechanisms not included
• Genuine Clipsal part for the Series 2000 range
• Four gang apertures, standard size, full-plate orientation
• Reversible design – mounts vertically or horizontally
• Accepts any Clipsal 30 Series mechanism: switches, dimmers, TV, data, telephone and push buttons
• Clip-on cover, replaceable with other colours such as brushed aluminium
• Gloss White Electric finish with rounded edges, easy to keep clean

Pick the plate, add your mechanisms, and build the exact switch you need.

Why it Matters

Build the Switch Position Your Way
A grid plate and cover is the starting point of a custom switch position – four gang apertures that take whichever 30 Series mechanisms the job requires, mixing light switches, dimmers, data outlets or telephone points in a single plate. Because the mechanisms are chosen and purchased separately, this plate ships without them, so you add exactly what each position needs. Left unfitted it also serves as a blank plate for capped-off points in commercial and industrial areas.

One Plate, Both Orientations
The VH in the part number means vertical or horizontal – the plate is reversible, changed on installation by removing the mechanism and turning it 90 degrees, so the same part suits either mounting direction. Multiple securing points around the grid make it easy to find a solid mount.

Genuine Series 2000 Fit
As a genuine Clipsal part in gloss White Electric, the plate matches the rest of the Series 2000 range on the wall, and the clip-on cover conceals the fixing screws for a clean face. The cover can be swapped for other colours such as brushed aluminium, and its rounded edges and gloss surface wipe clean easily.

Are switch mechanisms included with the 2034VH?
No. This is the grid plate and cover only. Compatible Clipsal 30 Series mechanisms – switches, dimmers, TV, data, telephone and push buttons – are sold separately and clip into the plate.

Which mechanisms fit this plate?
Any standard Clipsal 30 Series mechanism fits, including rocker switches, push buttons, TV, data, telephone and dimmer mechanisms – and you can mix different types across the four gangs.

Can I mount it vertically or horizontally?
Both. The 2034VH is reversible and suits either vertical or horizontal mounting, so one part covers both orientations.
