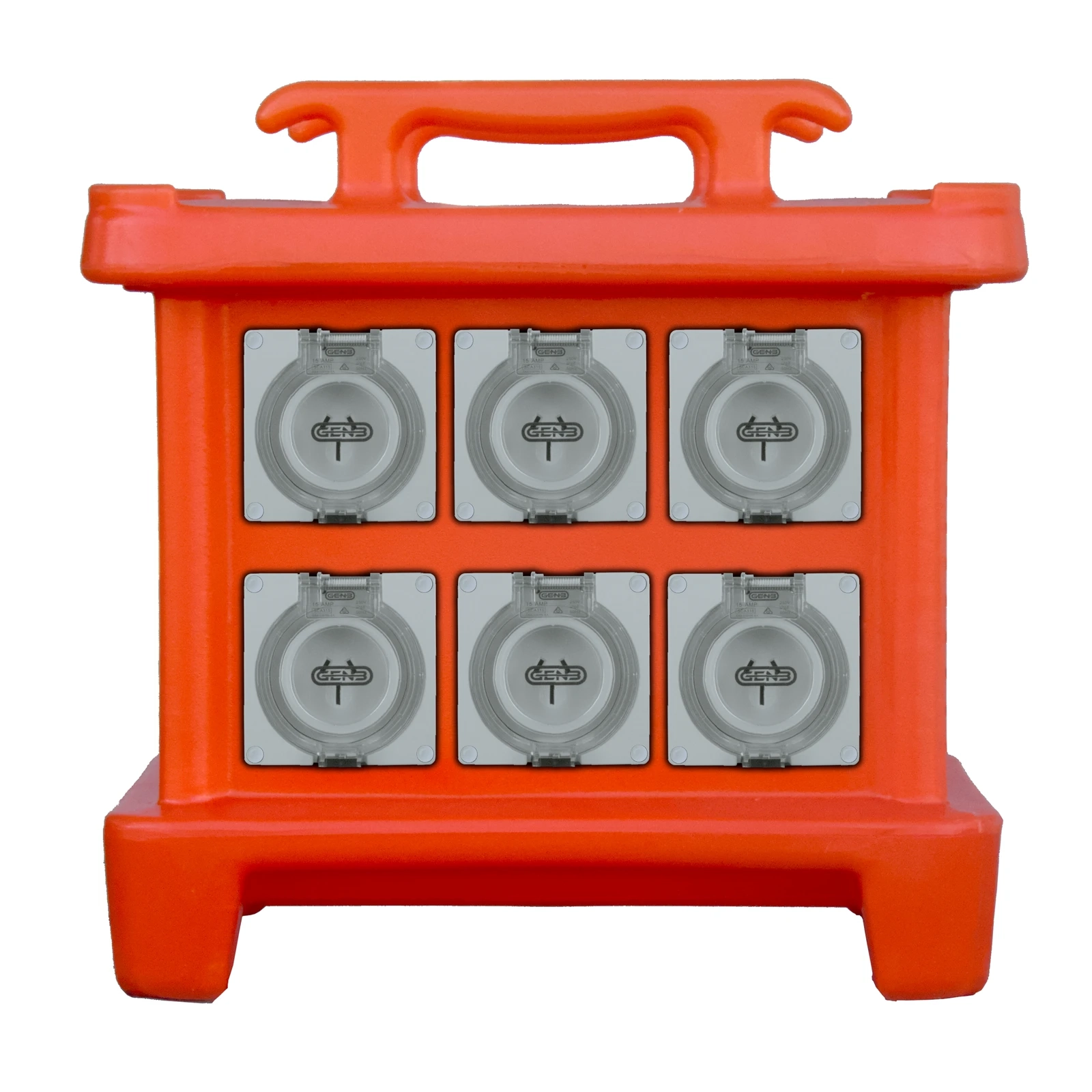

63A Power Distribution Board Cube - Orange
SKU: disc563cx315o
Product Image Gallery
Product Pricing
$2,044.55 (ex-GST)
$2,249.00 (inc-GST)
$2,249.00
$2,044.55
Stock and Availability
- ⚫︎ 5 In Stock
DistroCube power distribution board assembled, tested and tagged by our licensed electricians in Australia. Featuring 18 RCBO protected 15A sockets in a stable stackable cube.
Electrotraders USPs
Description
The all new DistroCube by Electrotraders, a stackable cube distribution box providing ample single phase sockets from a three phase supply, to power your work or event site.
Lead Time
- Standard: 1-4 days dispatch from order. We will advise if outside of this range.
- Expedited: prioritised for assembly and dispatched within 24 hours. If you need this service, select expedited shipping at the checkout.
63A DistroCube Power Distribution Board
- 18 x 15A single phase socket outlets from a three-phase 63A inlet
- Stackable robust plastic shell is lightweight and easy to transport
- Made with GEN3 or equivalent high quality switch gear, carrying Australian/NZ Approval Certificates.
- Construction & Demolition Site Compliant: PSOAs comply with AS/NZS 3190 and AS/NZS 3012.
- Built, tested and tagged by our qualified electricians at Electrotraders
- Get in touch to discuss your custom configuration needs
- Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose
- Actual product layout may differ from the displayed image, depending on your chosen options. Be assured that components and specifications will match the description here.
IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets on this product. i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.
Configuration

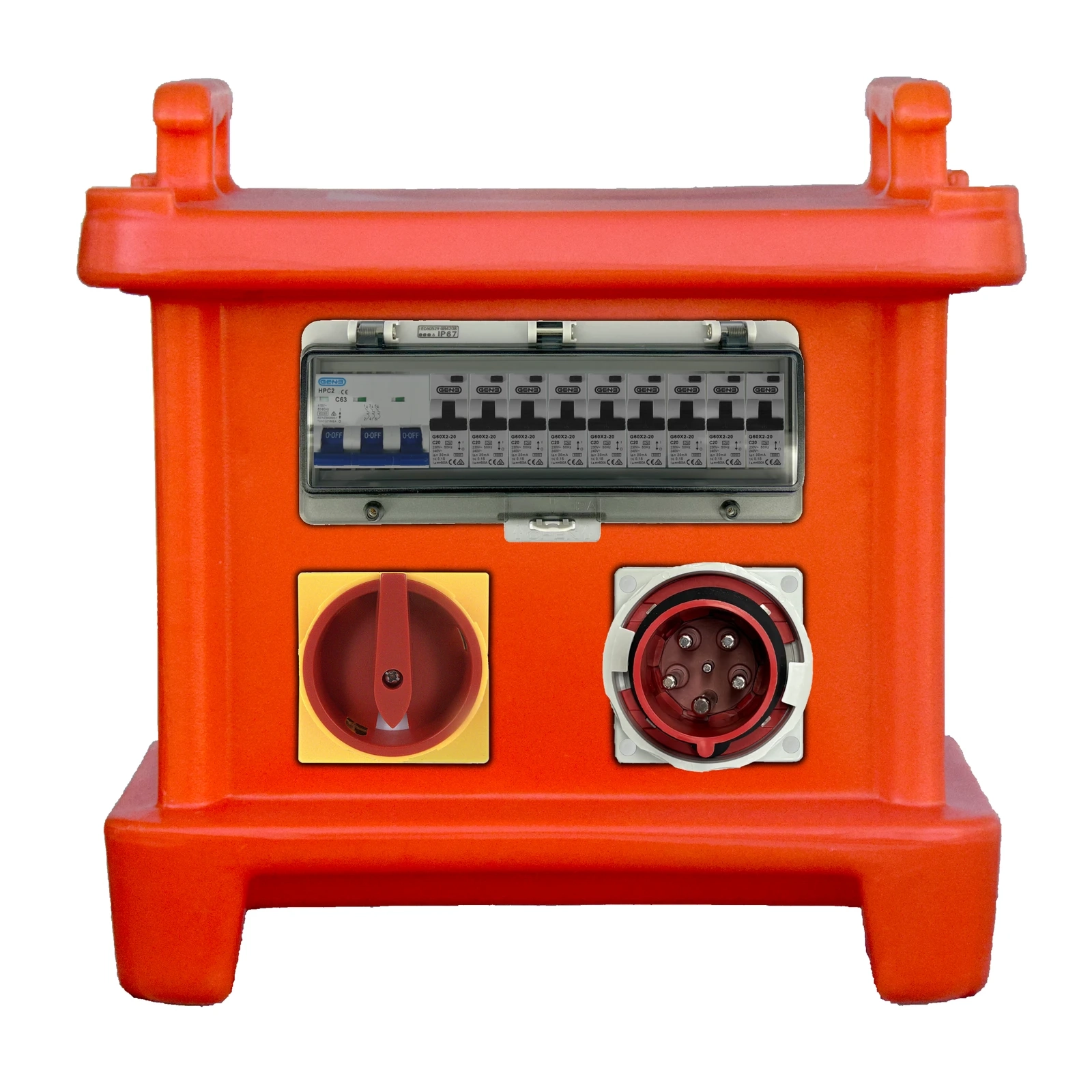

- Three-phase 63A surface mounted IP67 rated inlet with an easy to see and operate switch
- 18 single-phase auto-switched 15A IP66 rated sockets
- Protected by 63A Three Pole MCB (circuit breaker) with sockets protected by 9 x 20A Double Pole RCBOs

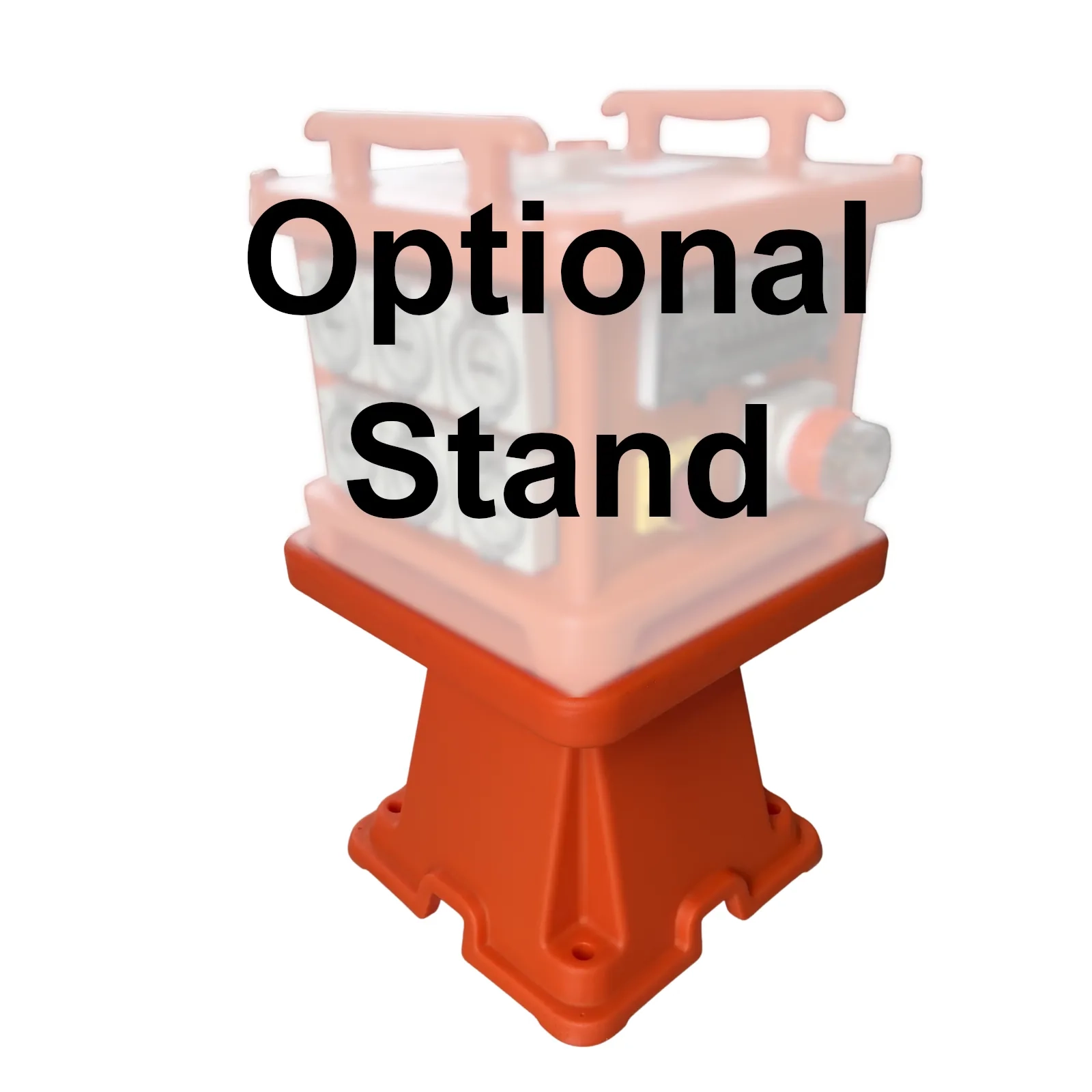

- Optional DistroCube Stand for a safe, visible and easy to access setup. Designed to perfectly fit these DistroCubes, our rugged, stackable stands are ideal for demanding job sites, events and industrial environments. Use the drop down above to include a stand.
- Hand-assembled and inspected by our experienced, licensed electricians; each unit is tested & tagged according to AS/NZS 3760
- Available colours: orange or black
(disc563cx315o_p)
Specifications
| General Specifications | |
| Warranty | 24 months (misuse excluded) |
| Assembly/Testing | Assembled, tested, and tagged in-house by licensed electricians |
| Test/Tag Standard | AS/NZS 3760 |
| Compliance | AS/NZS 3190 & AS/NZS 3012 |
| Customisable | Yes |
| Dimensions (Cube) | 450 x 450 x 445mm |
| Dimensions (optional stand) | 477 x 477 x 425mm |
| Assembled Dimensions (Cube) | 500 x 450 x 445mm |
| Assembled Weight (Cube only) | 14.3kg |
| Assembled Weight (Cube with Stand) | 20.8kg |
| Materials | |
| Colour | Orange |
| Alternate Colours Available | Yes |
| Housing | Lightweight robust plastic shell |
| Stackable | Yes |
| Configuration | |
| Inlet | Three-phase 63A surface mounted IP67 rated |
| Inlet Switch | 63A rated surface mounted switch |
| Sockets | 18 x single-phase auto-switched 15A IP66 rated |
| Circuit Breakers | 63A Three Pole MCB |
| RCBOs | 9 x 20A Double Pole RCBOs |
| SKU | disc563cx315o_p |
| Brand | Electrotraders |
