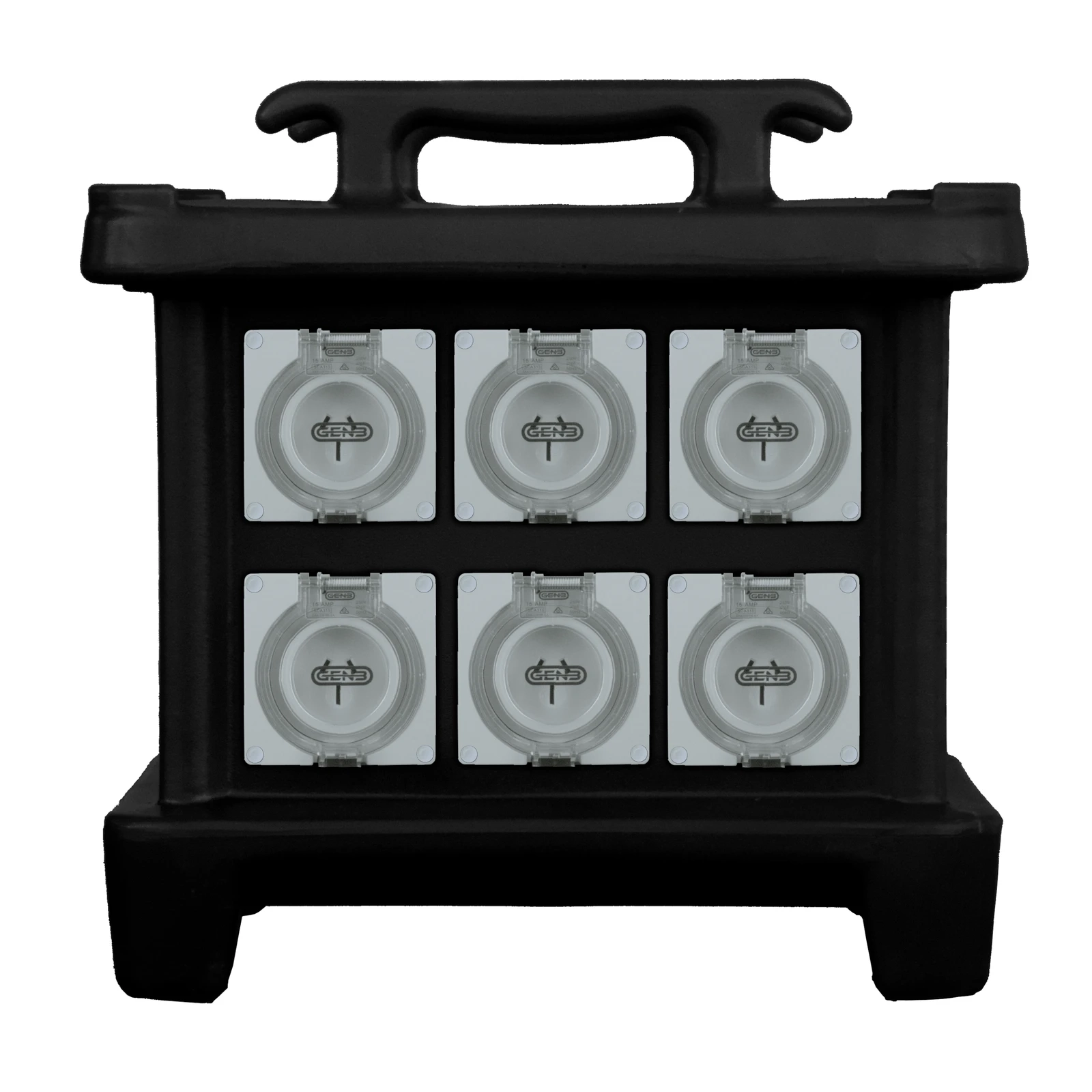

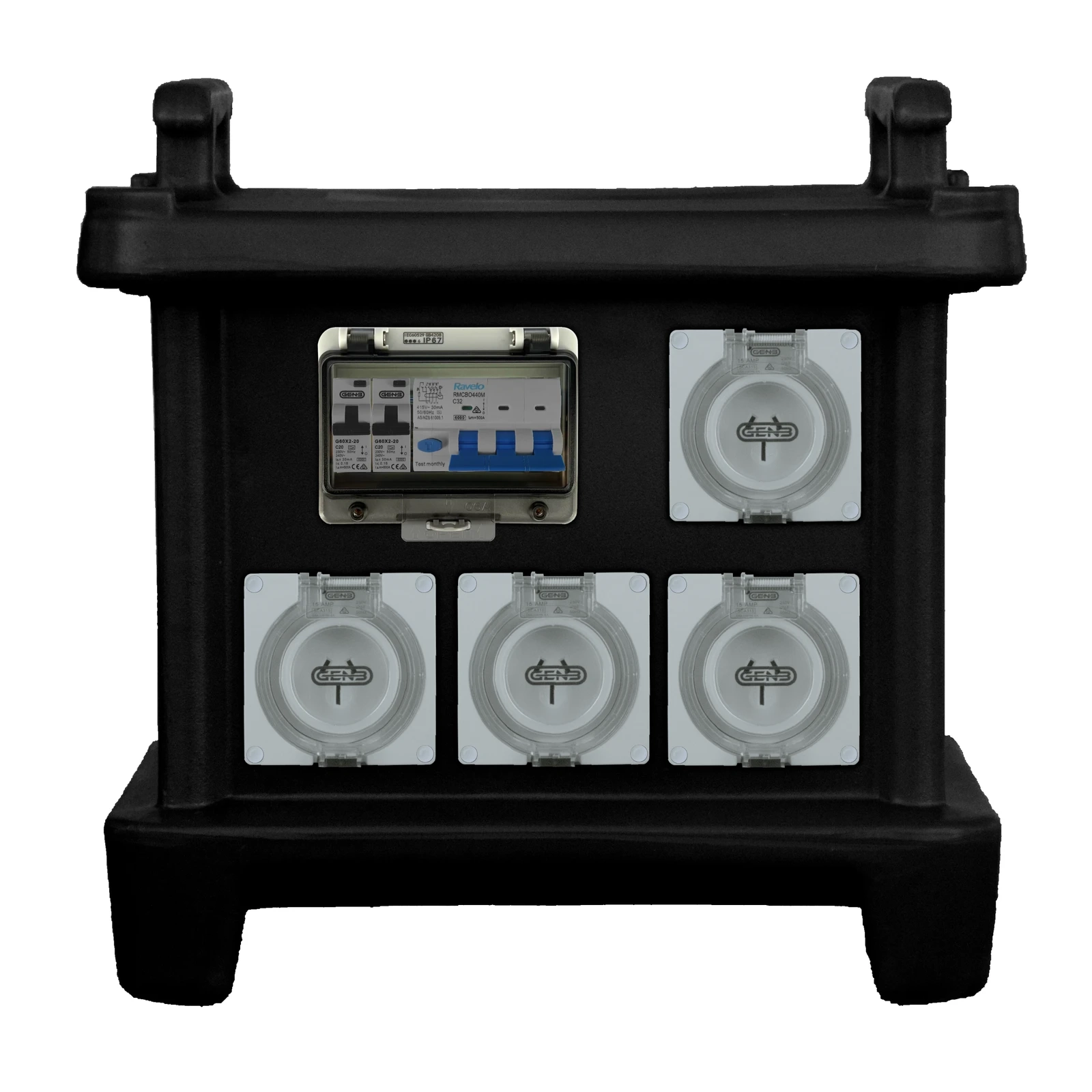

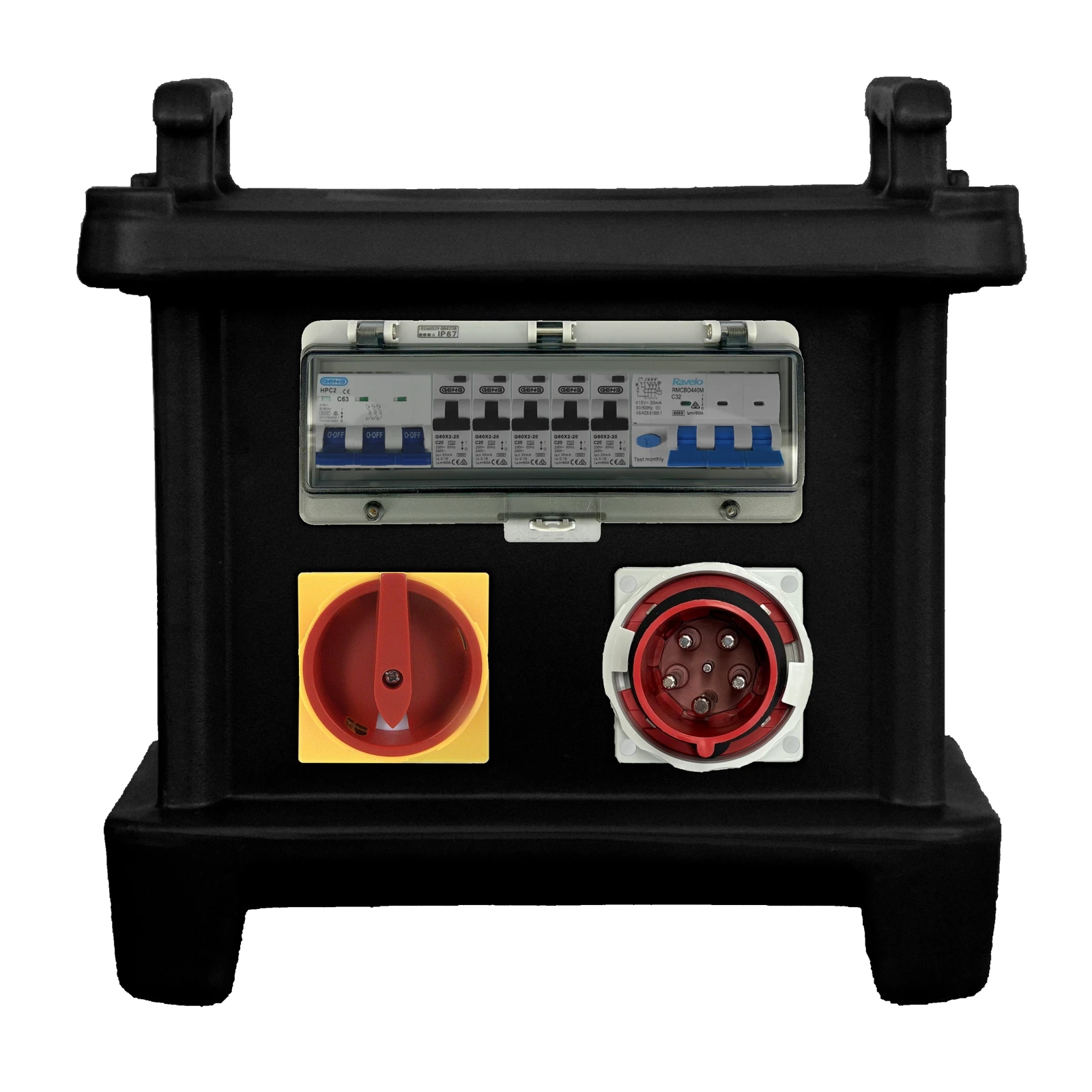

63A Power Distribution Board Cube - Daisy Chain 32A, Black

Description

The all new DistroCube by Electrotraders, a stackable cube distribution box providing ample single and three phase sockets from a three phase supply, to power your work or event site.

Lead Time

• Standard: 1-4 days dispatch from order. We will advise if outside of this range.
• Expedited: prioritised for assembly and dispatched within 24 hours. If you need this service, select expedited shipping at the checkout.

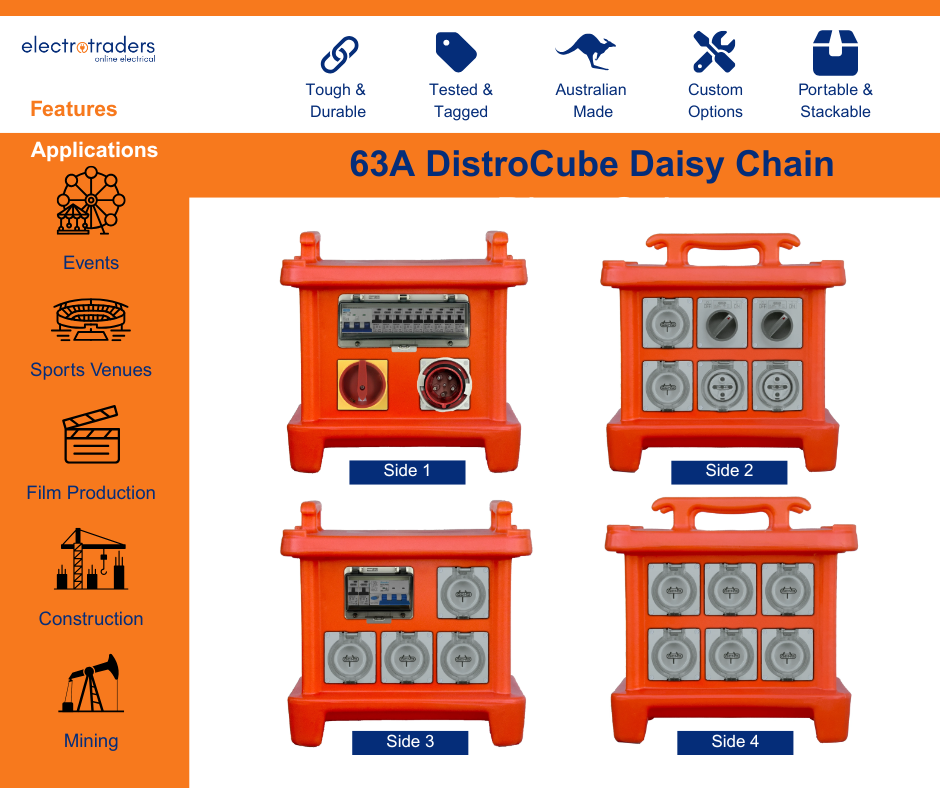

63A DistroCube Power Distribution Board

• 12 x 15A single phase socket outlets plus 2 x 32A 5 pin three phase socket outlets from a three-phase 63A inlet
• Stackable robust plastic shell is lightweight and easy to transport
• Daisy-chainable / pass-through inlet for multi-board feeds.
• Made with GEN3 or equivalent high quality switch gear
• Built, tested and tagged by our qualified electricians at Electrotraders
• Get in touch to discuss your custom configuration needs
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose
• Actual product layout may differ from the displayed image, depending on your chosen options. Be assured that components and specifications will match the description here.

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets on this product. i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Configuration

• Three-phase 63A surface mounted IP67 rated inlet with an easy to see and operate switch
• 12 single-phase auto-switched 15A IP66 rated sockets
• 2 three-phase 32A IP66 rated sockets each with surface mounted switches
• Protected by 63A Three Pole MCB (circuit breaker) with sockets protected by 7 x 20A Double Pole or 2 x 32A four pole RCBOs
• Hand-assembled and inspected by our experienced, licensed electricians; each unit is tested & tagged according to AS/NZS 3760
• Available colours: orange or black
