087 Amp Rated H07 Rubber Flexible Cable 3 Core & Earth 16 mm - 5m Cut
SKU: cabh074g16.5m
Product Image Gallery
Product Pricing
$131.82 (ex-GST)
$145.00 (inc-GST)
$145.00
$131.82
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Electrotraders USPs
Description
- H07 Rubber Flexible Cable Three Phase 4 Core 16 mm2 per Metre

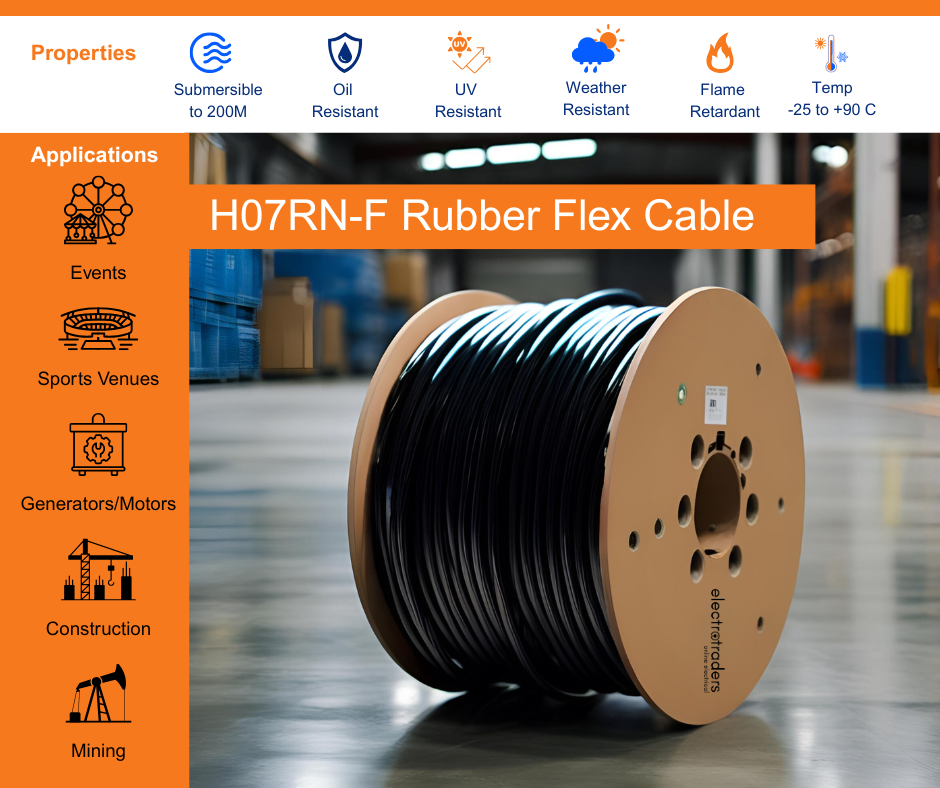

- Typically used at event & temporary cabling, fairgrounds, sporting venues, flexible connections to motors, generators, compressors and portable equipment,
construction site leads, wet or oily environments, mine sites and quarries, submersible pumps, limit switches and many other applications. - Made of H07 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant
- Rated to 87 Amps
- Cable CSA 16mm2
- Nominal Cable Diameter 24.2mm
- Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228
- Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor
- Inner Sheath - EPDM Rubber Outer Jacket - Chlorinated Polyethylene, CPE rubber compound.
- Rated Voltage - 0.6/1kV
- The cable is submersible to 200mtrs, Suitable for fresh water, salt water, sewage/contaminated water. UV,
Sunlight and weather resistant. Flame retardant to IEC 60332-1-2:2004,EN60332-1-2-2004. - Operating Temperature range -25°C to +90°C (mobile) -40°C to +90°C (fixed)
- This flex has full Australian Approvals.
(cabh074g16)
Specifications
| Cable Specifications: FMR4G16 | |
| Product Code | FMR4G16 |
| CSA (mm2) | 16 |
| Nominal Sheath Thickness (mm) | 3.6 |
| Max DC Resistance @20°C (mΩ/KM) | 1.24 |
| Amps | 87 |
| Nominal OD (mm) | 24.2 |
| Mass (Kg/Km) | 1167 |

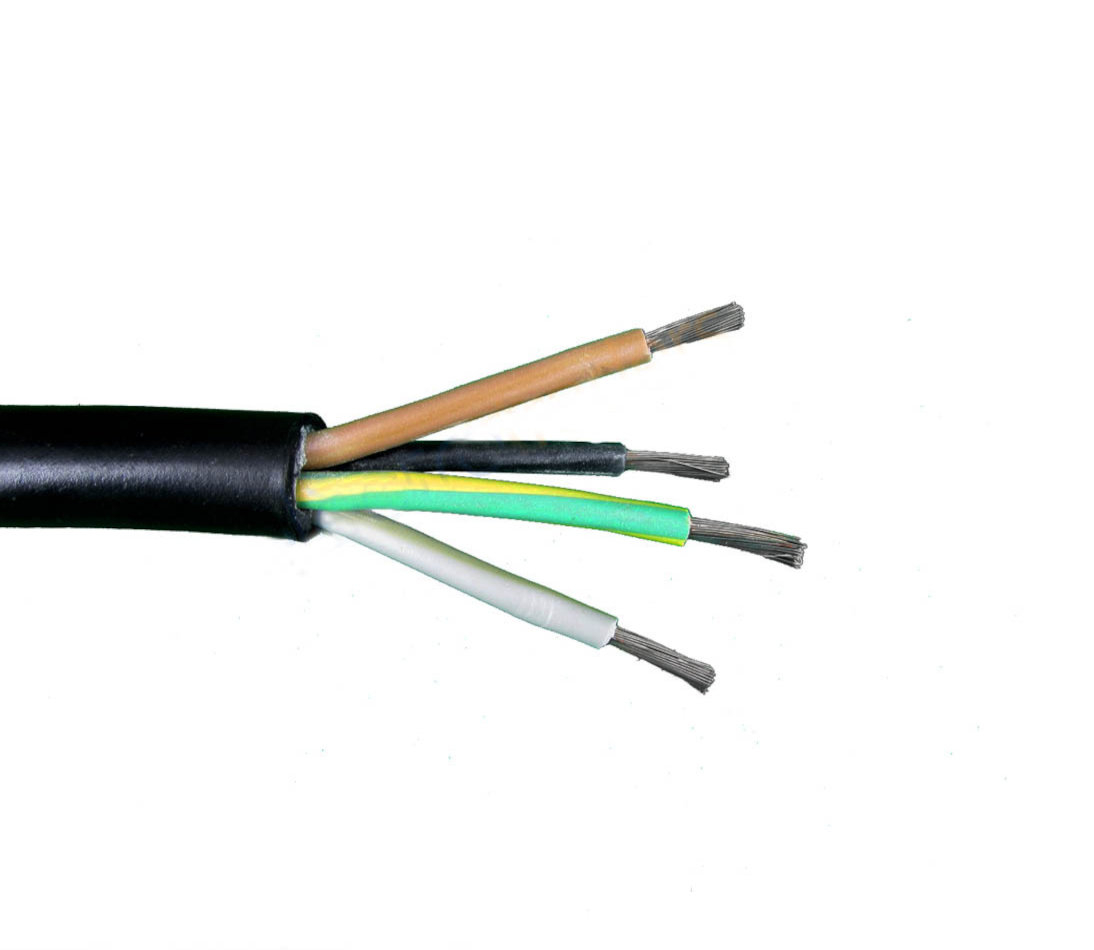

| Core Colors | Green/Yellow, Brown, Black, Grey |
| General Specifications | |
| Conductors | Class 5 tinned copper according to AS/NZS 1125, IEC 60228 |
| Insulation | Ethylene-propolene rubber (EPR) R-EP-90 90°C Conductor |
| Submersible Rating | 200m |
| Outer Jacket | Chlorinated Polyethylene, CPE rubber compound |
| Voltage | 0.6/1kV |
| Sheath Colour | Black |
| Minimum Bending Radius | 4 x D (fixed), 5 x D (mobile), D = outside diameter |
| Features | |
| Submersible | Up to 200mtrs |
| Suitable for | Fresh water, salt water, sewage/contaminated water |
| Resistant to | UV, Sunlight, oil and weather |
| Flame retardant | IEC 60332-1-2:2004, EN60332-1-2-2004 |
| Temperature range | -25°C to +90°C |
| Short circuit temperature | Maximum 1s 250°C |
| Applications | |
| Applications | Event & temporary cabling, fairgrounds, sporting venues |
| Flexible connections to motors, generators, compressors | |
| Construction site leads | |
| Wet or oily environments | |
| Mine sites and quarries | |
| Submersible pumps, limit switches | |
| Note | |
| Note | Consult electrician/engineer to ensure suitability. Information subject to change without notification. |
| SKU | cabh074g16 |
| Manfacturer Part Number | FMR4G16 |
| Brand | Generic |
