027 Amp Rated H07 Rubber Flexible Cable 2 Core 2.5mm - 200m Roll
SKU: cabh072g2.5.200m
Product Image Gallery
Product Pricing
$562.55 (ex-GST)
$618.80 (inc-GST)
$618.80
$562.55
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Electrotraders USPs
Description

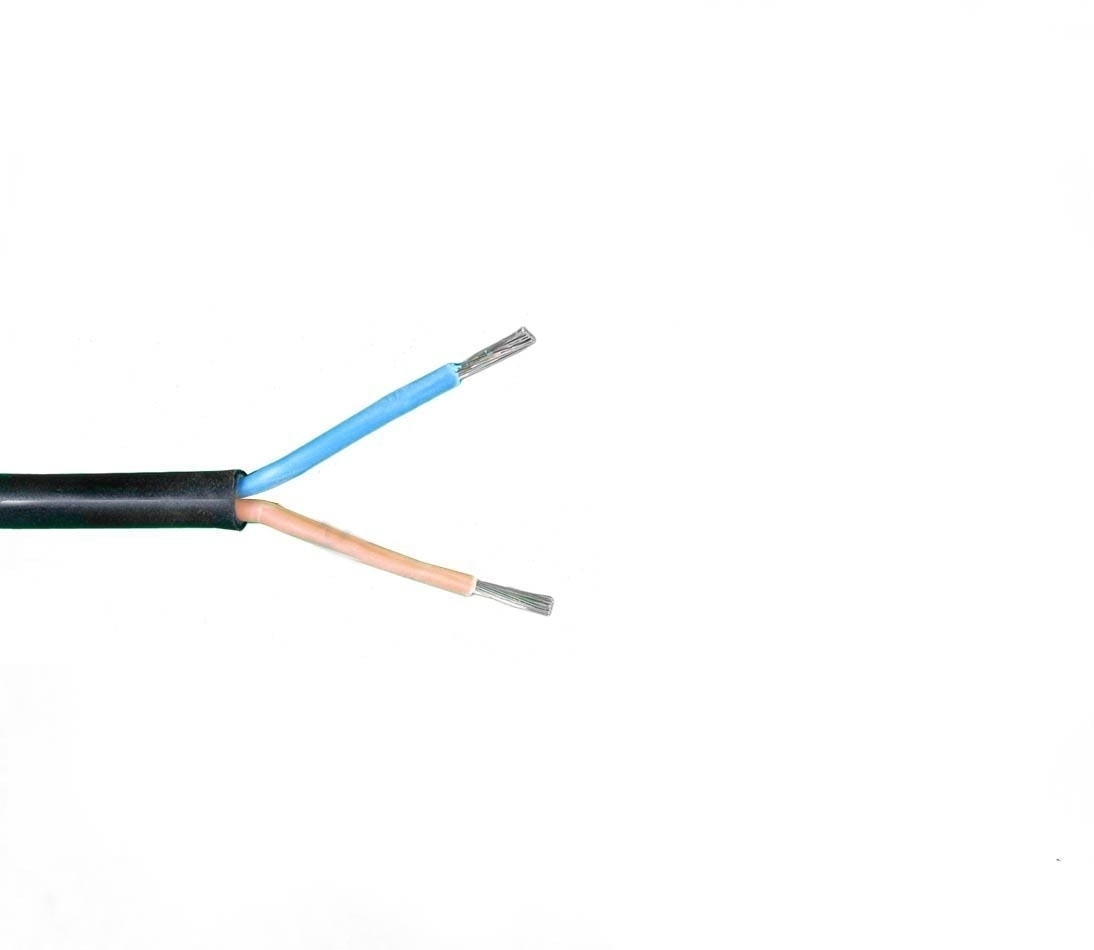

- H07 Rubber Flexible Cable Single Phase 2 Core 2.5 mm2
- Typically used for connections to portable equipment, limit switches wherever flexible connections are required
- Made of H07 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant
- Rated to 27 Amps Nominal OD 10.4mm
- Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228
- Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor
- Inner Sheath - EPDM Rubber Outer Jacket - Chlorinated Polyethylene, CPE rubber compound.
- Rated Voltage - 0.6/1kV
- The cable is submersible to 200mtrs, Suitable for fresh water, salt water, sewage/contaminated water. UV,
Sunlight and weather resistant. Flame retardant to IEC 60332-1-2:2004,EN60332-1-2-2004. - Operating Temperature range -25°C to +90°C (mobile) -40°C to +90°C (fixed)
- This flex has full Australian Approvals.
- Handling Time: Orders for roll lengths 200M or greater, or lengths currently on backorder, may require a 1–3 day handling period before shipment
(cabh072g2.5)
Specifications
| Cable Specifications: FMR2x1.5 | |
| Product Code | FMR2x2.5 |
| CSA (mm2) | 2.5 |
| Nominal Sheath Thickness (mm) | 1.7 |
| Max DC Resistance @20°C (mΩ/KM) | 8.21 |
| Amps | 27 |
| Nominal OD (mm) | 11.0 |
| Mass (Kg/Km) | 182 |
| Core Colors | Blue, Brown |
| General Specifications | |
| Conductors | Class 5 tinned copper according to AS/NZS 1125, IEC 60228 |
| Insulation | Ethylene-propolene rubber (EPR) R-EP-90 90°C Conductor |
| Submersible Rating | 200m |
| Outer Jacket | Chlorinated Polyethylene, CPE rubber compound |
| Voltage | 0.6/1kV |
| Sheath Colour | Black |
| Minimum Bending Radius | 4 x D (fixed), 5 x D (mobile), D = outside diameter |
| Features | |
| Submersible | Up to 200mtrs |
| Suitable for | Fresh water, salt water, sewage/contaminated water |
| Resistant to | UV, Sunlight, oil and weather |
| Flame retardant | IEC 60332-1-2:2004, EN60332-1-2-2004 |
| Temperature range | -25°C to +90°C |
| Short circuit temperature | Maximum 1s 250°C |
| Applications | |
| Applications | Event & temporary cabling, fairgrounds, sporting venues |
| Flexible connections to motors, generators, compressors | |
| Construction site leads | |
| Wet or oily environments | |
| Mine sites and quarries | |
| Submersible pumps, limit switches | |
| Weights | |
| 100m | 18.2kg |
| 200m | 36.4kg |
| 300m | 54.6kg |
| 400m | 72.8kg |
| 500m | 91kg |
| Note | |
| Note | Consult electrician/engineer to ensure suitability. Information subject to change without notification. |
| SKU | cabh072g2.5 |
| Manfacturer Part Number | FMR2X2.5 |
| Colour | Black |
| Brand | Generic |
