GEN3 PLS3PH432 32 Amp 4 Pin Round Plug Top 56 Series Style IP66

Description

Three-phase power, straight and weatherproof.

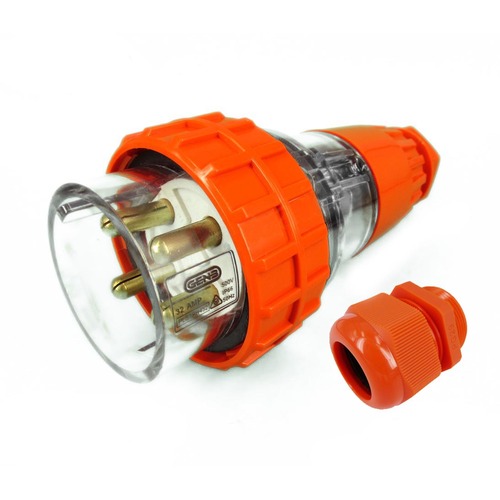

The GEN3 PLS3PH432 is a 32A three-phase industrial extension plug top with four round pins and a straight body. Its IP66-rated, 56 Series-style design and compression gland make it a rugged, quick-to-terminate plug for heavy three-phase outdoor and industrial leads.

Key Features

• 32A three phase, 4 round pins (three actives, earth)
• 500V AC
• Straight plug top
• IP66 rated — dust-tight and protected against powerful water jets
• Compression gland for quick cable termination
• 56 Series-style, interchangeable with other major brands
• PCA18 virgin-grade plastic (no regrind)
• 316 stainless steel springs and screws
• Brass internal components (greater than 85% copper) for lower heat rise
• Operating temperature -25°C to +70°C
• Complies with AS/NZS 3123:2005; orange finish

Checkout now for speedy delivery anywhere in Australia.

Straight, Round-Pin Connection

The PLS3PH432 is the straight, in-line version of the four-pin 32A plug, sending the cable straight out the back. It's the simple choice where a straight lead exit suits the installation. For tight spots or surface runs where the cable needs to turn away, the angled PLA3PH432 is the alternative.

Three-Phase, Built Tough

The four round pins carry three-phase power (three actives plus earth) rated to 500V, with a 32A rating for heavier three-phase loads and larger equipment. It is IP66 rated, so it is dust-tight and withstands powerful water jets from any direction, with a virgin-grade PCA18 body, 316 stainless steel springs and screws, and brass contacts of greater than 85% copper for lower heat rise. A wide -25°C to +70°C operating range and AS/NZS 3123:2005 compliance suit it to demanding Australian industrial sites.

Fast, Interchangeable Termination

A compression gland makes cable termination quick and secure on site. Because it follows the 56 Series-style format, the PLS3PH432 mates with 32A four-pin three-phase round sockets and inlets and is interchangeable with other major brands. Pair it with a matching 4-pin 32A extension socket to build a complete three-phase extension lead.

Q: Is the GEN3 PLS3PH432 single or three phase?
A: It is three phase. The four round pins carry three actives plus earth, rated 32A at 500V.

Q: What is the difference between the PLS3PH432 and the PLA3PH432?
A: They are the same 32A four-pin three-phase plug, but the PLS3PH432 is straight (cable exits in-line) and the PLA3PH432 is angled at 45 degrees.

Q: Is the GEN3 PLS3PH432 weatherproof?
A: Yes. It is IP66 rated, meaning it is dust-tight and protected against powerful water jets, and it is built to AS/NZS 3123:2005 for industrial use.
