Tesla Fixed Grille Externally Mounted with Fixed Louvres 100mm

Description

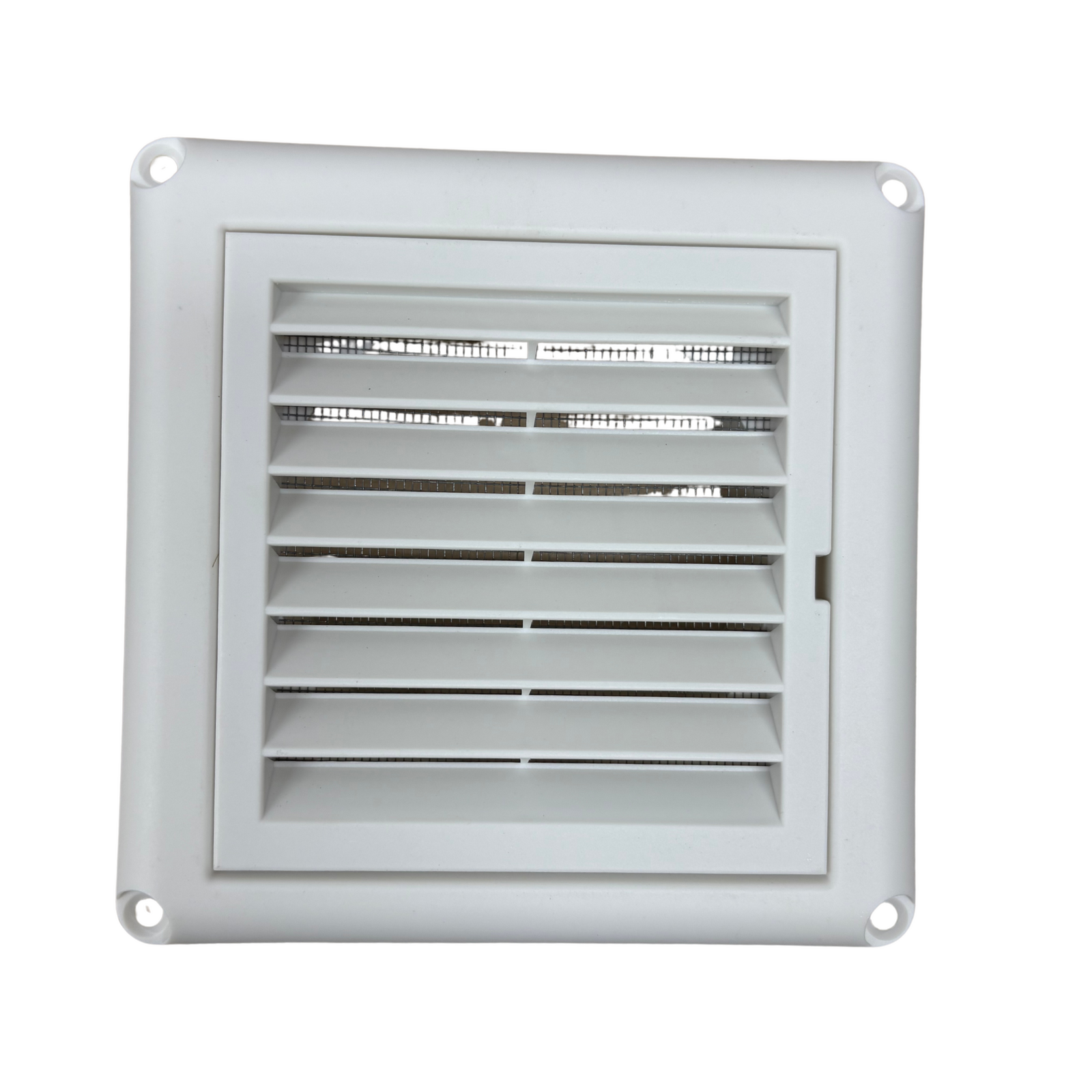

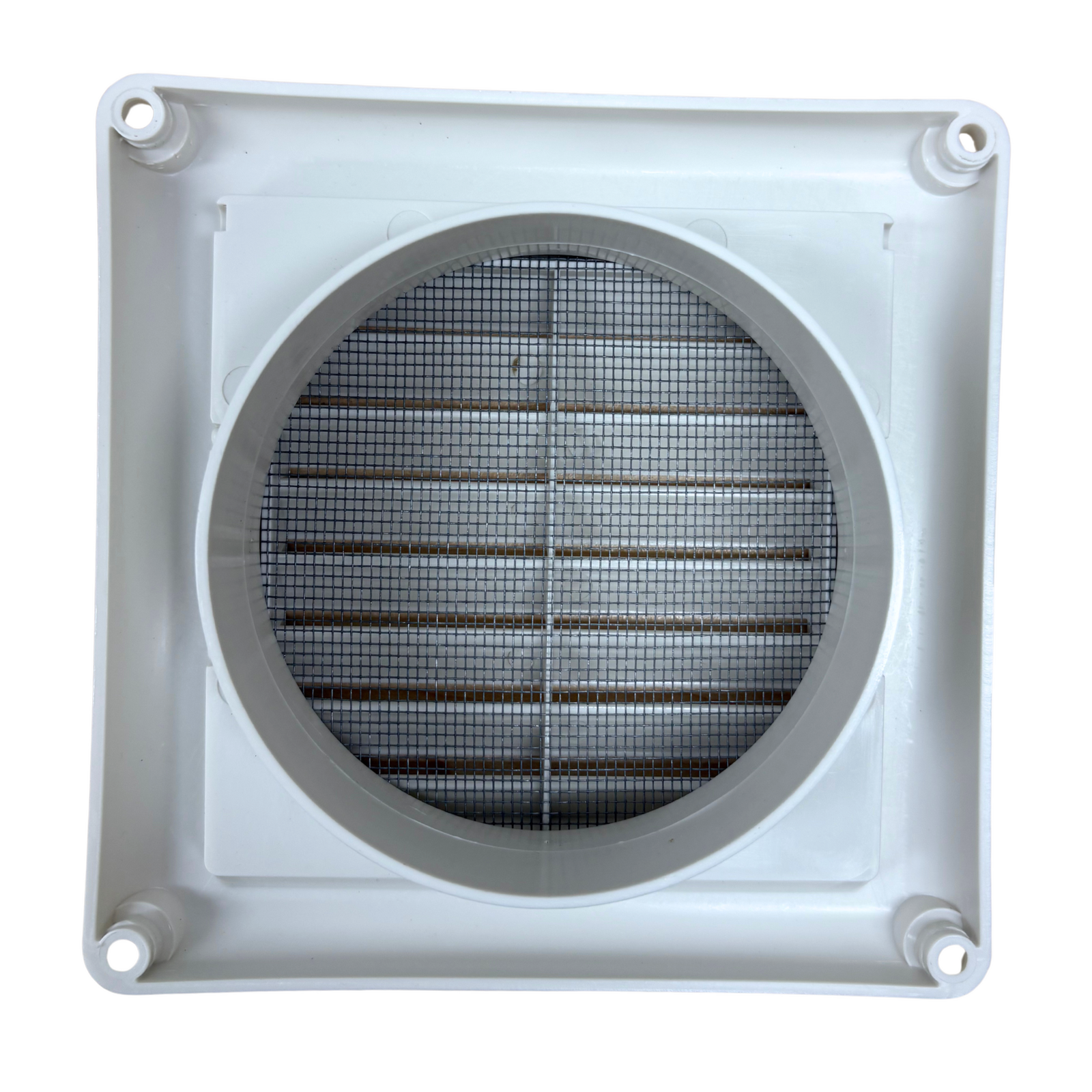

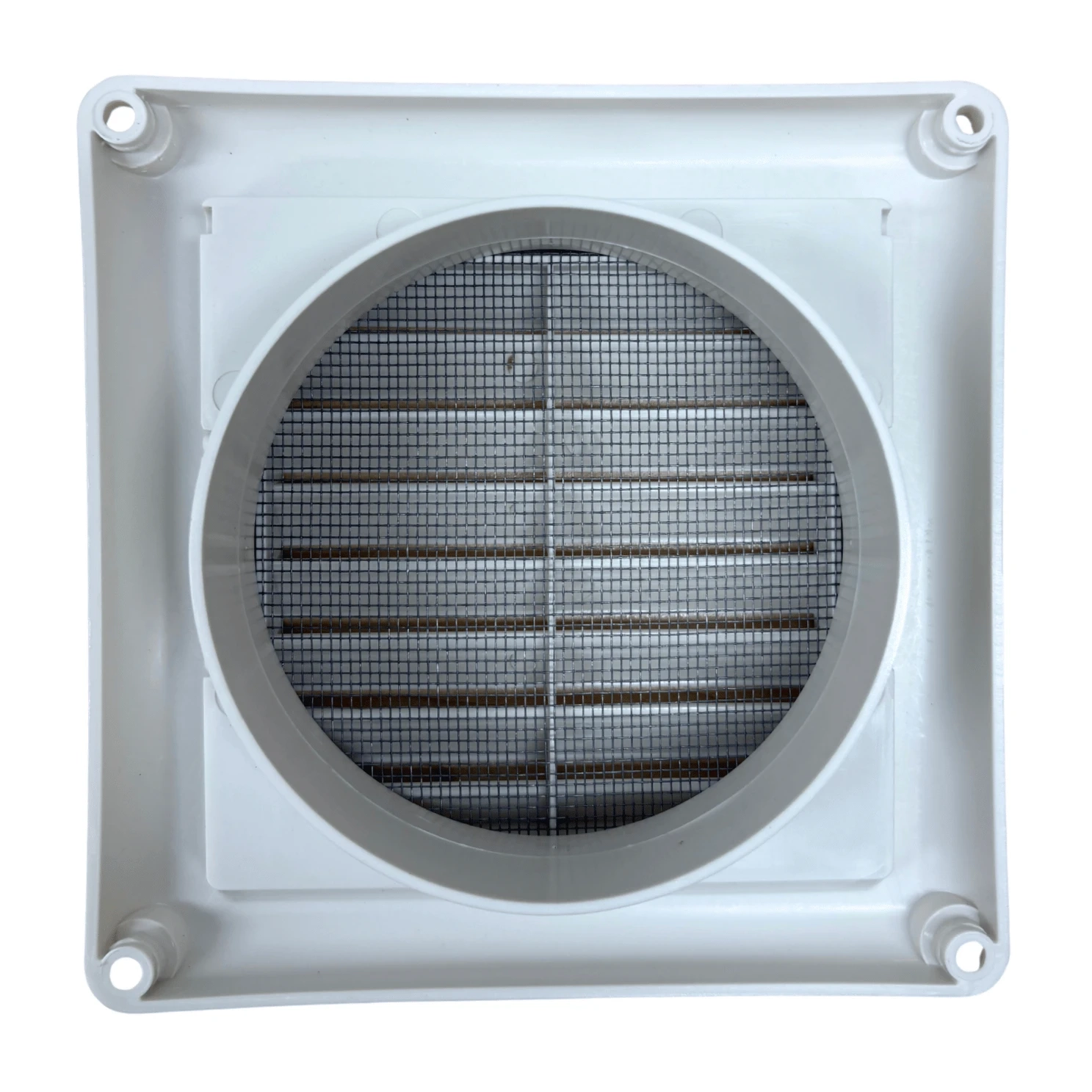

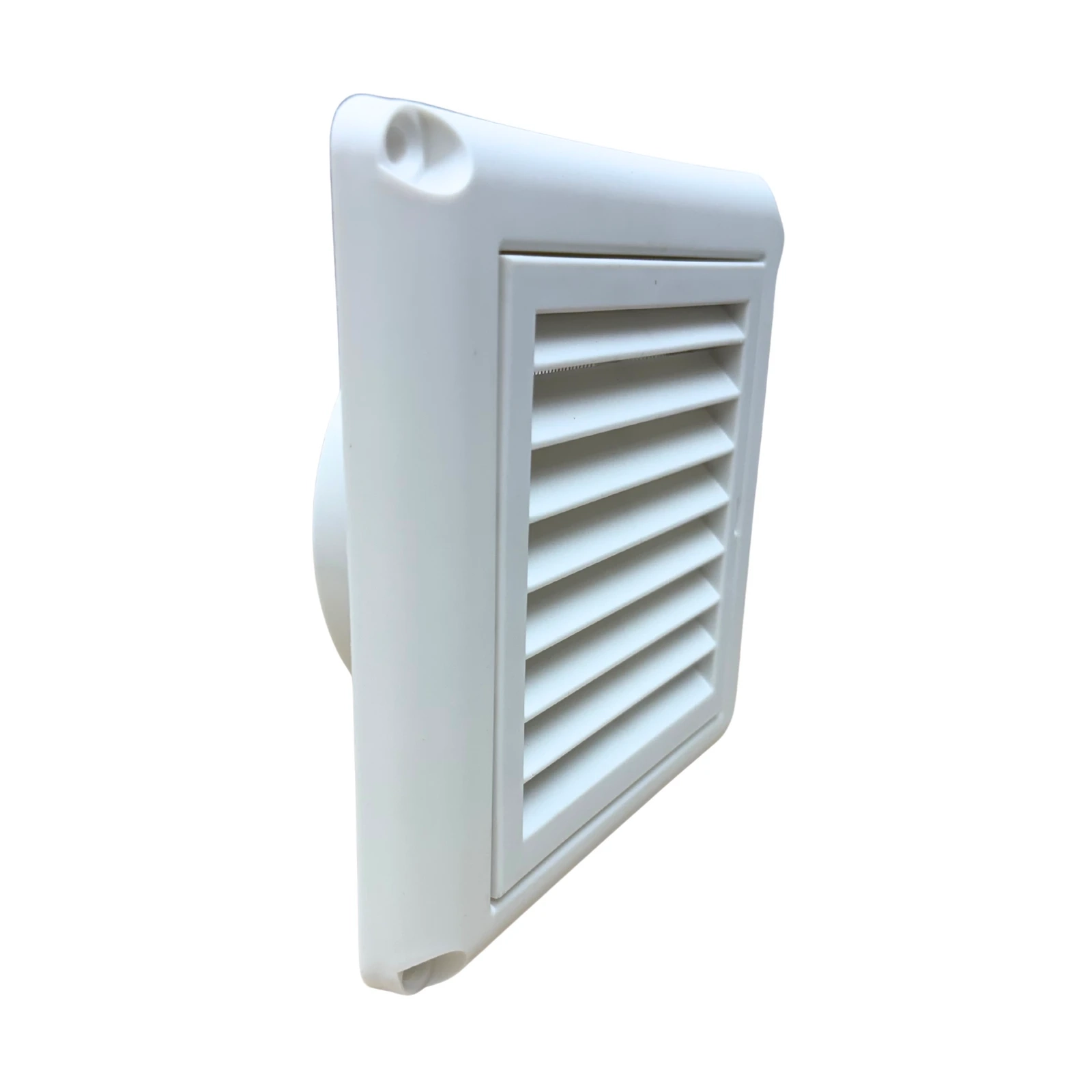

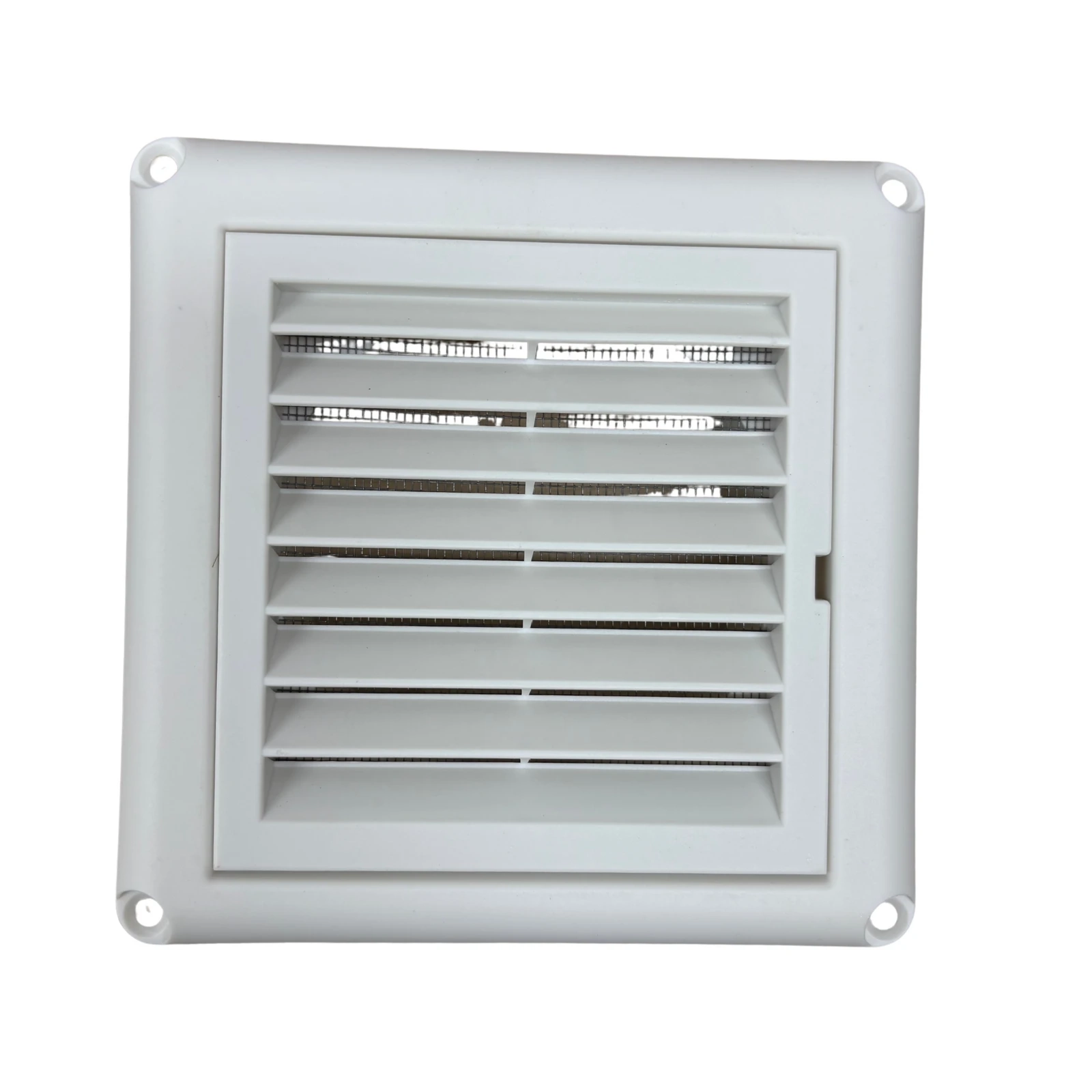

Tesla V2011. 100mm Fixed Louvre External Wall Grille. External Mount. 125x125mm.

The Tesla V2011 is a 100mm externally mounted fixed louvre grille — the external termination cover for a 100mm fan or duct run, mounted on the outside wall surface to terminate the exhaust duct. Fixed louvres allow air to discharge freely while preventing rain, wind, insects, and debris from entering the duct when the fan is not operating. Body dimensions: 125mm × 125mm × 54mm depth. Cutout hole: Ø100mm. Sold individually.

• Tesla — V2011 100mm Fixed Louvre External Wall Grille
• Externally mounted — fitted on the outside wall to terminate the exhaust duct
• Fixed louvres — allows air discharge, prevents rain, wind, insects, and debris entering
• Cutout hole: Ø100mm (suits 100mm fan and duct systems)
• Body dimensions: 125mm W x 125mm H x 54mm D
• Clip-in / clip-out design — easy motor housing access for maintenance
• Quick installation
• Suitable for residential and commercial exhaust fan installations
• Sold individually

Buy online now — fast dispatch Australia-wide.

Where the Tesla V2011 External Grille Fits

Every exhaust fan installation requires an external termination point — the grille on the outside of the wall where the extracted air discharges. The Tesla V2011 is the external termination grille for 100mm fan and duct systems. It mounts on the exterior wall surface over the duct outlet opening, providing a neat, weather-resistant finish to the installation and protecting the duct interior from external elements when the fan is not running.

The fixed louvres are angled to allow air to flow outward freely during fan operation while preventing rain from being driven into the duct by wind pressure and stopping insects, birds, and debris from entering the duct when the fan is off. Unlike hinged flap-style dampers which can fail or stick open over time, the fixed louvre design has no moving parts — it is inherently reliable and maintenance-free in the louvre function itself.

The clip-in / clip-out motor housing feature allows the internal fan motor to be accessed from inside the building for maintenance without requiring removal of the external grille — a practical design for installations where external access is difficult. The V2011 is the 100mm size. The V2012 (125mm cutout) and V2013 (145mm cutout) are available for larger fan and duct sizes.

Q: Is the V2011 the fan or just the external grille?
A: The V2011 is the external grille only — it is the outside wall termination cover for a 100mm exhaust duct or fan system. It does not include a fan motor. The Tesla WF100 (100mm wall/ceiling exhaust fan) is the matching fan for this grille size.

Q: What fan and duct size does the V2011 suit?
A: The V2011 has a Ø100mm cutout hole, suiting standard 100mm fan systems and 100mm diameter flexible or rigid duct runs — the most common fan and duct size used in Australian residential bathroom, toilet, and laundry exhaust installations.

Q: Can the V2011 be used on a ceiling as well as a wall?
A: The V2011 is described as an externally mounted wall grille — it is designed for external wall installation as the duct termination point. For ceiling-based exhaust systems that discharge through the roof, a roof vent or cowl is typically used instead of a wall grille.
