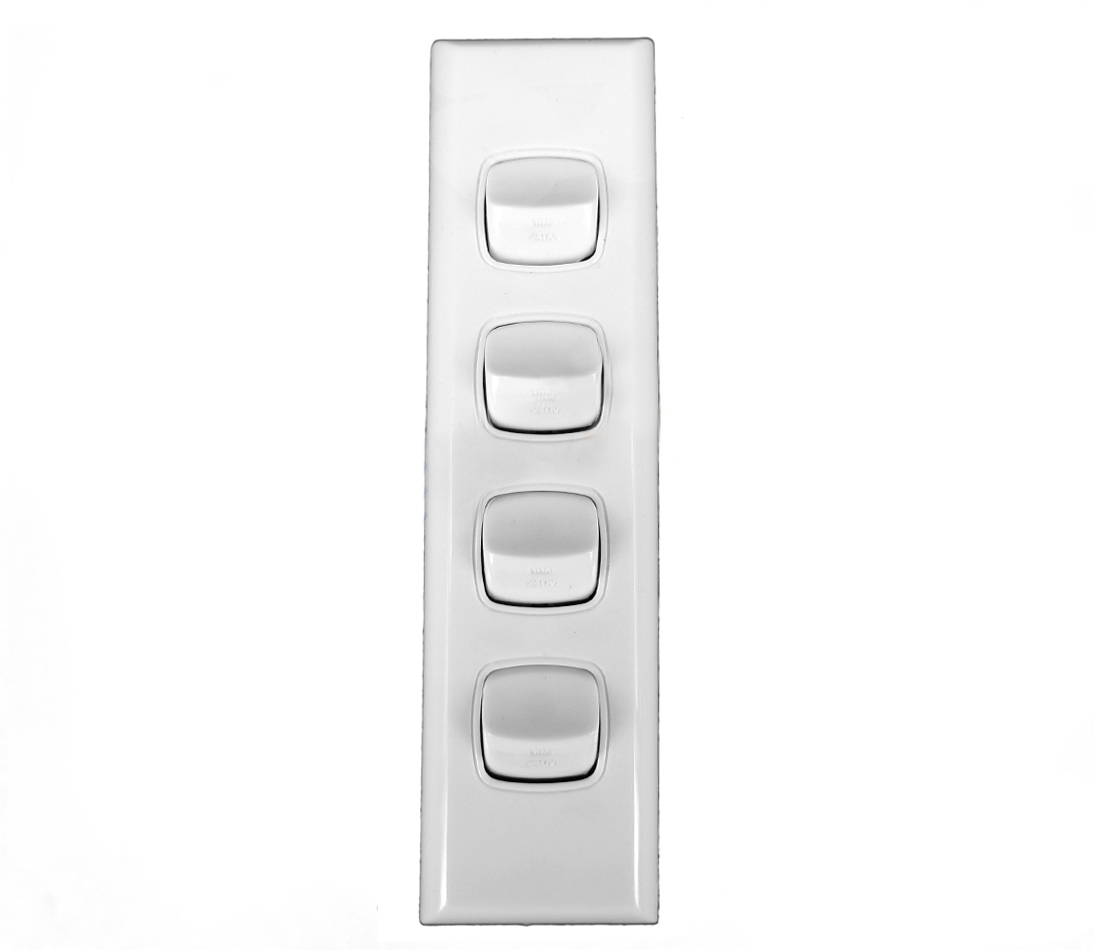

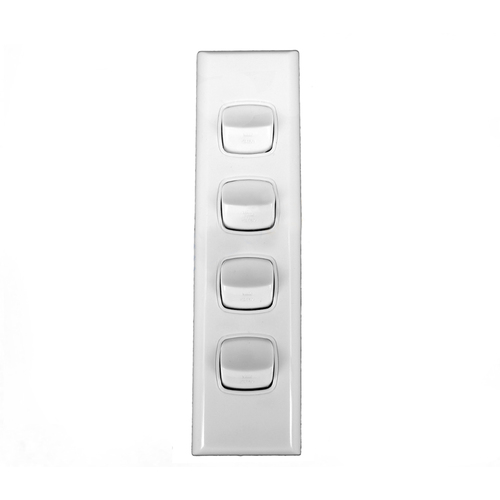

Powerclip 4 Gang ARCHITRAVE Light Switch Double Pole 10 Amp White AS4 and SMD
SKU: poc4gaarcd-k
Product Image Gallery
Product Pricing
$21.45 (ex-GST)
$23.60 (inc-GST)
$23.60
$21.45
Stock and Availability
- ⚫︎ 27 In Stock
With double pole mechanisms
Electrotraders USPs
Description
Innovative. Highly Efficient. Complete Versatility.
The Transco Powerclip Switch series redefines installation speed with its patented Powerclip quick-release mechanism. This switch combines a robust, quality build with the required functionality - from standard 240V lighting to specialized Double Pole isolation and Extra Low Voltage systems - making it the ideal solution for any Australian wiring project.
Key Features:
- Installation System: Patented Powerclip quick-release mechanism for fast, tool-free mechanism installation and removal from the grid plate. Reduces labour time significantly.
- Form Factor: Architrave style white plate with 4 Gang(s). Choose Classic for standard fittings or Architrave for slimline installation in narrow spaces (door frames, skirtings).
- Load Rating: Rated for 10A at 240V AC. Suitable for standard lighting circuits.
- Isolation: Double Pole (DP) mechanism provides full isolation by simultaneously switching both Active and Neutral conductors.
- Durability: Constructed from impact-resistant, high-quality polycarbonate materials ensuring long-term reliability.

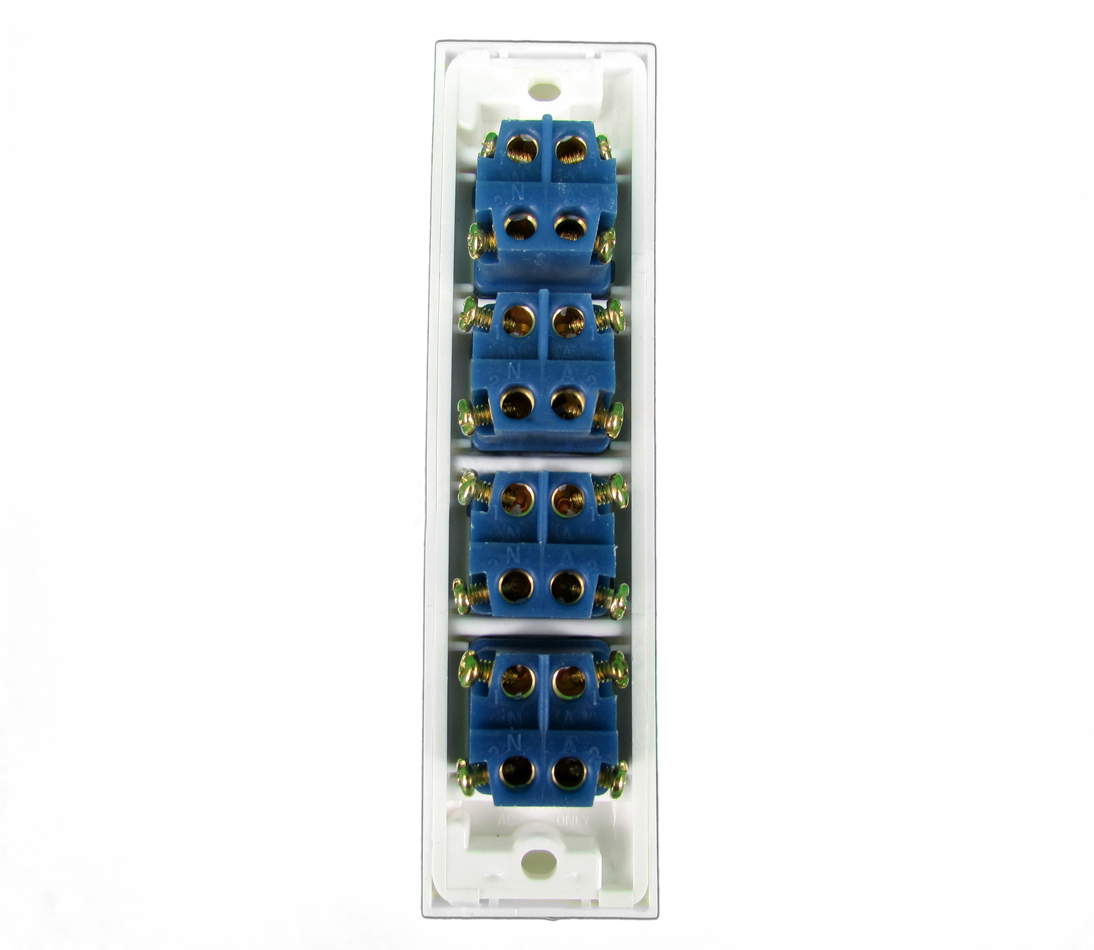

- Wiring: Features robust screw-terminal connections and smooth, positive-action rocker mechanisms for secure and dependable operation.
- Compliance: Meets all required Australian AS/NZ standards.
NOTE: Components only provided. Mechanism must be pushed into grid plate as part of install.
(poc4gaarcd-k)
Specifications
| Grid Plate and Cover | |
| Brand | Transco |
|---|---|
| Category | Powerclip Series |
| Power current | a.c. |
| Power phase | Single |
| Rating | 10A |
| Volt | 240V |
| Structure | Moulded top cover and under body |
| Material of cover/body | Impact-resistant polycarbonate |
| Cable accomodated | 2.5mm x 4 |
| Width | 35mm |
| Length | 85mm (1 and 2 Gang variants) 135mm (3 and 4 Gang Variants) |
| Depth | 20mm |
| On wall mounting | Vertical |
| Fixing centres | 74mm |
| Made in accordance with | AS/NZS3100, AS/NZS3112 and AS/NZS3133 |
| Mechanism | |
| Brand | Transco |
| Category | Powerclip Series |
| Power current | a.c. |
| Rating | 10A |
| Volt | 240V |
| Number of Poles | 2 |
| Wiring system | Two-way switch |
| Method of operation | Rocker |
| Connector | Screwing copper ferrule |
| Cable accomodated | 2.5mm x 4 |
| Assembly arrangement | Basic element |
| SKU | poc4gaarcd-k |
| Manfacturer Part Number | AS4 & SMD |
| Colour | White |
| Brand | Transco |
