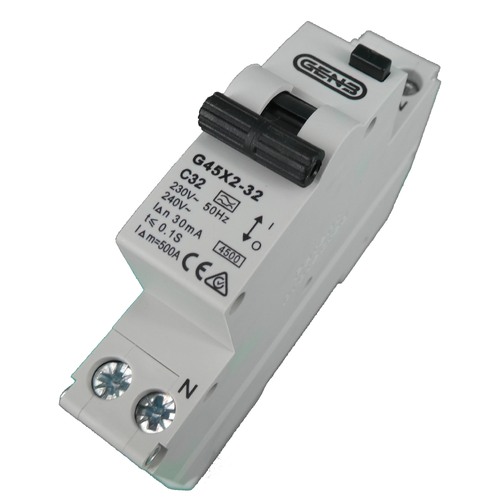

GEN3 G45X2-32A 32A Double Pole RCBO 4.5kA 30mA Safety Switch Caravan RV

Description

True double-pole protection in a single compact module.

The GEN3 G45X2-32A is a 32A double-pole RCBO safety switch with a 4.5kA breaking capacity and a 30mA Type A residual-current trip, combining RCD and MCB protection in a single DIN-rail module. As a true double-pole device it disconnects both the active and neutral conductors on a fault or overload, not just the active. This is particularly important in caravans, RVs and motorhomes, where reverse polarity from an external power pedestal can leave a single-pole device's neutral live. Built into a single compact module, it saves valuable switchboard space in tight installations.

Key Features

• 32A rated current
• True double pole – disconnects active and neutral on fault or overload
• 4.5kA short-circuit breaking capacity
• 30mA RCD trip current (Type A – AC and pulsating DC)
• Combined RCD and MCB in one device
• Single compact module – saves switchboard space
• Dual-way wiring – line or load at top or bottom
• DIN-rail mount
• Ideal for caravans, RVs, motorhomes and compact off-grid setups
• AS/NZS 61009.1 compliant
• Australian/NZ approval or compliance certificates held

Add to cart for fast dispatch across Australia.

True Double-Pole Disconnection

Many safety switches disconnect only the active conductor, leaving the neutral connected. The G45X2-32A disconnects both active and neutral on a fault or overload. In caravans, RVs and motorhomes connected to external power pedestals, reverse polarity can swap active and neutral, so disconnecting both conductors provides an important additional margin of safety over single-pole devices.

RCD and MCB in One Compact Module

The G45X2-32A combines residual-current (earth-leakage) protection and circuit-breaker (overload and short-circuit) protection in a single module. The RCD element trips on 30mA earth leakage to guard against electric shock, while the 4.5kA MCB element interrupts overloads and short circuits. The single-module width saves space in compact switchboards where room is at a premium.

Built for Mobile and Off-Grid Power

With its true double-pole design and compact footprint, the G45X2-32A is well suited to caravans, RVs, motorhomes, camper trailers, tiny homes and off-grid installations. It is dual-way, allowing line or load connection at either the top or bottom, and is AS/NZS 61009.1 compliant and covered by Australian/NZ approval or compliance certificates.

Q: What does true double pole mean on the G45X2-32A?
A: It disconnects both the active and neutral conductors on a fault or overload, rather than only the active. This is important in caravans and RVs where reverse polarity from a power pedestal can leave a single-pole device's neutral live.

Q: What is the RCD trip current?
A: 30mA, the standard sensitivity for personal protection against electric shock, with Type A detection of both AC and pulsating DC earth-leakage currents.

Q: Why is the single module width useful?
A: It provides true double-pole protection in the space of a single module, saving room in compact switchboards such as those in caravans, RVs and off-grid setups.
