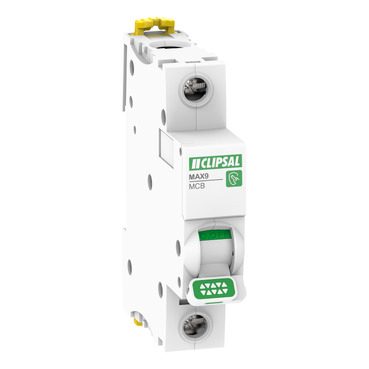

Clipsal MAX9 | Miniature Circuit-Breaker (MCB) | 1P, 4A, C Curve, 6000A, 240/415V, Distribution

SKU: climcbmx9mc104

Clipsal MCB - MX9MC104
MAX9
Miniature Circuit-Breaker (MCB)
1P, 4A, C Curve, 6000A, 240/415V, Distribution

(climcbmx9mc104)

Design
Range	MAX9
Product or component type	miniature circuit-breaker
Device application	distribution
Warranty	7-year
Physical
[in] rated current	4 A at 30 Â°C
[ue] rated operational voltage	240 V AC 50/60 Hz
Control type	toggle
Local signalling	ON/OFF indication
Height	85 mm
Width	18 mm
Embedding depth	44 mm
Depth	75 mm
Net weight	125 g
Mechanical durability	20000 cycles
Electrical durability	10000 cycles 240 V
Connections - terminals	tunnel type terminals (top or bottom) 1-16 mmÂ² flexibletunnel type terminals (top or bottom) 1-25 mmÂ² rigid
Wire stripping length	14 mm for top or bottom connection
Ip degree of protection	IP20
Relative humidity	95 % at 55 Â°C
Ambient air temperature for operation	-25...70 Â°C
Ambient air temperature for storage	-40...85 Â°C
Mercury free	Yes
Environmental disclosure	ENVPEP2205015EN
Others
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Poles description	1P
Number of protected poles	1
Network type	AC
Network frequency	50/60 Hz
Curve code	C
Magnetic tripping limit	5...10 x In
Breaking capacity	6000 A Icn at 240 V AC 50/60 Hz conforming to AS/NZS 60898
[ics] rated service breaking capacity	6000 A 100 % - 240 V AC 50/60 Hz
Limitation class	3
[uimp] rated impulse withstand voltage	4 kV
[ui] rated insulation voltage	500 V
Contact position indicator	yes
9 mm pitches	2
Heat dissipation	2.4...2.4 W
Provision for padlocking	padlockable
Tightening torque	2 N.m
Grid distance	45 mm
Quality labels	RCM
Pollution degree	2
Overvoltage category	III
Tropicalisation	severity B conforming to IEC 60068-2-30
Operating altitude	0...2000 m
Temperature derating table	-25 Â°C ( 4.92 A )-20 Â°C ( 4.84 A )-15 Â°C ( 4.77 A )-10 Â°C ( 4.69 A )-5 Â°C ( 4.61 A )0 Â°C ( 4.53 A )5 Â°C ( 4.44 A )10 Â°C ( 4.36 A )15 Â°C ( 4.27 A )20 Â°C ( 4.18 A )25 Â°C ( 4.09 A )30 Â°C ( 4 A )35 Â°C ( 3.91 A )40 Â°C ( 3.81 A )45 Â°C ( 3.71 A )50 Â°C ( 3.61 A )55 Â°C ( 3.5 A )60 Â°C ( 3.39 A )65 Â°C ( 3.28 A )70 Â°C ( 3.17 A )
Unit type of package 1	PCE
Package 1 height	7.2 cm
Package 1 width	8.5 cm
Package 1 length	1.8 cm
Package 1 weight	106.0 g
Total lifecycle carbon footprint	7 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.6158734716604104
Carbon footprint of the manufacturing phase [a1 to a3]	0.6 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.01236749339109967
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00024226478780492753
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	14.807
Carbon footprint of the use phase [b2, b3, b4, b6]	15 kg CO2 eq.
Carbon footprint of the end-of-life phase [c1 to c4]	0.015049769744817022
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Halogen-free status	Product contains halogen above thresholds
Removable battery	N/A
Total lifecycle carbon footprint	6.76522352839562
Average percentage of recycled metal content	0 %
Scip number	26ff71d1-98cf-4280-8725-455b9a6b2fb9
Halogen-free status	Product contains halogen above thresholds
Pvc free	No
End of life manual availability	N/A
Warranty (in months)	84
