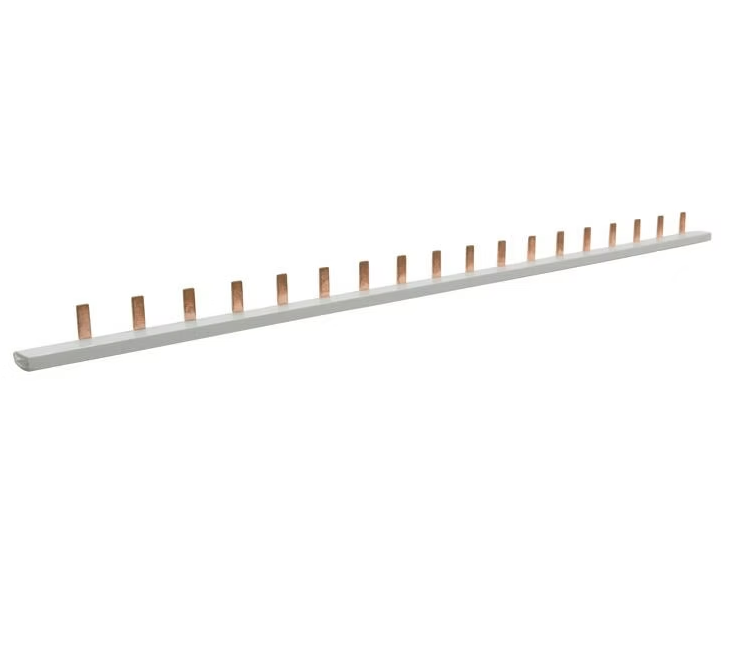

Tesla BUSBAR1P63P54M Busbar 63 Amp Single Pole Pin Type 54 Module 415V

Description

Fast, tidy DIN-rail busbar connection for Tesla circuit breakers.

The Tesla BUSBAR1P63P54M is a single pole, 63 Amp pin-type (prong) comb busbar that links multiple single pole devices across a DIN rail in one clean run. It removes the need for individual looped wiring between breakers, saving install time and giving a neater, more reliable switchboard.

Key Features

• Single pole (1 Pole) configuration
• 63 Amp nominal current rating
• Pin / prong (P) type connection
• 54 module length
• 415V AC nominal voltage
• 10mm² conductor cross section
• End cover included
• Suits Tesla single pole MCBs (TMCB1P10-63 Amp) and RCBO10K10-32T

Get yours now for fast dispatch Australia-wide.

Why it Matters

Faster switchboard builds
A comb busbar lets an electrician bridge a row of single pole breakers in a single insert rather than cutting, stripping and looping links by hand. That means quicker board assembly and fewer termination points to check.

Ideal for larger boards
At 54 module the bar spans a full-width distribution board, so a single run can feed a long row of breakers rather than joining several shorter bars. That keeps the busbar continuous and reduces the number of joins on big installs.

Cleaner, safer distribution
With the conductor enclosed and an end cover contained, exposed copper is minimised across the busbar run. The 10mm² section carries the full 63 Amp rating so the bar is not the weak point in the circuit.

Choosing the right bar for your board
Tesla builds this busbar family in three lengths and two contact styles, so the bar can be matched to the board rather than the other way around. The options are:

• Module lengths: 12, 18 and 54 module
• Contact styles: pin / prong (P) and U / forked (U)
• Pole configurations: single pole (1P) and three pole (3P)

This variant is the single pole, pin type, 54 module bar. Check the terminal style on your breakers before ordering, as pin and U type contacts are not interchangeable.

Is the BUSBAR1P63P54M compatible with Tesla circuit breakers?
Yes. It is designed as a pin-type busbar for Tesla single pole MCBs rated up to 63 Amp (TMCB1P10-63 Amp range) and compatible RCBOs such as the RCBO10K10-32T.

How many modules does this busbar span?
It is a 54 module length, letting you bridge up to 54 single-module positions across the DIN rail. Tesla also produces the same bar in 12 and 18 module lengths.

What is the difference between pin type and U type busbars?
Pin (prong) type busbars use straight prong contacts that insert into the device terminals, while U type use a forked contact. This is the pin/prong version, so it suits breakers with pin-style terminals.

Warranty

This product is backed by an extended manufacturer warranty - click here for details.
