Clipsal MAX9 MX9B112N MAXBAR Comb Busbar Top Feed 1P+N 100A 12 Module

SKU: clibusmx9b112n

Download Data Sheet

$42.50 (ex-GST)

$46.75 (inc-GST)

$46.75

$42.50

(inc-GST)

(ex-GST)

⚫︎ Ships in 24 hours

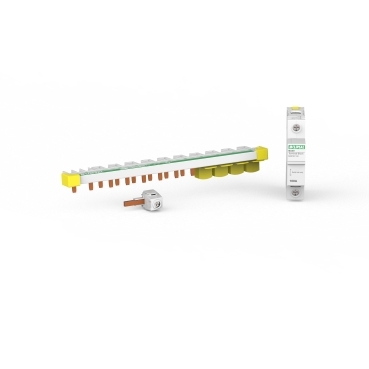

Clipsal MAX9 MAXBAR comb busbar, 100A 230V, 1P + N across 12 modules. Cuttable, top feed, insulated. Supplied with neutral terminal block, connector, and tooth covers.

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

A cuttable comb busbar that wires a MAX9 board neatly and fast.

The Clipsal MX9B112N is a MAXBAR comb busbar for the MAX9 range, rated 100A at 230V AC across 12 modules in a 1P + N configuration. Top-fed and cuttable to length, it distributes supply across your circuit breakers in a single insulated bar – replacing loose looped wiring with a clean, repeatable connection. Supplied with a neutral terminal block and accessories.

Key Features

MAXBAR comb busbar for the Clipsal MAX9 range
Rated 100A at 230V AC
1P + N configuration, 12 x 18mm modules
Top feed, horizontal mounting
Cuttable to suit your board layout
Fully insulated – 500V rated insulation, 4kV impulse withstand
960°C fire resistance, halogen-free
Supplied with 1 connector, 4 tooth covers, and 1 neutral terminal block
Made to AS/NZS 61439-3 and AS/NZS 3000
7-year manufacturer warranty

Order yours online now.

Why it Matters

Tidier Board Wiring
A comb busbar replaces individually looped links between breakers with one insulated bar, giving a consistent connection across the board. Being cuttable means one part suits boards of different widths.

Complete with Neutral Block
This version ships with a neutral terminal block plus a connector and four tooth covers – so the neutral distribution and unused-tooth protection are covered in the one part number rather than sourced separately.

Built to Australian Standards
Manufactured to AS/NZS 61439-3 and AS/NZS 3000, with 500V rated insulation, 4kV impulse withstand, and 960°C fire resistance – and backed by a 7-year warranty.

What is the Clipsal MX9B112N?
It is a MAXBAR comb busbar for MAX9 boards, rated 100A at 230V AC, in a 1P + N configuration spanning 12 modules, supplied with a neutral terminal block and accessories.

Can it be cut to length?
Yes. The busbar is cuttable, so it can be trimmed to suit the number of modules in your board.

What is included?
One connector, four tooth covers, and one neutral terminal block.

(clibusmx9b112n)

Design
Product brand	Clipsal
Range	MAX9
Product or component type	comb busbar
Market segment	residential
Warranty	7-year
Physical
Device presentation	cuttable
Provided equipment	1 connector4 tooth covers1 neutral terminal block
[ie] rated operational current	100 A
[ue] rated operational voltage	230 V AC
Mounting mode	horizontal
Standards	AS/NZS 61439-3AS/NZS 3000
Toxic heavy metal free	Yes
Mercury free	Yes
Environmental disclosure	ENVPEP2206007EN
Others
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope â€“ non independent function
Total number of 18 mm modules	12
Number of ways	outgoer: 10 ways N + Lincomer: 2 ways N + L
Poles configuration for 1 way	outgoer: 1P + N
Connection pitch	incomer: 18 mmoutgoer: 9 mm
Insulation	insulated
[ui] rated insulation voltage	500 V
[uimp] rated impulse withstand voltage	4 kV
Mounting location	top
Fire resistance	960 Â°C
Unit type of package 1	PCE
Package 1 height	4.0 cm
Package 1 width	30.0 cm
Package 1 length	12.5 cm
Package 1 weight	180.0 g
Total lifecycle carbon footprint	30 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.80581218946941
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0521548002630799
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0936820020273085
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	29.0861329842524
Carbon footprint of the use phase [b2, b3, b4, b6]	29 kg CO2 eq.
Carbon footprint of the end-of-life phase [c1 to c4]	0.32172178364596
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Silicone-free	No
Removable battery	N/A
Total lifecycle carbon footprint	30.3595037596581
Average percentage of recycled metal content	0 %
Halogen-free status	Halogen free product
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Warranty (in months)	84
