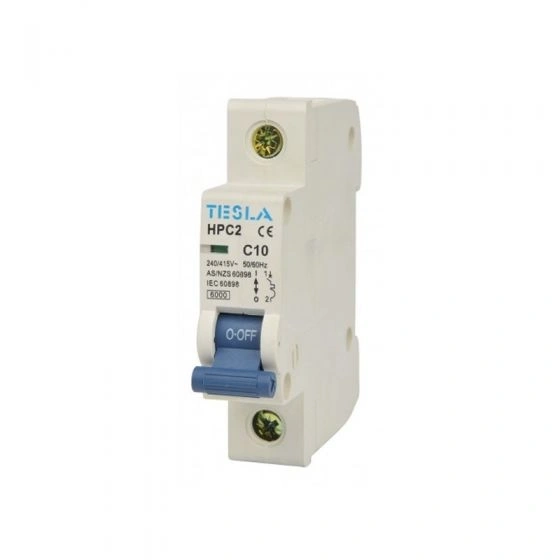

Tesla MCB1P10 Single Pole 10 Amp 6kA C Curve Miniature Circuit Breaker

Description

Single pole, single phase. Slim, reliable, and ready for the board.

The Tesla MCB1P10 is a Single Pole 10A 6kA C Curve Miniature Circuit Breaker built to IEC/EN60898. It provides thermal-magnetic protection for single-phase circuits in residential, commercial, and light industrial switchboards — compact at just 1 module wide, and approved for Australian use.

• Single Pole / 10A / 6kA breaking capacity
• C Curve — general-purpose, handles moderate inrush
• 240V AC / 50-60Hz
• Thermal-magnetic trip — bi-metal overload + magnetic short-circuit
• DIN rail mount — 1 module width, 35mm rail
• Pillar clamp terminal — rigid conductor up to 25mm²
• IP20 rated for enclosed switchboard installation
• IEC/EN60898 — Australian approval number V08030
• Mechanical life: 10,000 cycles | Electrical life: 4,000 cycles
• HPC2 Series — available 10A to 63A

Fast shipping across Australia — order online now for quick dispatch.

Built for Single-Phase Circuits, Built for Tight Boards

The MCB1P10 is the single-phase workhorse of the HPC2 range. At 10A and C Curve, it's correctly rated for the most common residential and commercial single-phase circuits — lighting, GPOs, small appliance circuits, and general power distribution where the load is moderate and predictable. The thermal-magnetic trip delivers two-stage protection: a bi-metal strip for sustained overloads, a magnetic element for instantaneous short-circuit response. At 6kA it handles fault levels typical across Australian residential and commercial switchboards.

The 1 module footprint is the standout practical advantage — in a domestic or commercial board where every module counts, the MCB1P10 takes half the space of a two-pole device. High-density switchboards in apartments, retail fit-outs, and commercial offices benefit from the slim profile across every circuit position.

Termination and Installation

Clips straight onto 35mm DIN rail. The pillar clamp terminal accepts rigid conductors up to 25mm² — no ferrules required. IP20 is appropriate for any enclosed switchboard or distribution enclosure. The same HPC2 construction, approval number (V08030), and IEC/EN60898 compliance as the three-pole range — one trusted product family across all poles and ratings.

Q: What is the difference between the MCB1P10 and MCB3P10?
A: Both are Tesla HPC2 Series 6kA C Curve MCBs built to IEC/EN60898 with identical construction and approvals. The MCB1P10 is a single pole device for single-phase 240V circuits, occupying 1 DIN rail module. The MCB3P10 is a three-pole device for three-phase 415V circuits, occupying 3 modules. Choose based on the circuit type — single-phase for lighting, GPOs, and single-phase loads; three-phase for three-phase equipment and distribution.

Q: Is the Tesla MCB1P10 approved for use in Australian switchboards?
A: Yes. The MCB1P10 carries Australian regulatory approval number V08030 and is manufactured to IEC/EN60898. It is suitable for use in compliant Australian residential, commercial, and light industrial switchboard installations.

Q: What conductor sizes does the MCB1P10 accept?
A: The pillar clamp terminal accepts rigid (solid or stranded) copper conductors up to 25mm². This covers conductor sizes typically used with a 10A single-phase circuit in residential and commercial switchboard applications.
