Powerclip 4 Gang Light Switch Extra Low Voltage 12-24V | Black

SKU: poc4gasweB

Download Data Sheet

Was $10.32

Now

$8.18 (ex-GST)

$9.00 (inc-GST)

$9.00

Now

$8.18

(inc-GST)

(ex-GST)

⚫︎ 11 In Stock

Suited for low voltage use only

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Buy In Bulk & Save!
Buy 10 or more:	$8.45 (ex) \| $9.30 (inc)

Order online, or inquire about larger bulk orders below!

Inquire here

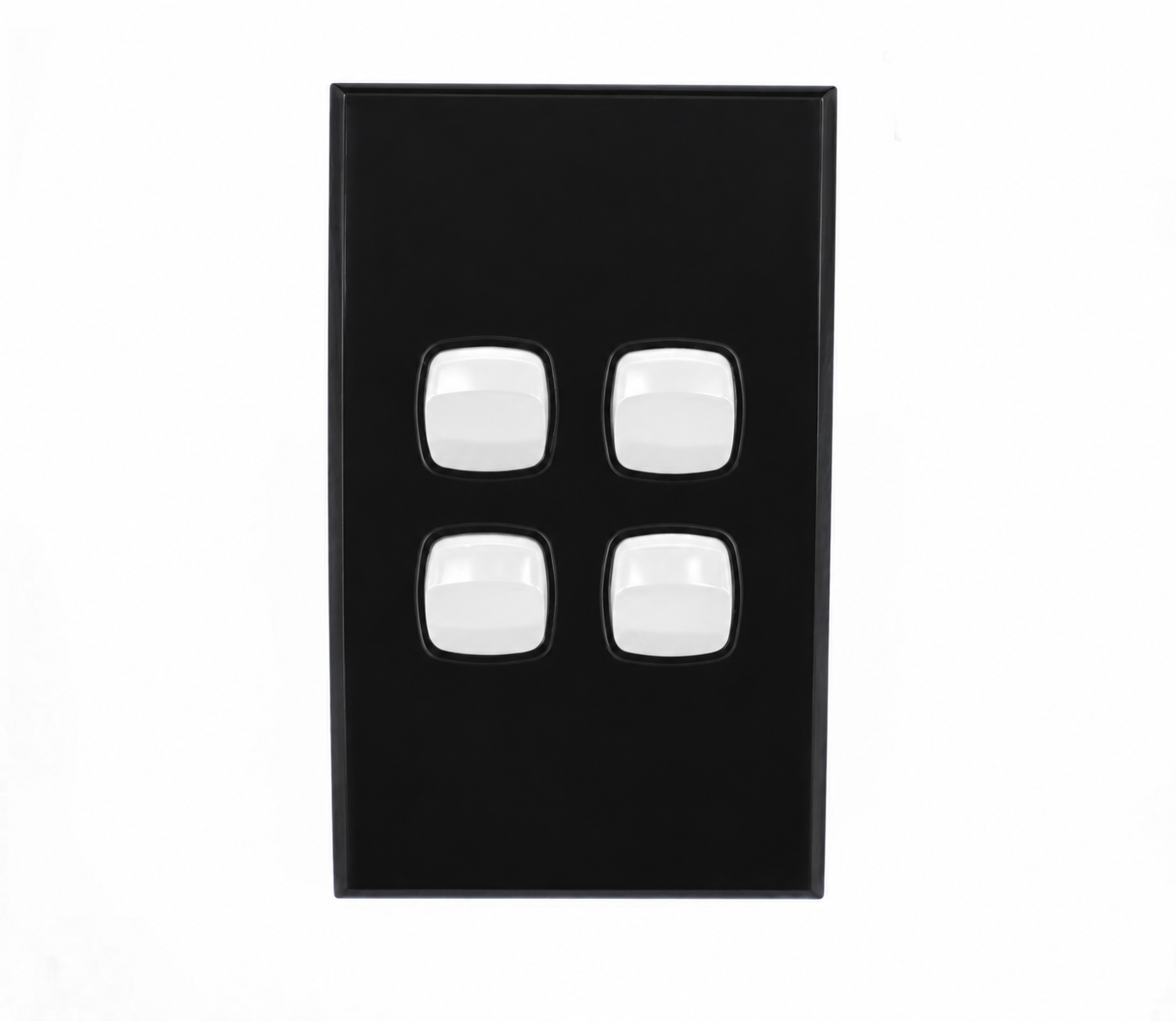

Black 4 Gang Low Voltage Swtich

The Transco Powerclip Switch series redefines installation speed with its patented Powerclip quick-release mechanism. This switch combines a robust, quality build with the required functionality - from standard 240V lighting to specialized Double Pole isolation and Extra Low Voltage systems - making it the ideal solution for any Australian wiring project.

Key Features:

Installation System: Patented Powerclip quick-release mechanism for fast, tool-free mechanism installation and removal from the grid plate. Reduces labour time significantly.
Form Factor: Classic style black (with white switch mechanism) plate with 4 Gang(s). Choose Classic for standard fittings or Architrave for slimline installation in narrow spaces (door frames, skirtings).
Load Rating: Designed for 12V - 24V DC. Suitable for Extra Low Voltage systems.
Voltage Type: Extra Low Voltage (ELV) specifically for DC applications (e.g., LED drivers, RVs). Rated for AC use but also suitable for DC at max 40% capacity (10A = 4A DC).
Durability: Constructed from impact-resistant, high-quality polycarbonate materials ensuring long-term reliability.
Wiring: Features robust screw-terminal connections and smooth, positive-action rocker mechanisms for secure and dependable operation.
Compliance: Meets all required Australian AS/NZ standards.
Mounting Flanges / Blocks: Compatible mounting flanges available.

NOTE: Components only provided. Mechanism must be pushed into grid plate as part of install.

(poc4gasweB)

Grid Plate and Cover
Brand	Transco
Category	Powerclip Series
Power current	a.c.
Power phase	Single
Rating	10A
Volt	240V
Structure	Moulded top cover and under body
Material of cover/body	Impact-resistant polycarbonate
Cable accomodated	2.5mm x4
Width	72mm
Length	116mm
Depth	20mm
On wall mounting	Horizontal
Fixing centres	84mm
Flush mount fitting	fits all general brackets in the market
Surface mount fitting	fits all general mounting blocks in the market
Made in accordance with	AS/NZS3100, AS/NZS3112 and AS/NZS3133
Mechanism
Brand	Transco
Category	Powerclip Series
Power current	Rated for AC Suitable for DC at 40% capacity (4A DC)
Rating	10A (AC) Suitable for DC at 40% capacity (4A DC)
Volt	240V Suitable for DC 12-24V at reduced capacity
Frequency range	50Hz
Number of Poles	1
Method of operation	Rocker
Connector	Screwing copper ferrule
Cable accomodated	2.5mm x 4
Assembly arrangement	Basic element
