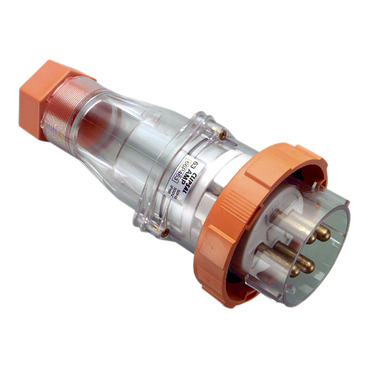

Clipsal 66P463-EO 66 Series Heavy Duty Straight Plug IP66 500V 63A 4 Pin Orange

Description

Heavy duty capacity, sealed for the toughest sites.

The Clipsal 66 Series 66P463-EO Heavy Duty Straight Plug carries 63 amps at 500 volts through a 4 round pin configuration, rated IP66. Cable terminates at screw terminals and enters through a cable gland, in a high-visibility Electric Orange body.

Key Features

• Rated 63 A at 500 V 50/60 Hz conforming to EN 60309-2
• 4 round pins
• IP66 rated for dust and water jet protection
• Screw terminal connections
• Cable gland entry
• Straight plug body
• Electric Orange housing
• Plastic construction
• Mercury free
• Halogen free product
• 18 month manufacturer warranty

Secure yours online today.

Why it Matters

63 amps at 500 volts for heavy duty distribution

The 66P463-EO is rated 63 A at 500 V, 50/60 Hz, conforming to EN 60309-2. That pin standard means the plug mates only with correspondingly rated equipment, which is the point of a keyed industrial system: a 63 A connection cannot be accidentally made into a lower-rated outlet. For high-draw plant this is the rating band you specify into.

IP66 sealing keeps a heavy duty connection reliable

An IP66 rating means the plug is dust-tight and protected against powerful water jets. On sites where the connection sits outdoors, in a washdown zone, or in a dusty yard, that seal is what stops moisture and grit reaching the contacts. Cable gland entry maintains the seal at the point where cable enters the body, not just around the housing.

Screw terminals and Electric Orange, built for the field

Screw terminal connections mean terminations can be made and re-made with hand tools on site, without specialised crimping equipment. Electric Orange gives high visibility in a busy switchroom or on a cluttered site. The 66P463 is covered by an 18 month manufacturer warranty and is a halogen free product.

What is the Clipsal 66P463-EO rated for?
It is rated 63 amps at 500 volts, 50/60 Hz, conforming to EN 60309-2. It uses a 4 round pin configuration.

Is the Clipsal 66P463-EO weatherproof?
Yes. The 66P463-EO carries an IP66 rating, meaning it is dust-tight and protected against powerful water jets from any direction.

How is cable connected to the Clipsal 66P463-EO?
Cable enters through a cable gland and terminates at screw terminals inside the plug body, so connections can be made with standard hand tools.
