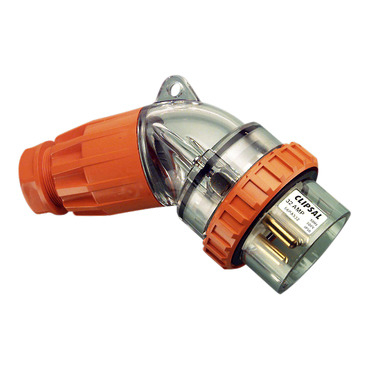

Clipsal 56 Series 56PA532-EO Angled Plug 500V 32A 5 Round Pin IP66 Electric Orange

Description

A weatherproof five-pin plug that stands up to dust, water, and knocks.

The Clipsal 56PA532-EO is a 500V 32A angled plug with 5 round pins in a 3P + N + E configuration, built in high-visibility Electric Orange. The five-pin layout adds a neutral alongside the three phases and earth, and the M40 cable gland entry keeps the connection sealed against the weather.

Key Features

• 500V AC, 32A rated angled plug
• 5 round pins in a 3P + N + E configuration
• IP66 rated against dust and powerful water jets
• Tough polycarbonate housing in Electric Orange
• Brass contact pins for reliable conductivity
• M40 cable gland entry with screw terminals accepting 2.5–25 mm² conductors
• Dimensions 130mm W x 78mm H x 168mm D
• Angled body design to help relieve cable strain
• Manufactured to AS/NZS 3123, RoHS compliant

Secure yours online today.

Why it Matters

Built for Australian Conditions
Rated IP66 to AS 60529 and certified to AS/NZS 3123, this plug keeps performing where dust, moisture, and impact are part of the daily grind – a common requirement on industrial sites, outdoor installations, and washdown areas. The high-visibility Electric Orange finish makes the connection easy to spot.

Higher-Capacity Five-Pin Three-Phase with Neutral
The 3P + N + E configuration provides three phases, a neutral, and an earth across five pins – suited to three-phase connections that also require a neutral conductor. Rated to 500V and 32A for higher-draw equipment, with screw terminals accepting conductors from 2.5 mm² up to 25 mm² through an M40 cable gland.

What is the Clipsal 56PA532-EO used for?
It is a 500V 32A angled plug with 5 round pins in a 3P + N + E arrangement, rated IP66 for weatherproof industrial and outdoor power connections that require a neutral.

What cable size does it accept?
The screw terminals accept conductor sizes from 2.5 mm² to 25 mm², with cable entry through an M40 gland.

What is the voltage and current rating?
It is rated 500V AC at 32A, configured with 5 round pins as 3 Phase plus Neutral plus Earth (3P + N + E).
