Inspection Window 16 Pole with Bracket and Din Rail

SKU: sinprowincov16p

Product Image Gallery

Product image thumbnail for SKU sinprowincov16p
Product image thumbnail for SKU sinprowincov16p
Product image thumbnail for SKU sinprowincov16p
Product image thumbnail for SKU sinprowincov16p
Product image thumbnail for SKU sinprowincov16p
Product image thumbnail for SKU sinprowincov16p
Product image thumbnail for SKU sinprowincov16p

Product Pricing

$54.09 (ex-GST)

$59.50 (inc-GST)

$59.50

$54.09

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ 50 In Stock

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

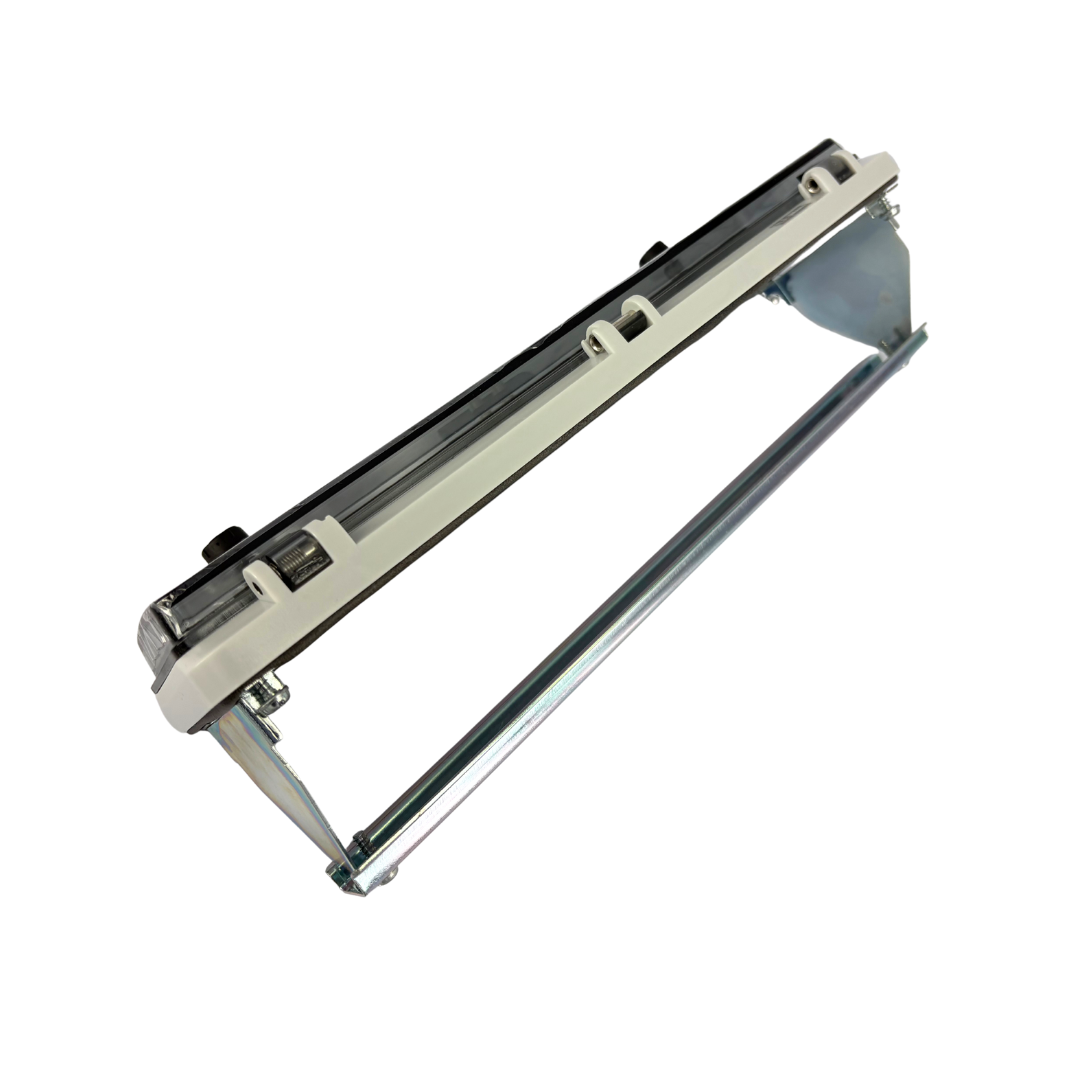

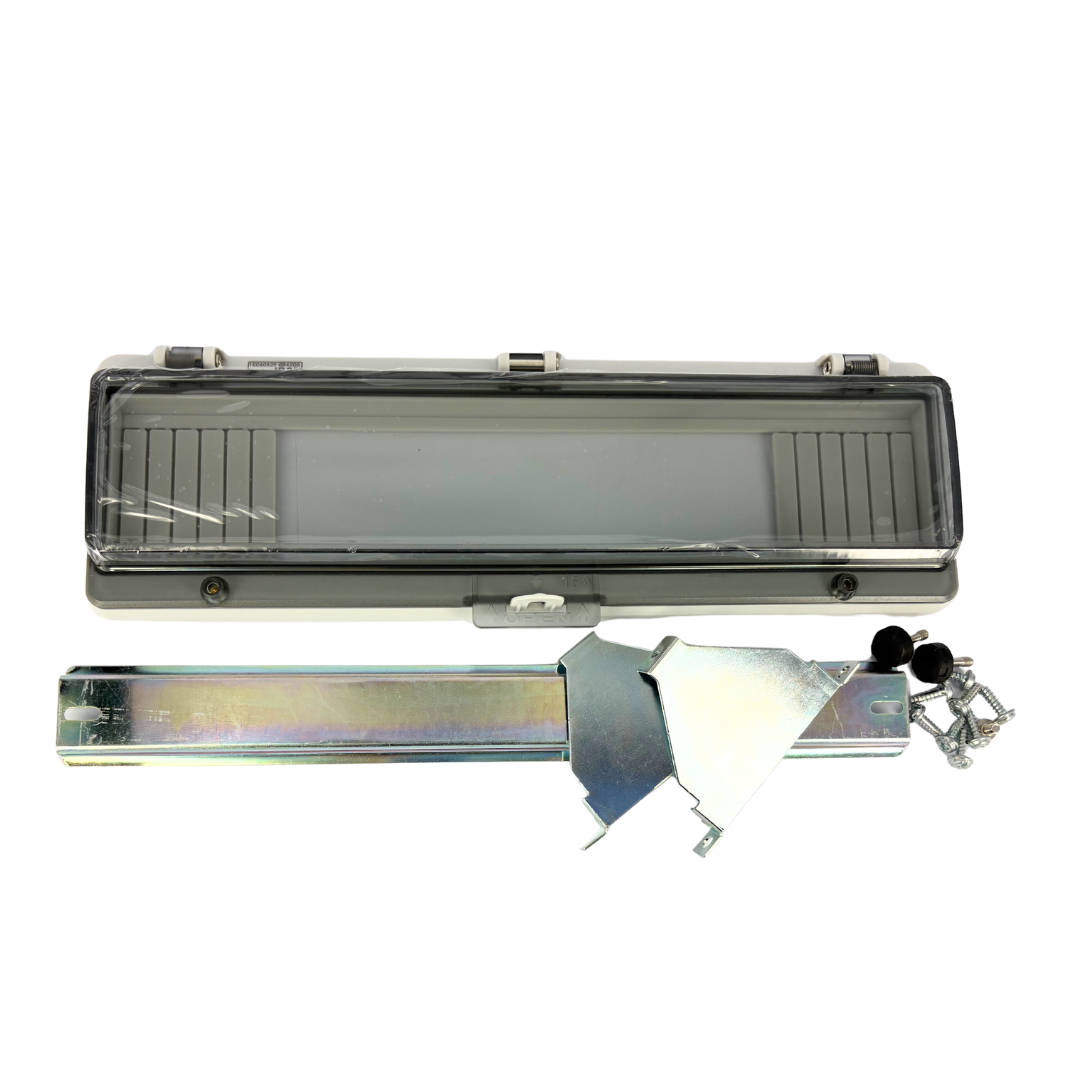

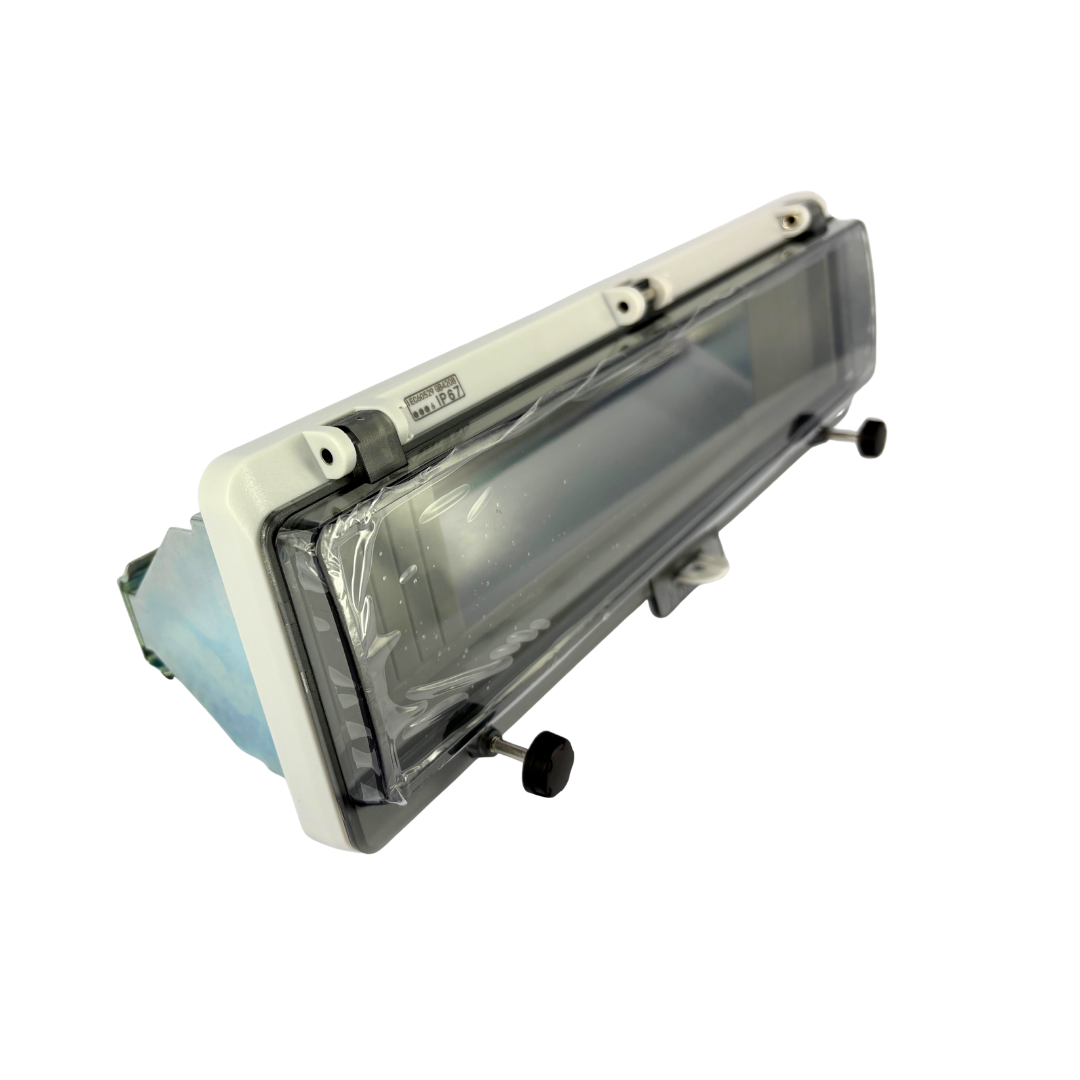

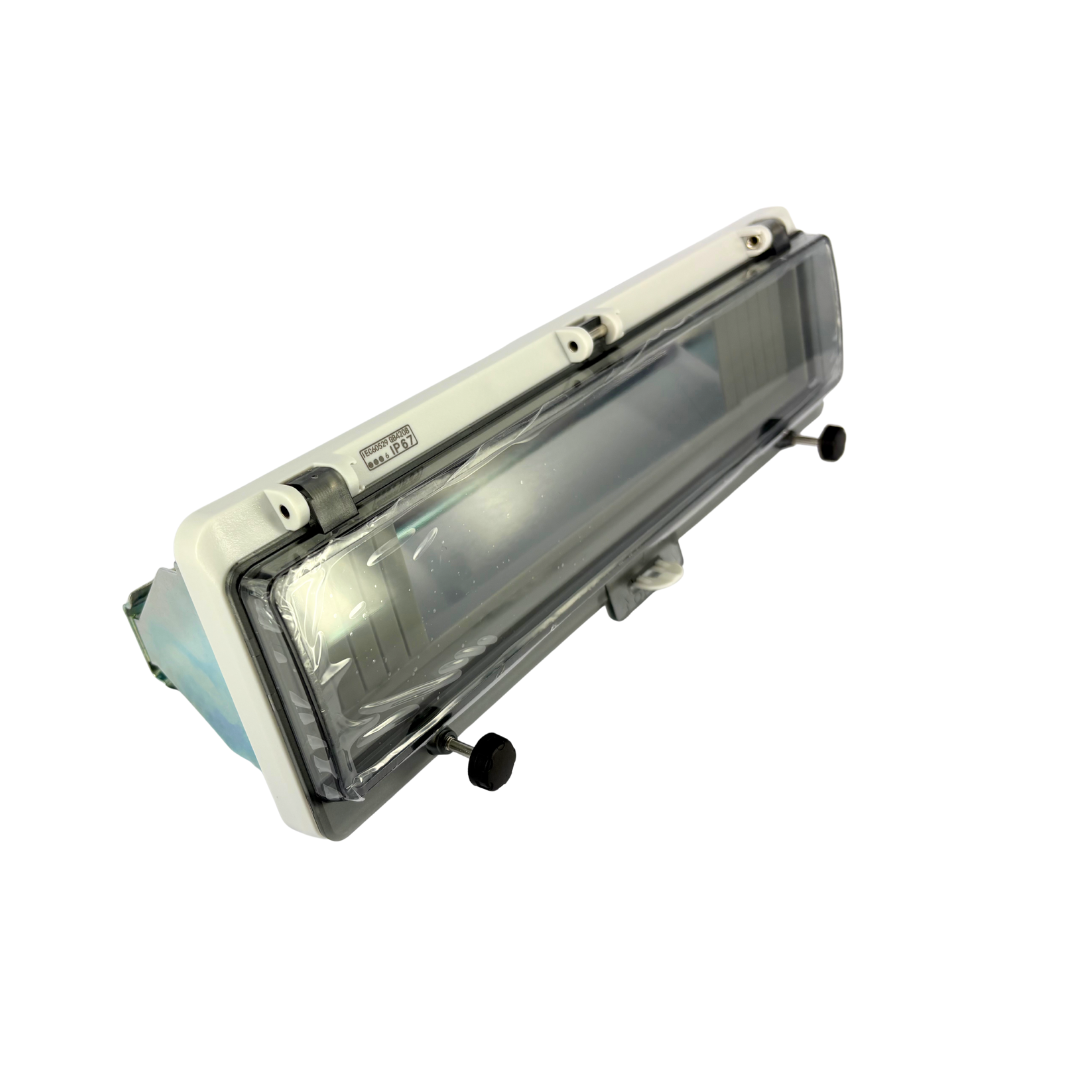

Transparent 16 Pole Inspection Window with Bracket & DIN Rail

Designed for large electrical installations, this 16 pole inspection window offers clear breaker visibility with secure access and protection. It’s perfect for commercial switchboards, factory panels, and custom distribution boards.

Key Features:

  • IP67 Protection: Resistant to dust and water—suitable for tough indoor or outdoor use.

  • Spring-Loaded Transparent Cover: Quick, tool-free access to breakers with strong sealing when closed.

  • DIN Rail & Bracket Included: Simple to install with standard modular electrical gear.

  • Secure Fit: Padlock hole and optional thumb screws provide tamper resistance.

  • Built for Extremes: Performs reliably between -25°C to +80°C.

Whether you’re managing a high-density control cabinet or designing custom power boards, this 16 pole circuit breaker cover gives you a robust, professional solution.

(sinprowincov16p)

Specifications

General Specifications
Product Code sinprowincov16p
Brand SINDR
Description Transparent 16 Pole Inspection Window with Bracket & DIN Rail
Poles 16
Included Accessories Bracket and DIN rail
IP Rating IP67
Cover Type Spring-loaded transparent cover
Security Features Padlock hole and optional thumb screws
Temperature Range −25 °C to +80 °C

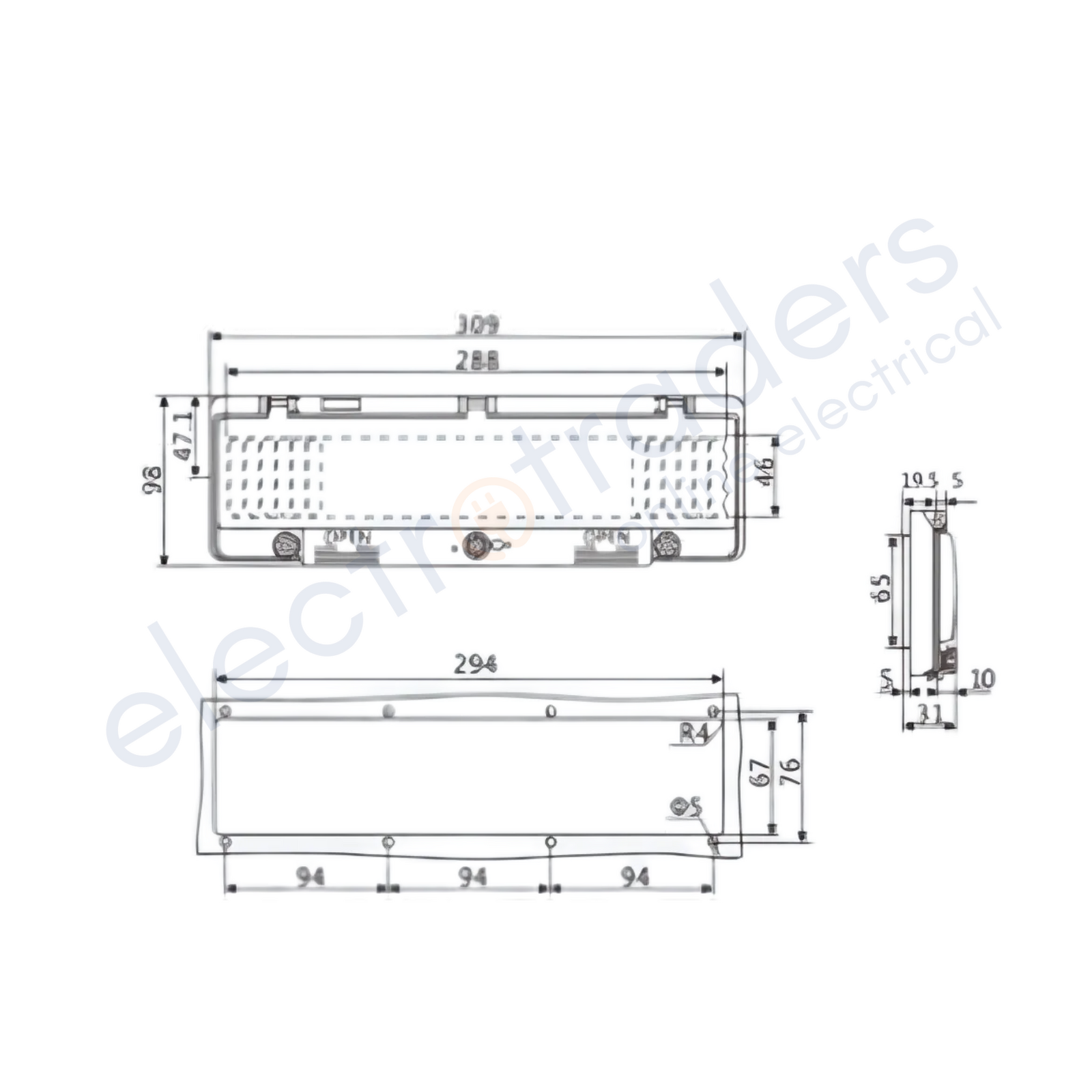

Dimensions
Width  294 mm
Height  98 mm
Depth  31 mm
Weight  0.42kg
SKU sinprowincov16p
Brand Generic
