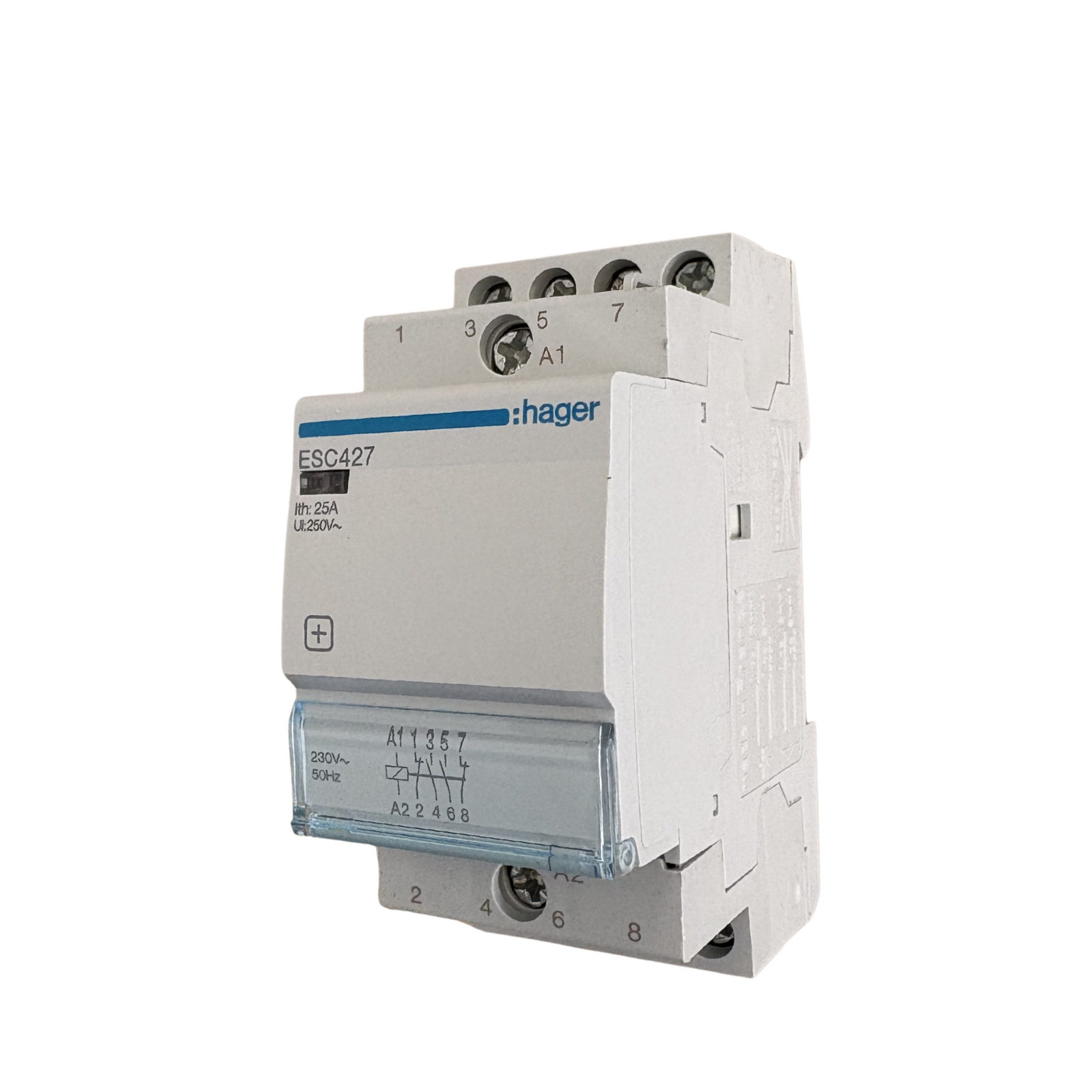

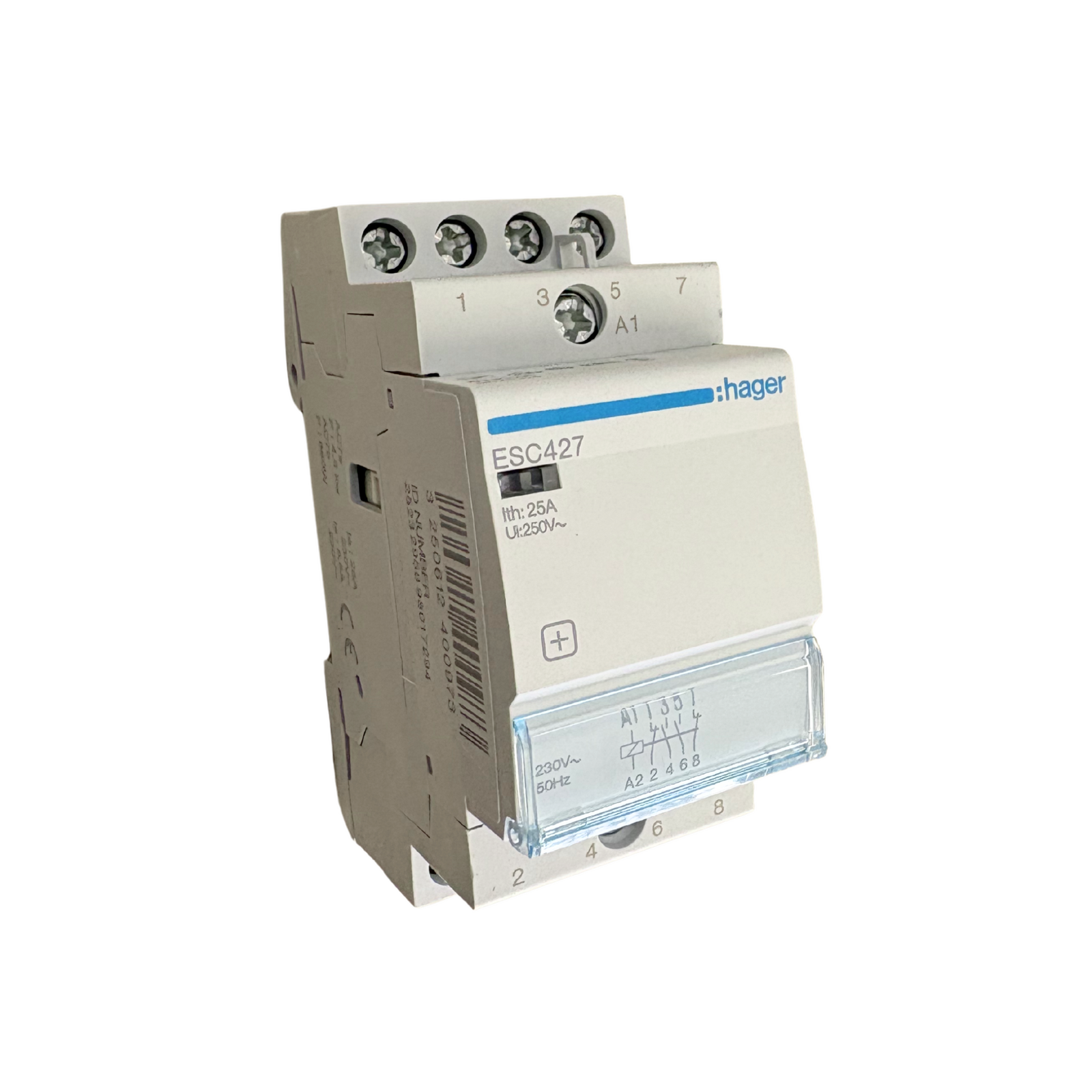

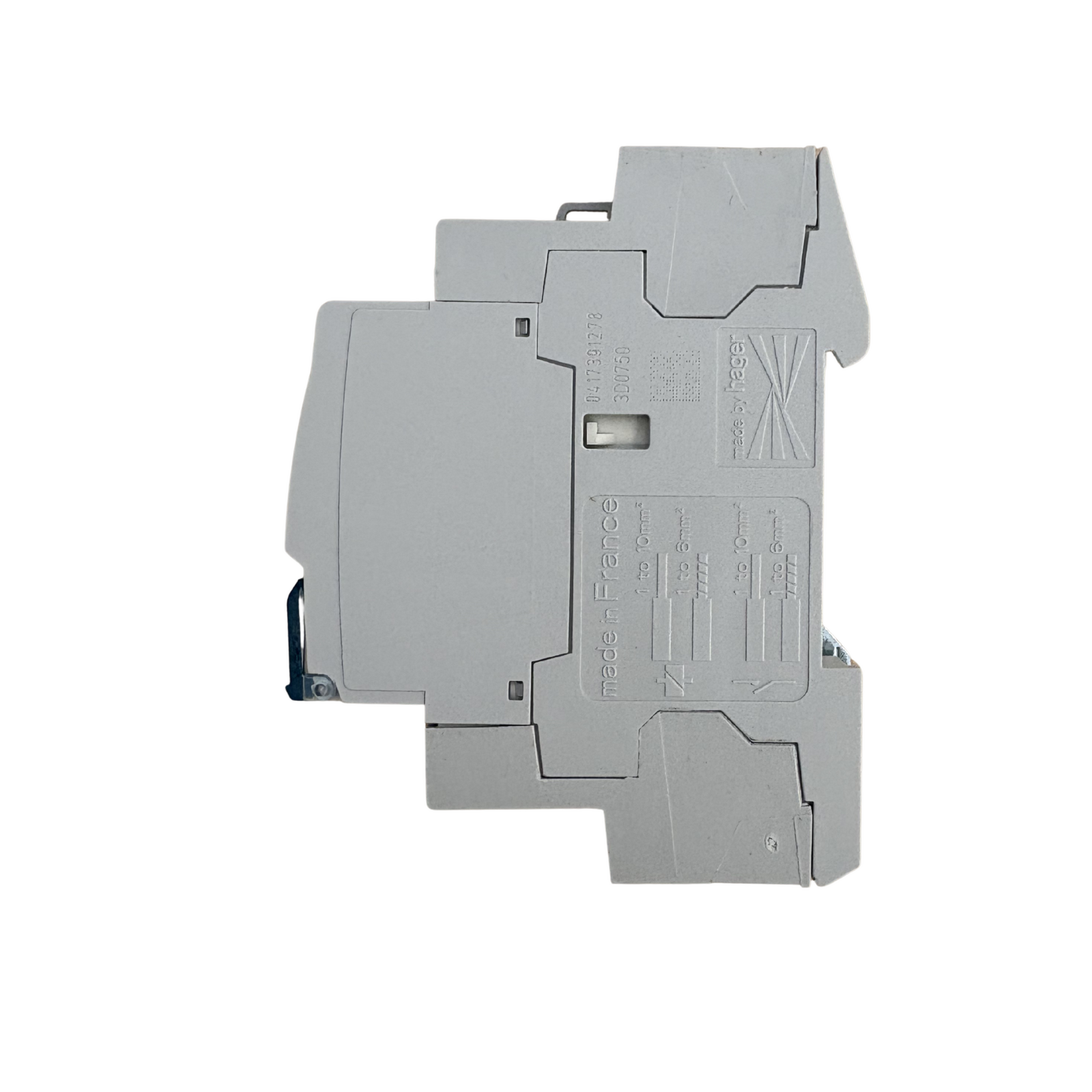

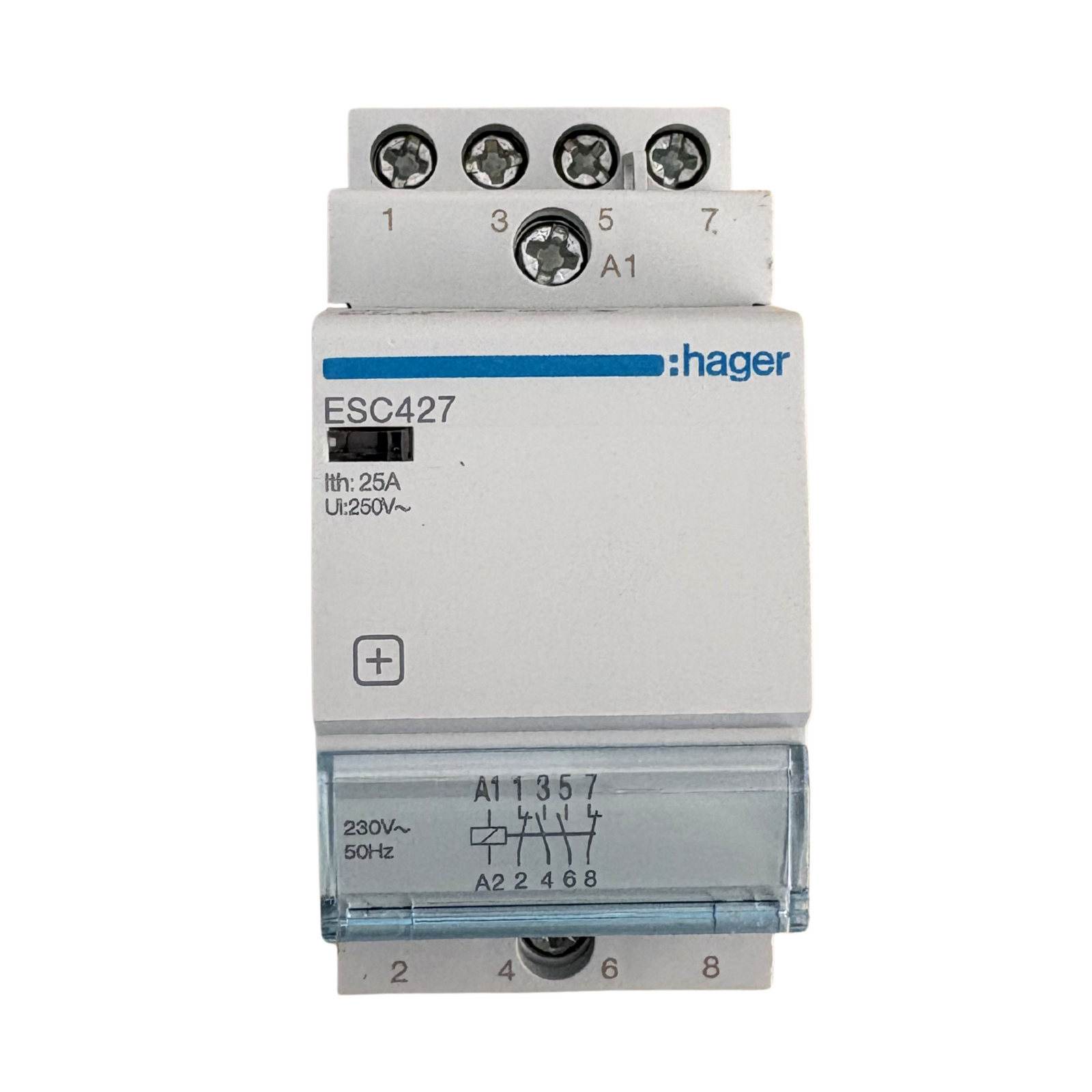

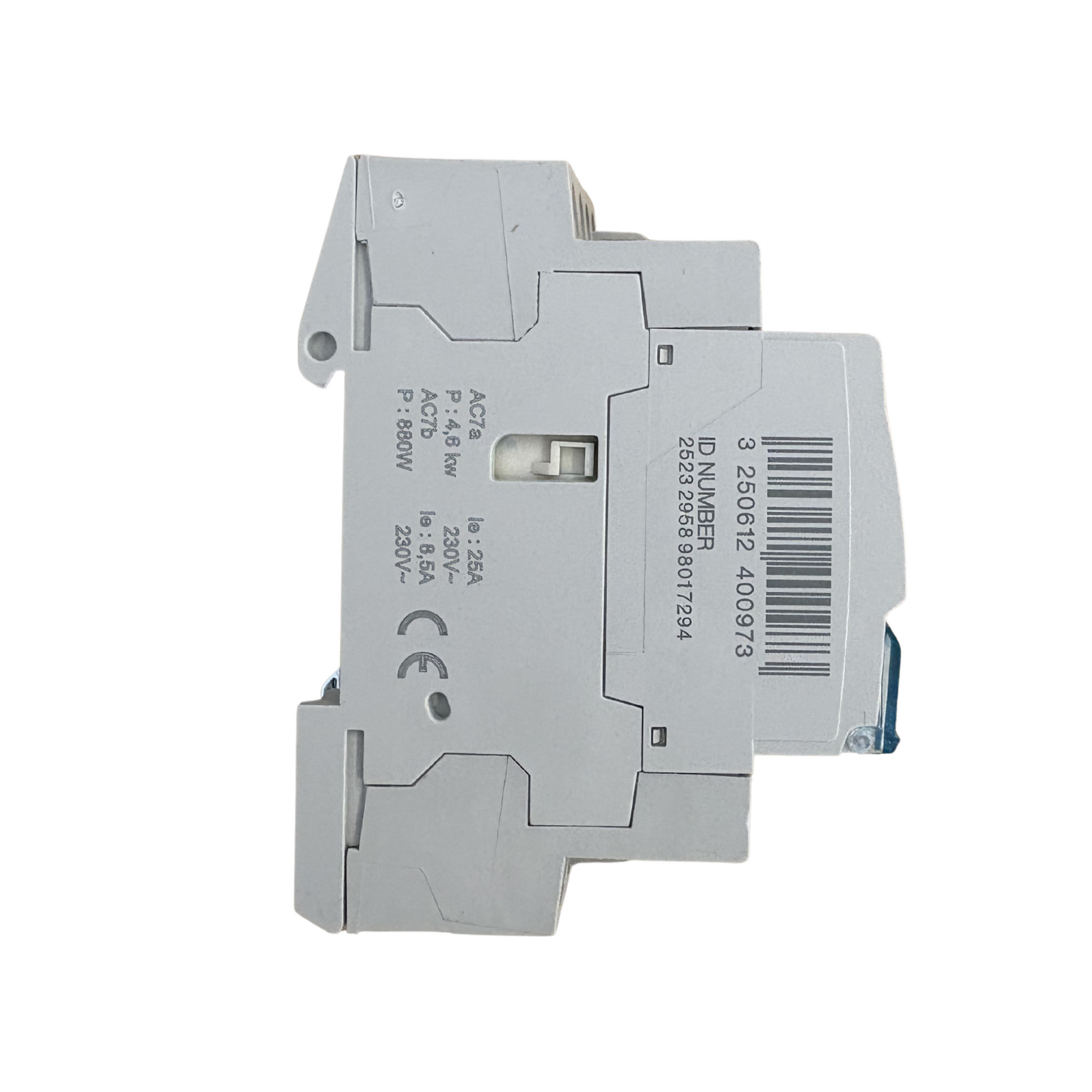

Hager ESC427 25A 4 Pole 2NO-2NC Contactor

SKU: hagcon4252no2nc

Product image thumbnail for SKU hagcon4252no2nc

Download Data Sheet

$113.13 (ex-GST)

$124.44 (inc-GST)

$124.44

$113.13

(inc-GST)

(ex-GST)

⚫︎ Ships in 24 hours

Trusted premium Hager product - reliable and safe electrical solutions for professionals

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

Hager ESC427
4 Pole Contactor
25 Amps
2NO-2NC

(hagcon4252no2nc)

Connection
Type of contacts	2NC+2NO
Number of contacts	4
Cross-section flexible conductor	1 - 6 mm^2
Cross-section rigid conductor	1 - 10 mm^2
Electric current
Rated current	25 A
Capacity
Number of modules	2
Frequency
Frequency	50 - 50 Hz
Voltage
Rated impulse withstand voltage Uimp	4000 V
Rated insulation voltage Ui	250 V
Rated operational voltage Ue	230 - 230 V
Command voltage AC	230 - 230 V
Command voltage DC	0 - 0 V
Use conditions
Operating temperature	-10 - 50 DegC
Storage/transport temperature	-40 - 80 DegC
Use
Category of use	AC-7a/AC-7b
Endurance
Number of mechanical operations	100000
Electric endurance in number of cycles	30000
Power
Total power loss under IN	4,50 W
Inrush power absorbed	21 VA
Dimensions
Height	83 mm
Width	35,75 mm
Depth	60 mm
Equipment
Number of NO contacts	2
Number of NC contacts	2
With switch for manual switch	No
Installation, mounting
Nominal tightening torque	1,20 - 1,20 Nm

SKU	hagcon4252no2nc
Manfacturer Part Number	ESC427
Barcode #	3250612400973
Brand	Hager
