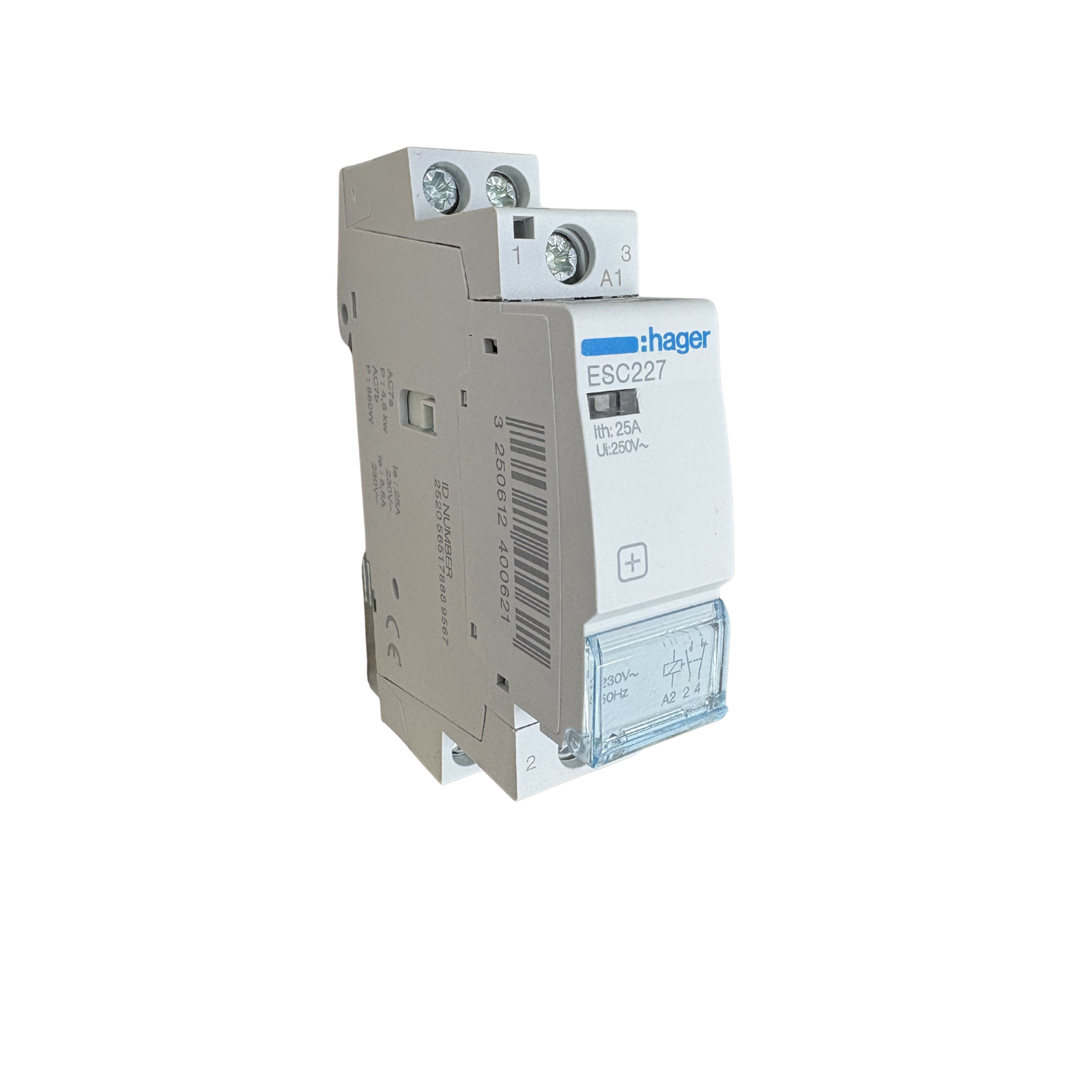

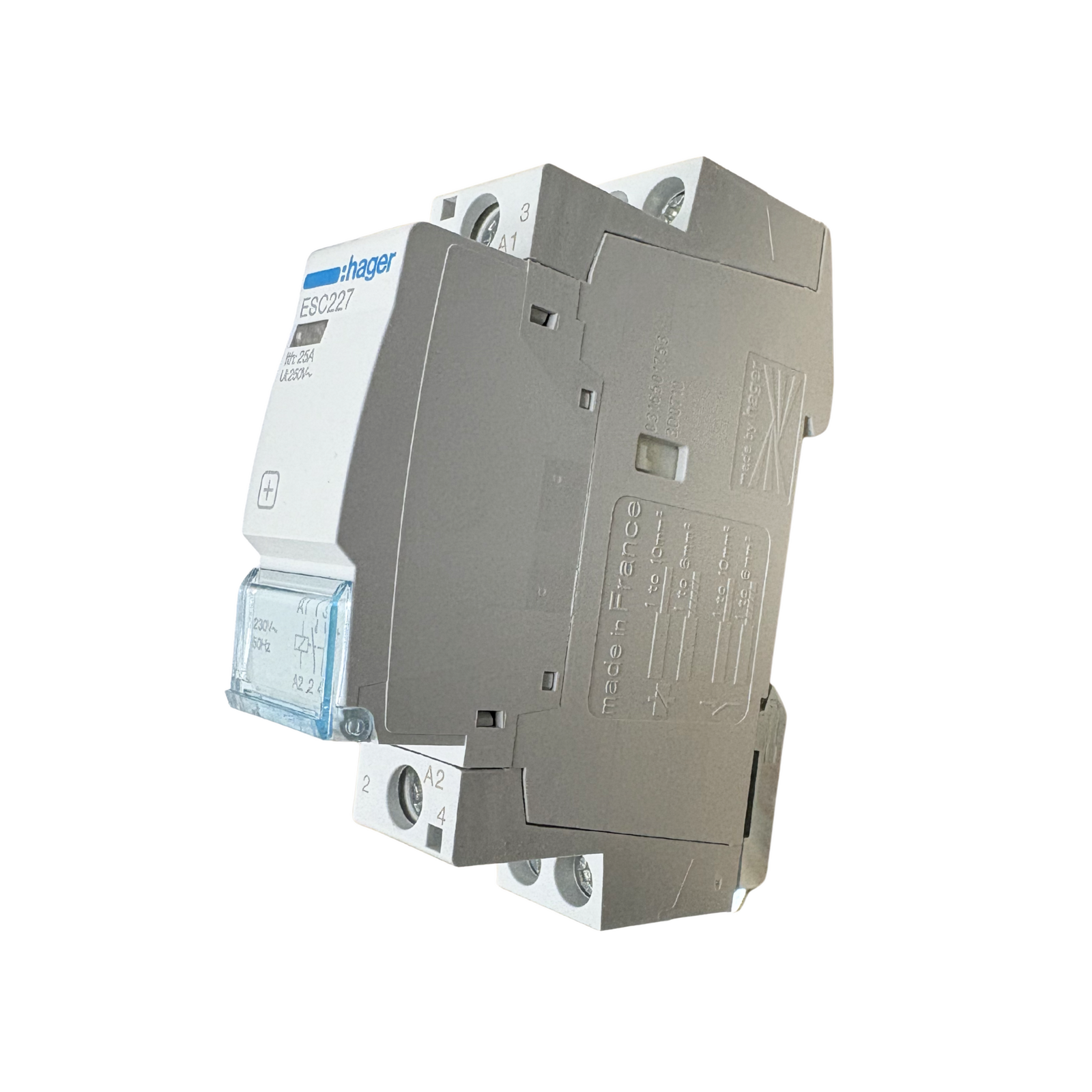

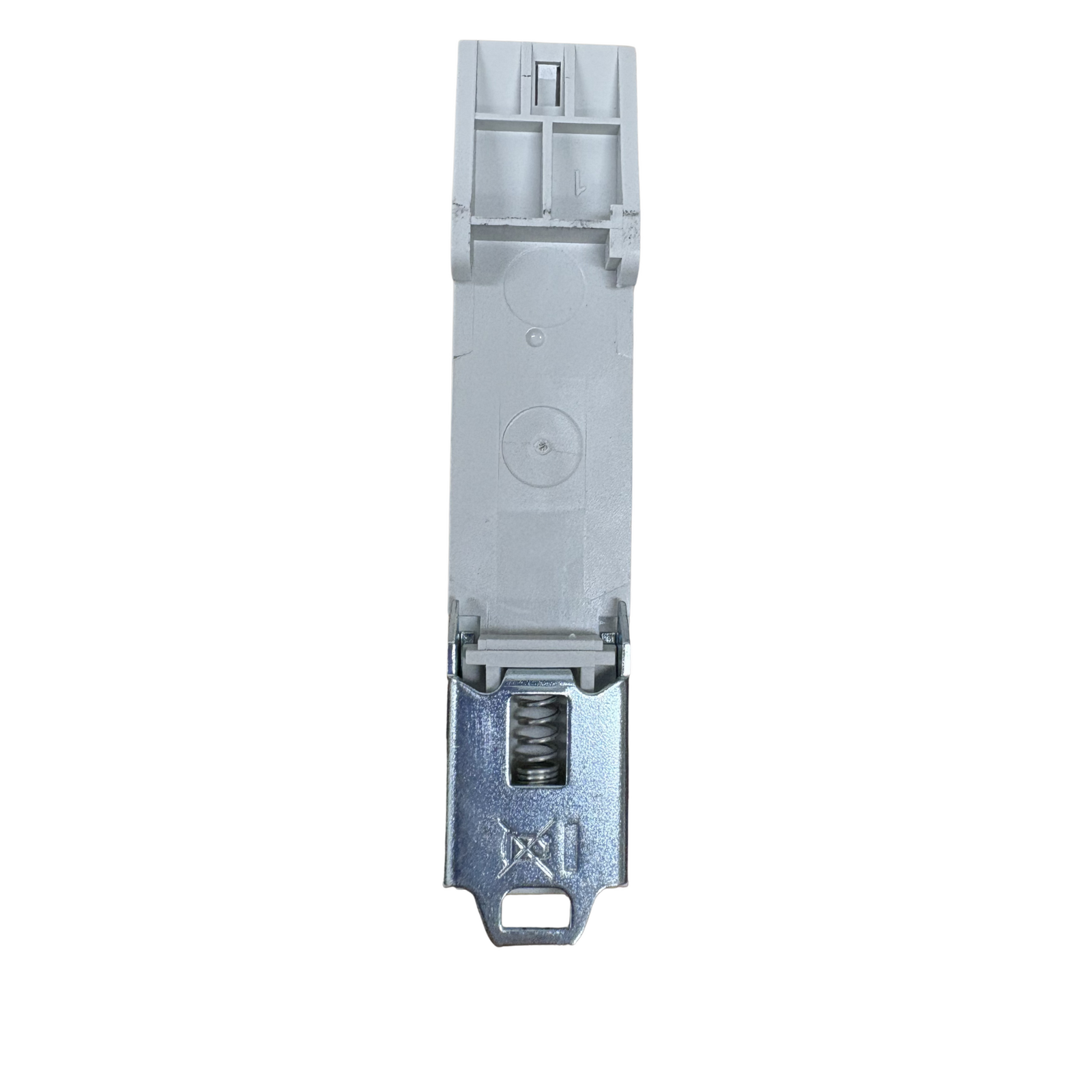

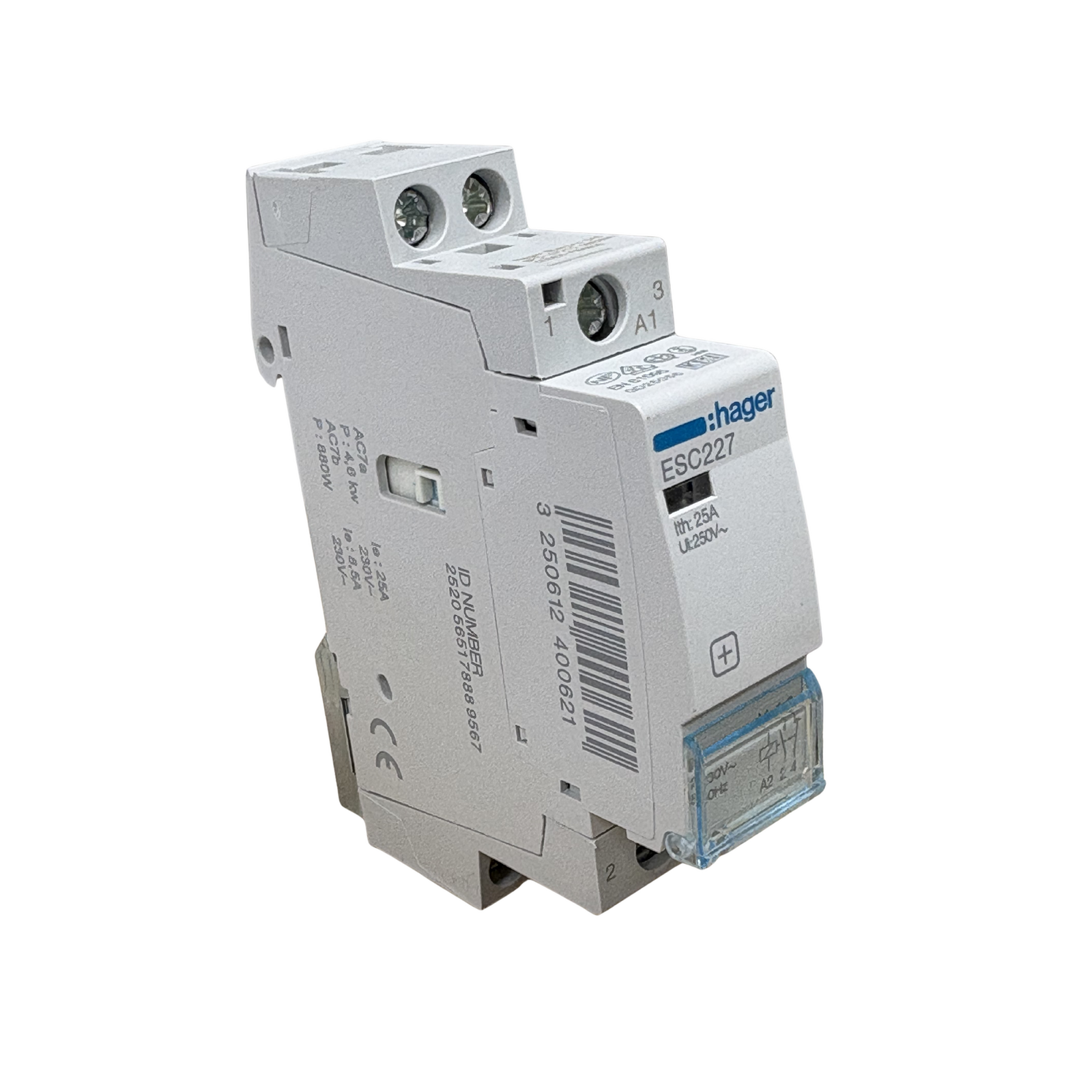

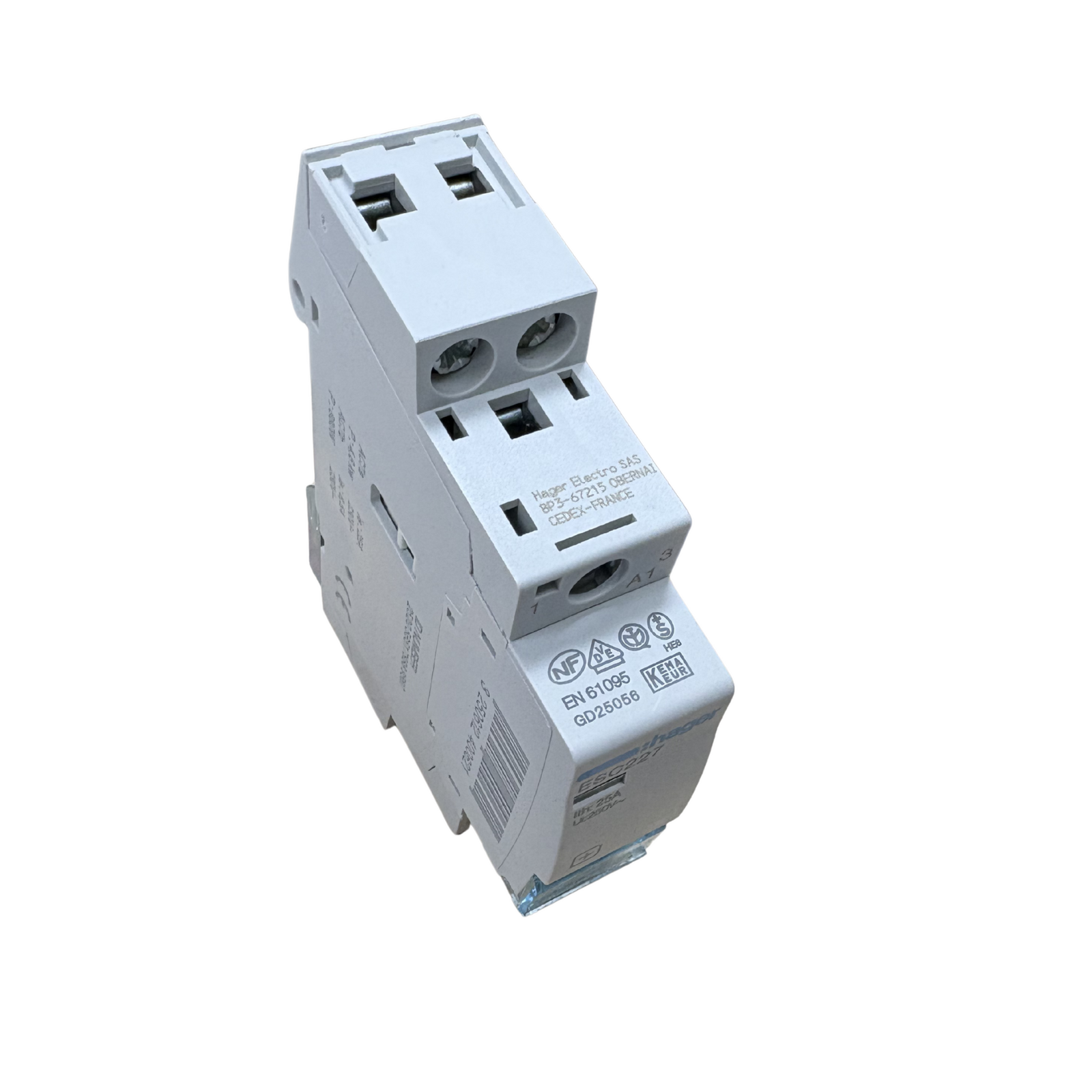

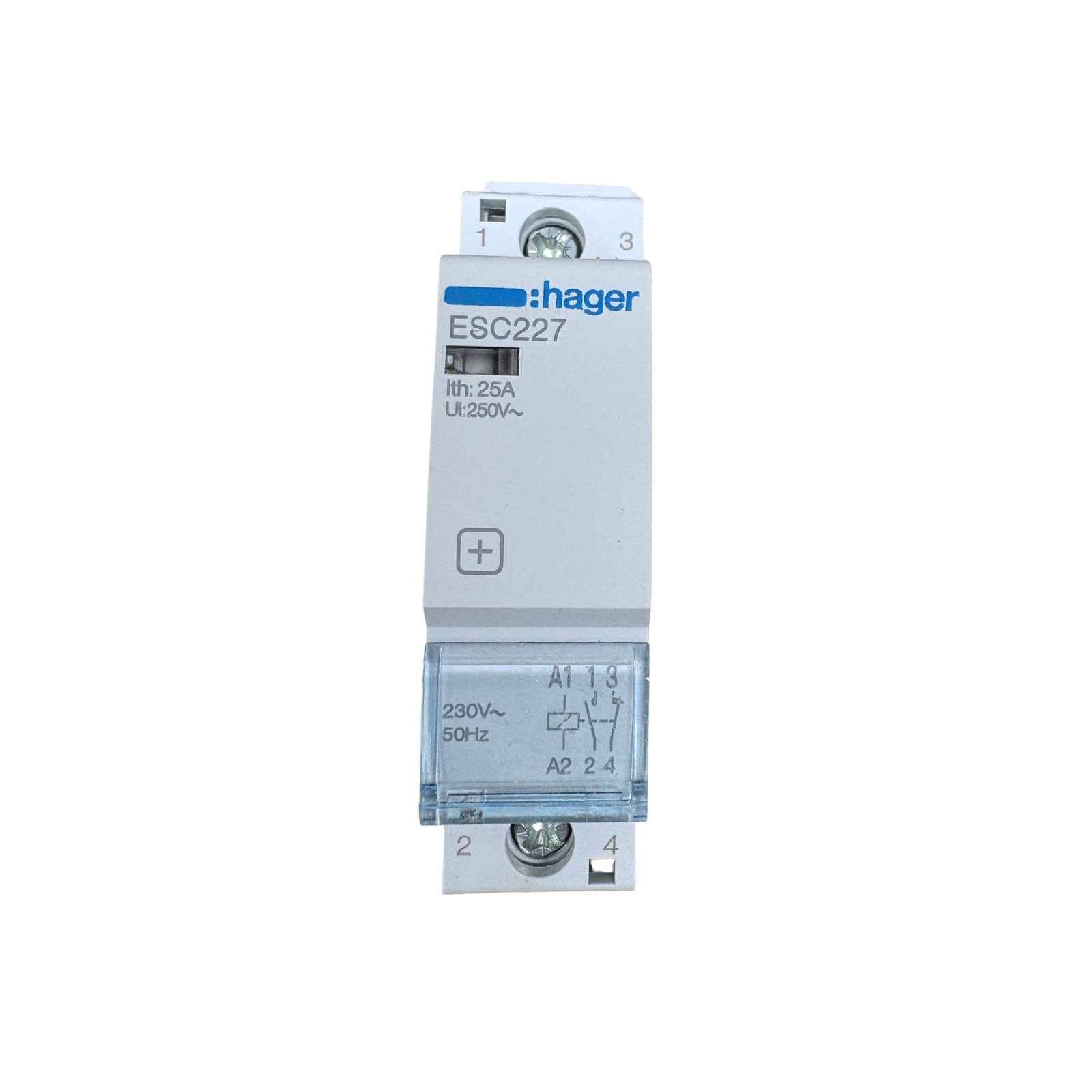

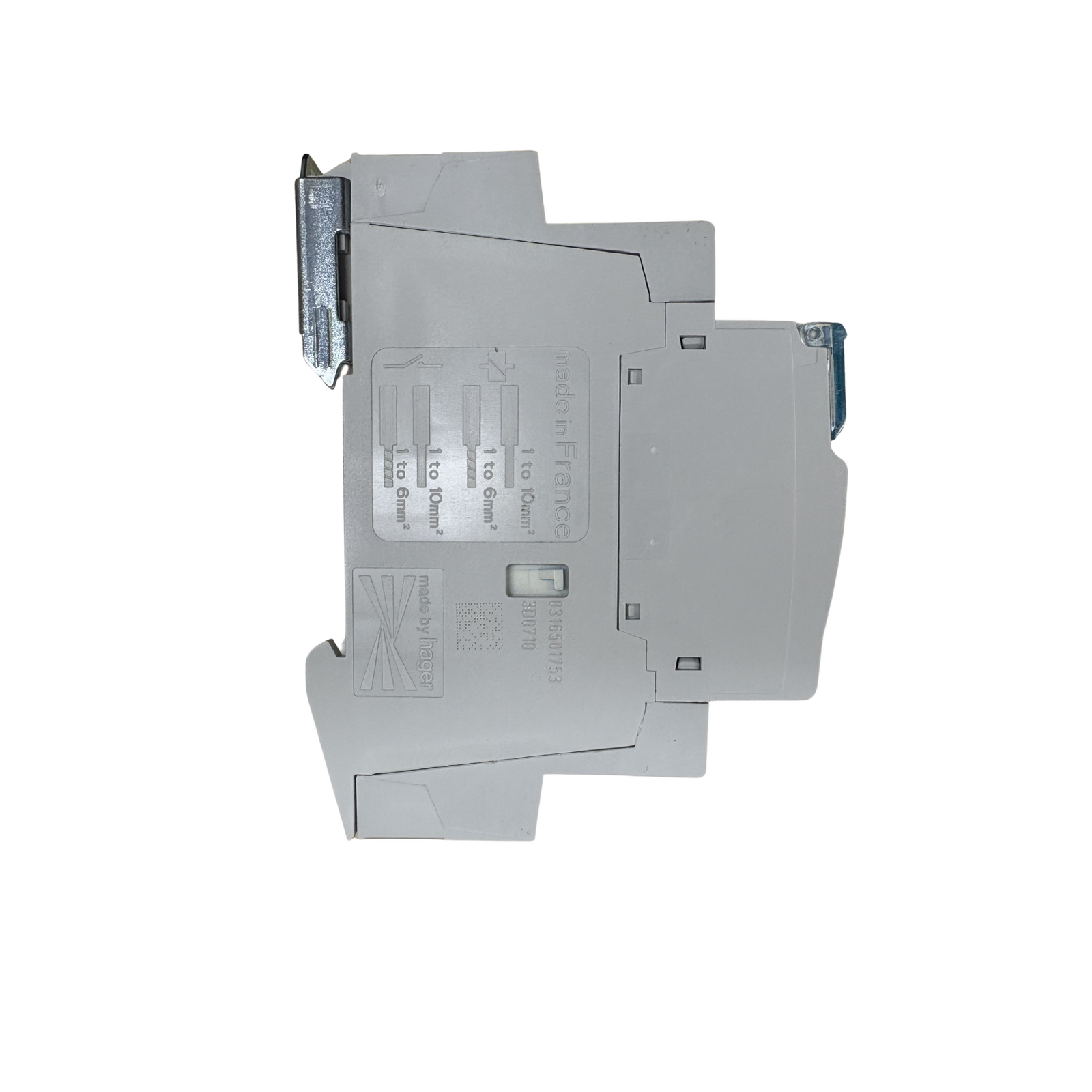

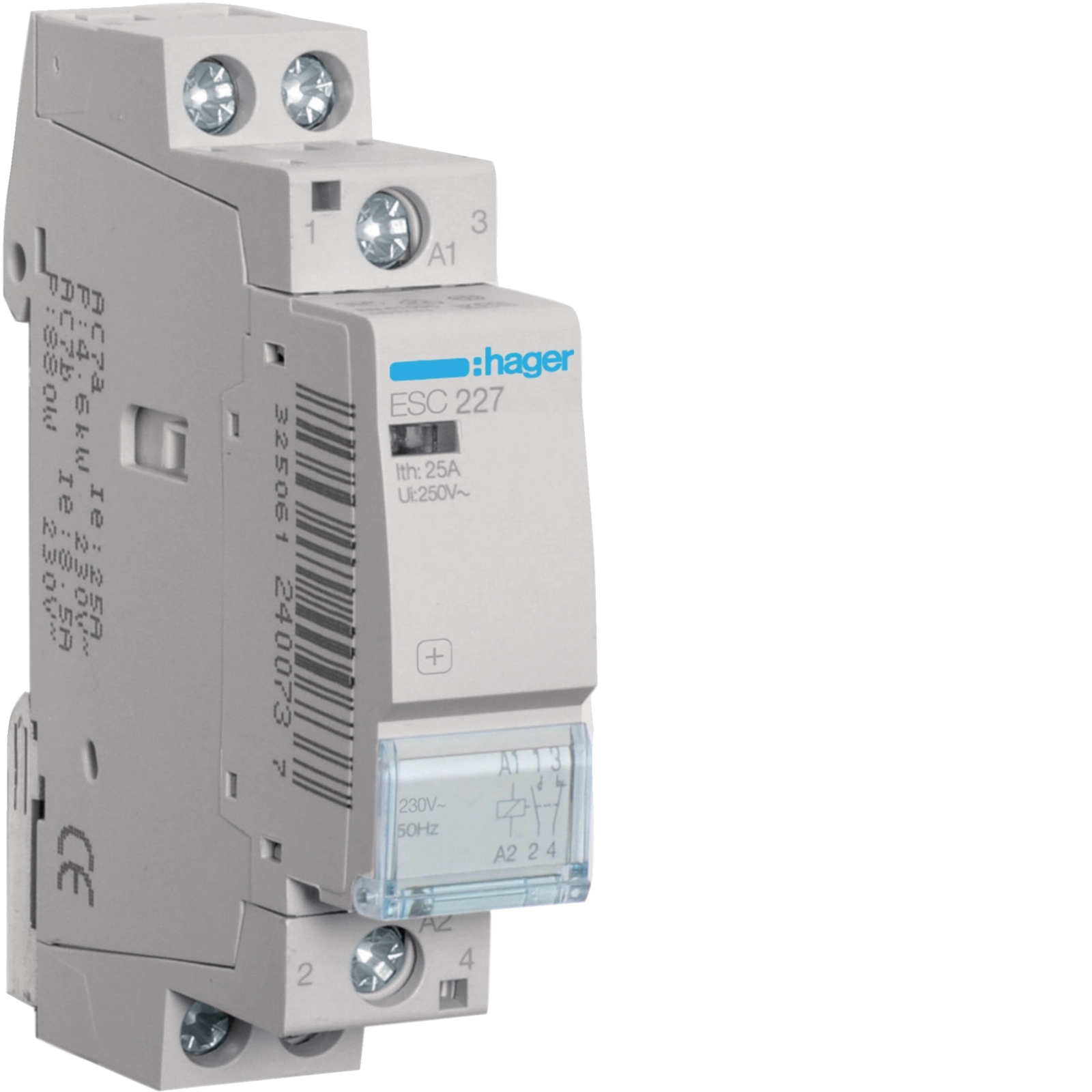

Hager ESC227 25A 2 Pole 1NO-1NC Contactor

SKU: hagcon2251no1nc

Product Image Gallery

Product image thumbnail for SKU hagcon2251no1nc
Product image thumbnail for SKU hagcon2251no1nc
Product image thumbnail for SKU hagcon2251no1nc
Product image thumbnail for SKU hagcon2251no1nc
Product image thumbnail for SKU hagcon2251no1nc
Product image thumbnail for SKU hagcon2251no1nc
Product image thumbnail for SKU hagcon2251no1nc
Product image thumbnail for SKU hagcon2251no1nc

Product Pricing

$53.69 (ex-GST)

$59.06 (inc-GST)

$59.06

$53.69

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ In Stock

Trusted premium Hager product - reliable and safe electrical solutions for professionals

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

  • Hager ESC227
  • 2 Pole Contactor
  • 25 Amps
  • 1NO-1NC

(hagcon2251no1nc)

Specifications

Connection
Type of contacts 1NC+1NO
Number of contacts 2
Cross-section flexible conductor 1 - 6 mm^2
Cross-section rigid conductor 1 - 10 mm^2
Electric current
Rated current 25 A
Capacity
Number of modules 1
Frequency
Frequency 50 - 50 Hz
Voltage
Rated impulse withstand voltage Uimp 4000 V
Rated insulation voltage Ui 250 V
Rated operational voltage Ue 230 - 230 V
Command voltage AC 230 - 230 V
Command voltage DC 0 - 0 V
Use conditions
Operating temperature -10 - 50 DegC
Storage/transport temperature -40 - 80 DegC
Use
Category of use AC-7a/AC-7b
Endurance
Number of mechanical operations 100000
Electric endurance in number of cycles 30000
Power
Total power loss under IN 2,50 W
Inrush power absorbed 10,70 VA
Dimensions
Height 83 mm
Width 17,85 mm
Depth 60 mm
Equipment
Number of NO contacts 1
Number of NC contacts 1
With switch for manual switch No
Installation, mounting
Nominal tightening torque 1,20 - 1,20 Nm
SKU hagcon2251no1nc
Manfacturer Part Number ESC227
Barcode # 3250612400621
Brand Hager
