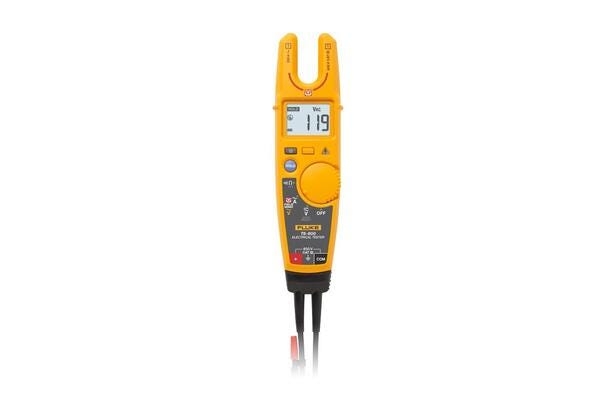

Fluke T6-600 Electrical Tester

SKU: flut6600

Fluke T6-600 Electrical Tester

Measure AC voltage and current without touching a live wire
Troubleshoot with all power supply measurements at-a-glance
See AC voltage and current values without test leads
Handling Time: 10 days (please consider this lead time when ordering)

Measure voltage … without test leads

Working in cramped electrical boxes and trying to find a safe metallic contact points is often challenging. The Fluke T6-600 Electrical Tester with FieldSense™ technology, lets you quickly and safely take measurements by sliding the open fork over a conductor, without the need for test leads. The T6-600 works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening

How FieldSense™ technology works

FieldSense™ technology is a breakthrough in how voltage is measured. Other open fork testers detect a magnetic field to show AC current. FieldSense™ technology detects an electrical field, which interacts with a reference signal created by the T6 tester, which shows the measurement value on the tester’s display.

Tips on using FieldSense technology

Do not hold or touch wire you are testing during a measurement.
Use the black probe to make the ground connection if you are wearing gloves, insulated footwear or standing on an insulated ladder

Measurement versatility

The electrical tester offers a variety of measurement options giving you an all-in-one troubleshooting tool. Measure true rms voltage and current from 0 to 200 A AC or 1 to 600 V AC or DC. You can also gather resistance measurement from 1 Ω to 2000 Ω. With the easy-to-read backlit display, you can keep see your work in dark environments and keep your most recent measurement on the screen with the HOLD button for easy viewing. The T6-600 also accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation.

FieldSense tools

Learn how to use the T6
Download the Quick Reference Guide
Download the T6 "How-To" Demonstration Guide
Read the FieldSense Proving Unit Demonstration Guide

T6 Electrical Tester Helps Team at Cutting Edge Cancer Research Center

T6 Awards

What's in the box:

Fluke T6-600 Electrical Tester
Attached test leads with removable 4 mm probe caps
Quick Reference Guide

(flut6600)

Measurement Specifications
Function	Requires test leads	Range	Resolution	Accuracy^[1]
FieldSense ac voltage true-rms	No	600 V	1 V	±(3% + 3 counts) 45 Hz - 66 Hz^{[2] [3]}
FieldSense ac current true-rms	No	200.0 A	0.1 A	±(3% + 3 counts) 45 Hz - 66 Hz
Volts ac true-rms	Yes	600 V	1 V	±(1.5% + 2 counts) 45 Hz - 66 Hz
Volts dc	Yes	600 V	1 V	±(1% + 2 counts)
Resistance	Yes	2000 Ω	1 Ω	±(1% + 2 counts)
Safety		600 V CAT III
Accuracy^[1]: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC measurements are ac-coupled, RMS responding. Accuracy^[2]: Add 3 % without an external ground connection. External ground connection required for user wearing insulated gloves, standing on an insulated ladder, or otherwise insulated from earth ground. Accuracy^[3]: FieldSense is specified from 16 V to 100 % of range.

General Specifications
Calibration	1-year calibration cycle
Dimensions	61.1 x 259.3 x 43.8 mm
Jaw opening	17.8 mm
Weight	0.35 kg (0.78 lb)
Temperature	Operating	-10 °C to +50 °C (14 °F to 122 °F)
Storage	-30 °C to +60 °C (-22 °F to +140 °F)
Altitude	Operating	2,000 m (6,562 feet)
Storage	10,000 m (32,808 feet)
Relative Humidity	0% to 90%, 5 °C to 30 °C (41 °F to 86 °F)
0% to 75%, 30°C to 40 °C (86 °F to 104 °F)
0% to 45%, 40°C to 50 °C (104 °F to 122 °F)
Battery Type and Life	2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense
Temperature coefficient	0.1 x (specified accuracy) / °C for <18°C or >28 °C
(< 64.4 °F or > 82.4 °F)
Safety	IEC/EN 61010-1: Pollution Degree 2
Electromagnetic Environment	IEC/EN 61326-1: Portable
