Clipsal Narrow Skirting Double Power Point 10A 240V

Description

Two switched outlets in one compact power point.

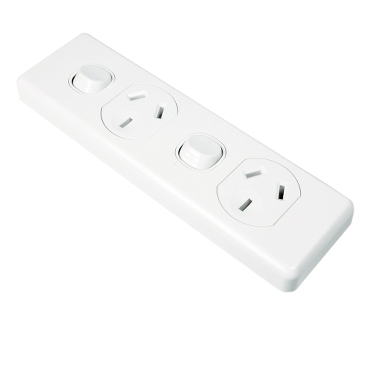

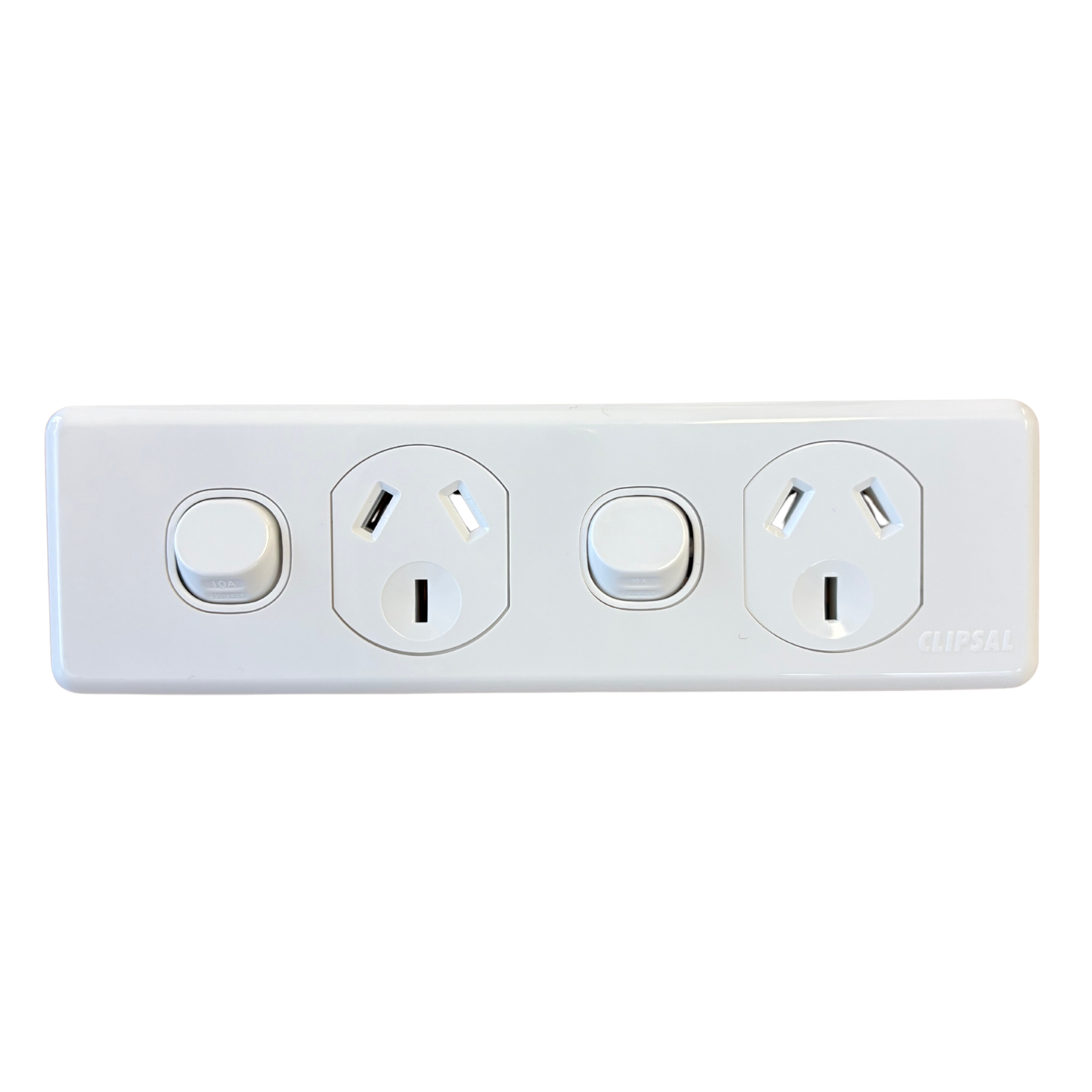

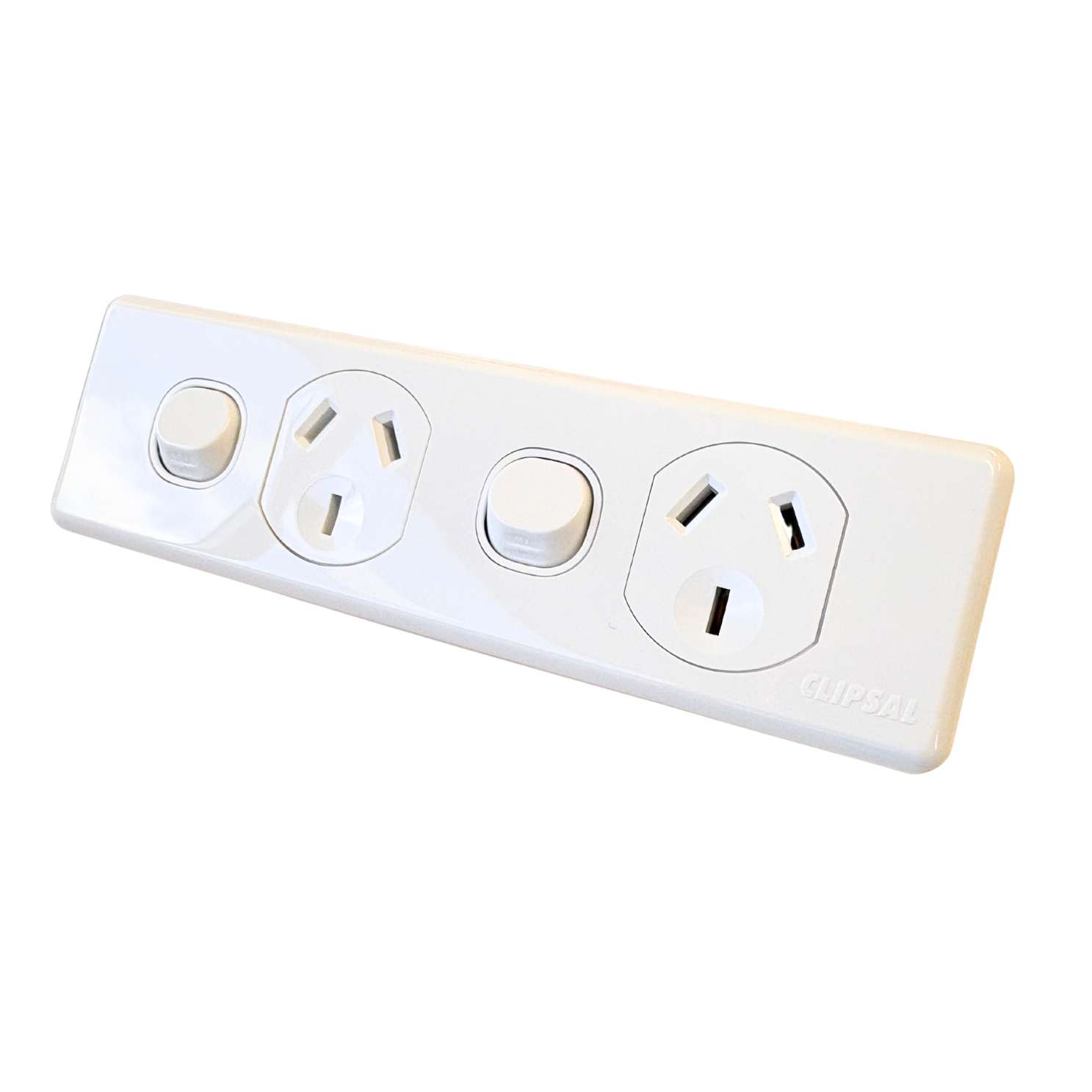

The Clipsal C2016/2-WE is a twin switched 10A socket outlet designed for horizontal, skirting-mounted installations. With two individually wired outlets in a compact Classic C2000 design, it provides practical power access for residential and commercial installations.

Key Features

• Current Rating: 10A
• Rated Voltage: 250V AC, 50Hz
• Configuration: Twin 3-Pin Switched Socket Outlet
• Outlets: 2
• Wiring: Each Side Can Be Wired Individually
• Orientation: Horizontal
• Mounting: Skirting Mount
• Operation: ON/OFF Rocker Switches
• Colour: White Electric
• Range: Clipsal Classic C2000

Order online now for fast dispatch Australia-wide.

Why It Matters

Double power without unnecessary bulk

The Clipsal C2016/2-WE combines two switched 10A outlets in a low-profile horizontal format. It provides two standard power connections from a single fitting, making it a practical choice where multiple appliances or pieces of equipment need convenient access to power.

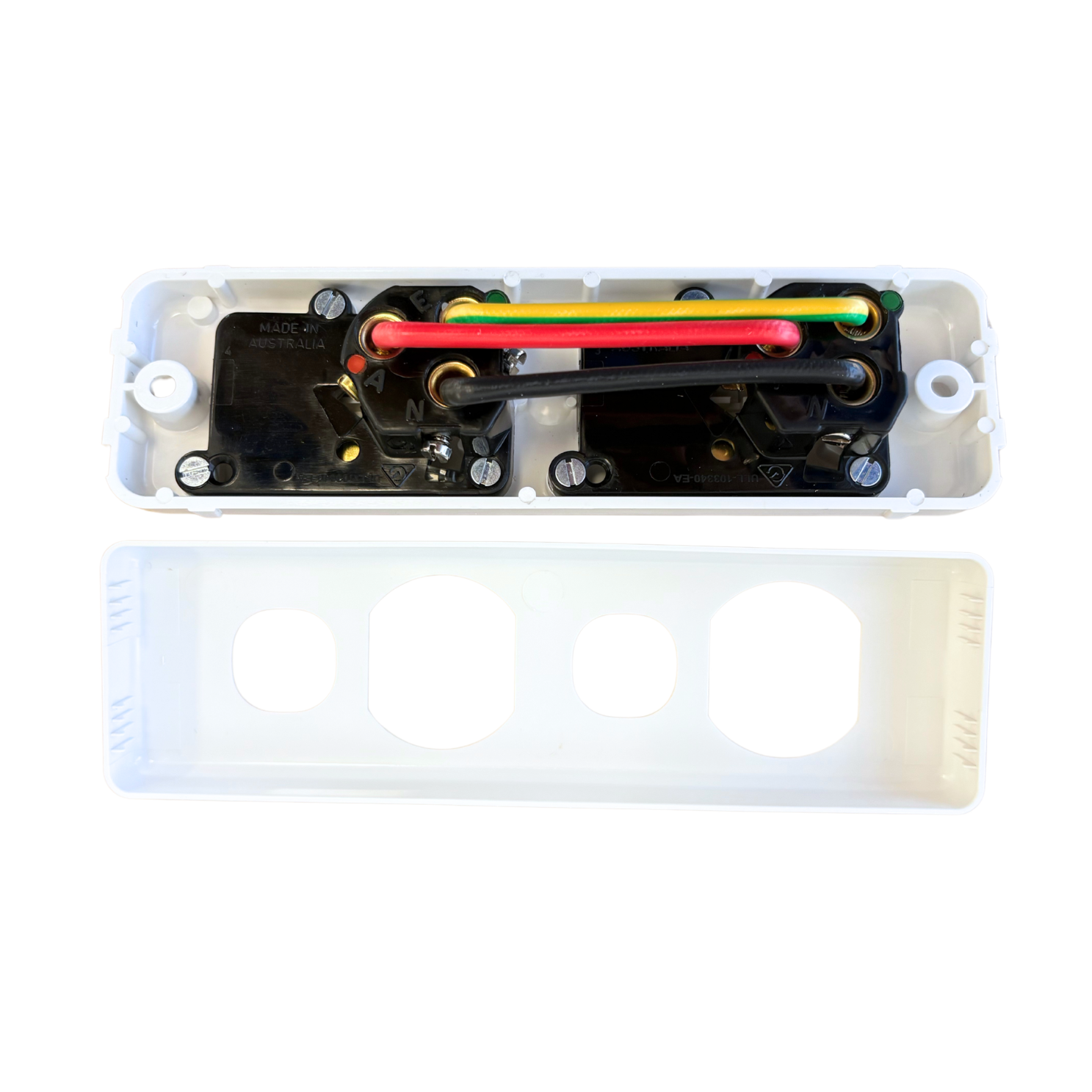

Importantly, Clipsal confirms that each side of the C2016/2-WE can be wired individually. This gives electricians additional flexibility when the two outlets need to be connected separately rather than sharing the same wiring arrangement.

Designed for skirting-mounted installations

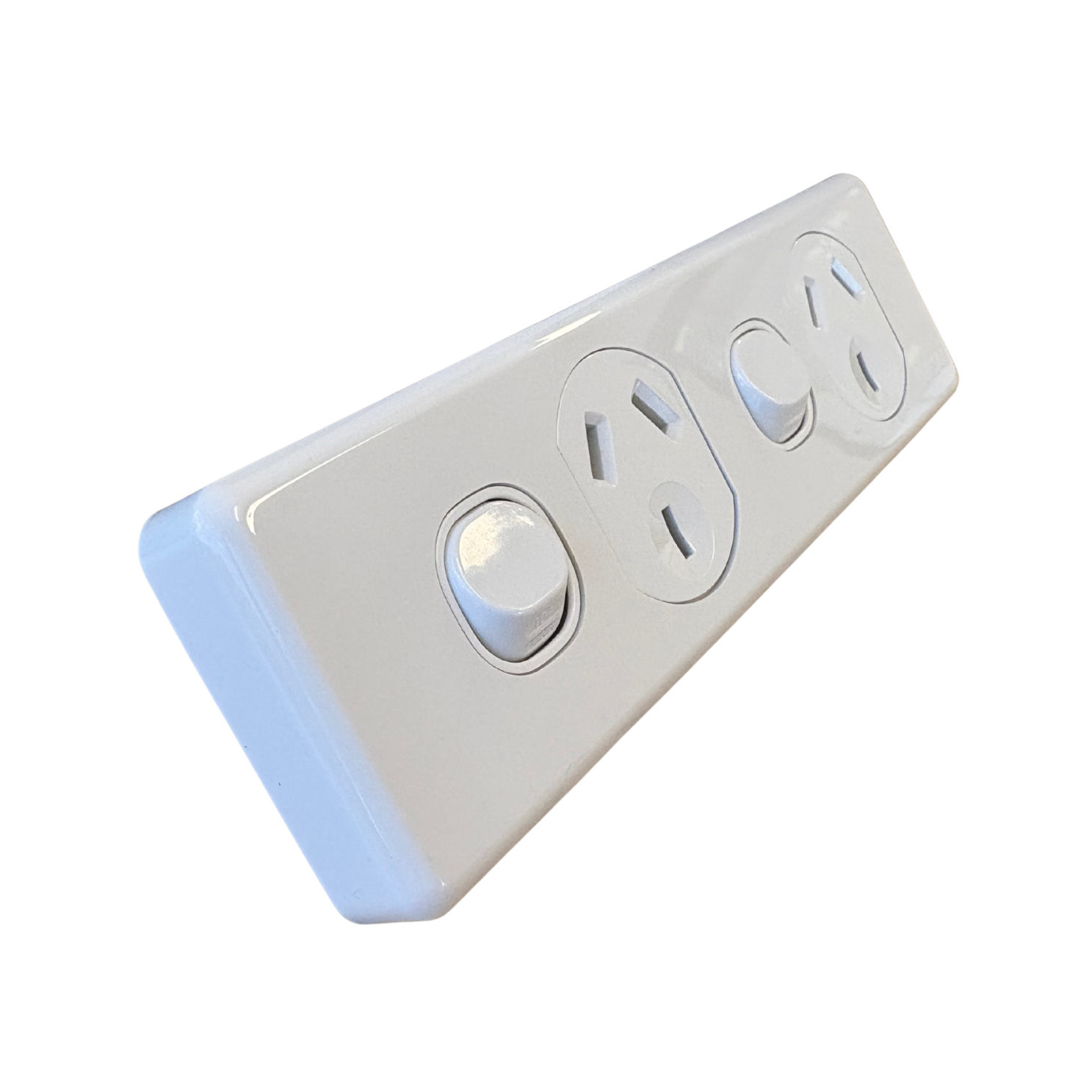

The C2016/2-WE is specifically designed for horizontal, skirting-mounted installation. Its 159mm length, 47mm height and 28mm depth create a compact, low-profile power point that suits applications where this mounting format is required.

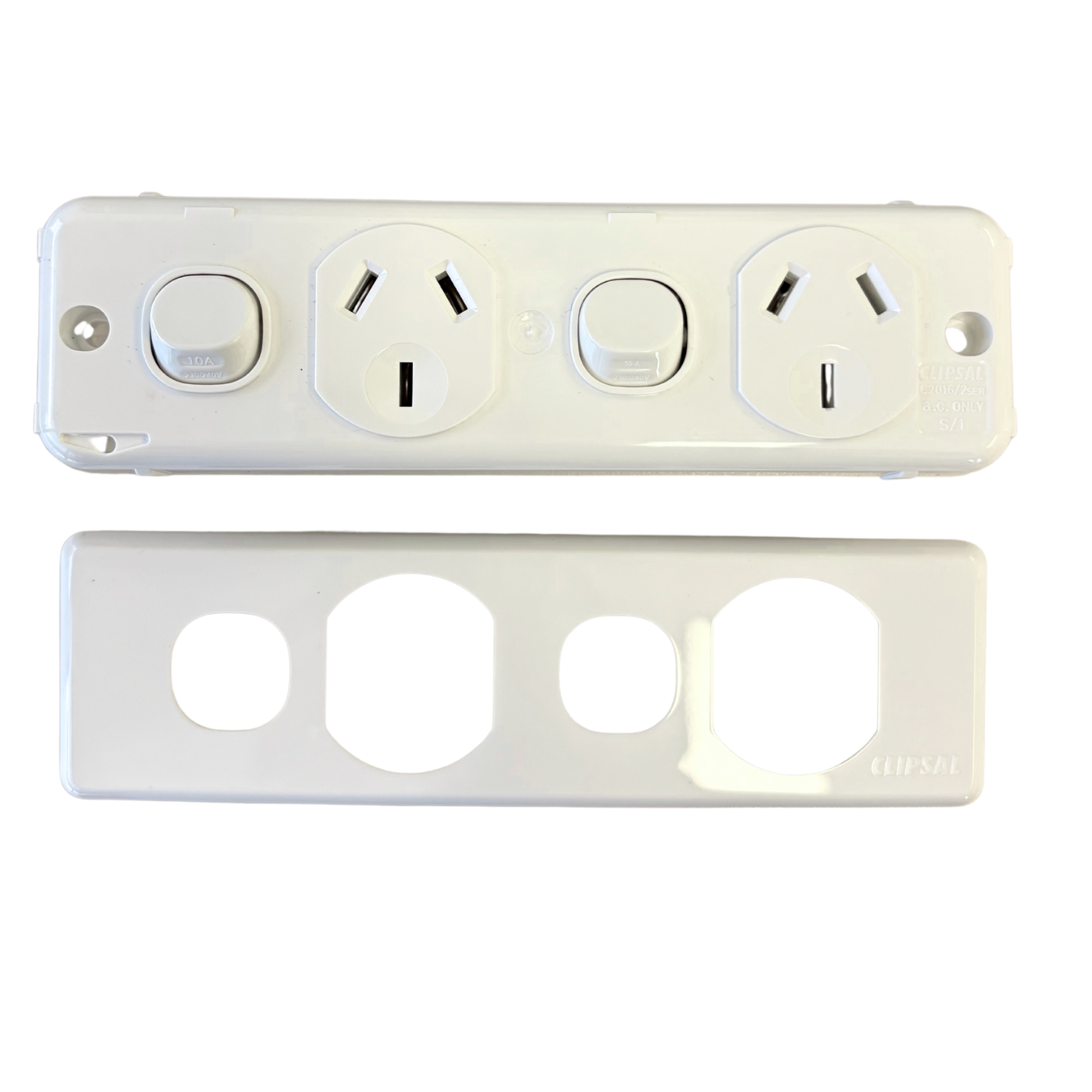

Four corner mounting points and screw fixing provide secure installation, while the clip-on cover gives the finished outlet the clean appearance associated with the Clipsal Classic C2000 range. The White Electric finish also makes it easy to coordinate with other Clipsal C2000 electrical accessories.

A proven Clipsal power point for everyday installations

Rated at 10A and 250V AC, the C2016/2-WE is recommended by Clipsal for residential and commercial environments. Its combination of twin switched outlets, individual wiring capability and horizontal skirt-mount format makes it particularly useful for new installations and replacement work where this specific form factor is required.

As with fixed electrical socket outlets, the Clipsal C2016/2-WE requires installation by an appropriately licensed electrician.

Q: Can each outlet on the Clipsal C2016/2-WE be wired separately?
A: Yes. Clipsal confirms that each side of the C2016/2-WE twin socket outlet can be individually wired, providing additional flexibility for electrical installations.

Q: Is the Clipsal C2016/2-WE a standard 10A double power point?
A: It is a twin switched 3-pin socket outlet rated at 10A and 250V AC. It is specifically designed in a horizontal format for skirting-mounted installations.

Q: What are the dimensions of the Clipsal C2016/2-WE?
A: The C2016/2-WE measures 159mm long, 47mm high and 28mm deep, with a 76mm width specified by Clipsal.
