Clipsal Iconic | Twin Socket | USB Type C, Fast charger | Vivid White

SKU: cli3025usbcvw

Download Data Sheet

$94.56 (ex-GST)

$104.02 (inc-GST)

$104.02

$94.56

(inc-GST)

(ex-GST)

RRP $194.00 SAVE $89.98

⚫︎ In Stock

Clipsal - World-class design, premium materials, and precision engineering come together.

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

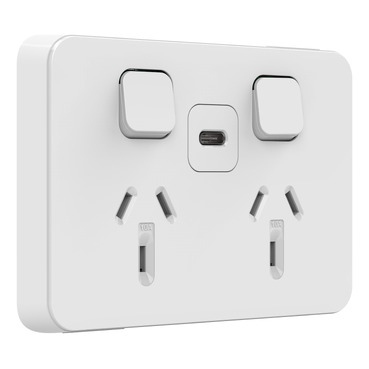

This Clipsal Iconic twin socket comes with a Type C USB fast charger. The color of the Iconic skin is Vivid White. The operating voltage is 220 to 240VAC at 50Hz and the rated current is 10A. The USB port output is 25W. The product has thermal fuse protection. The dimensions are (W) 78mm x (H) 120mm x (D) 55mm. The product requires installation by a qualified electrician.

(cli3025usbcvw)

Design
Range	Iconic
Product or component type	switched socket with USB charger
Range of product	Iconic
Product brand	Clipsal
Surface finish	matt
Physical
Number of power socket outlets	2
Type of packing	polybag
Quantity per set	1 set of 10
Switch function	with ON/OFF function
Device presentation	complete product
Number of rocker	2
Device mounting	flush
Installation direction	horizontal
Rated current	10 A
[ue] rated operational voltage	220...240 V
Clamping connection capacity	1 x 2.5...4 x 2.5 mm?? for stranded cable(s)
Fixing mode	by screws
Wire stripping length	16 mm
Height	120 mm
Width	78 mm
Depth	55 mm
Ambient air temperature for storage	0...60 ??C
Ambient air temperature for operation	0...45 ??C
Relative humidity	10...95 %
Toxic heavy metal free	Yes
Mercury free	Yes
Environmental disclosure	ENVPEP2403023EN
Others
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Type of usb power supply	USB type C
Main colour tint	vivid white
Unit type of package 1	PCE
Package 1 height	6 cm
Package 1 width	2.7 cm
Package 1 length	4.7 cm
Package 1 weight	105 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	7 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.836664435
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.030105
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.021350451
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	5.82057276
Carbon footprint of the use phase [b2, b3, b4, b6]	6 kg CO2 eq.
Carbon footprint of the end-of-life phase [c1 to c4]	0.246358611
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Removable battery	N/A
Total lifecycle carbon footprint	6.955051258
Average percentage of recycled metal content	0 %
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
